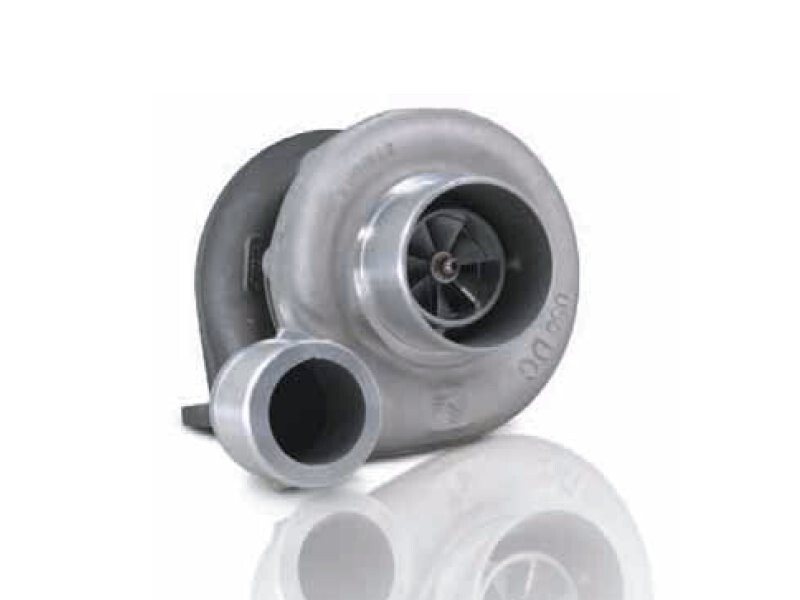

BorgWarner AirWerks S300SX3 Turbo - 91/80
BW part number 177284 aka S366SX3
Genuine BorgWarner AirWerks turbocharger
Note: Currently, some compressor housings come without a logo! This is not a difference in quality! All components come directly from BW USA from the factory.
AirWerks S366SX3 turbochargers from BorgWarner Turbo Systems are dedicated aftermarket turbos for the performance sector. Proven line-produced parts (mostly from Schwitzer Turbo) are being combined to deliver high end tuning and motorsports performance while maintaining an ideal price/performance ratio.
performance rating: 320 - 800 HP
compressor housing: intake 101mm / pressure side 76mm (parallel zur intake)
compressor wheel: inducer 66,11mm / exducer 91,44mm
turbine housing: 0.91 AR / header flange T4 Twin Scroll / turbine outlet BorgWarner V-Band
turbine wheel: inducer 79,76mm / exducer 73,37mm / external wastegate
- dual hydrodynamic journal bearing
- extended tip technology
- Twin Scroll turbine housing (singlescroll housings available)
- adjustable orientation of compressor housing and turbine housing
- compressor housing with anti-surge ports (High-Flow)
Different A/R ratio?
If you order an AirWerks turbocharger and wish to have a different AR turbine housing, you have to order the corresponding turbine housing separately.
- Flange type: T4 divided / TwinScroll
- a/r Value: 0.91ar
- Availability: available in 3-5 days
- Turbocharger: Airwerks S300SX3S300SX3
- Model: external WastegateJournal bearing
