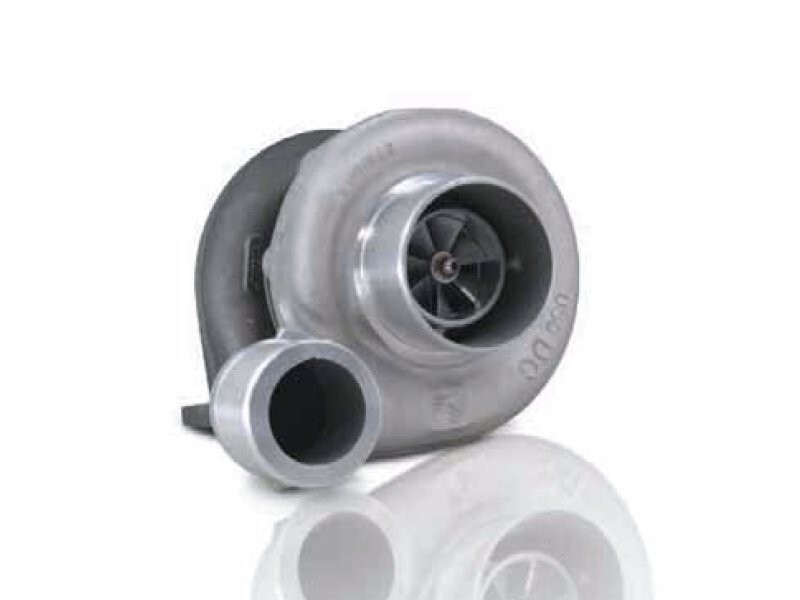

BorgWarner AirWerks S300SX3 Turbo - 60mm 83/76
BW part number 177280 aka S360SX3
Genuine BorgWarner AirWerks turbocharger
Note: Currently, some compressor housings come without a logo! This is not a difference in quality! All components come directly from BW USA from the factory.
AirWerks S360SX3 turbochargers from BorgWarner Turbo Systems are dedicated aftermarket turbos for the performance sector. Proven line-produced parts (mostly from Schwitzer Turbo) are being combined to deliver high end tuning and motorsports performance while maintaining an ideal price/performance ratio.
performance rating: 320 - 800 HP
compressor housing: intake 101mm / pressure side 76mm (parallel zur intake)
compressor wheel: inducer 60,03mm / exducer 83mm (exakter Wert ist 83,47mm)
turbine housing: 0.88 AR / header flange T4 singlescroll / turbine outlet BorgWarner V-Band
turbine wheel: inducer 76,20mm / exducer 67,56mm / external wastegate
- dual hydrodynamic journal bearing
- extended tip technology
- singlescroll turbine housing (twinscroll housings available)
- adjustable orientation of compressor housing and turbine housing
- compressor housing with anti-surge ports (High-Flow)
Different A/R ratio?
If you order an AirWerks turbocharger and wish to have a different AR you have to order the corresponding turbine housing separately.
- Model: external WastegateJournal bearing
- Flange type: T4 undivided / SingleScroll
- Turbocharger: Airwerks S300SX3S300SX3
- a/r Value: 0.88ar
