V-Band Flange (Outlet) G25 / G30 / G35 Turbine Housings
Downpipe Flange for Garrett V-Band Ni-Resist Turbine Housings
V-Band Flange fits for G25-550 / G25-660 / G30-660 / G30-770 / G30-900 / G35-900 / G35-1050 Exhaust Housings

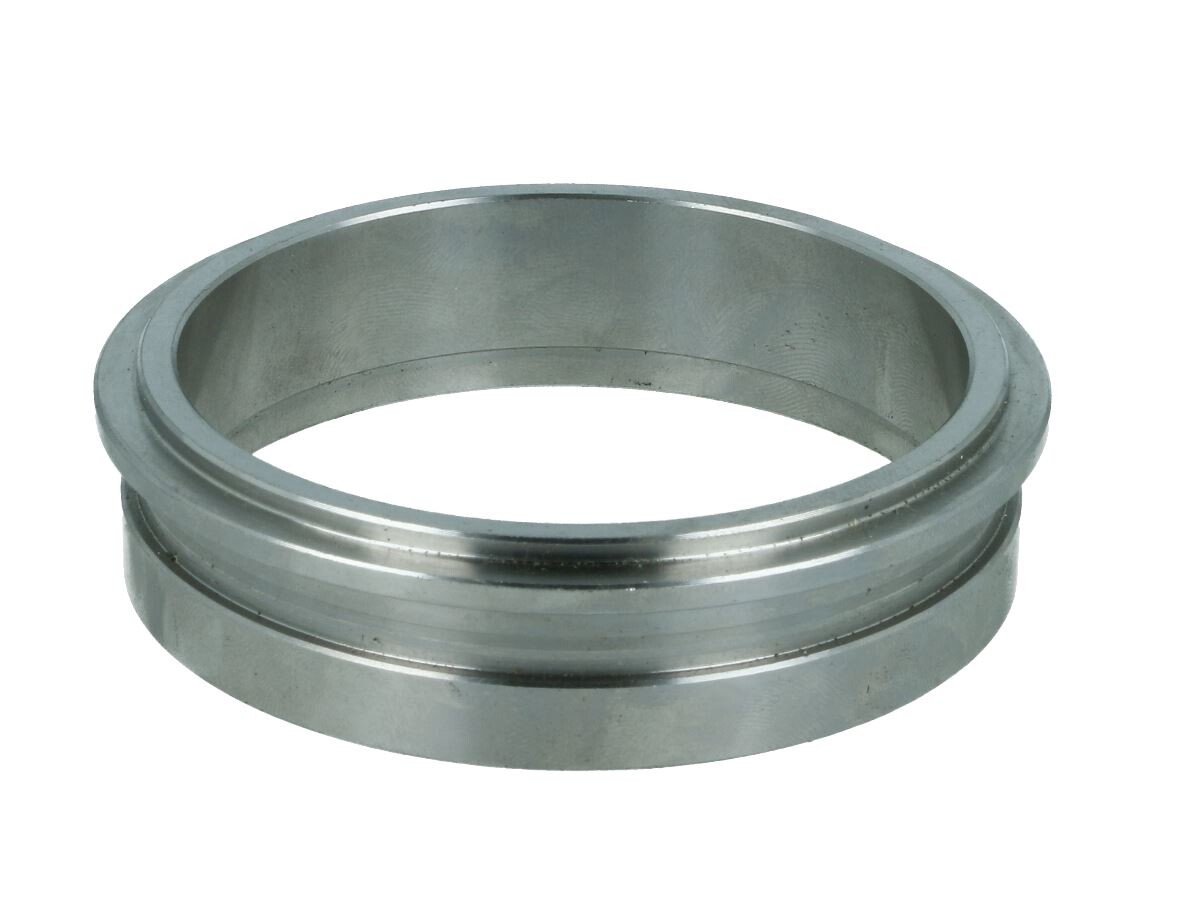

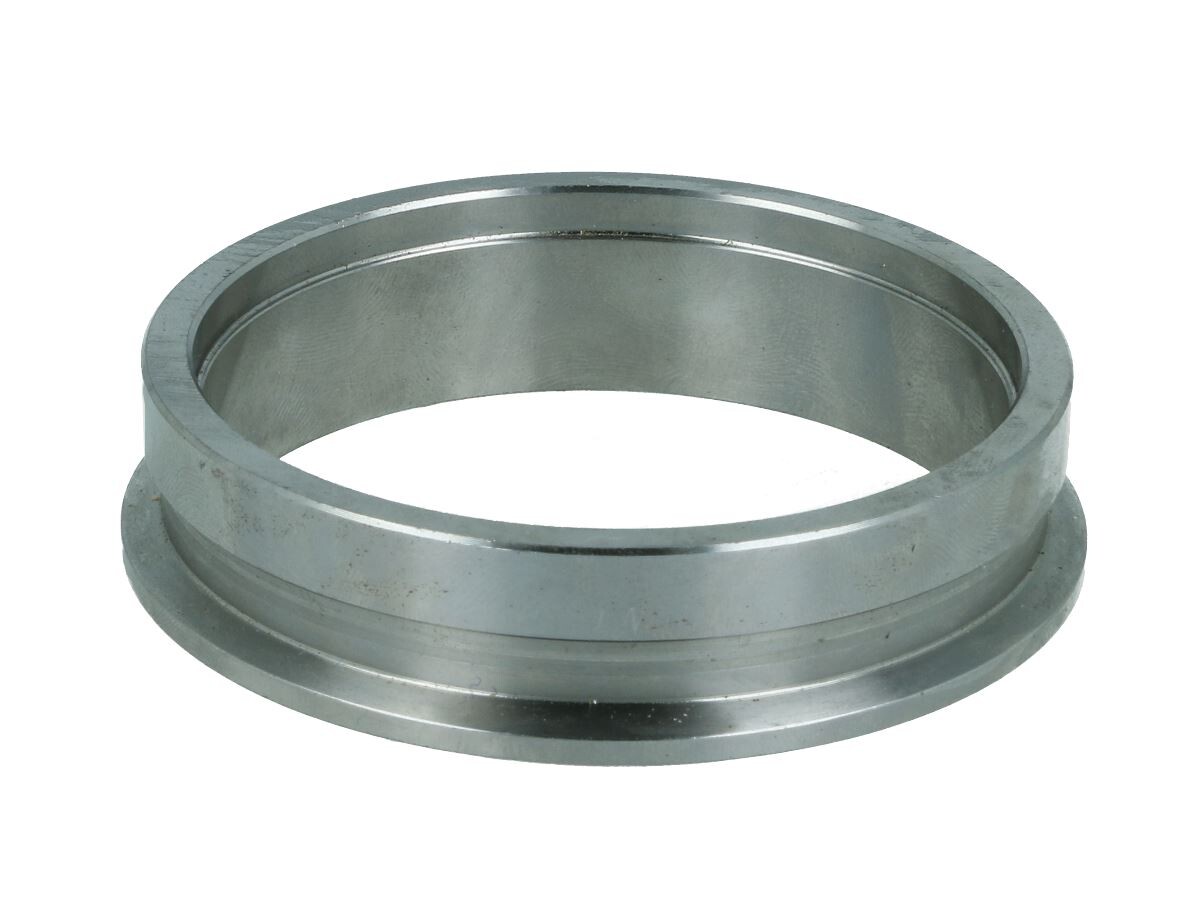

High-quality downpipe V-Band flange (outlet) 76mm (3.0"), fits for Garrett G25-550 / G25-660 / G30-660 / G30-770 / G30-900 / G35-900 / G35-1050 single scroll V-Band tubrine housings. This V-Band ring is required if you like to connect a downpipe with an original Garrett V-Band Ni-resist exhaust housing. The V-Band flange will be welded to the end of the downpipe and then clamped with the turbine housing (see list of housings applications below) using our stainless steel V-Band clamp (446397-0364). This V-Band ring is CNC maschined and very good weldability.
Garrett item number: 774175-0001
Application: Turbine housing outlet to downpipe connection
Material: Steel
Fits fo turbine housings (outlet / downpipe side):
G25-550 740902-0068
G25-550 740902-0069
G25-550 740902-0076
G25-550 740902-0077
G25-550 740902-0073 - Reverse
G25-550 740902-0074 - Reverse
G25-550 740902-0078 - Reverse
G25-550 740902-0079 - Reverse
G25-660 740902-0068
G25-660 740902-0069
G25-660 740902-0076
G25-660 740902-0077
G25-660 740902-0073 - Reverse
G25-660 740902-0074 - Reverse
G25-660 740902-0078 - Reverse
G25-660 740902-0079 - Reverse
G35 740902-0102
G35 740902-0103
G35 740902-0104
G35 740902-0105
G35 740902-0012 - Reverse
G35 740902-0012 - Reverse
G35 740902-0013 - Reverse
G35 740902-0014 - Reverse
Fits for turbocharger (outlet / downpipe side):
G25-550 871389-5002S
G25-550 871389-5003S
G25-550 871389-5004S
G25-550 871389-5005S
G25-550 871390-5002S - Reverse
G25-550 871390-5003S - Reverse
G25-550 871390-5004S - Reverse
G25-550 871390-5005S - Reverse
G25-660 871389-5008S
G25-660 871389-5009S
G25-660 871389-5010S
G25-660 871389-5011S
G25-660 871390-5008S - Reverse
G25-660 871390-5009S - Reverse
G25-660 871390-5010S - Reverse
G25-660 871390-5011S - Reverse
G30-660 880697-5001S
G30-660 880697-5002S
G30-770 880697-5008S
G30-770 880697-5009S
G30-660 880698-5001S - Reverse
G30-660 880698-5002S - Reverse
G30-770 880698-5007S - Reverse
G30-770 880698-5008S - Reverse
G30-900 880697-5015S
G30-900 880697-5016S
G30-900 880697-5017S
G30-900 880697-5018S
G30-900 880698-5013S - Reverse
G30-900 880698-5014S - Reverse
G30-900 880698-5015S - Reverse
G30-900 880698-5016S - Reverse
G35-900 880700-5001S
G35-900 880700-5002S
G35-900 880700-5003S
G35-900 880700-5004S
G35-900 880701-5001S - Reverse
G35-900 880701-5002S - Reverse
G35-900 880701-5003S - Reverse
G35-900 880701-5004S - Reverse
G35-1050 880700-5008S
G35-1050 880700-5009S
G35-1050 880700-5010S
G35-1050 880700-50011S
G35-1050 880700-5007S - Reverse
G35-1050 880700-5008S - Reverse
G35-1050 880700-5009S - Reverse
G35-1050 880700-5010S - Reverse
- Model: single flange
- Usage: Turbocharger to Downpipe
- Flange type: V-Band
- Product Type: V-Band
- Turbocharger: G35-900G35-1050G25-550G25-660G30-770
