Clamp (inlet) V-Band turbine housings G25 / G30

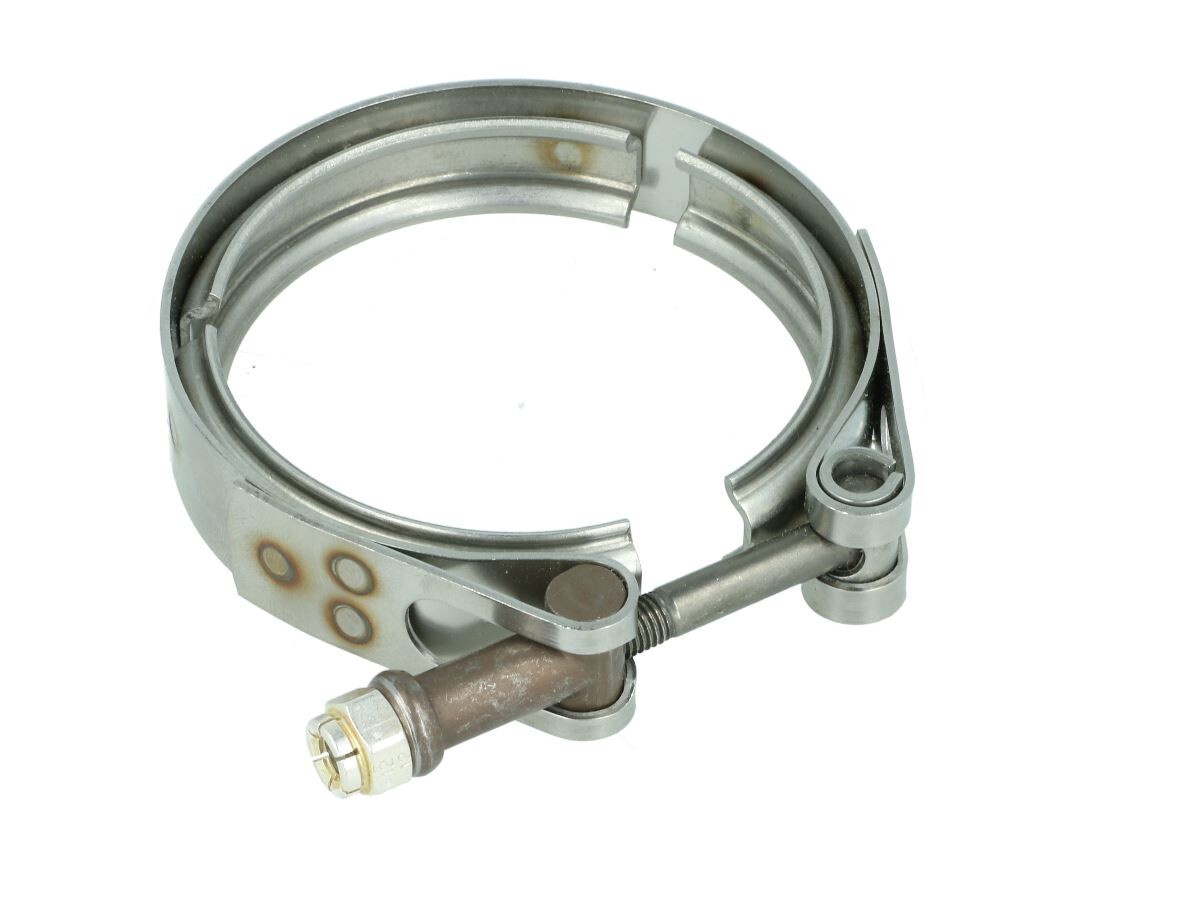

Stainless steel V-Band clamp for Ni-resist V-Band turbine housings (Inlet)
Fits for the inlet for Garrett G25 and G30 V-Band exhaust housings
Stainless steel V-Band clamp, fits for the inlet (manifold side) of the Garrett Ni-resist singlescroll V-Band turbine housings (see list below) with our stainless steel V-Band flange (3506283505). Fits for the inlet of G25-550 / G25-660 / G30-660 / G30-770 / G30-900 single scroll V-Band exhaust housings.
Application: Inlet of the V-Band turbine housing
Material: Stainless steel
Comparable to Garrett item number: 826466-0001
Fits for the turbine housings (inlet / manifolde side):
G25-550 740902-0068
G25-550 740902-0069
G25-550 740902-0076
G25-550 740902-0077
G25-550 740902-0073 - Reverse
G25-550 740902-0074 - Reverse
G25-550 740902-0078 - Reverse
G25-550 740902-0079 - Reverse
G25-660 740902-0068
G25-660 740902-0069
G25-660 740902-0076
G25-660 740902-0077
G25-660 740902-0073 - Reverse
G25-660 740902-0074 - Reverse
G25-660 740902-0078 - Reverse
G25-660 740902-0079 - Reverse
Fits for complete turbocharger (inlet / manifold side):
G25-550 871389-5002S
G25-550 871389-5003S
G25-550 871389-5004S
G25-550 871389-5005S
G25-550 871390-5002S - Reverse
G25-550 871390-5003S - Reverse
G25-550 871390-5004S - Reverse
G25-550 871390-5005S - Reverse
G25-660 871389-5008S
G25-660 871389-5009S
G25-660 871389-5010S
G25-660 871389-5011S
G25-660 871390-5008S - Reverse
G25-660 871390-5009S - Reverse
G25-660 871390-5010S - Reverse
G25-660 871390-5011S - Reverse
G30-660 880697-5001S
G30-660 880697-5002S
G30-660 880697-5003S
G30-660 880697-5004S
G30-660 880698-5001S - Reverse
G30-660 880698-5002S - Reverse
G30-660 880698-5003S - Reverse
G30-660 880698-5004S - Reverse
G30-770 880697-5008S
G30-770 880697-5009S
G30-770 880697-5010S
G30-770 880697-5011S
G30-770 880698-5007S - Reverse
G30-770 880698-5008S - Reverse
G30-770 880698-5009S - Reverse
G30-770 880698-5010S - Reverse
G30-900 880697-5015S
G30-900 880697-5016S
G30-900 880697-5017S
G30-900 880697-5018S
G30-900 880698-5013S - Reverse
G30-900 880698-5014S - Reverse
G30-900 880698-5015S - Reverse
G30-900 880698-5016S - Reverse
