Flange (Outlet) GTX29 / GTX30 / GTX35 Turbine Housings
Downpipe Flange for Garrett V-Band Ni-Resist Turbine Housings
V-Band Flange fits for Garrett GTX29 / GEN II GTX30 / GEN II GTX35 Exhaust Housings

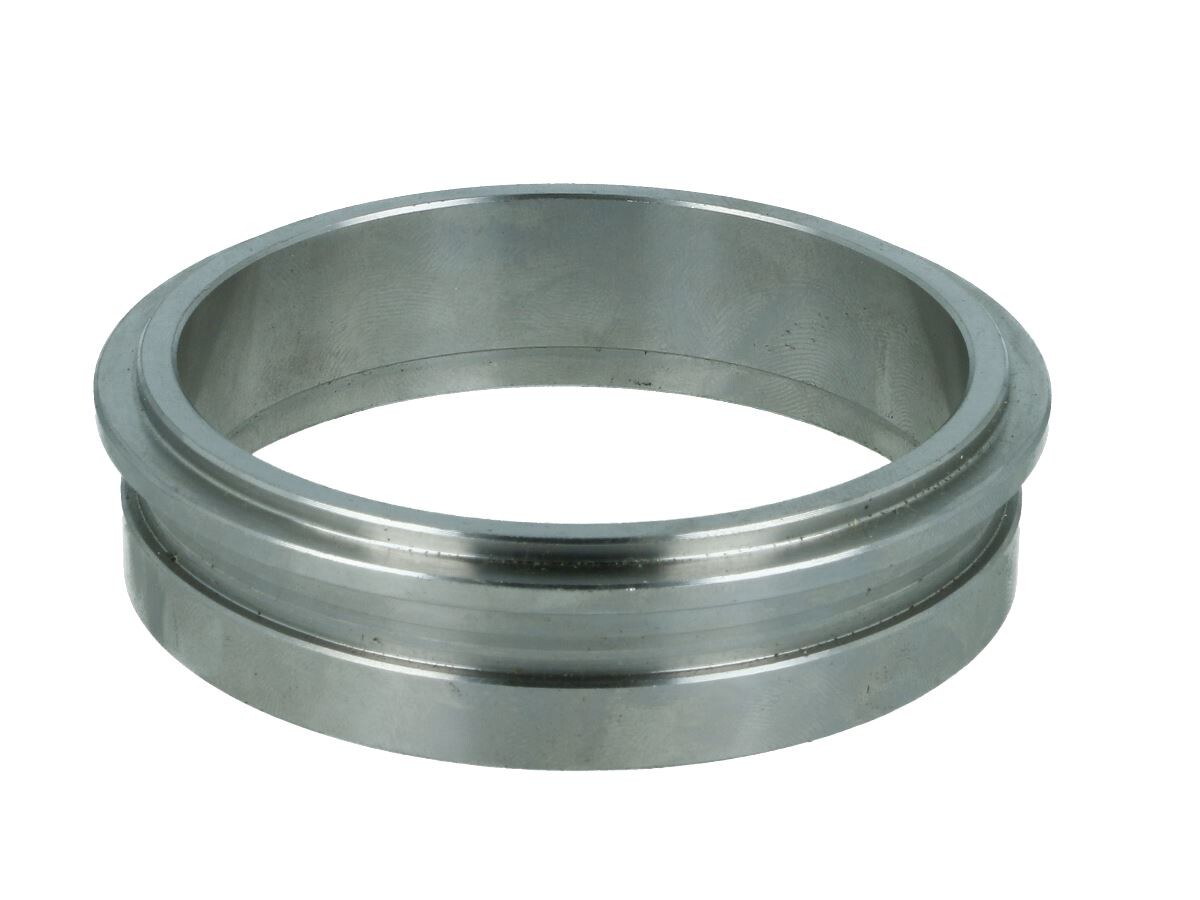

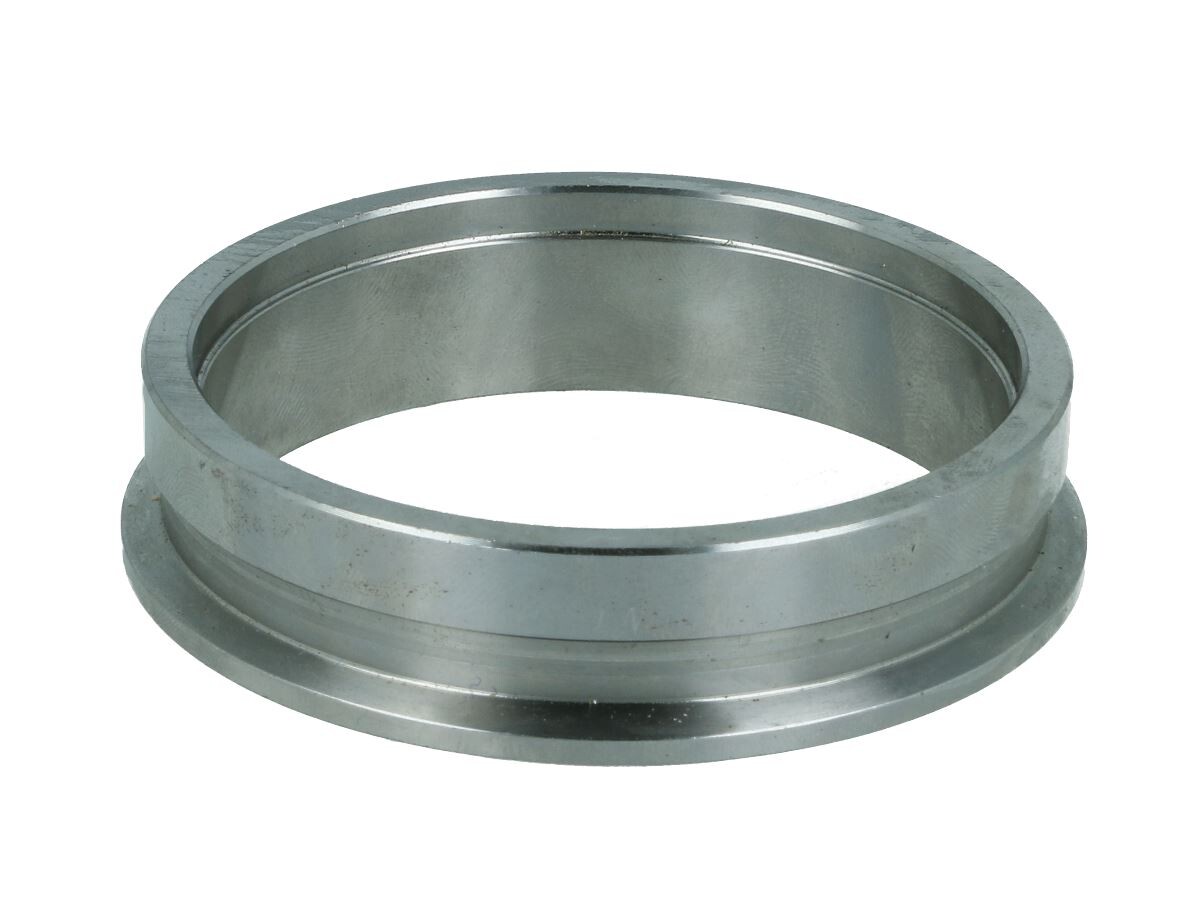

High-quality downpipe V-Band flange (outlet) 76mm (3.0"), fits for Garrett GTX29 up to GTX35 single scroll V-Band tubrine housings and also GT3788R. This V-Band ring is required if you like to connect a downpipe with an original Garrett V-Band Ni-resist exhaust housing. The V-Band flange will be welded to the end of the downpipe and then clamped with the turbine housing (see list of housings applications below) using our stainless steel V-Band clamp (446397-0364). This V-Band ring is CNC maschined and very good weldability.
Garrett item number: 774175-0001
Application: Turbine housing outlet to downpipe connection
Material: Steel
Fits fo turbine housings (outlet / downpipe side):
GTX2967R (740902-0046)
GTX2967R (740902-0047)
GTX2967R (740902-0048)
GTX2967R (740902-0049)
GTX2967R (740902-0050)
GTX2967R (740902-0051)
GTX3071R GEN II (740902-0034)
GTX3071R GEN II (740902-0035)
GTX3071R GEN II (740902-0036)
GTX3071R GEN II (740902-0053) - Reverse
GTX3071R GEN II (740902-0054) - Reverse
GTX3071R GEN II (740902-0055) - Reverse
GTX3076R GEN II (740902-0034)
GTX3076R GEN II (740902-0035)
GTX3076R GEN II (740902-0036)
GTX3076R GEN II (740902-0053) - Reverse
GTX3076R GEN II (740902-0054) - Reverse
GTX3076R GEN II (740902-0055) - Reverse
GTX3576R GEN II (740902-0031)
GTX3576R GEN II (740902-0032)
GTX3576R GEN II (740902-0033)
GTX3576R GEN II (740902-0056) - Reverse
GTX3576R GEN II (740902-0057) - Reverse
GTX3576R GEN II (740902-0058) - Reverse
Fits for turbocharger (outlet / downpipe side):
GTX3071R GEN II (856801-5018S)
GTX3071R GEN II (856801-5017S)
GTX3071R GEN II (856801-5016S)
GTX3071R GEN II (856802-5001S) - Reverse
GTX3071R GEN II (856802-5002S) - Reverse
GTX3071R GEN II (856802-5003S) - Reverse
GTX3076R GEN II (856801-5037S)
GTX3076R GEN II (856801-5038S)
GTX3076R GEN II (856801-5039S)
GTX3076R GEN II (856802-5004S) - Reverse
GTX3076R GEN II (856802-5005S) - Reverse
GTX3076R GEN II (856802-5006S) - Reverse
GTX3576R GEN II (856801-5058S)
GTX3576R GEN II (856801-5059S)
GTX3576R GEN II (856801-5060S)
GTX3576R GEN II (856803-5001S) - Reverse
GTX3576R GEN II (856803-5002S) - Reverse
GTX3576R GEN II (856803-5003S) - Reverse
GTX3582R GEN II (856801-5079S)
GTX3582R GEN II (856801-5080S)
GTX3582R GEN II (856801-5081S)
GTX3582R GEN II (856803-5004S) - Reverse
GTX3582R GEN II (856803-5005S) - Reverse
GTX3582R GEN II (856803-5006S) - Reverse
GTX3584RS GEN II (856804-5001S)
GTX3584RS GEN II (856804-5002S)
GTX3584RS GEN II (856804-5003S)
GTX3584RS GEN II (856804-5004S)
GTX3584RS GEN II (856804-5005S)
GTX3584RS GEN II (856804-5006S)
