Link ECU WRXLink V11 - WRX11X Plug-In ECU Subaru WRX & Sti V11

Plug-In ECU Subaru WRX & Sti V11

Link Plug and Play ECUs, easy to install, affordable, reliable

Plug-In ECUs are a complete replacement for standard engine control units that do not require new wiring. They come with a vehicle-specific base configuration. All Link Plug-In ECUs use the same powerful microcontroller and firmware as the XtremeX. The G4X PlugIn ECUs offer the latest technology in engine management and are designed to unlock the full potential of your vehicle. This ECU fits the factory OEM mounting location. Installation is a breeze as no changes to the original wiring harness are required for the models listed below.

This product supports the following models:

• 2007-2014 WRX and WRX STI with GR/GV/GH/GE body codes for JDM/AUDM/SADM/EURO markets with turbocharged EJ20 or EJ25 engines
• 2008-2010 USDM models with the common international Denso ECU pinout**
• 2015-2021 WRX STI with VAB/VAF body codes for JDM/AUDM/SADM/EURO markets with turbocharged EJ20 or EJ25 engines

**Note: See the "Supported Models" document for more details.
USDM models from 2011 are supported by our WRX11 USDM ECU.

Check our list of supported models to find out which models are supported and which are not.
Alternatively, you can contact your LinkECU dealer or our 24/6 tech support team.

Important Notes:

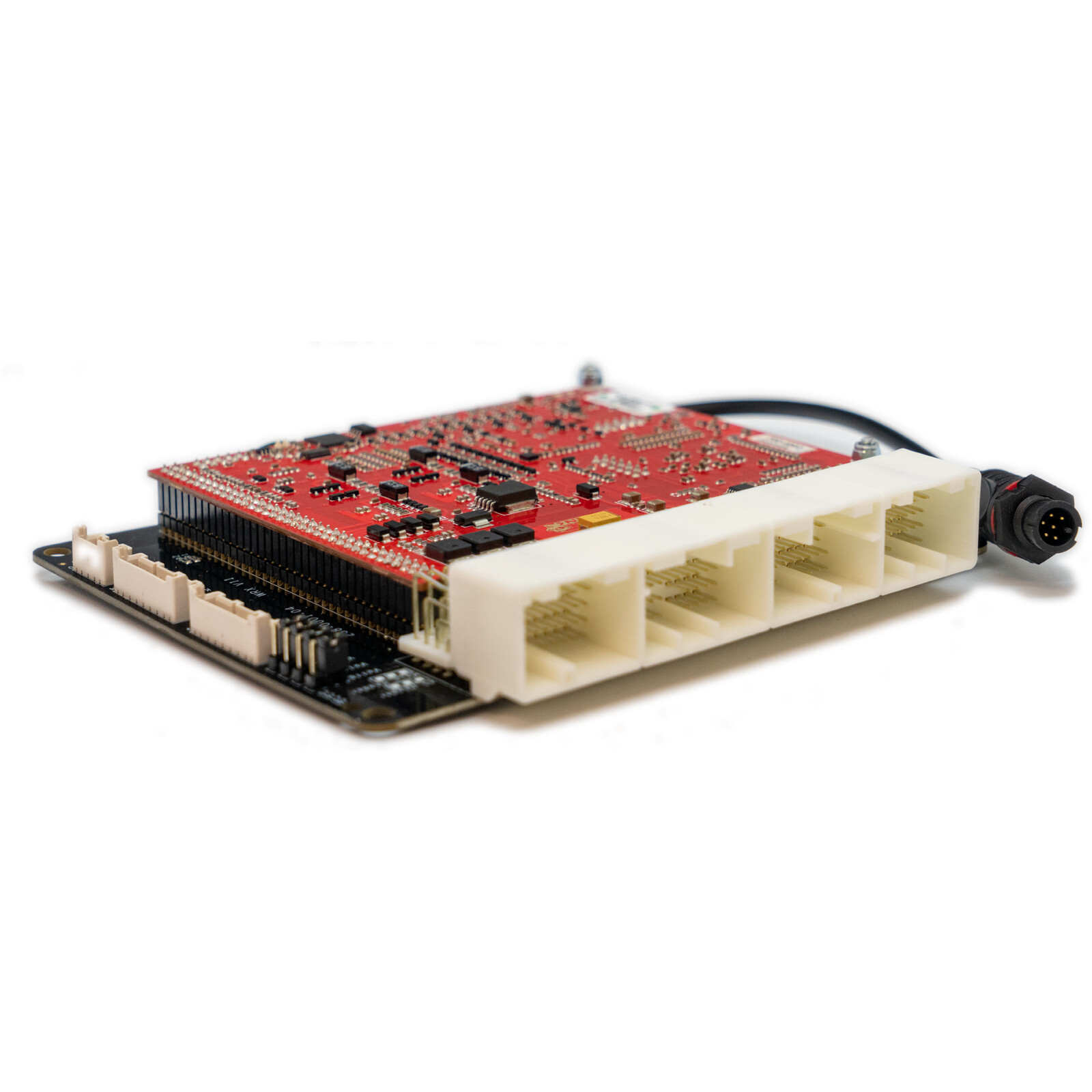

• Please check before purchase if your connector matches the header shown in the product photo
• This control unit is only suitable for vehicles with manual transmission
• An air temperature sensor is highly recommended
• Most factory functions are supported, including DCCD, hill start assist, SI-Drive, cruise control, camshaft adjustment, and ABS
• For more information on I/O input and output extensions, see the "Features" tab
• The security/immobilizer warning light may remain on permanently in some models

Note: This plug-in features a new 4-pin powered CAN connection and is not compatible with the old CANPCB cable. Use the CANJST4 cable (Link part number 101-0198) to connect CAN devices. This new 4-pin connection not only provides the CAN connection but also a protected 12V power supply and ground for operating CAN devices. The power supply is protected by a self-resetting fuse with a 3A continuous current load.

G4X PlugIn offers the following features (if applicable)

• Up to 6D fuel and ignition maps
• Precise closed-loop cam control (four cams, independent control)
• Sequential fuel injection
• Digital triggering, all OEM patterns supported
• OEM idle hardware supported
• 5D boost control with three switchable tables
• Motorsport features - antilag, launch control, flat-shift
• Continuous barometric correction (on-board)
• CAN connection
• QuickTune - automatic fuel tuning
• Individual cylinder correction
• USB tuning cable included
• Statistics recording in internal memory
• Gear-based adjustments for ignition, boost, and fuel
• Real-time switchable dual fuel, ignition, and boost maps
• Synchronization and crank sensors can be a combination of Hall effect, variable reluctance, or optical
• Boost control based on gear, speed, or throttle position
• 512 megabytes of data logging memory
• Staged injection
• Knock control with "windowing" technology

I/O Options:
The following inputs/outputs are available on Expansion Connector 1:
Expansion Connector 1:

• Pin 1 - Aux 16 - AUX output
• Pin 2 - DI 11 - Digital input
• Pin 3 - An Temp 4 - Temperature sensor input
• Pin 4 - Knock 2 - Knock sensor 2 input
• Pin 5 - Injector 6 - Injector 6

*Please refer to the PC Link help file for more information on installing the expansion cable.
