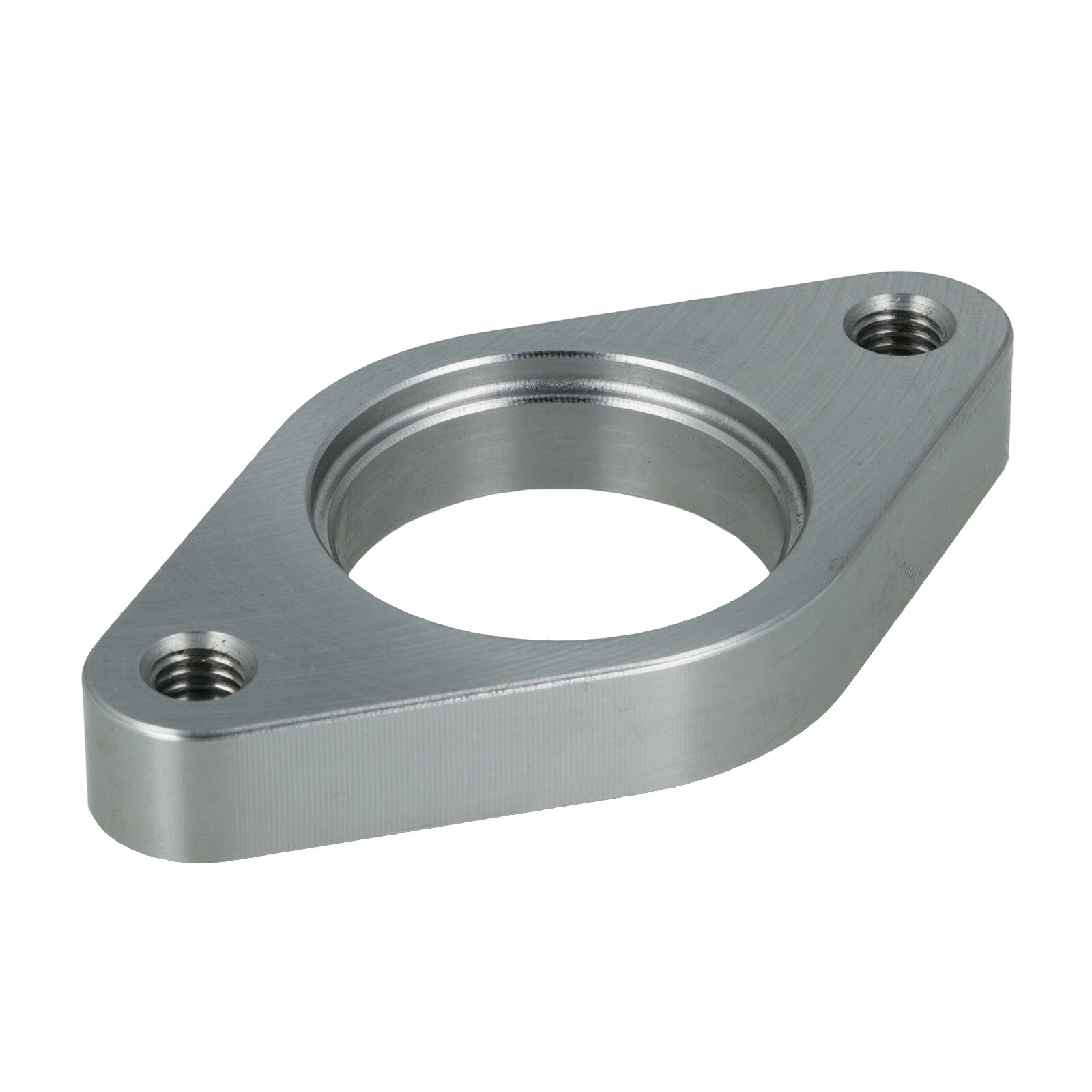

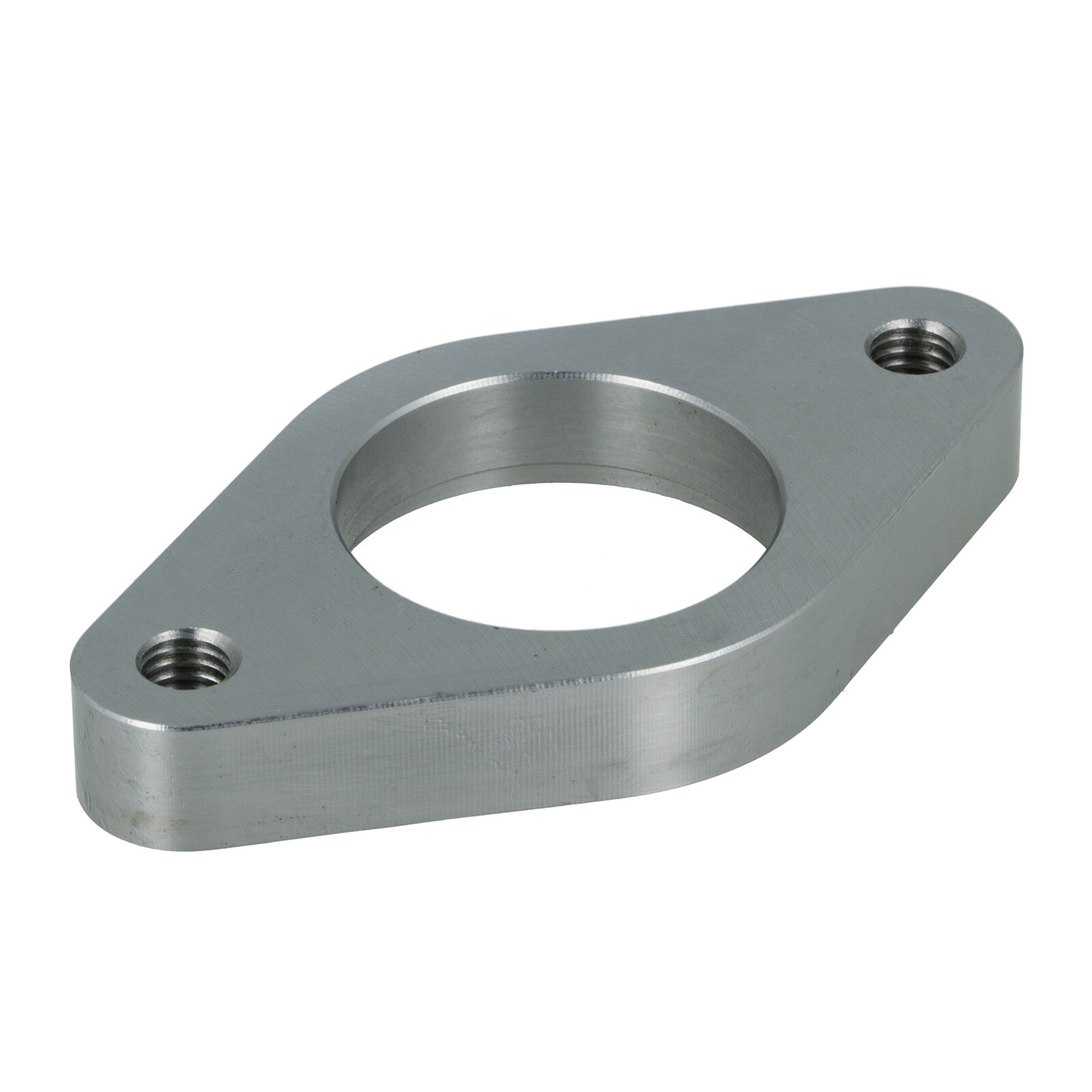

TiAL Flange F38 inlet steel
Flange for the TiAL F38 / 38mm Wastegate
Steel flange for the wastegate inlet with thread
High-quality steel flange for the TiAL F38 Wastegate. This flange has no holes, but threads. This makes it suitable for the inlet side to produce the manifold.
Material: Steel
Material thickness: 10mm
Total dimensions: 89mm x 50mm
Dimensions cutout: 35mm (inside diameter of a 38mm pipe)
Hole spacing: 71mm (diagonal)
Thread size: M8 Thread
Extras / Special features: M8 thread
For / Fits:
Input TiAL F38 resp. 38mm resp. 38/40mm
Synapse Synchronic input 40mm WG001
Features
- Wastegate: TiAL F38Synpase 40mm
- Availability: available today
