TiAL flange outlet F38 steel
Flange for the TiAL F38 / 38mm Wastegate
Steel flange for the wastegate outlet without thread

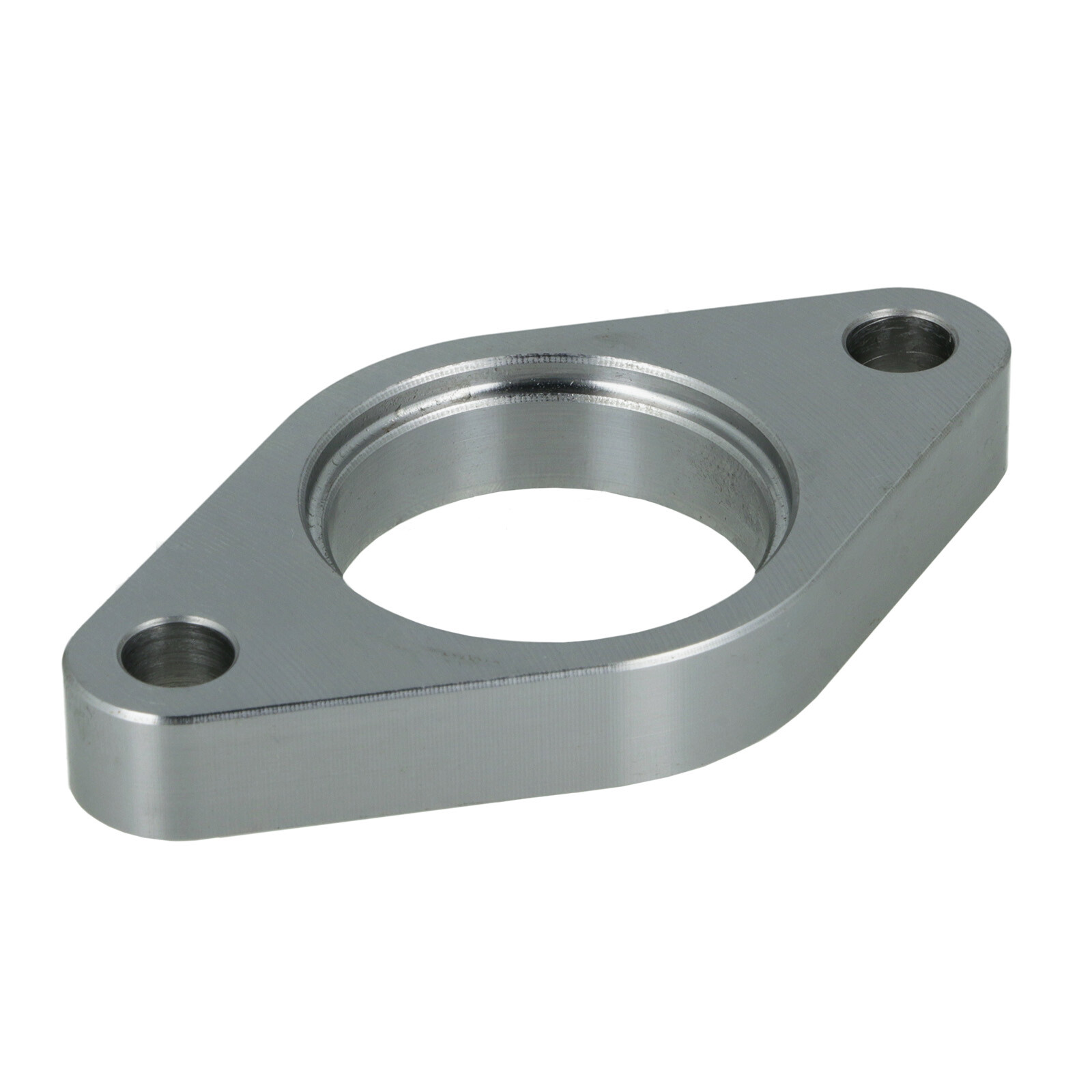

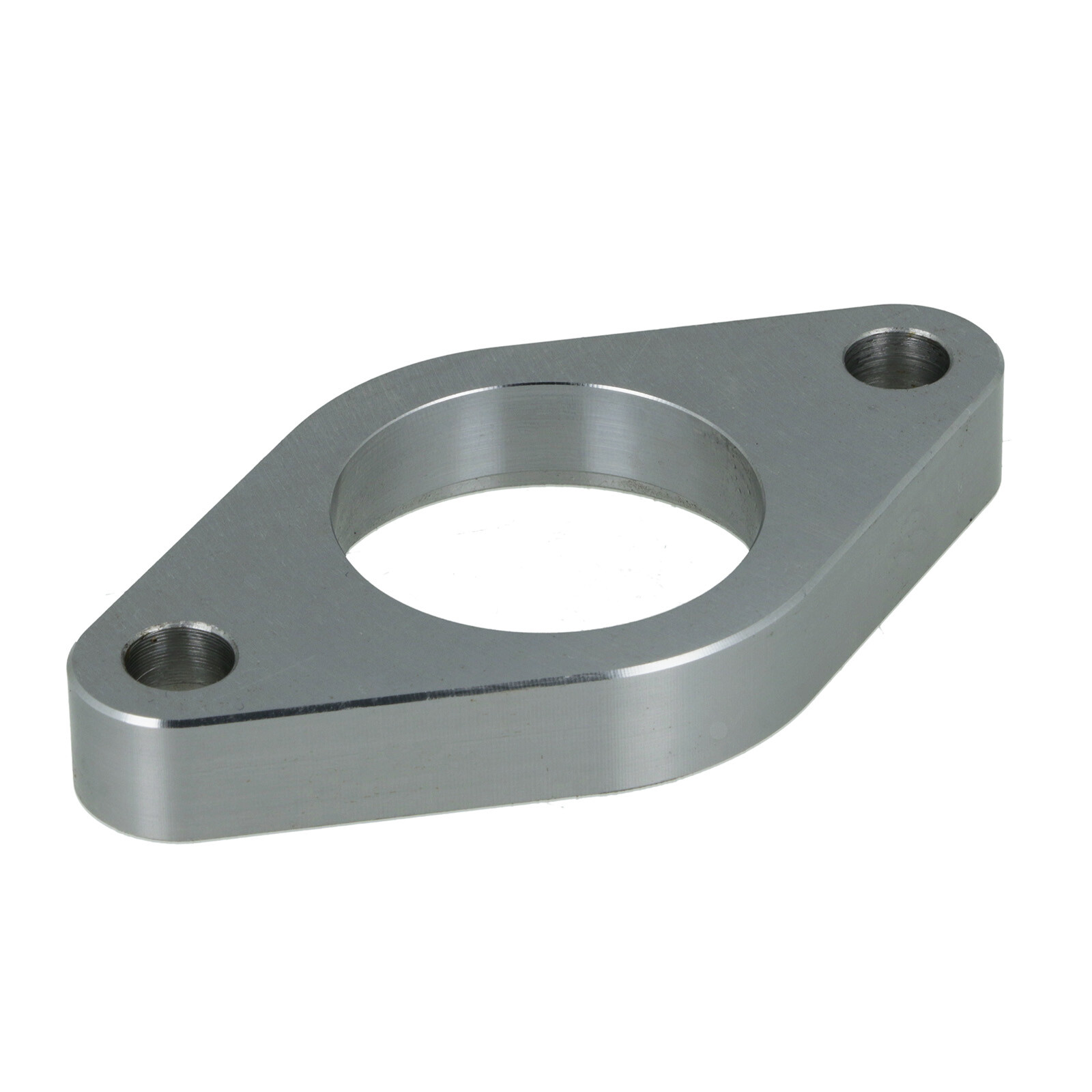

High-quality steel flange for the TiAL F38 Wastegate. This flange has no threaded holes, but holes. Thus it is suitable for the outlet side for the return from the wastegate to the downpipe.
Material thickness: 10mm
Total dimensions: 89mm x 50mm
Dimensions cutout: 35mm (inside diameter of a 38mm pipe)
Hole spacing: 71mm (diagonal)
Thread size: For M8
Extras / Features: No threads. Holes 8mm.
For / Fits:
Output TiAL F38 resp. 38mm resp. 38/40mm
Synapse Synchronic output 40mm WG001
