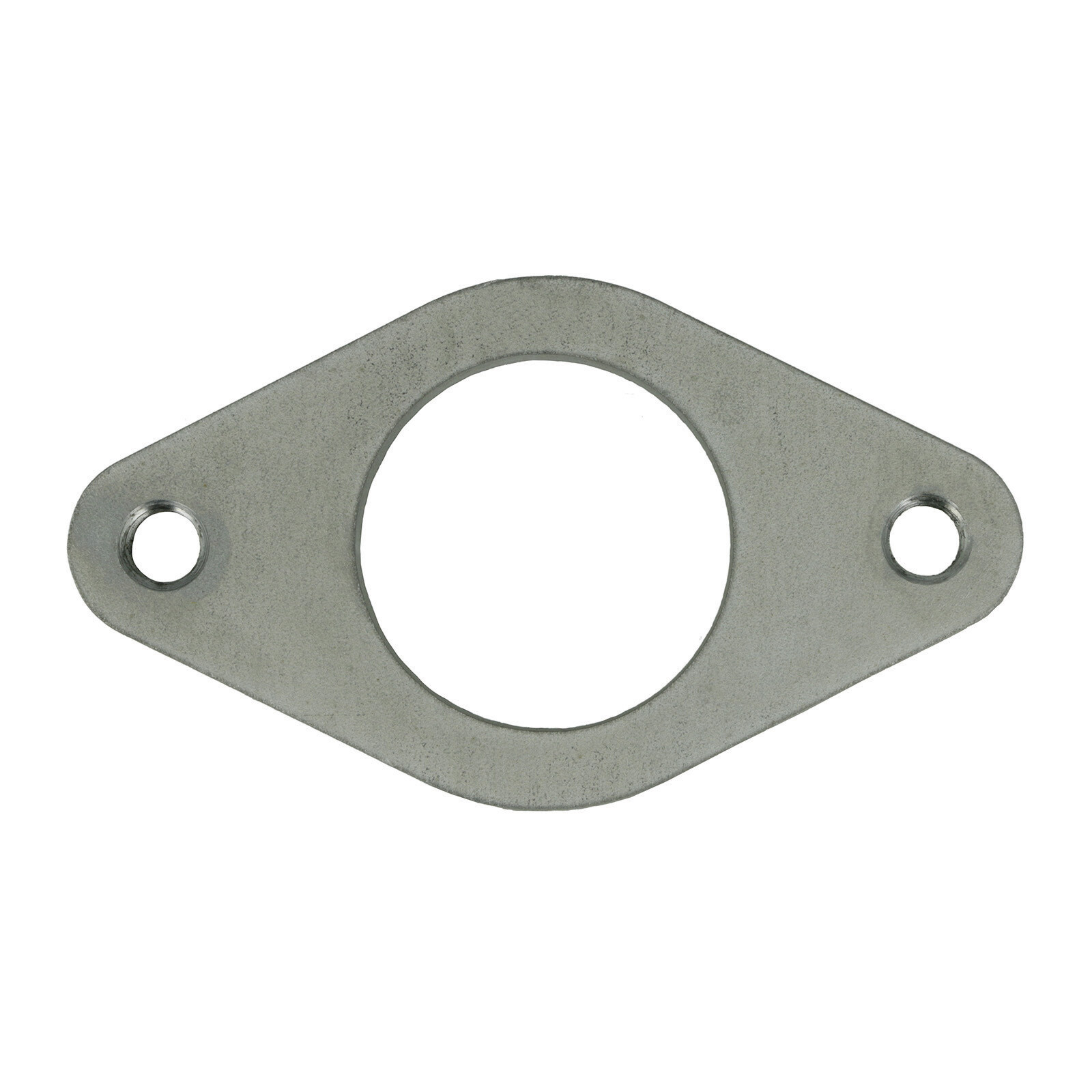

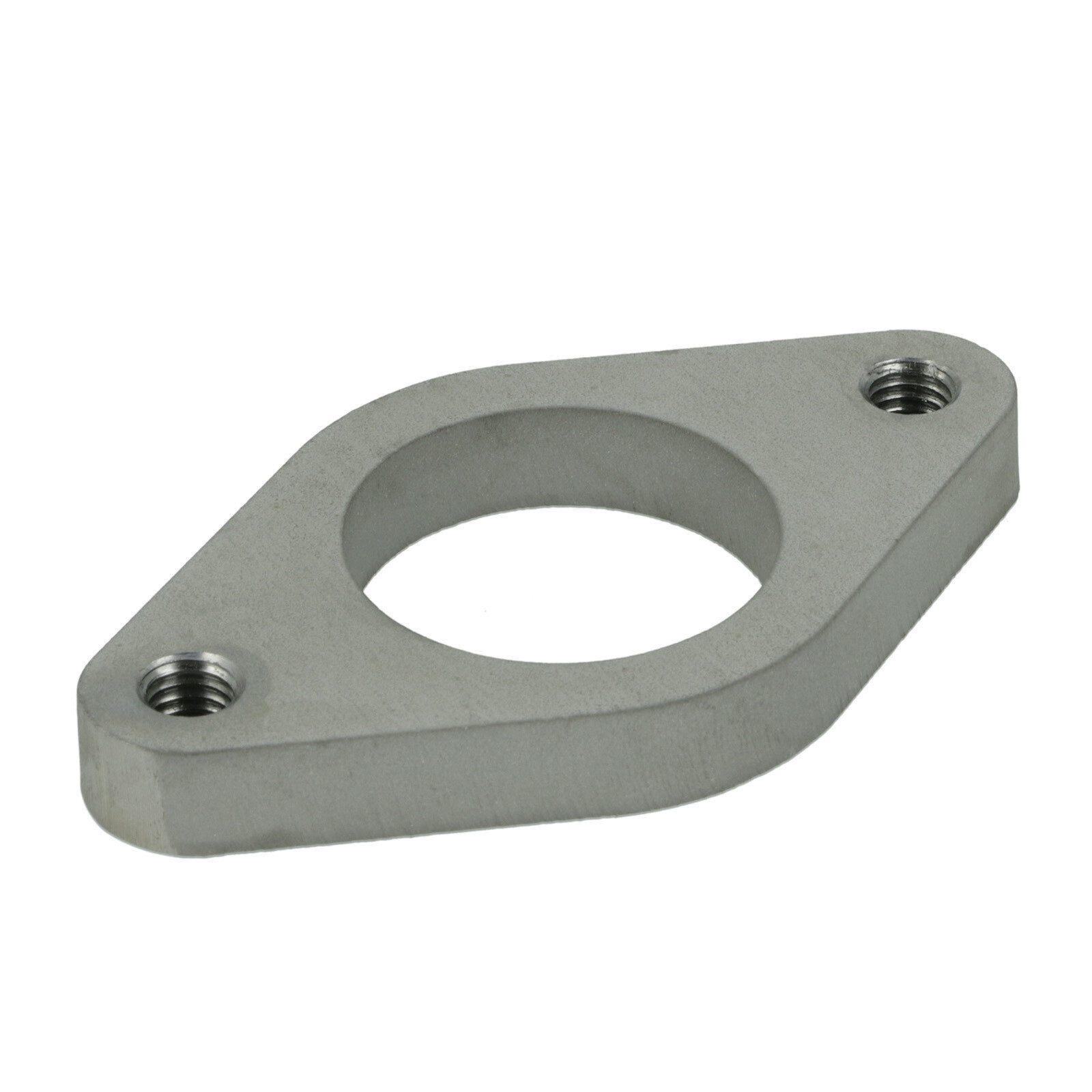

TiAL flange F38 inlet stainless steel
Flange for the TiAL F38 / 38mm Wastegate
Stainless steel flange for the wastegate inlet with thread
High-quality stainless steel flange for the TiAL F38 Wastegate. This flange has no holes, but threads. This makes it suitable for the inlet side to produce the manifold.
Material: Stainless steel 1.4301 / V2A / SS304
Material thickness: 10mm
Total dimensions: 89mm x 50mm
Dimensions cutout: 35mm (inside diameter of a 38mm pipe)
Hole spacing: 89mm (diagonal)
Thread size: M8 Thread
Extras / Special features: M8 thread
For / Fits:
Input TiAL F38 resp. 38mm resp. 38/40mm
Synapse Synchronic input 40mm WG001
- Wastegate: TiAL F38Synpase 40mm
