CANchecked GEN2 MFD15 OBD2 cable set
VW/Audi/Seat/Skoda OBD 2 cable for the CANchecked GEN2 MFD15 OBD2 displays
To display OBD 2 values on the MFD15 GEN 2 CANchecked gauges
Note: This is the CANchecked OBD II cable for all vehicles of the VAG Group (Audi, VW, Seat, Skoda). Here the terminal 15 signal (ignition plus) is already taken internally at the OBD plug, which means that no external power cable is led out! Thus Plug & Play in a few seconds connectable.
With it the installation is done in a few minutes all OBD 2 values can be shown on the display! Also engine error codes can be displayed!
Key Facts:

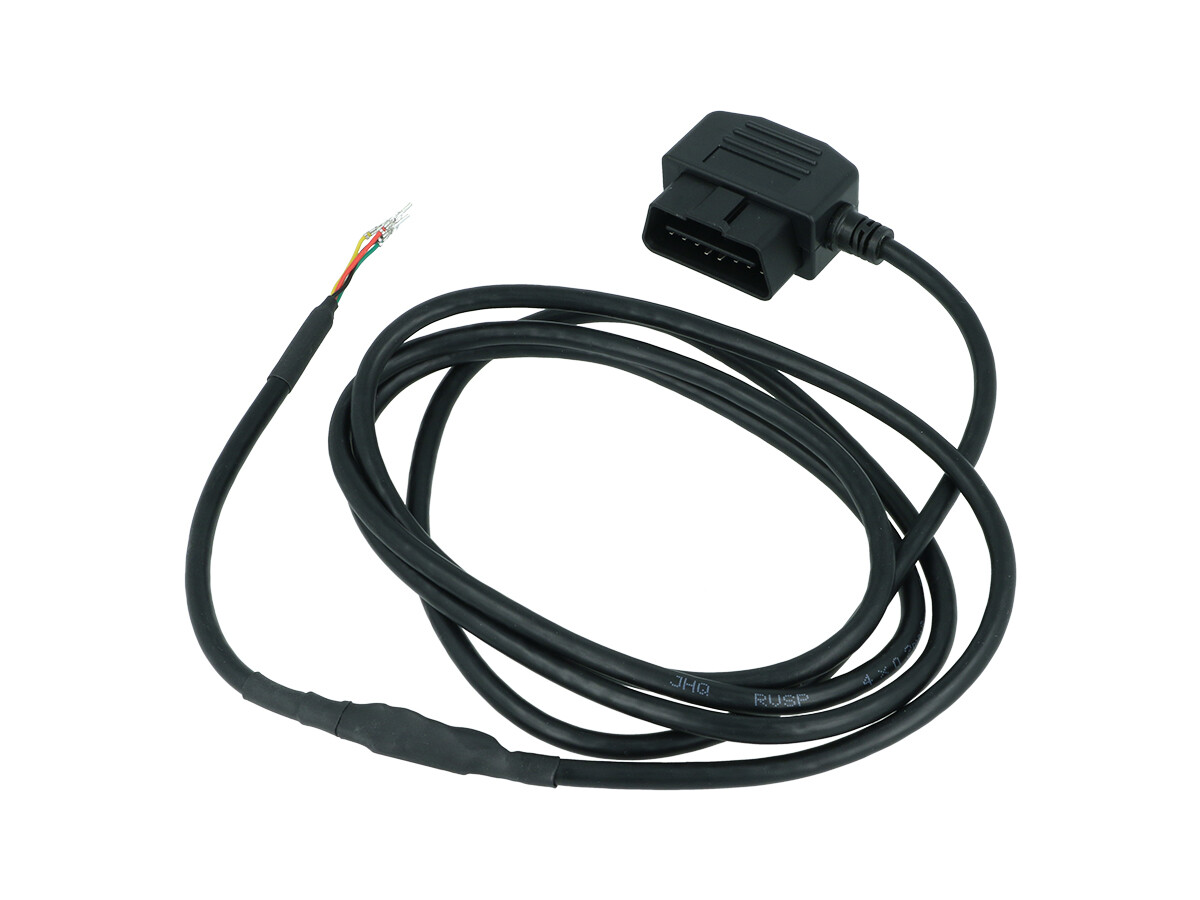

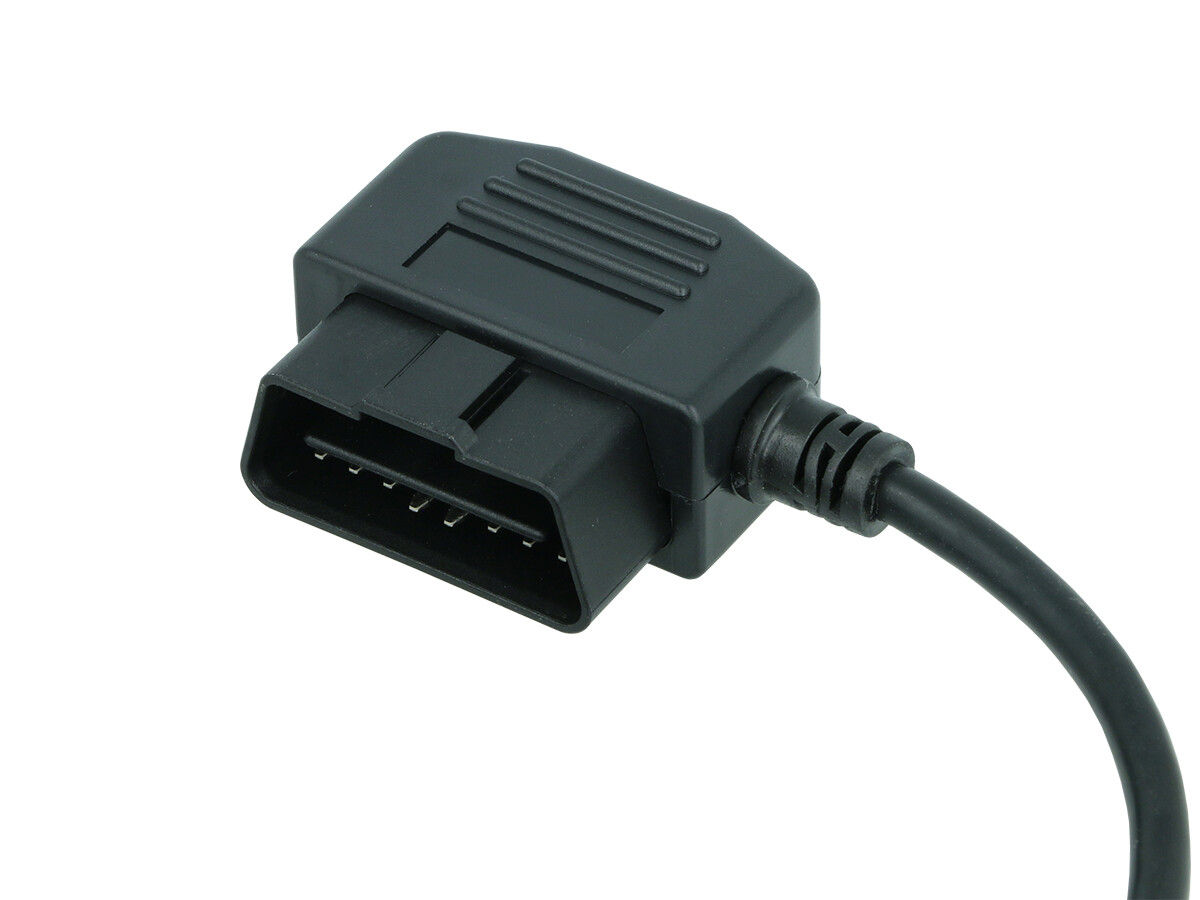

- OBD plug with 2m cable for connection to a CANchecked GEN2 MFD15 OBD2
- The following pins are led from the OBD plug to the display: Positive supply, ground (Pin 4+5), Can High (Pin 6), Can Low (Pin 14)
Supported values:
All OBD 2.0 values that the control unit outputs. Only a maximum of 64 values can be send to the display.
Scope of delivery:
- 2 m OBD 2 cable with connectors
For more information contact us.
