CANchecked OBD2 MFD15 GEN 2 cable set
OBD 2 cable for the CANchecked GEN 2 MFD15 OBD2 displays
To display OBD 2 values on the MFD15 GEN 2 CANchecked gauges
Finally available, the OBD 2 cable for the CANchecked displays! With it the installation is done in a few minutes and all OBD 2 values can be shown on the display! Also engine error codes can be displayed!
Key Facts:

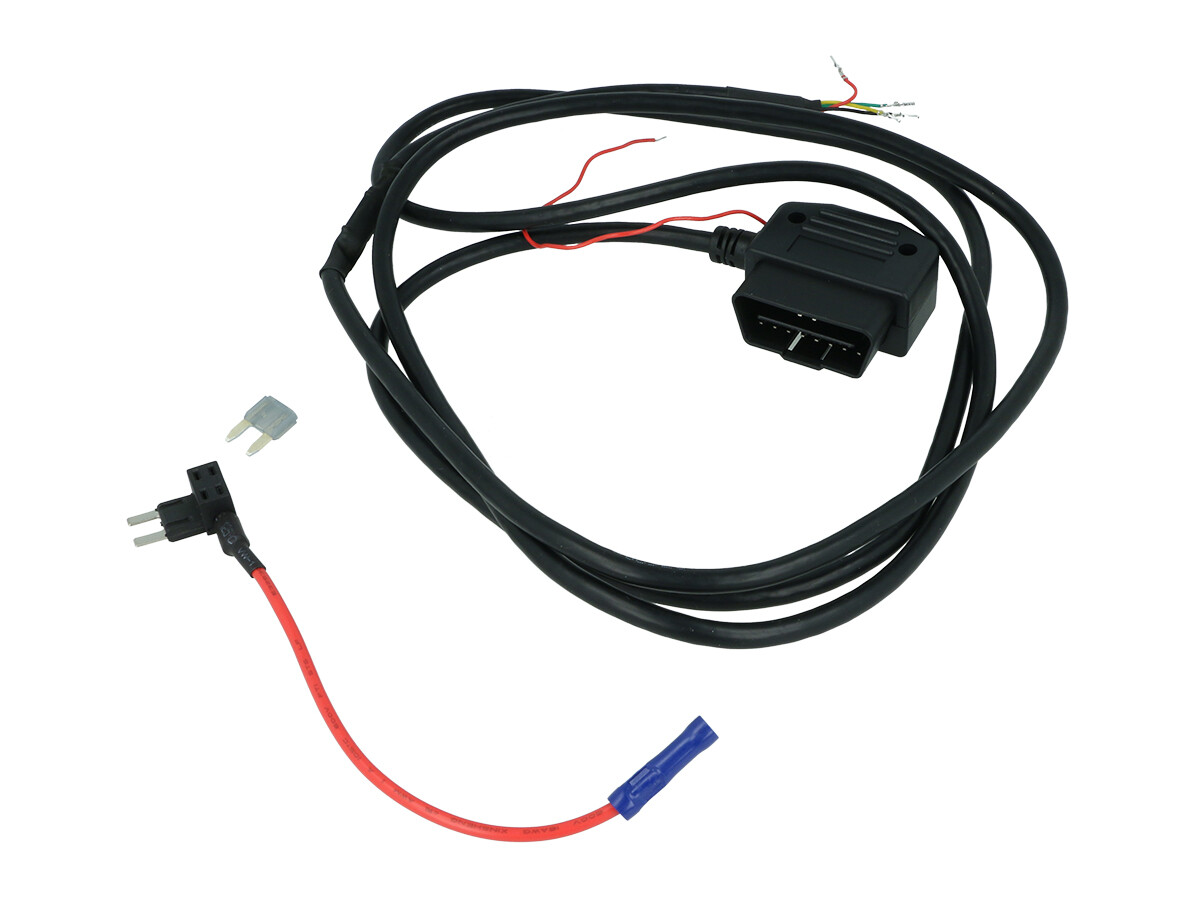

- OBD plug with 2m cable for connection to a CANchecked GEN 2 MFD15 OBD2
- The following pins are led from the OBD plug to the display: Positive supply, ground (Pin 4+5), Can High (Pin 6), Can Low (Pin 14)
- The 12V+ cable is led out separately at the connector (approx. 15cm) and must be connected to a free fuse location on the fuse box. If there is no more free space, a large and a mini-adapter are included in the delivery.
Supported values:
All OBD 2.0 values that the control unit outputs. Only a maximum of 64 values can be fed into the display.
Scope of delivery:
- 2 m OBD 2 cable with connectors
For more information contact us.
- Gauge Value: OBD II
