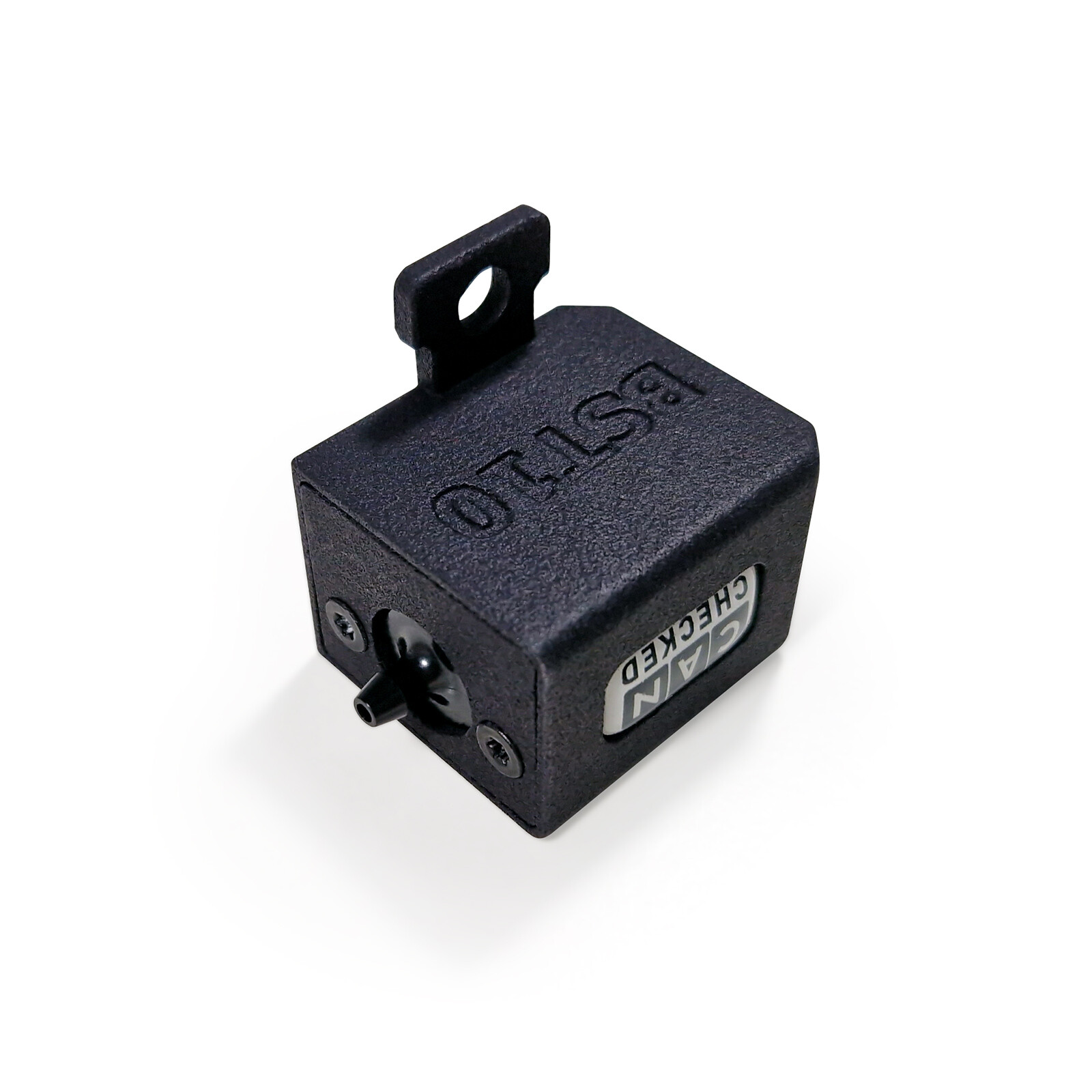

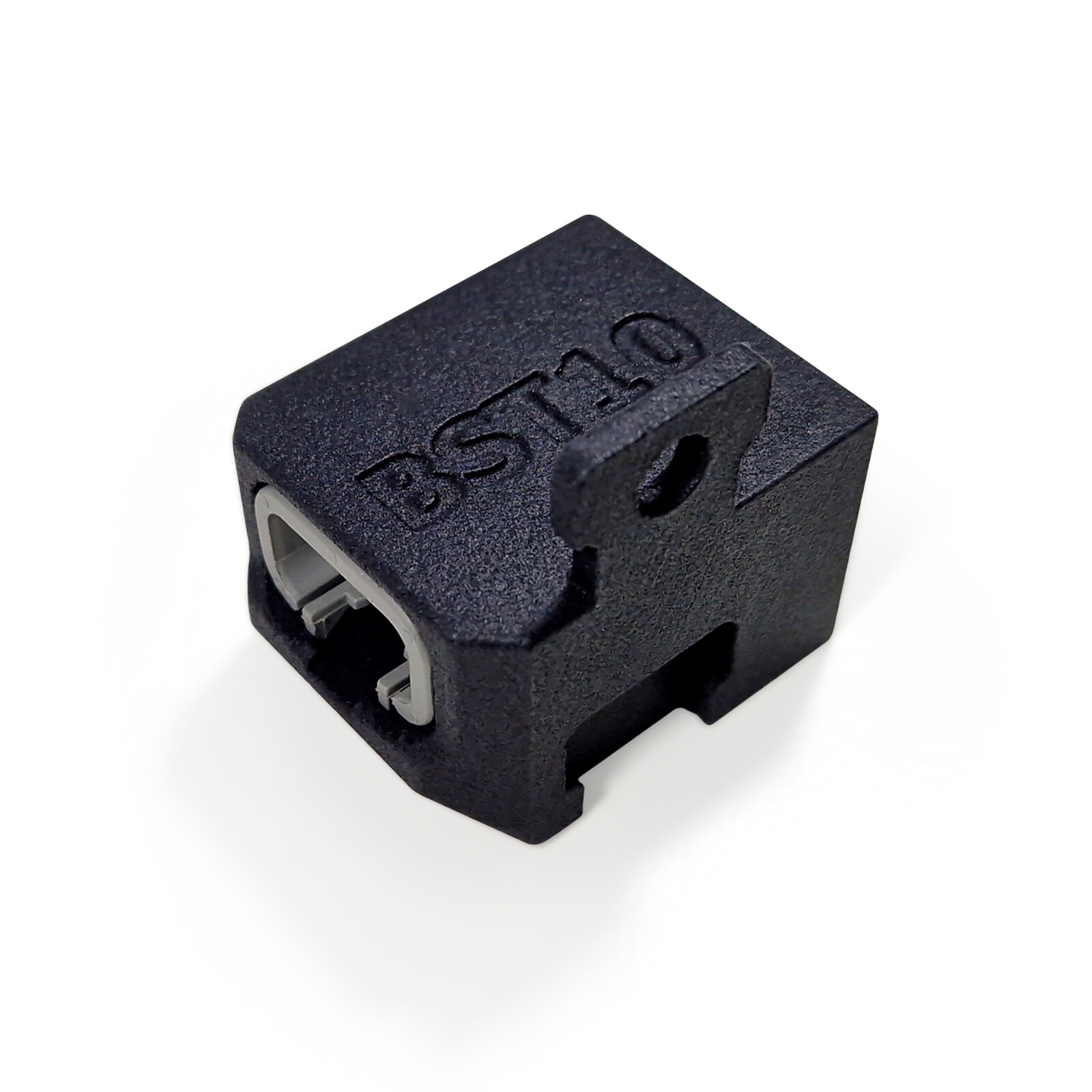

CANchecked BST10 boost pressure sensor 6,5 bar / 95 psi
Electronic boost pressure sensor up to (relative) 6.5 Bar / 95 Psi
Fits for displays, gauges, boost controller, MFD28, MFD32, Zada Tech, standalone ECU's
After great demand we now offer the CANchecked BST10 6,5 Bar boost pressure sensor individually!
Finally available and only at the TurboZentrum, the CANchecked 6,5 Bar / 95 Psi boost pressure sensor! Compatible with all CANchecked displays and numerous other displays and gauges or standalone ECU's! In contrast to other suppliers, this sensor can display boost pressures up to 6.5 Bar / 95 Psi!
Especially convenient: In combination with the ANC04 4-way sensor wiring harness, installation becomes a true plug-and-play experience . No crimping, no complicated wiring – simply insert the pins, connect the cables, and you're ready to go. Thanks to the color-coded cable management, everything remains neat and organized, while the 300 cm cable length allows for flexible installation options.
The BST10 is fully compatible with the CANchecked displays MFD15 , MFD28 and MFD32 as well as freely programmable control units. This allows it to integrate seamlessly into existing systems and deliver precise and reliable measured values.
Key Features of the Boost Controller incl. 6,5 Bar LD-Sensor
- Up to a maximum of 6,5 Bar / 95 Psi
- With plug and connection pins for self crimping
- Works with all displays / gauges / free programmable ECU systems
The following ECUs have already been tested:
- trijekt (Premium, Bee, trigifant)
- Megasquirt 2 and 3
- k-data KDFI
- UMC1/UMC2
- EFIgnition
- Microsquirt
- EcuMaster EMU (classic with Can-Bus adapter: EMU Black)
- AIM generic protocol
- LinkECU
- Haltech v2
- MME ECU481 with Can Bus
- SCS Delta GDI4 and Delta
- VAG (Audi / VW / Seat)
- Van kronenburg KMS MD35 (MP25 with CAN-Bus Adapter)
- VEMS with serial adapter
If your ECU is not listed, please contact us.

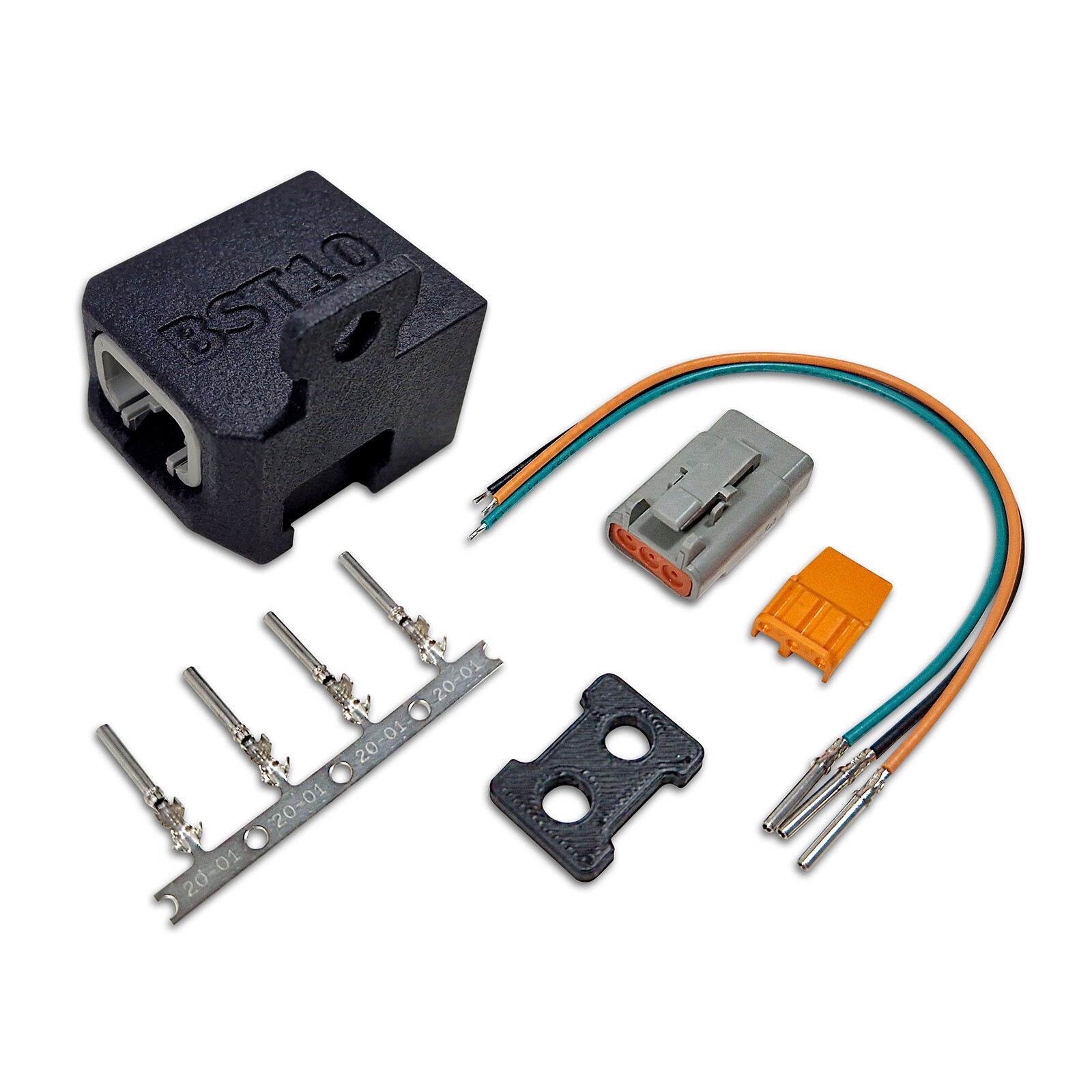

Scope of delivery
- 6.5 Bar boost pressure sensor
- DTM 06-3S plug
- 4x pins for crimping
- Wedgelock Connecting piece
Connection pinout of the sensor connector to the MFD28 / MFD32 display:
5V -> A2
Ground -> A6
Signal -> A8
0-5V output curve (absolute):
0V = -31.11 kpa 5V = 746.67 kpa
0V = -0.31 bar 5V = 7.47 bar
0V = -4.51 psi 5V = 108.3 psi
0-5V output curve (relative):
0V = -131.11 kpa 5V = 646.67 kpa
0V = -1.31 bar 5V = 6.47 bar
0V = -18.99 psi 5V = 93.8 psi
- Gauge Value: Boost pressure
- Model: Digital
