CANchecked OBD 2 cable set - Version 2.0
OBD 2 cable for the CANchecked MFD28 / MFD32 / MFD32S displays
To display OBD 2 values on the CANchecked gauges
Note: This is the CANchecked OBD II cable for all vehicles of the VAG Group (Audi, VW, Seat, Skoda). Here the terminal 15 signal (ignition plus) is already taken internally at the OBD plug, which means that no external power cable is led out! Thus Plug & Play in a few seconds connectable.
With it the installation is done in a few minutes all OBD 2 values can be shown on the display! Also engine error codes can be displayed!
Note: To display up to 50 OBD 2.0 values, you have to install the display with the CANchecked OBD 2 cable to the vehicle, then read out the PID's with the display, then enter the PID's via the online DBC converter and name them individually and save them on the Micro SD card in an indivuel tri.file.
Key Facts:

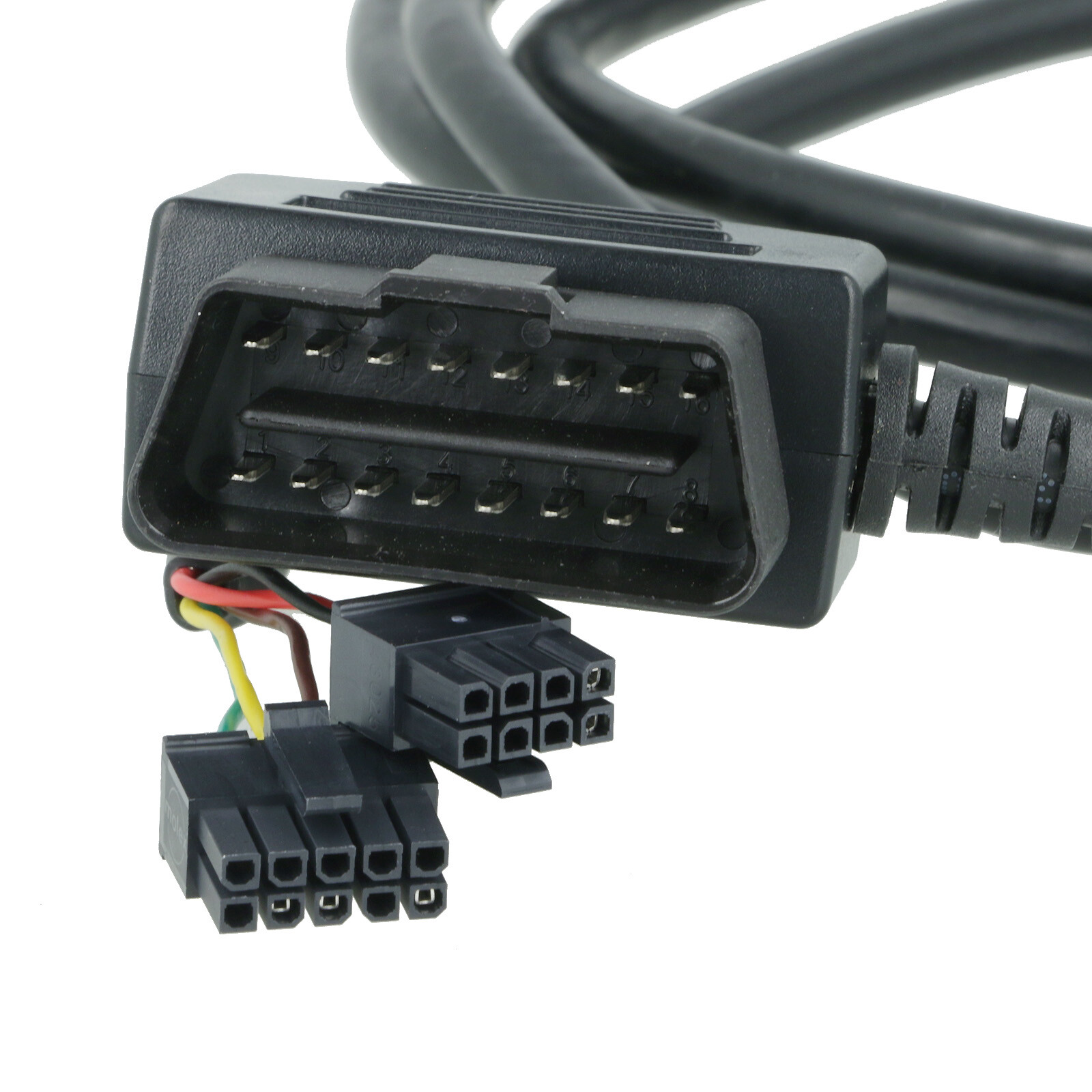

- OBD plug with 2m cable for connection to a MFD28/MFD32/MFD32S
- The following pins are led from the OBD plug to the display: Positive supply, ground (Pin 4+5), Can High (Pin 6), Can Low (Pin 14)
Supported values:
All OBD 2.0 values that the control unit outputs. Only a maximum of 50 values can be fed into the display.
Scope of delivery:

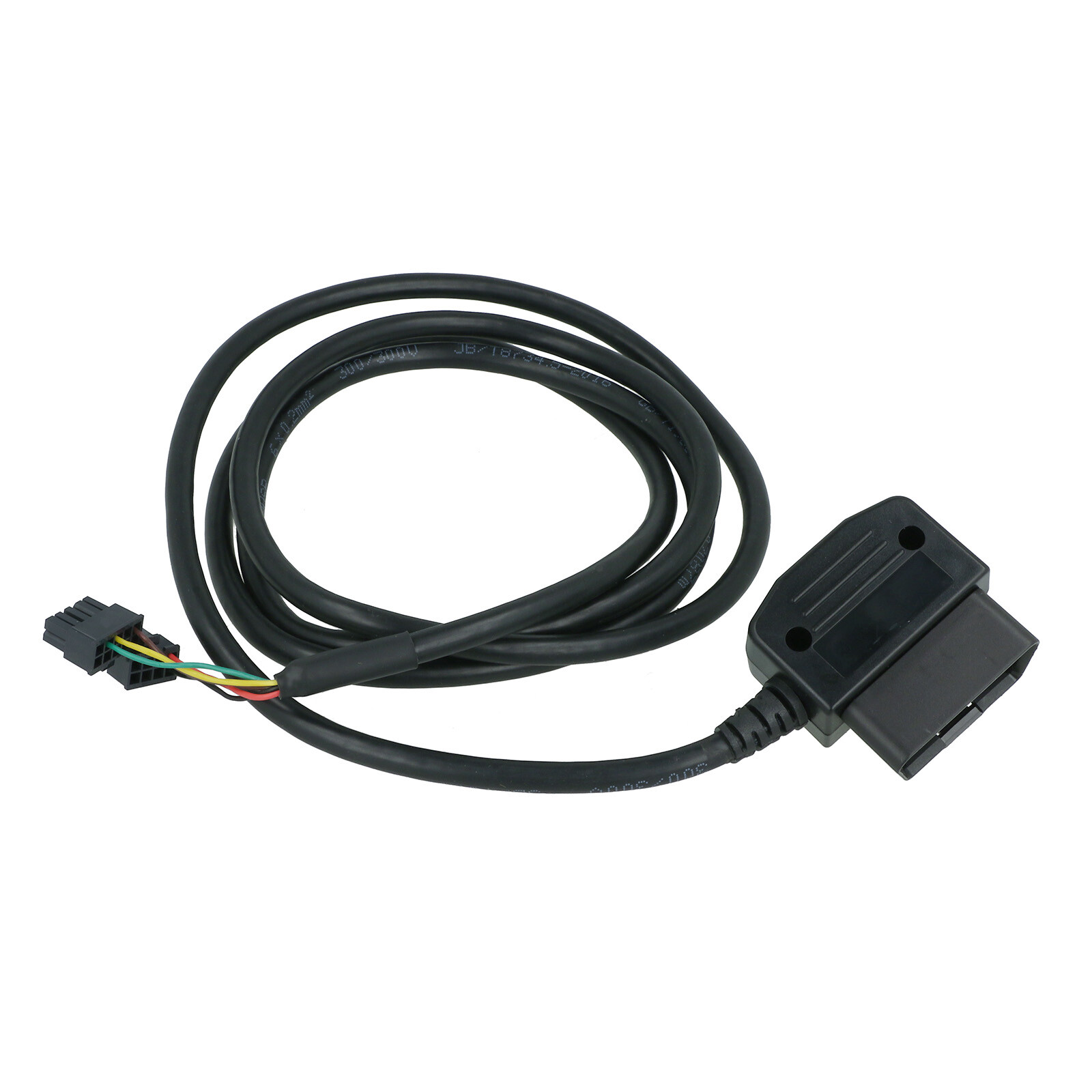

- 2 m OBD 2 cable with connectors
For more information contact us.
