BorgWarner EFR Pressure Actuator High Boost Actuator

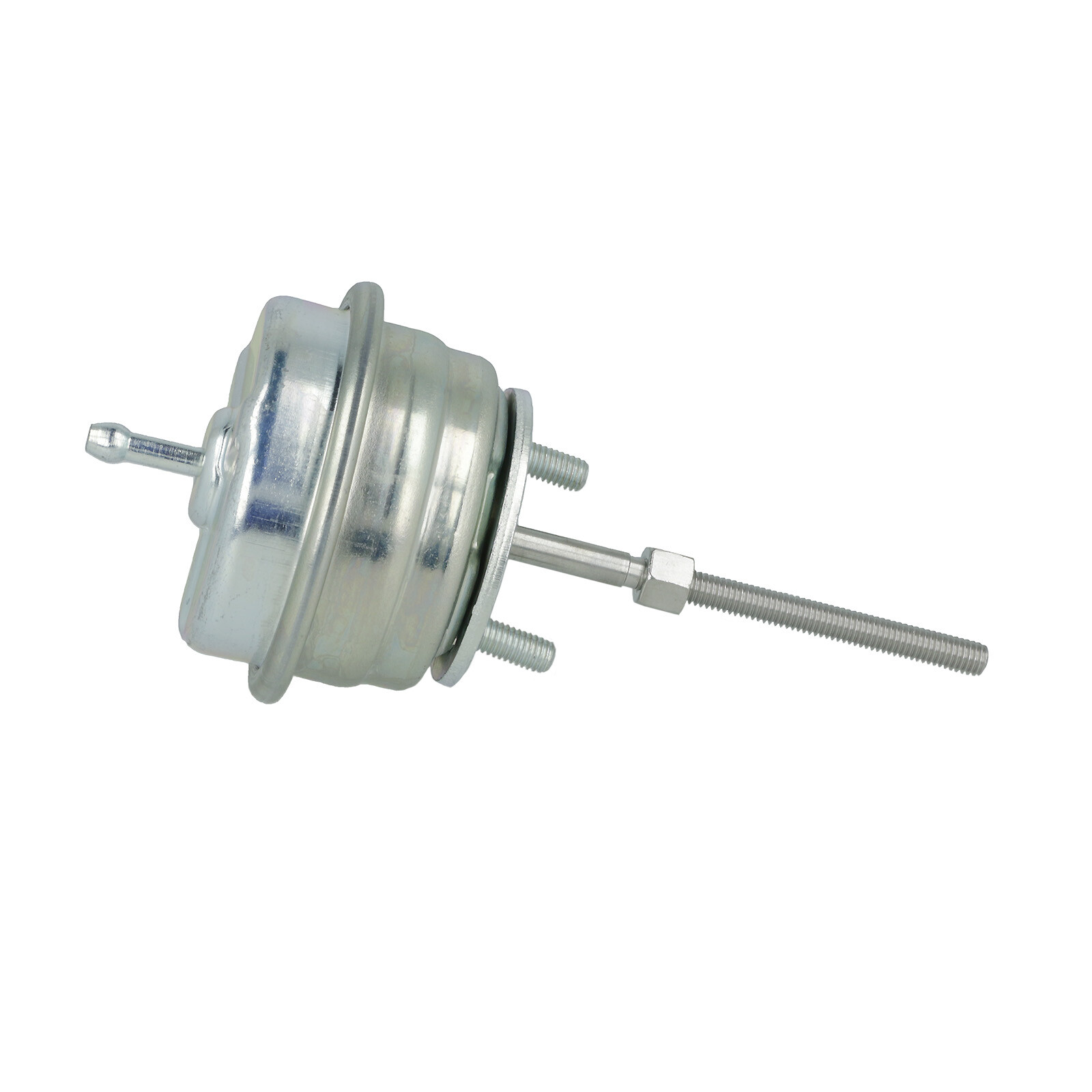

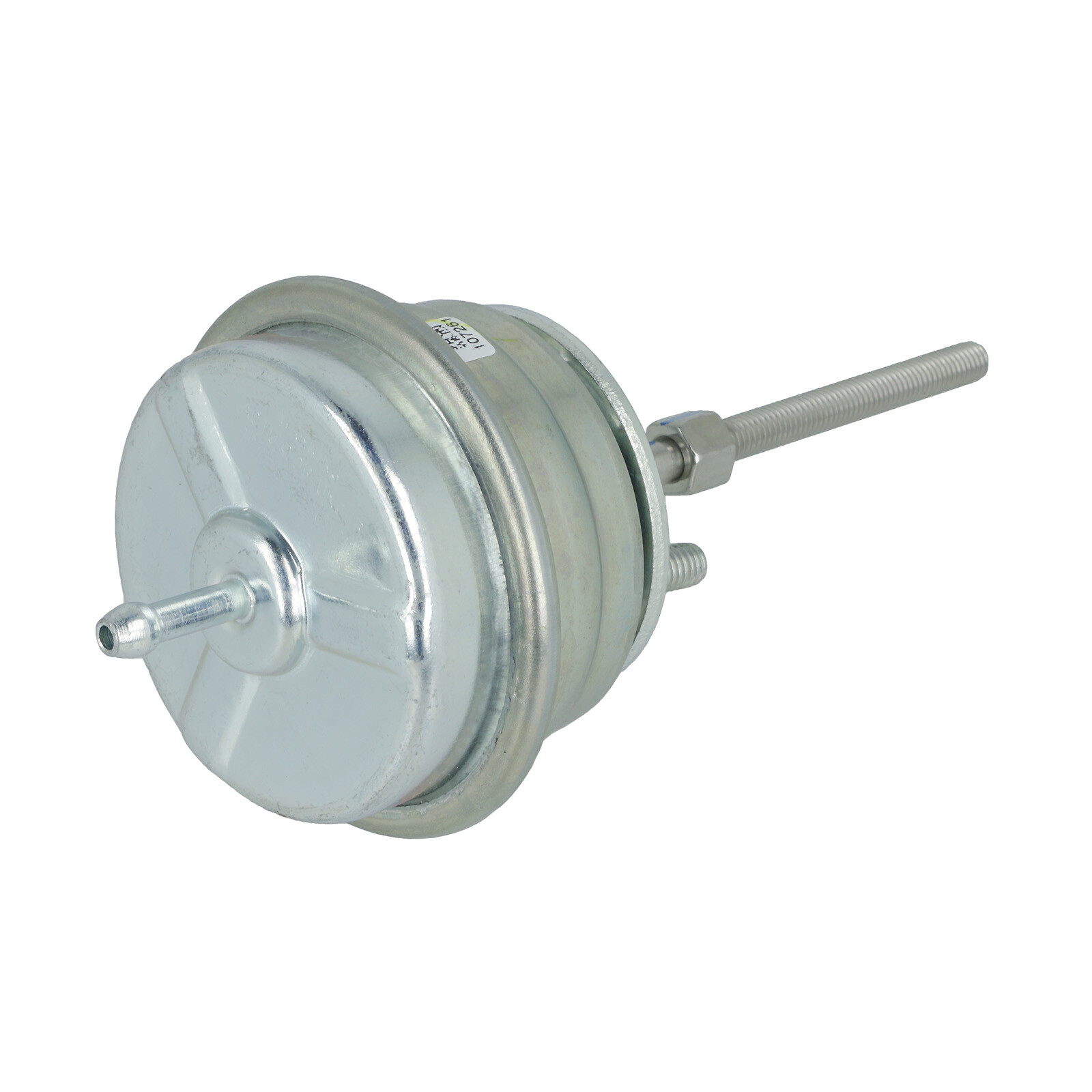

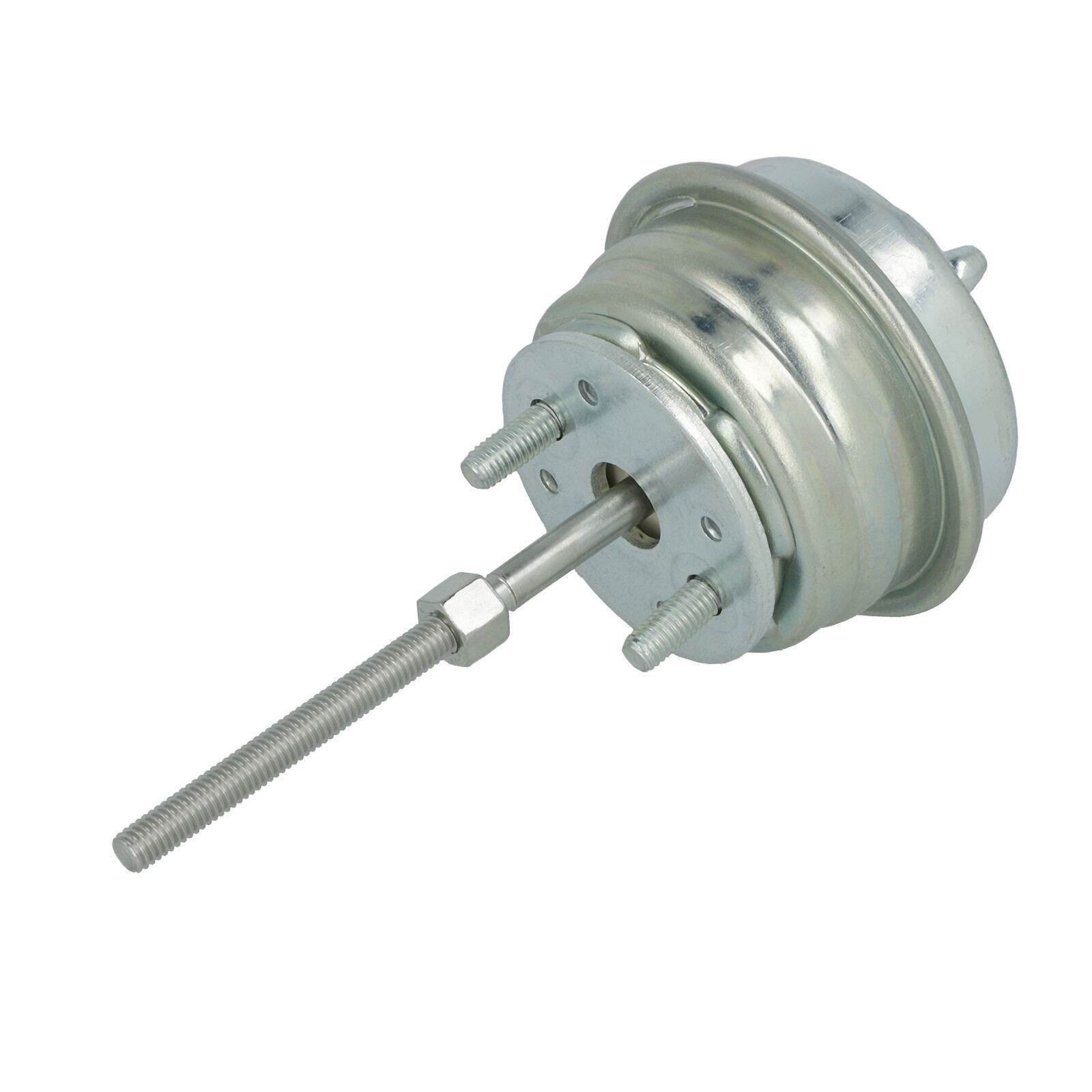

Original BorgWarner High Boost Actuator - 59001107261
For BorgWarner Single Scroll B1 Series / EFR 6258 - 7163 or Universal
Original super-short internal wastegate actuator from BorgWarner, fits for for the EFR turbocharger with singlescroll turbine housings and internal wastegate (T25, V-Band). This actuator, for example, can be replaced to change the boost pressure range or used for other universal applications.
Opening pressure (adjustable): 1,15 - 1,35 Bar
Maximum opening pressure: 2,22 Bar
Linkage length: 85mm.
Thread length: 62,50mm
For turbochargers:
EFR-6258 with T25 turbine housing
EFR-6258 with V-Band turbine housing
EFR-6758 with T25 turbine housing
EFR-6758 with V-Band turbine housing
EFR-7163 with T25 turbine housing
EFR-7163 with V-Band turbine housing
- Boost pressure: 1.15 - 1.35bar
- Availability: available in 3-5 days
- Model: WG Actuator
