TiAL MV-I 2.5 internal Wastegate Various Sizes
Internal Wastegate Actuator
TiAL PN #005304 internal Wastegate Actuator
The MVI 2.5 unit is a compact wastegate actuator standing only 2.2" in height without fittings and actuator rod. This compact design makes it easier for installations involving confined space. Build and designed for turbo applications with internal wastegates like the TiAL IWG series housing, TiAL Alpha turbo systems, a lot of Garrett GT / GTX series... This wastegate actuator is also designed as a stronger, more reliable replacement for the OEM or aftermarket parts.
Comes standard with 2 bolts to mount to any standard Garrett bolt spacing bracket.
Pressure: Variousr
Color: Various
Rod type: Varioust
- Compact actuator body with multiple spring options available.
- High temperature silicone Nomex reinforced actuator diaphragm.
- 17-7 PH Stainless Steel actuator spring gives consistent pressure at high temperature and resists "relaxing" up to 900F (483C).
- Internal components anodized for corrosion resistance.

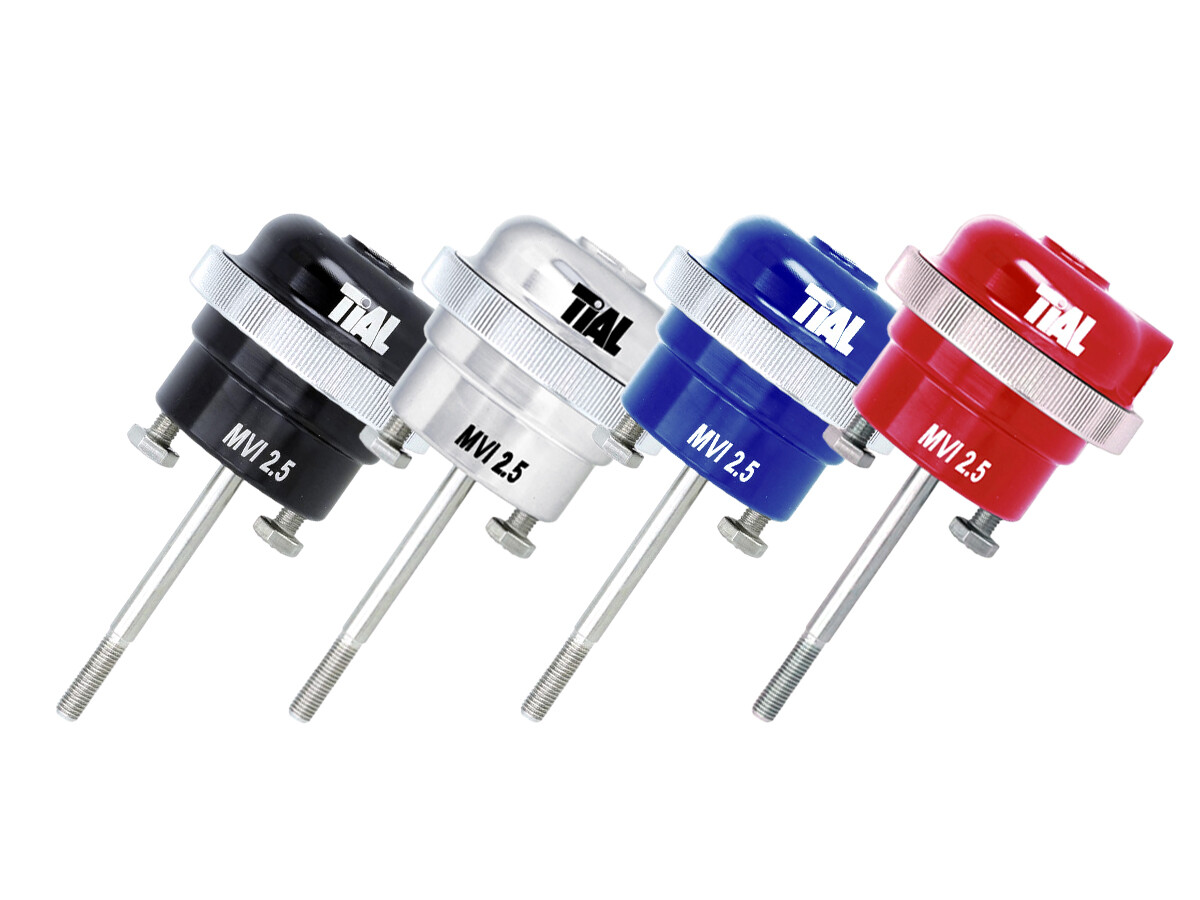

- Color anodized aluminum actuator body (Silver, Red, Black, Blue).
- Ultra compact design fits in very tight spaces.
Included with every TiAL MVI 2.5:
- MVI 2.5 Assembly with specified spring pressure
- M8 x 1 Straight Barb Air Fitting
- M8 x 1 Air Port Plug with Aluminum Sealing Washer
- Specified actuator rod
- 1/4 x 28" Bolts for install with an actuator bracket
- Model: WG Actuator
- Boost pressure: 0.28bar0.4bar / 0.41bar0.7bar0.8bar1.1bar0.96bar / 1bar1.2bar1.5bar
