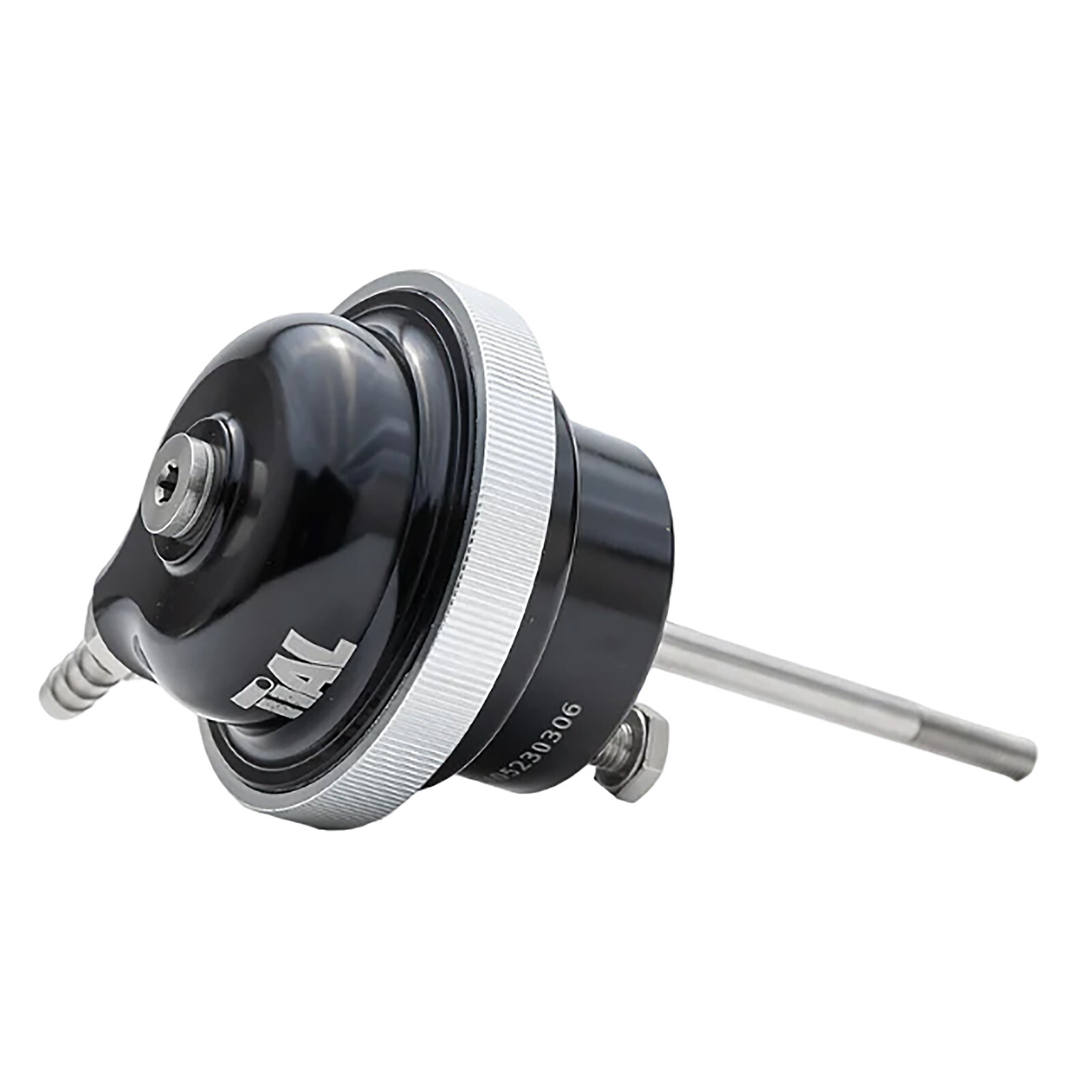

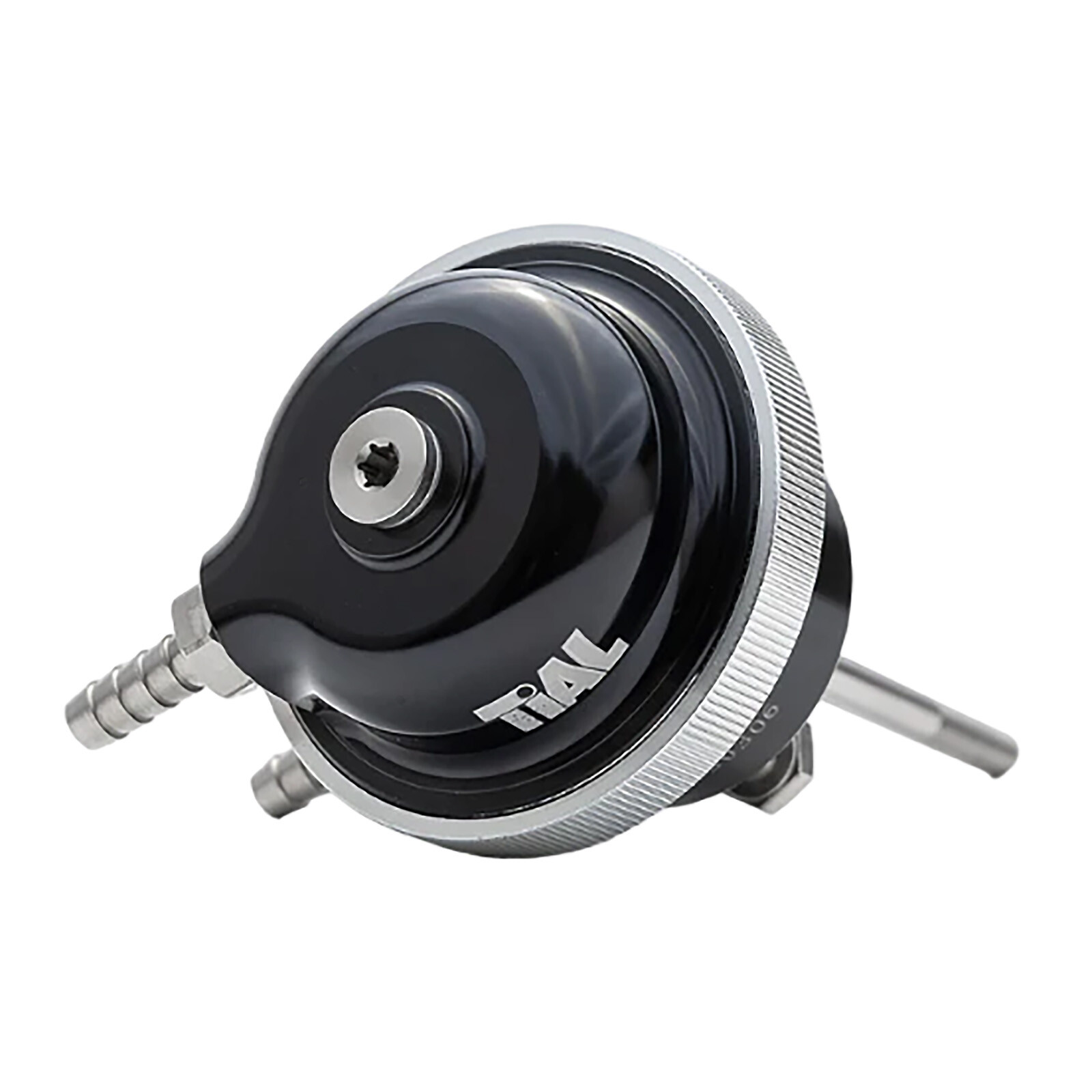

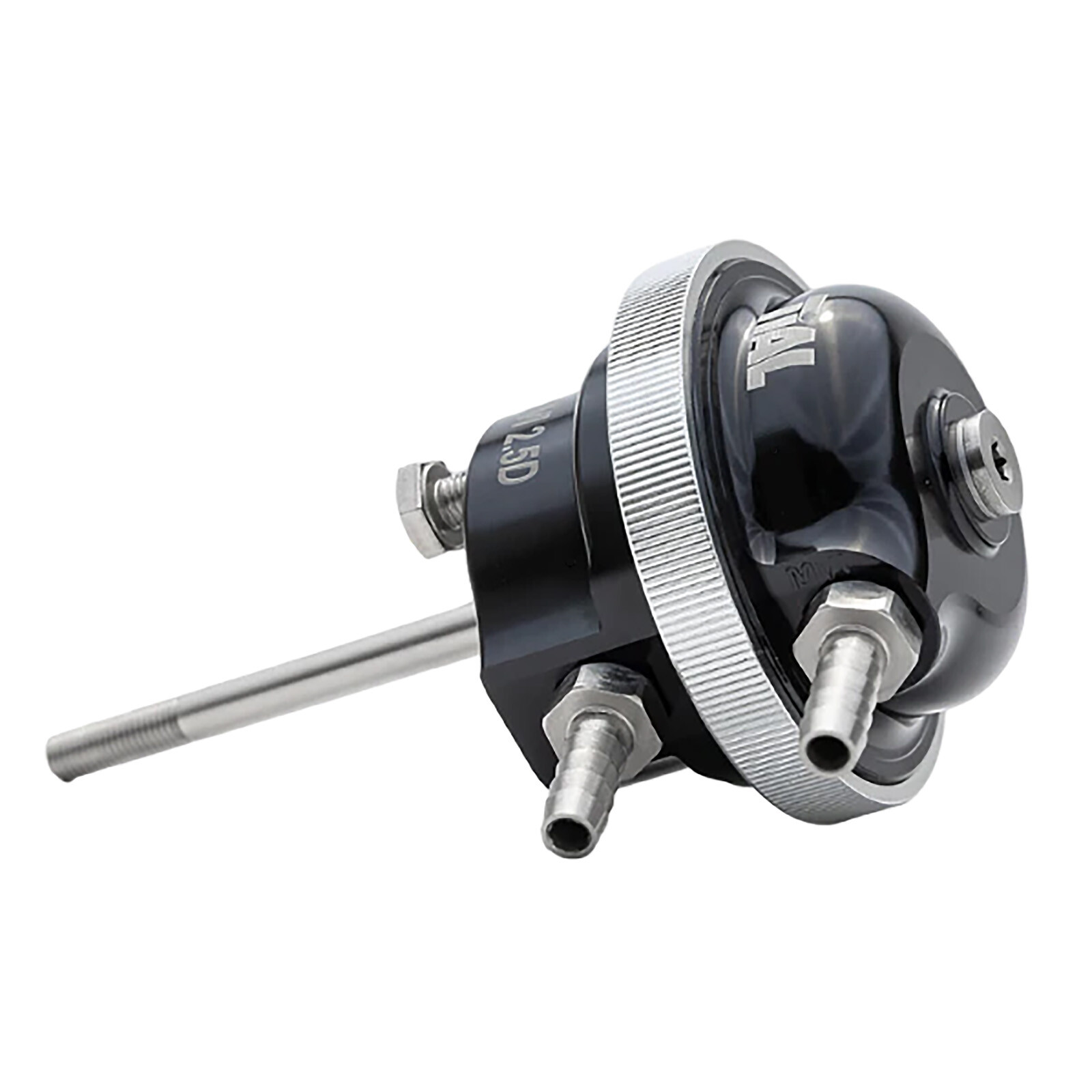

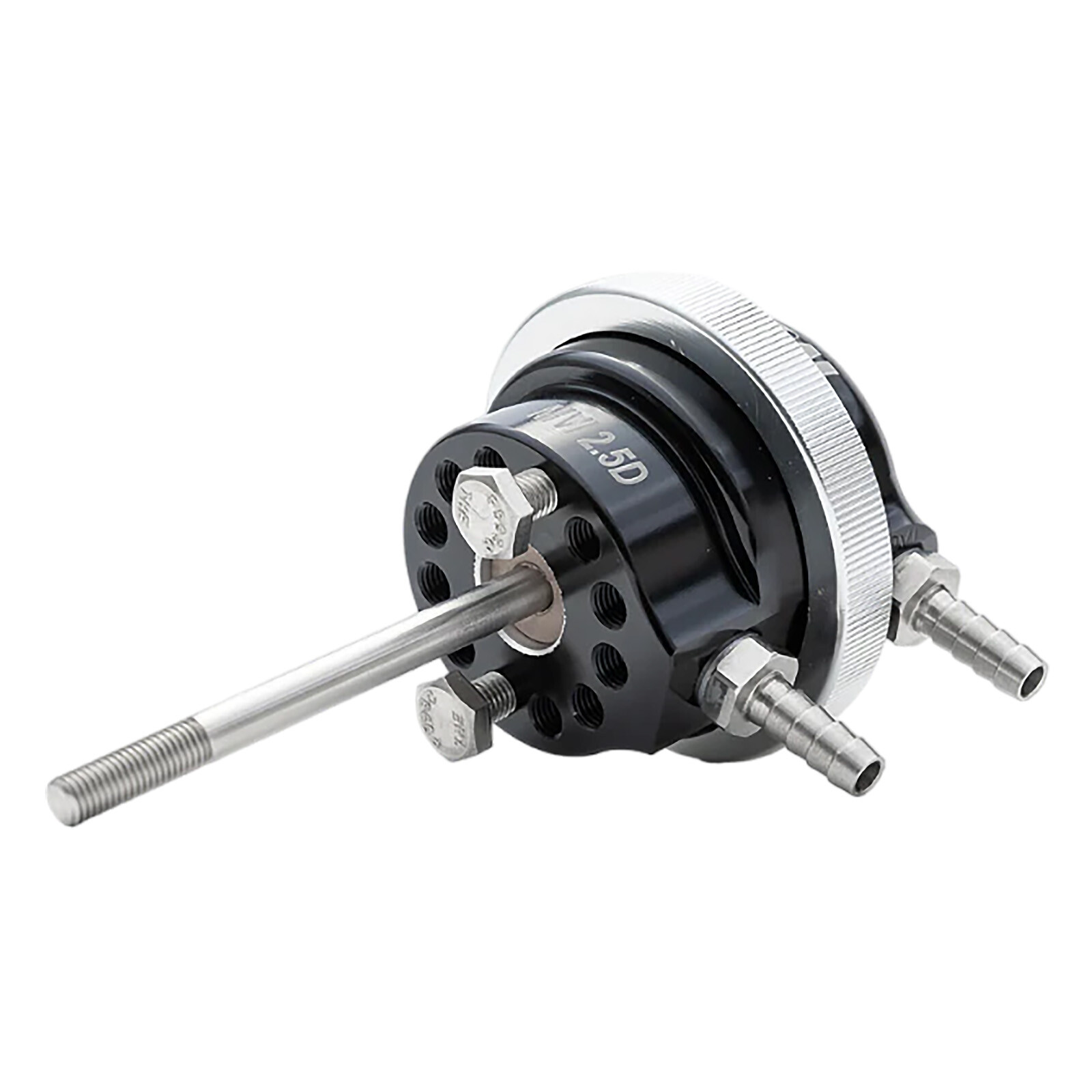

TiAL MV-I 2.5D Int. Wastegate, Black,1,0 Bar
Internal Wastegate actuator 14 PSI / 1.0 Bar with dual port actuator option
TiAL PN #008348 internal Wastegate Actuator designed to replace the popular O.E. 480099-XXXX
Pressure: 14 PSI / 0,96 Bar
Color: Black
Rod type: Straight rod
The MV-I 2.5D is a modular, compact wastegate actuator designed to replace the popular O.E. 480099-XXXX units found on many turbochargers, but with dual actuation control. It works especially well with the TiALSport IWG series of turbine housings.
The main difference between the MVI 2.5 and the MVI 2.5D, is the dual port actuator option on the MVI 2.5D as opposed to the single directional actuation control on the MVI 2.5.
Standard configurations provide for both offset-bent and straight, 4.33" O.A.L. stem designs, but multiple hardware options are available in our Spare Parts section.
Technical Specifications:
- Aluminum housings, fully-anodized for corrosion and wear resistance and an attractive appearance
- High temperature silicone reinforced actuator diaphragm
- Stainless Steel actuator springs give consistent pressure at high temperatures
- Universal two-bolt mounting pattern
- M8 air fitting ports, with optional locations
The MV-I 2.5D is sold with no linkage connection, but rather, with a 1/4"-UNF threaded stem which adapts easily to existing hardware.
Optional hardware is also available in our Spare Parts section.
Included in the package:
- MVI 2.5D Assembly with specified spring pressure
- M8 x 1 Straight Barb Air Fitting
- M8 x 1 Air Port Plug with Aluminum Sealing Washer
- Specified actuator rod
- 1/4 x 28" Bolts for install with an actuator bracket
- Boost pressure: 0.96bar / 1bar
- Wastegate: TiAl MVI 2.5D
- Availability: to order
- Model: WG Actuator
