Boost Cooler waterinjection Stage 1 Kits

Item-No.: 204576
Manufacturer-No.: 402111

HP Range
Tank Volume
starting from
Old price  £ 354.07
£ 332.54
Get a special deal right now! Valued for a limited time only!

including 20% VAT. , plus shipping

There are variations of this item. Please select the variation you wish.

 Stock:
more than 20
 Shipping time
Available now!

Boost Cooler Waterinjection Stage 1 Kits

Water-Meth injection Stage 1 with different HP range and reservoir tanks

Obtain up to 25% more power in your engine with Boost Cooler water-meth injection

Boost Cooler Waterinjection complete kit
Obtain up to 10-25% more power in your turbo- or supercharged engine, even if it´s pre-tuned, by using the Boost Cooler-Water/Methanol Injection System! The main function of the Boost Cooler is to suppress detonation caused by high temperature and pressure developed within the combustion chamber when the effective compression ratio has been taken beyond the auto-ignition point by either a turbo or a supercharger. Water, with its high latent heat content, is extremely effective for controlling not only the onset of detonation but also the production of oxides of nitrogen in the modern leanburn engines. Furthermore, the Boost Cooler doesn't create an intake restriction like an intercooler, and unlike race gas, it reduces intake air temps up to 60°C and improves charge air density too. Snow Performance systems effectively steam clean the valves, valve seats, and even the piston tops and intake when they inject. This reduces carbon build up. The Boost Cooler can be installed in a matter of hours without having to remove bumpers or do custom intake piping.

Easy to upgrade Starter Kit
In contrast to the Boost Cooler Stage 2 and 3 system, the injection quantity is not controlled electronically. We recommend the Stage1 for motors without major load changes such as, for example, CHPs, boat engines, etc. However, the use in passenger car engines is also possible. The principle corresponds to e.g. the optional Saab water injection at 99/900 Turbo.The operation is very simple: the system starts injecting when the boost switch reaches the user-adjustable point and it injects a fixed amount of fluid through the nozzle until the switch opens again.
The Boost Cooler is unsurpassed in it's atomization due to superior nozzle design - The nozzle first spins the fluid supersonically before forcing it through a venturi shaped orfice - no one else comes close! The smaller the droplets, the more total surface area per volume injected which = more heat reduction = more power. Because of this fact, more cooling can be done with less fluid.

Features:

  • Budget friendly starter kit
  • Efficient Intercooling, up to 60°C lower air intake temperature
  • Achieve approx. 116-Octan rating, by using ordinary 95-Octan gasoline
  • Reduces EGT and oil temperatures
  • Allows you to run safely more boost and/or more timing
  • Reduces thermical stress on NOS, LPG/Autogas and pre-tuned engines like chiptuning & higher boost levels
  • No wear issues, only clean combustion chambers
  • No loss of boost as with an intercooler
  • Deposit free combustion chamber and air intake, without formation of carbon
  • Reduces the specific fuel consumption
  • Easy installation and setup

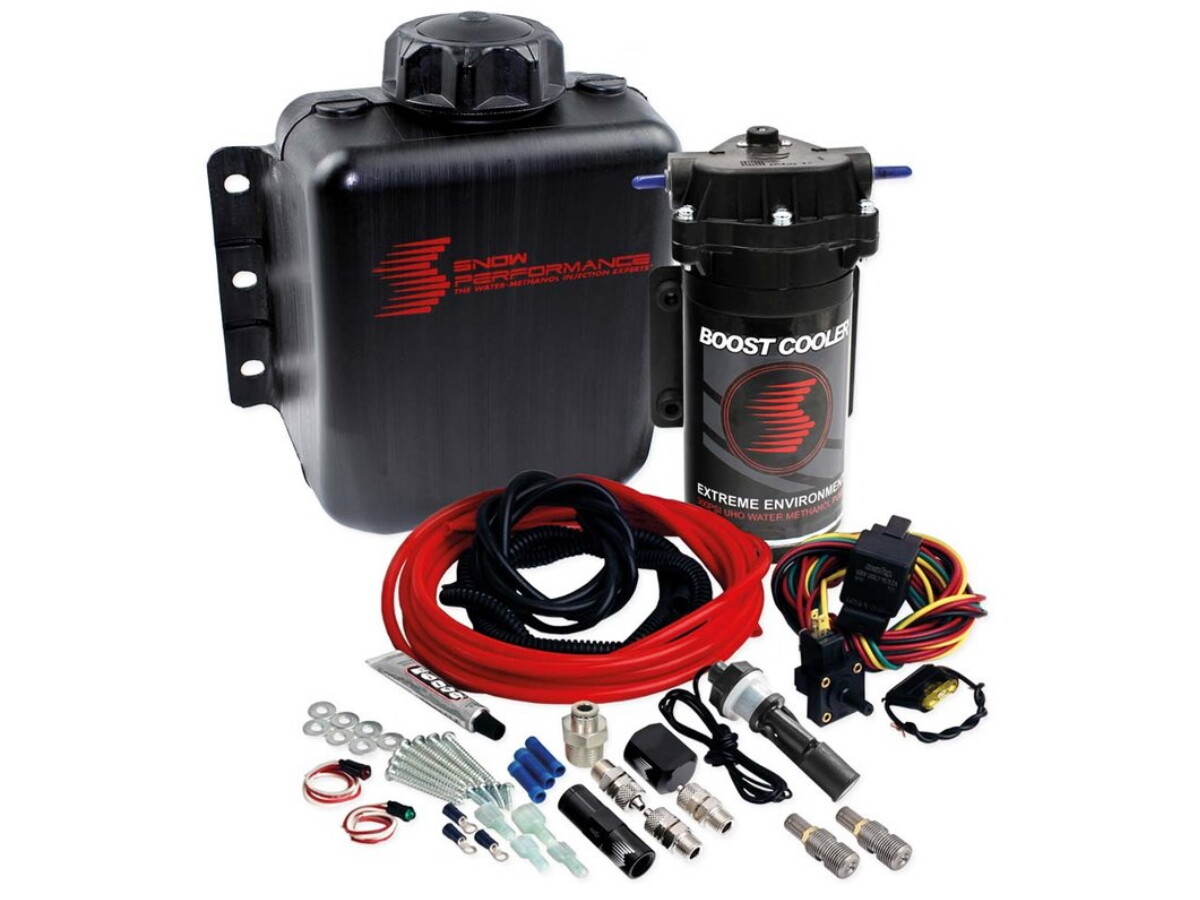

scope of delivery:
  • 1 x High pressure diaphragm pump, 300 PSI
  • 2 x Nozzles (different sizes according to selection)
  • 1 x Boost pressure switch incl. relais
  • 1 x Water injection boost cooler reservoir (volume according to selection)
  • 1 x Low level indicator (tank sensor, LEDs for mounting in cockpit)
  • 1 x pressure tubing 1/4" (3m)
  • 1 x 1/4" ACU-SEAL nozzle holder, 90° steel
  • 1 x Accessories &amp mounting material
  • 1 x Installation instructions
