-20 AN ProSeries 200 Hydraulic double braided hose stainless steel
High quality Stainless Steel Hydraulic Hose
For Oil Hoses, Fuel Hoses and similar
Note: We have reorganised our RHP hydraulic hose range. From now on, we only offer for Dash 20 fixed lengths in the dimensions 90cm, 1.8m, 3m and 6m!

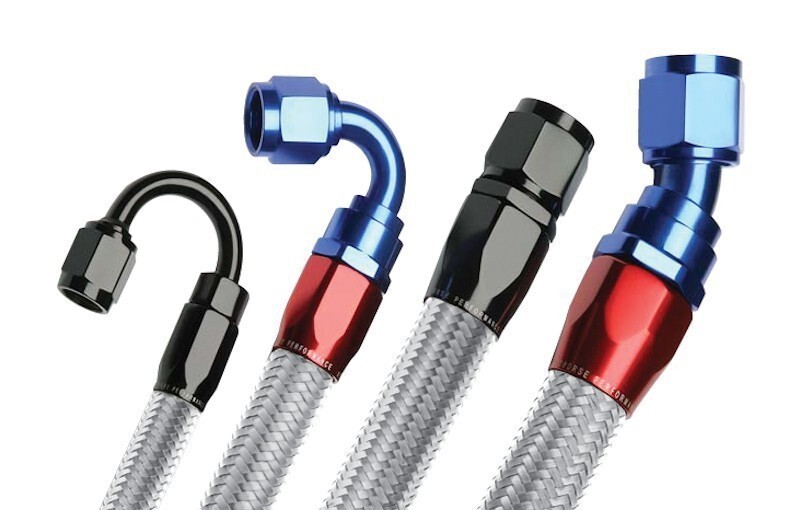

With our hose fittings and associated hydraulic hoses you can make oil-, water- and fuel-lines. With unique screw connections the cables without crimping tool are tight and pressure-resistant to at least 35bar. We recommend -4 AN for oil - supply lines (fits on our GT-R feed adapters and the integrated EFR Reducers), -10 AN for oil return lines (fits on our return flanges with thread). Fuel and water pipes you choose the best according to the specifications of connections or fuel pumps.

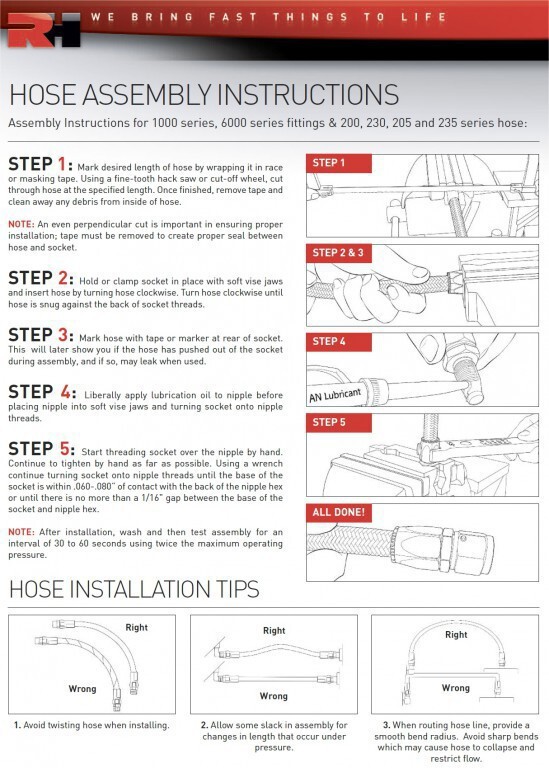

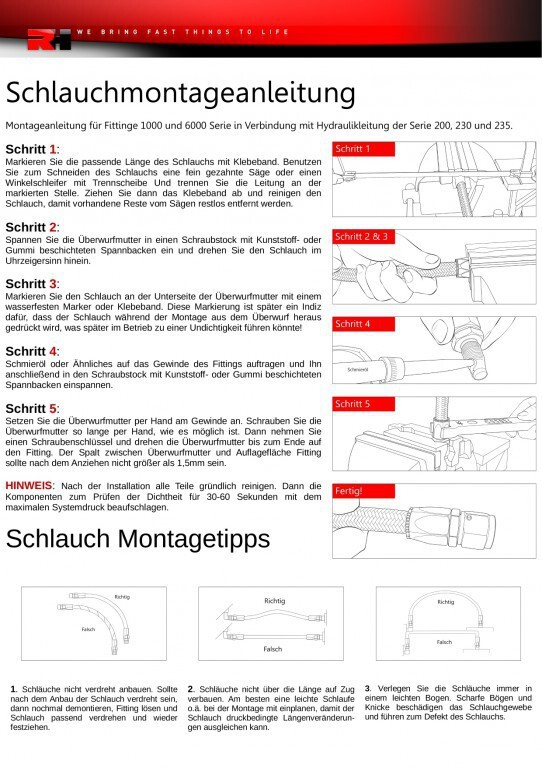

The DIS fittings are simply screwed to the appropriate tubes. Fittings called "rotatable" are to mount still fully rotatable. This is indispensable for easy installation and are often not available at cheap providers. We recommend depending on the application to make at least one side rotatable.

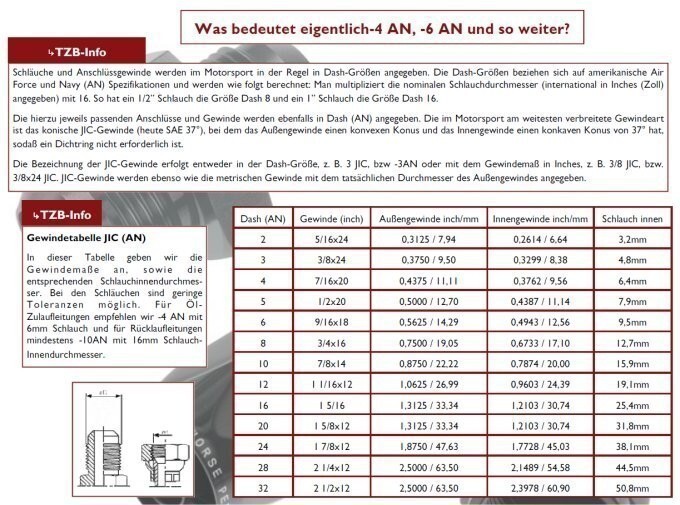

For threaded connections: -20 AN / Dash 20 / 1 5/8x12
Inner diameter: 28,57 mm
Outside diameter: 36,5 mm
Max. working pressure: 35 bar
Burst pressure: 138 bar
Max. vacuum pressure: 0,68 bar
Weight: 0,770 kg/m
Min. radius: 203,2mm
Min. temperature: -40 °C
Max. temperature: 125 °C
Suitable for: Petrol , oil and air

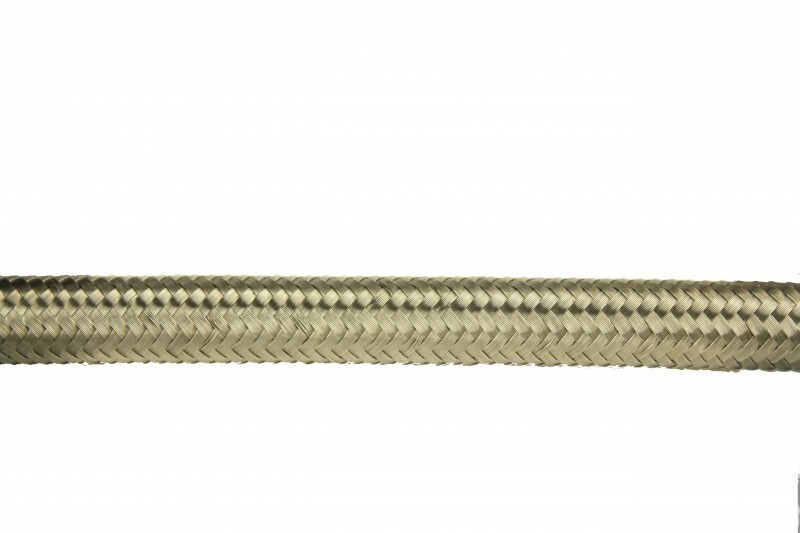

Structure: With internal stainless steel mesh and stainless steel cladding outside.
Colour: silver (Stainless steel)
Length: see drop-down menu
For trouble-free installation in all application areas, we offer a variety of adapters. Thus even a later extension or enhancement of lines is possible without any problems.
- Availability: to order
- Thread: -20 AN / Dash 20
