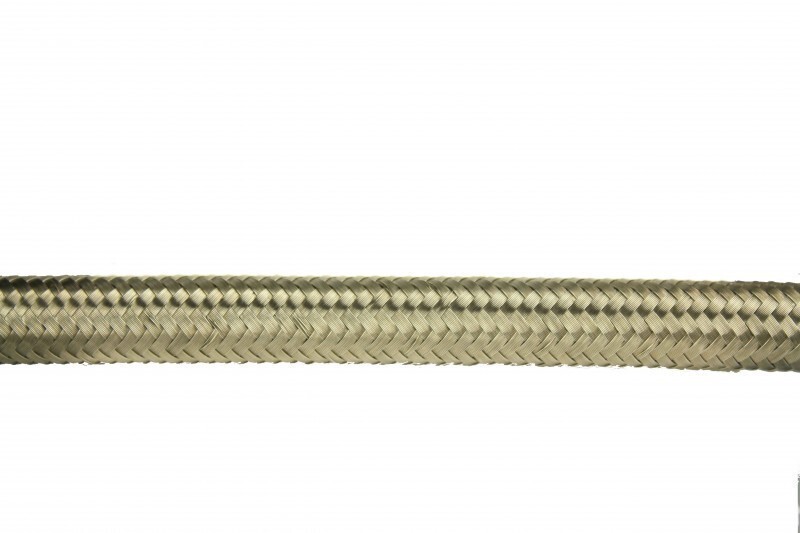

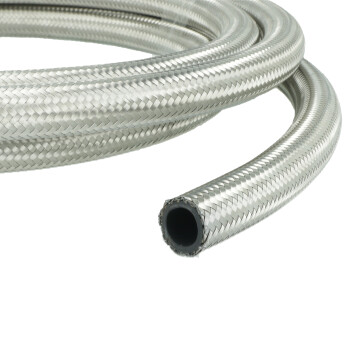

-10 AN / Dash 10 ProSeries 205 e85 compatible double braided premium racing hose stainless steel

High quality stainless steel hydraulic hose

For oil lines, fuel lines and the like

Note: We have reorganised our RHP hydraulic hose range. From now on, we only offer fixed lengths in the dimensions 90cm, 1.8m, 3m, 6m and 15m!

The RHP 205 Series hose is our top of the line, double braided stainless steel hose. The RHP 205 Series hose features a unique dual layer inner tube with a layer of Epichlorohydrin (ECO) and a layer of Fluoroelastomer (FKM) for unrivaled fuel compatibility. RHP 205 Series hose will keep pace with your racing whether you are using e85, methanol or regular fuel from the pump. As always, the RHP 205 Series hose is constructed with our industry exclusive bonding process. With a double stainless core, advanced inner-tube you can be assured that you are getting the total package with the RHP 205 Series.

This hose is not designed for use on high pressure power steering lines and is not to be used for high pressure hydraulic application.

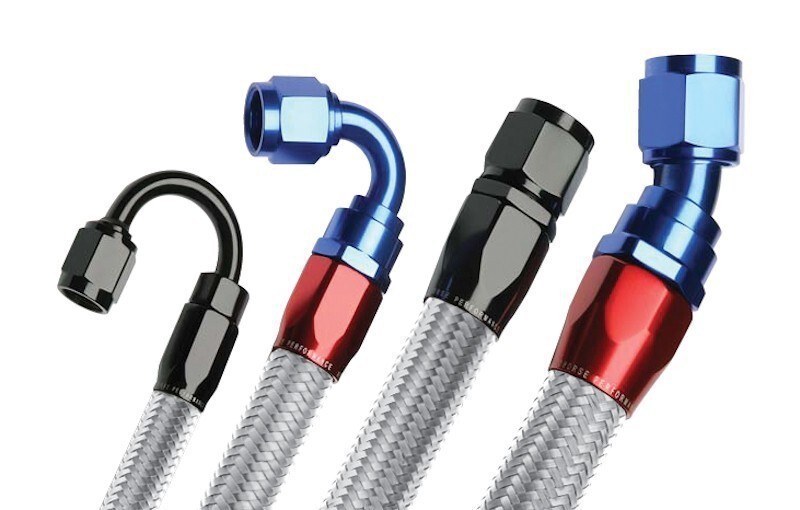

With our hose fittings and associated hydraulic hoses you can make oil-, water- and fuel-lines. With unique screw connections the cables without crimping tool are tight and pressure-resistant to at least 35bar. We recommend -4 AN for oil - supply lines (fits on our GT-R feed adapters and the integrated EFR Reducers), -10 AN for oil return lines (fits on our return flanges with thread). Fuel and water pipes you choose the best according to the specifications of connections or fuel pumps.

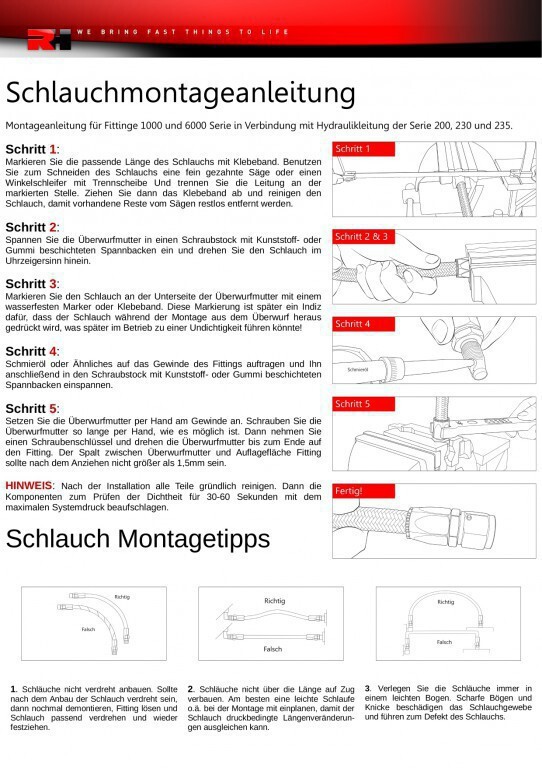

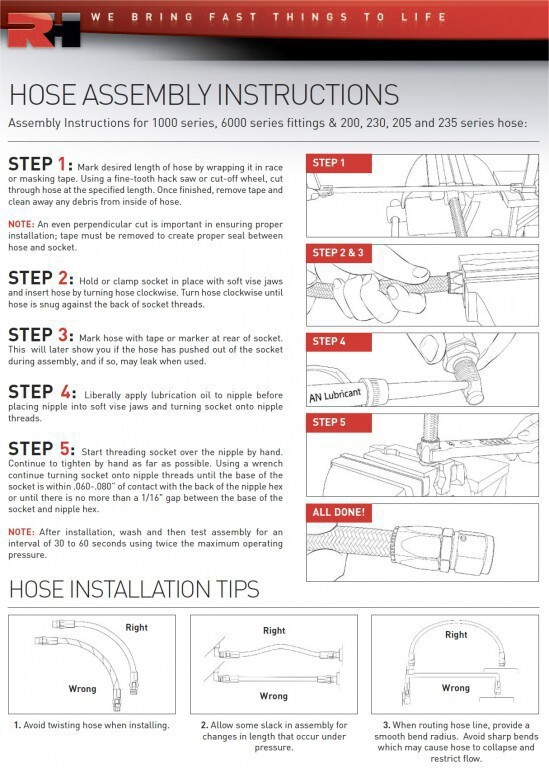

The DIS fittings are simply screwed to the appropriate tubes.??. Fittings called "rotatable" are to mount still fully rotatable. This is indispensable for easy installation and are often not available at cheap providers. We recommend depending on the application to make at least one side rotatable.

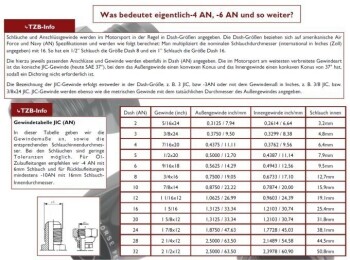

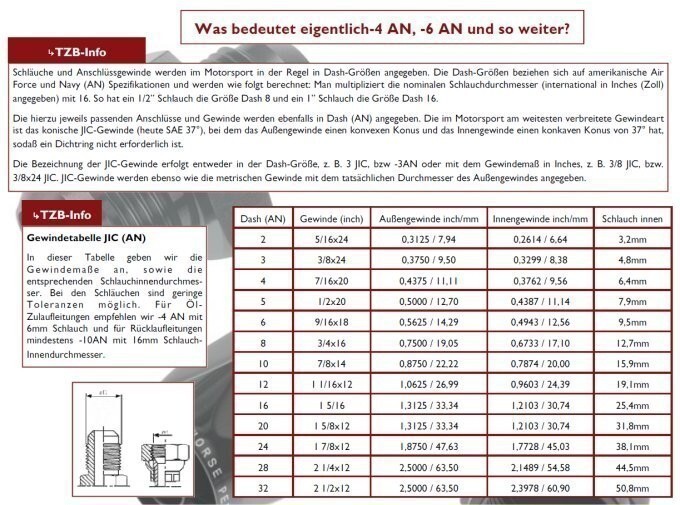

For threaded connections: -10 AN / Dash 10 / 15,9mm
Inner diameter: 14,29 mm
Outside diameter: 20,24 mm
Max. working pressure: 69 bar
Burst pressure: 345 bar
Max. vacuum pressure: 0,85 bar
Weight: 0,334 kg/m
Min. radius: 101,6 mm
Min. temperature: -40 °C
Max. temperature: 150 °C
Suitable for: Petrol, oil and air
Structure: With internal stainless steel mesh and stainless steel cladding the outside.
Colour: silver (Stainless steel)
Length: see drop-down menu

For trouble-free installation in all application areas, we offer a variety of adapters. Thus even a later extension or enhancement of lines is possible without any problems.
