-20 AN / Dash 20 ProSeries 230 black stainless core hose nylon
High quality hydraulic hose in black
For oil lines, fuel lines and similar
Note: We have reorganised our RHP hydraulic hose range. From now on, we only offer for Dash 20 fixed lengths in the dimensions 90cm, 1.8m, 3m and 6m!
With our hose fittings and associated hydraulic hoses you can make oil-, water- and fuel-lines. With unique screw connections the cables without crimping tool are tight and pressure-resistant to at least 35bar. We recommend -4 AN for oil - supply lines (fits on our GT-R feed adapters and the integrated EFR Reducers), -10 AN for oil return lines (fits on our return flanges with thread). Fuel and water pipes you choose the best according to the specifications of connections or fuel pumps.

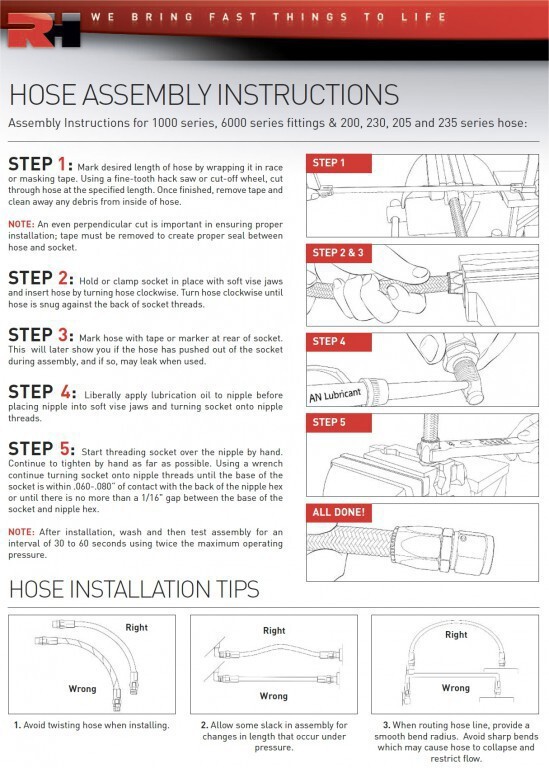

The DIS fittings are simply screwed to the appropriate tubes. Fittings called "rotatable" are to mount still fully rotatable. This is indispensable for easy installation and are often not available at cheap providers. We recommend depending on the application to make at least one side rotatable.

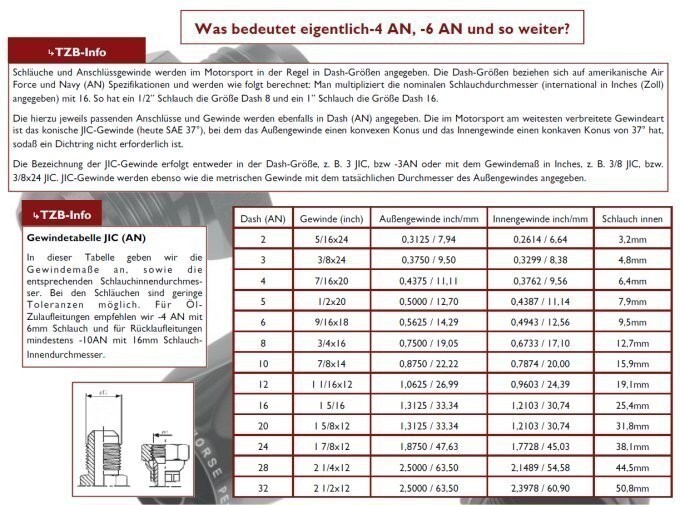

For threaded connections: -20 AN / Dash 20
Inside diameter: 28.57 mm
Outer diameter: 36.8 mm
max. working pressure: 24 bar
Place pressure: 97 bar
max. vacuum pressure: 0,68 bar
Weight: 0.433 kg/m
min. Radius: 203.2 mm
min. Temperature: -40 °C
max. temperature: 125 °C
Suitable for: Gasoline, oil and air

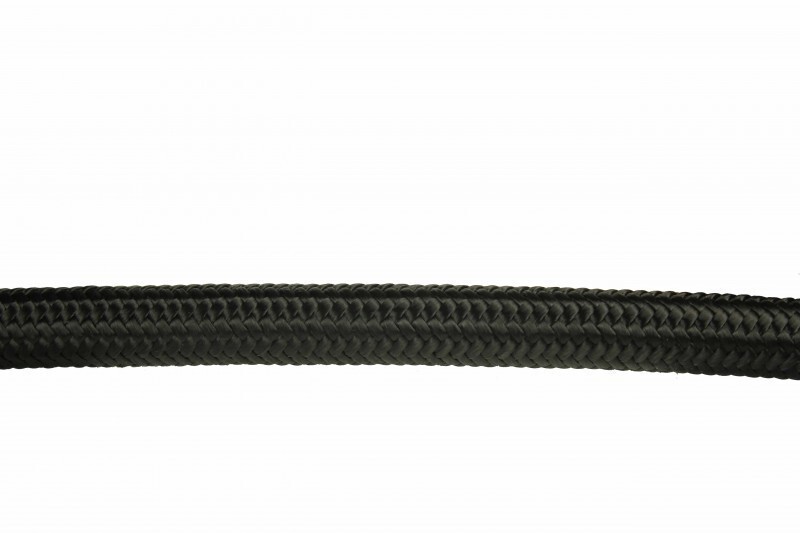

Construction: With internal stainless steel braiding and nylon outer sheathing.
Color: black
Length: see drop-down menu
We offer a wide range of adapters for problem-free installation in all areas of application. This means that later extension or other expansion of the cables is also possible without any problems.
- Availability: to order
- Thread: -20 AN / Dash 20
