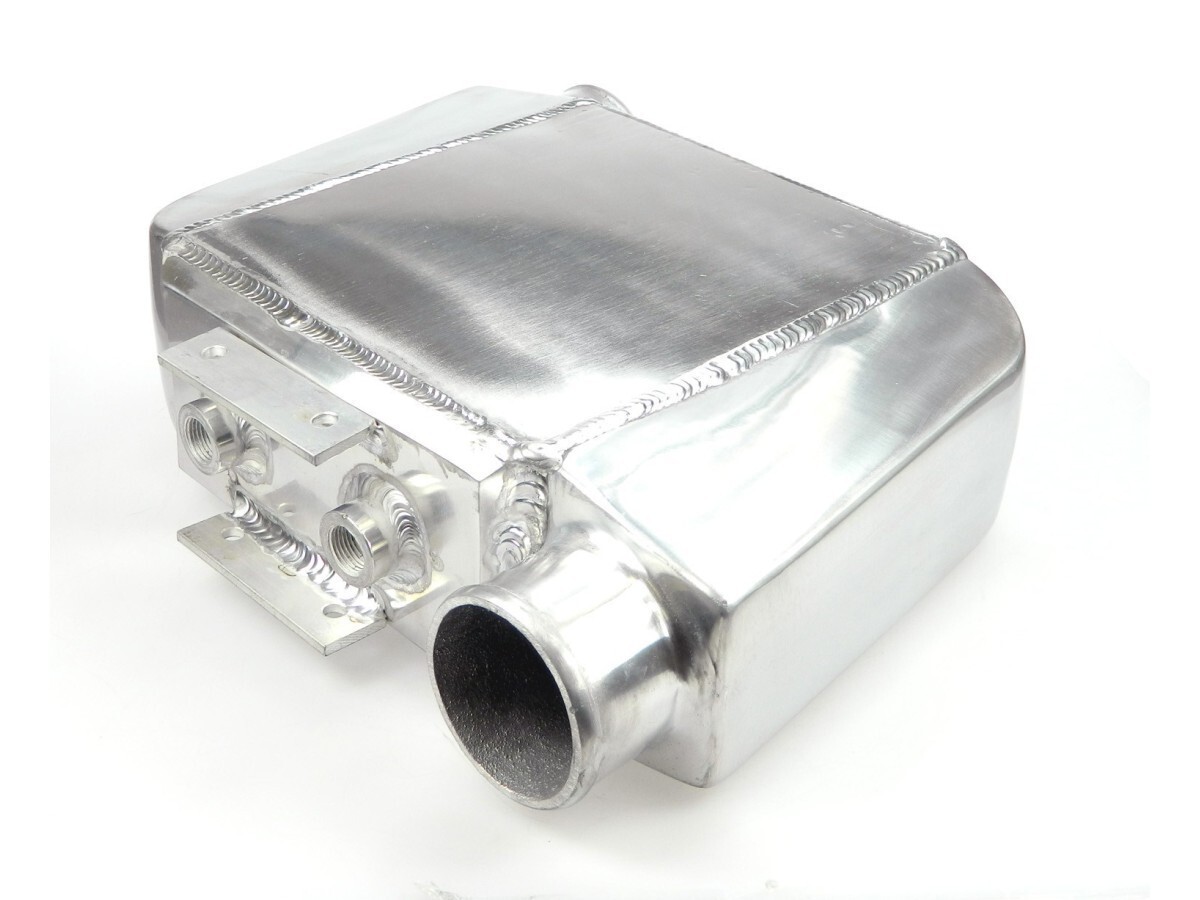

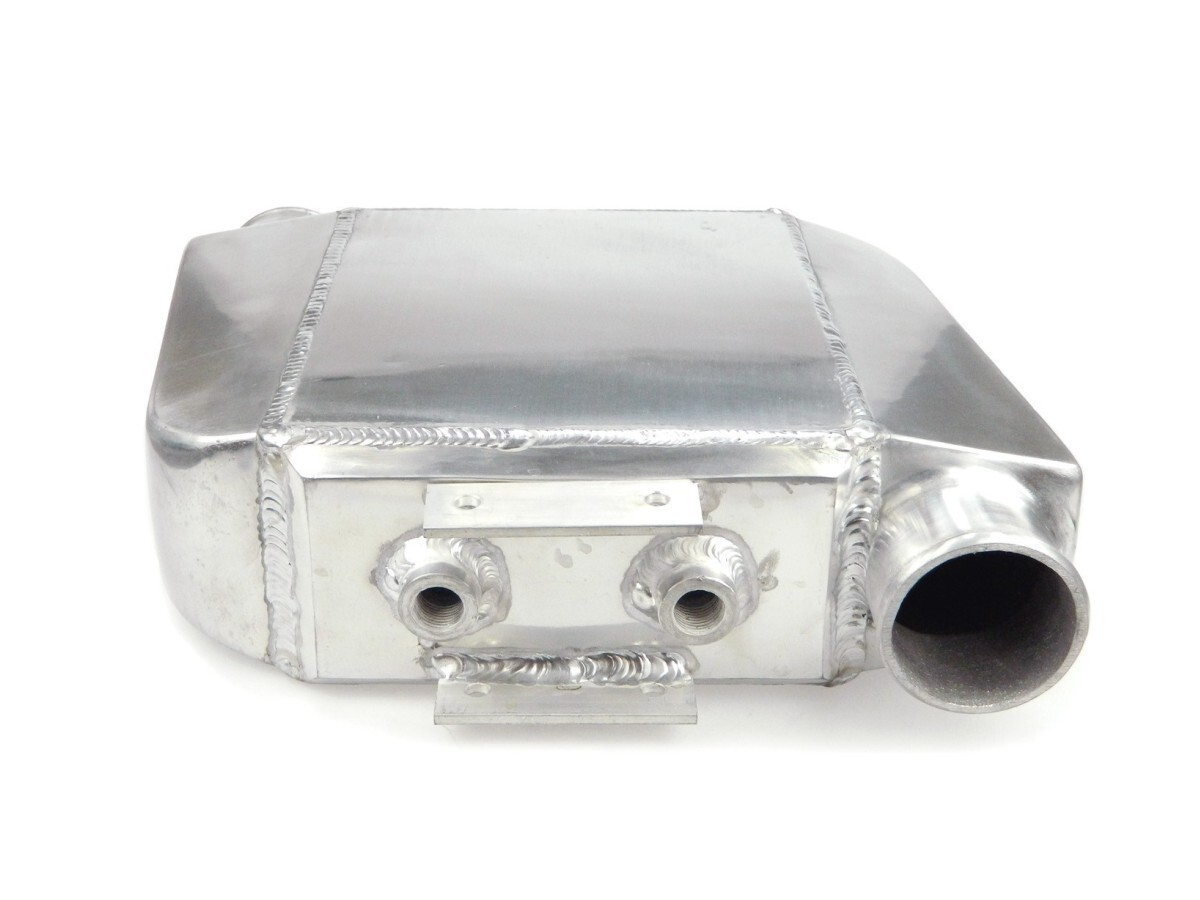

Water cooled intercoolers universal, 76mm = 3 inch - 335x370x115mm
Ideal for small spaces and short airways
Useable in turbo engine and compressor engine
In general, we recommend solving the charge air cooling via an air-to-air intercooler. However, there are situations in which a charge air cooler which is cooled by the airstream, simply cannot be installed. Very often e.g. with rear engines. In certain areas of application, a particularly short air duct is also advantageous, where the air path through the vehicle front is simply too long- Forthese cases we also offer various water-cooled intercoolerss. The radiators must be fitted with a water circuit with a small water cooler which then sits in the airstream and cools the water that flows through the fins of the charge air cooler and then cools the charge air again.

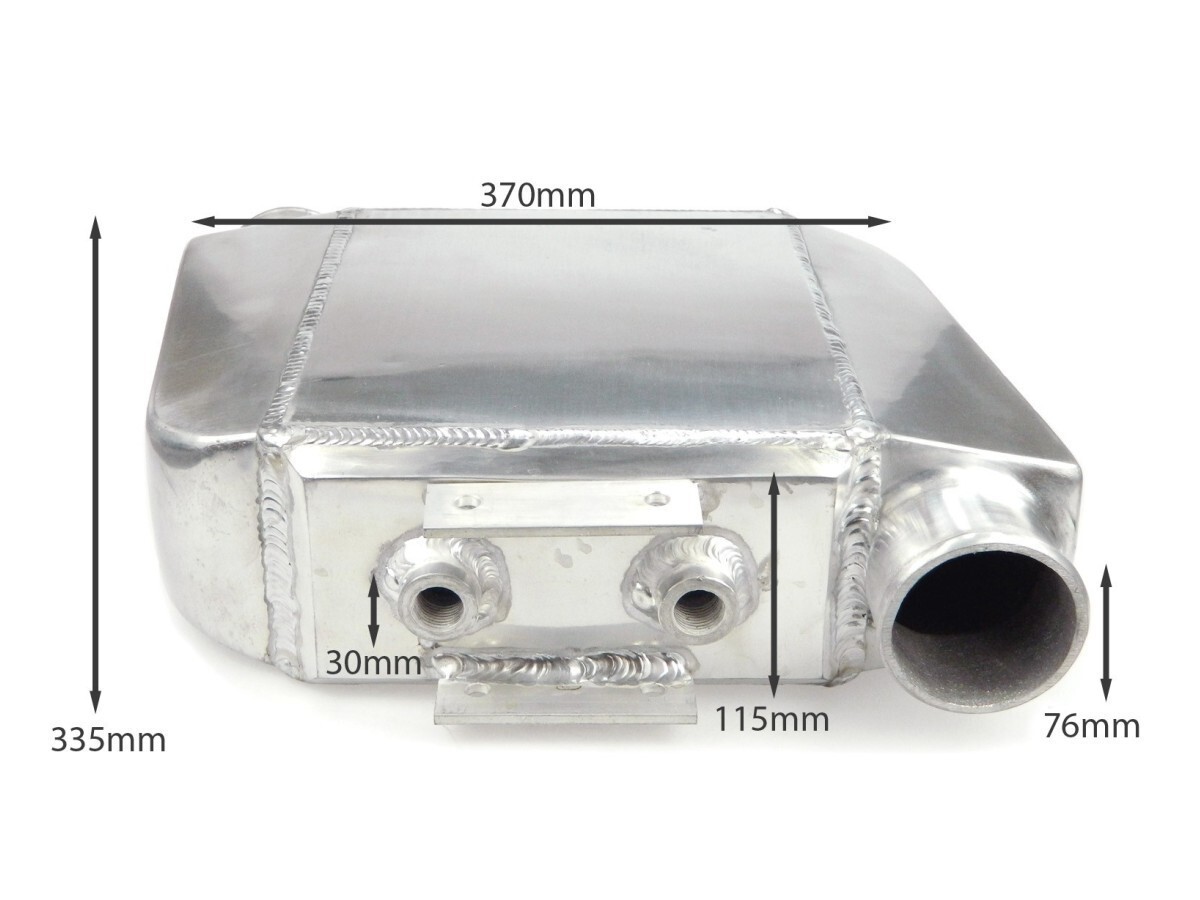

Dimensions
Length: 335mm
Width: Max 370mm
Height: 115mm
Connection diameter: 76mm = 3"
Thread Water pipe: 1/2 NPT
Note:
Our water-cooled charge air cooler are suitable for a maximum water pressure of 1.93 bar/28 PSI.
Not approved in the area of StVZO
