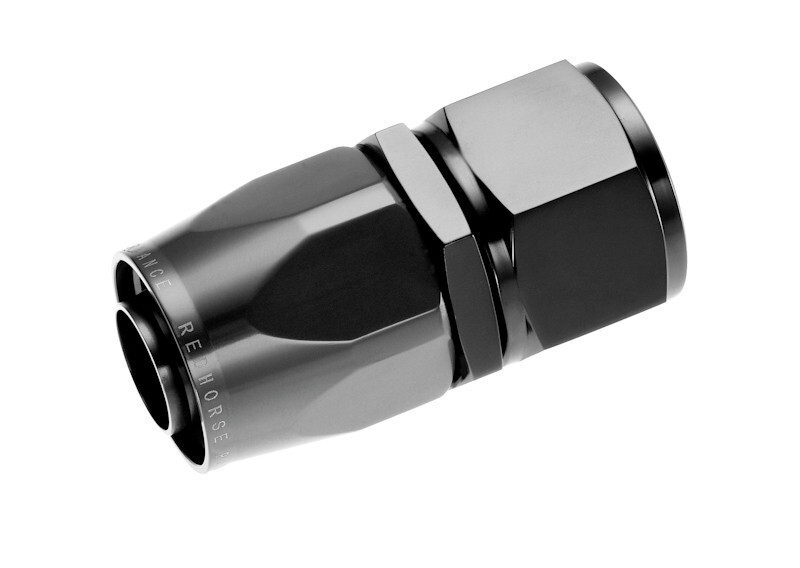

-10 AN / Dash 10 hose end straight
High quality hydraulic fitting - black
For oil lines, fuel lines and the like
With our hose fittings and associated hydraulic hoses you can make oil-, water- and fuel-lines. With unique screw connections the cables without crimping tool are tight and pressure-resistant to at least 35bar. We recommend -4 AN for oil - supply lines (fits on our GT-R feed adapters and the integrated EFR Reducers), -10 AN for oil return lines (fits on our return flanges with thread). Fuel and water pipes you choose the best according to the specifications of connections or fuel pumps.
The DIS fittings are simply screwed to the appropriate tubes. Fittings called "rotatable" are to mount still fully rotatable. This is indispensable for easy installation and are often not available at cheap providers. We recommend depending on the application to make at least one side rotatable.

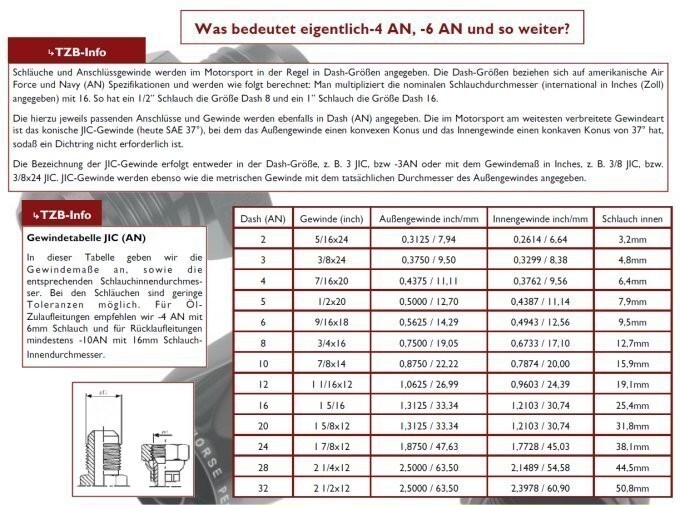

Thread: -10 AN / Dash 10 / 7/8x14"
Hint: connection not rotatable
Material: aluminium
Colour: black anodized
For trouble-free installation in all application areas, we offer a variety of adapters. Thus even a later extension or enhancement of lines is possible without any problems.
- Availability: available in 3-5 days
- Angle: 0 degree / straight
- Thread: -10 AN / Dash 10
