Wagner competitionPaket EVO 2 - Audi TTRS 8J

Package of competition intercoolers and downpipe

Original Wagner Tuning Product

Brand: Audi
Type: Audi TTRS
Model: Audi TTRS 8J

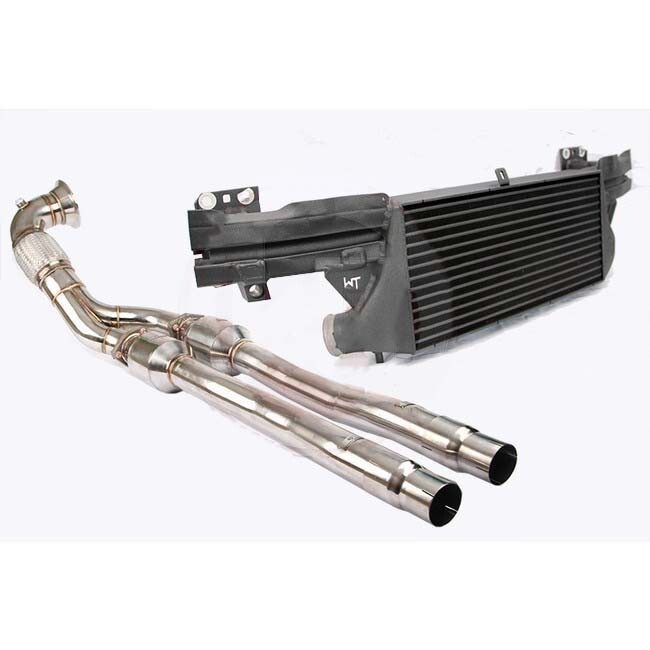

The Wagner COMPETITION PACKAGE - the Audi TTRS consists of the Wagner intercooler upgrade kit EVO2 and the downpipe kit.
Wagner intercooler upgrade Kit 200001024

The high-performance Wagner charge air cooler has the following core dimensions (535mm x 260mm x 95mm) and thus offers 62.5% more inflow area and 94% more charge air volume compared to the original Wagner charge air cooler. The newly developed competition high performance core ensures sufficient air flow to the adjacent components, such as the water cooler and is also very light. The end tank of the Wagner charge air cooler are made of cast aluminium and have been optimised under flow analyses in the CAD system. This Wagner intercoolers has excellent cooling properties and is just perfect for racing The Wagner charge air cooler and the original cross beam form a stable unit and weigh less than 10kg thanks to the new competition high performance core. The assembly is carried out at the original fixing points and is easy to carry out (1:1 exchange). Optimal cooling of the charged air with a significant increase in performance.

OEM Wagner charge air cooler Cooling surface 856cm² / charge air volume 6,8L
WT EVO 1 Performance: Cooling surface 856cm² / charge air volume 9,4L
WT EVO 2 competition Cooling surface 1391cm² / charge air volume 13.2L
WT EVO 3 competition Cooling surface 1890cm² / charge air volume 16,5L

Wagner-Tuning products are subject to continuous qualitative monitoring.

Indluced in delivery:
1 Wagner charge air cooler together with the crossbar
1 license plate holder
1x Assembly instructions

Remarks:
only racing

Wagner Downpipe pipe - 500001003

The Wagner downpipe - Audi TTRS 8J / RS3 8P with catalyst

Diameter from 90mm to 2 times 70mm
completely high quality stainless steel 1.4301 (SS304)
without pre-cat
1 Lambda sensor connection
2 racing main catalysts (100 Cells/inch)
100% accurate fit, simply exchange for serial parts
less thermal stress on the turbocharger
Increased performance through dynamic pressure reduction
Considerably more torque
suitable for Audi TTRS 8J and Audi RS3 8P
compatible with the original main catalysts

not approved within the scope of the STVO
