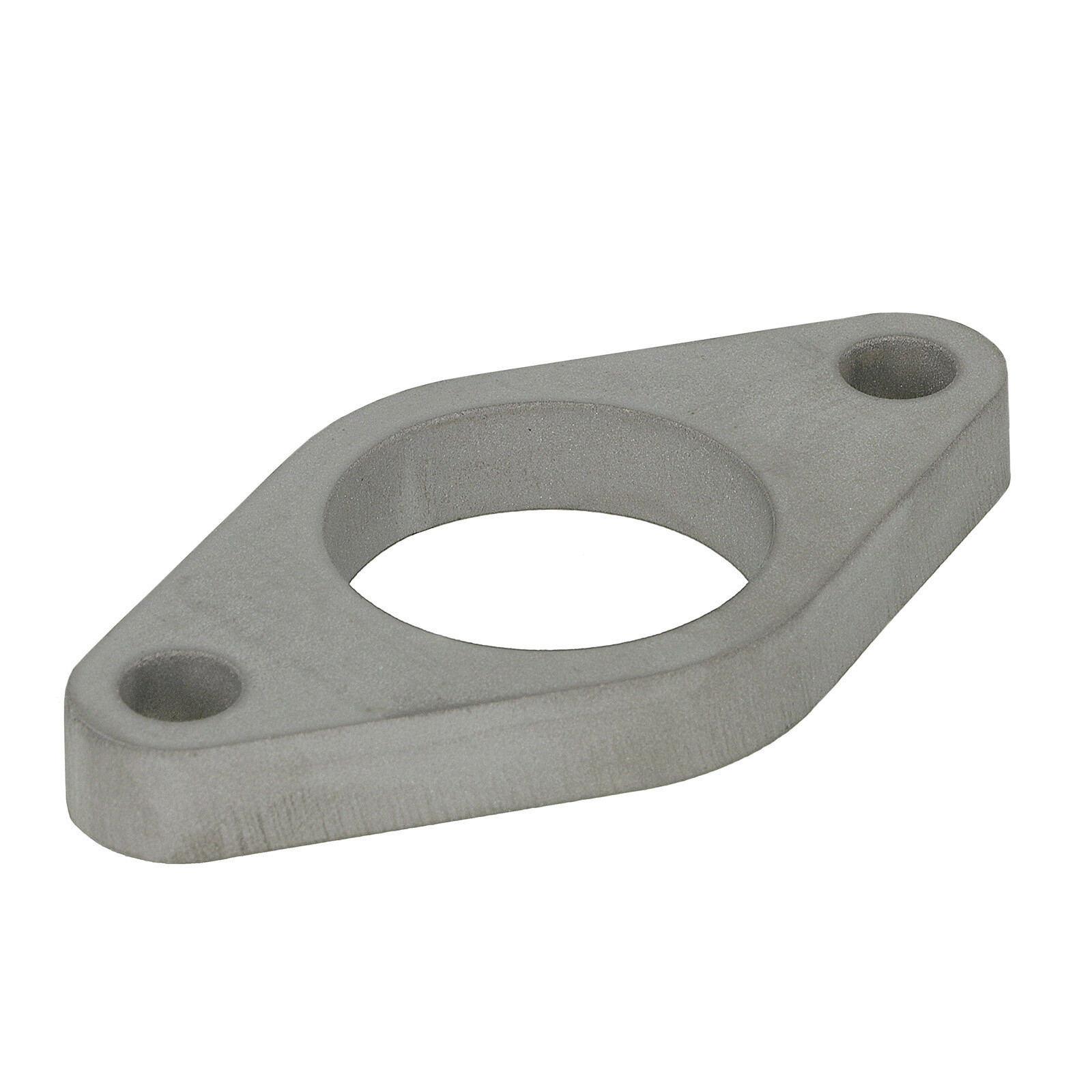

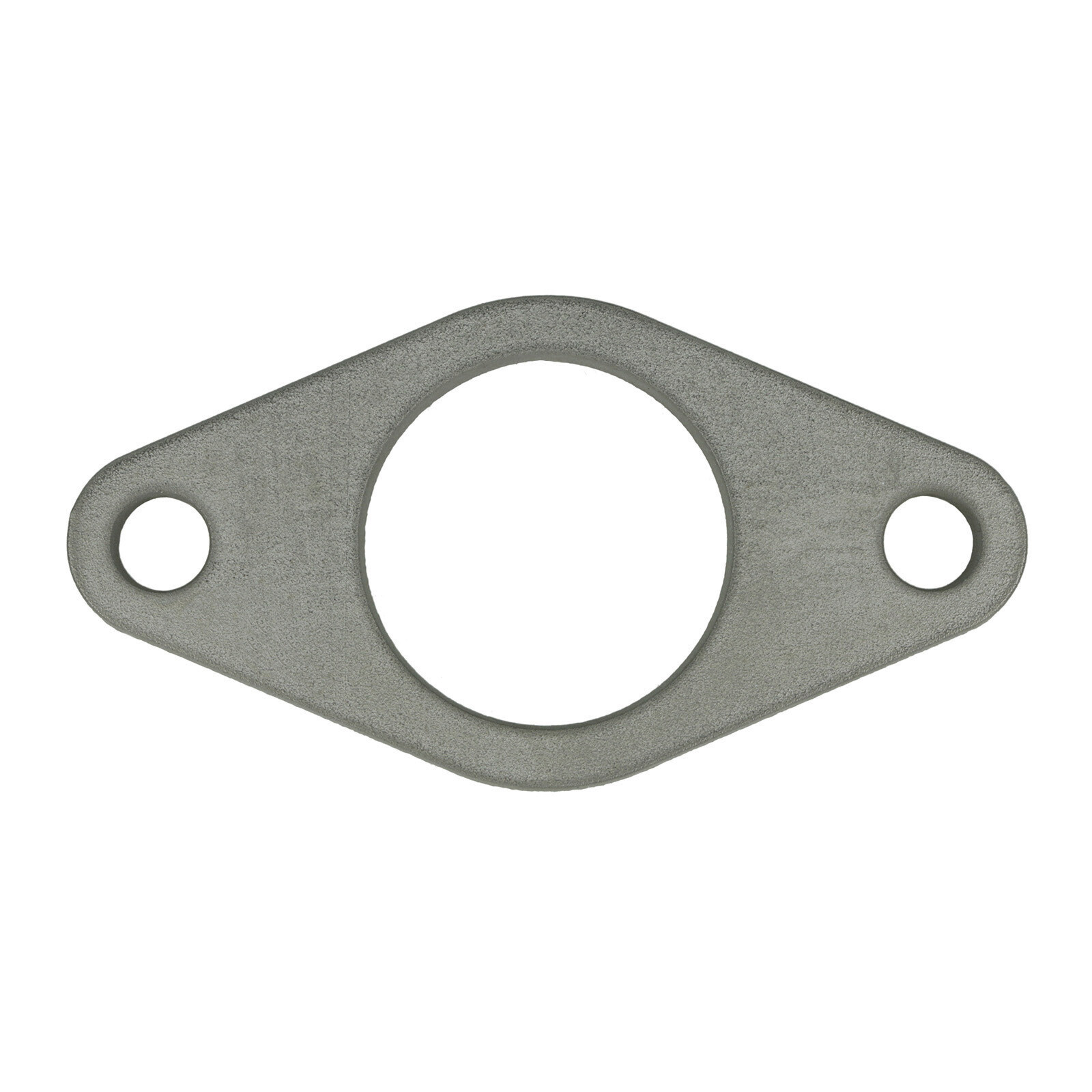

TiAL Flange F38 outlet stainless steel
Flange for the TiAL F38 / 38mm Wastegate
Stainless steel flange for wastegate outlet without thread
High-quality stainless steel flange for the TiAL F38 Wastegate. This flange has no threaded holes, but holes. Thus it is suitable for the outlet side for the return from the wastegate to the downpipe.
Material: Stainless steel 1.4301 / V2A / SS304
Material thickness: 10mm
Total dimensions: 89mm x 50mm
Dimensions cutout: 35mm (inside diameter of a 38mm pipe)
Hole spacing: 71mm (diagonal)
Thread size: For M8
Extras / Features: No threads. Holes 8mm.
For / Fits:
Output TiAL F38 resp. 38mm resp. 38/40mm
Synapse Synchronic output 40mm WG001
- Wastegate: TiAL F38Synpase 40mm
- Availability: available today
