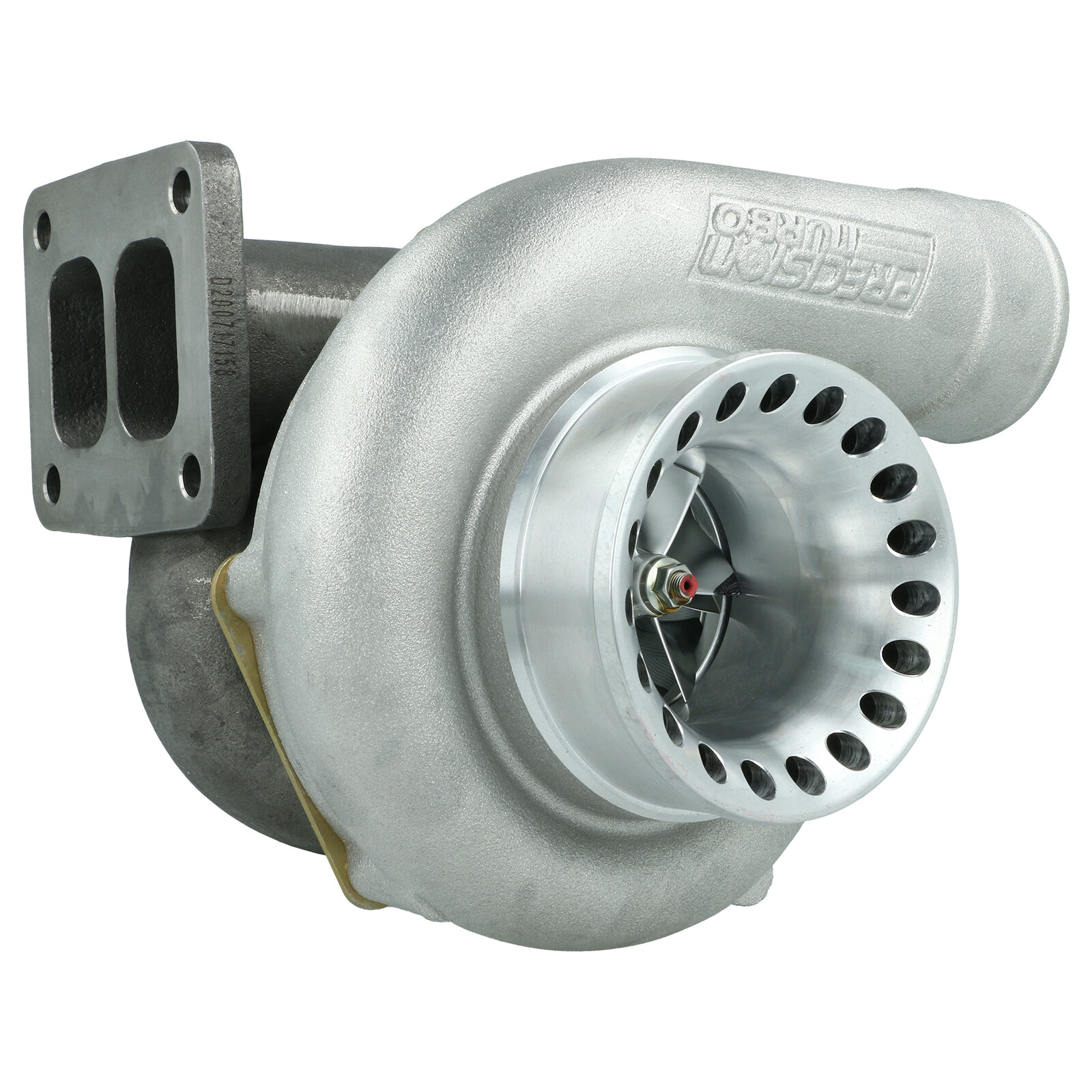

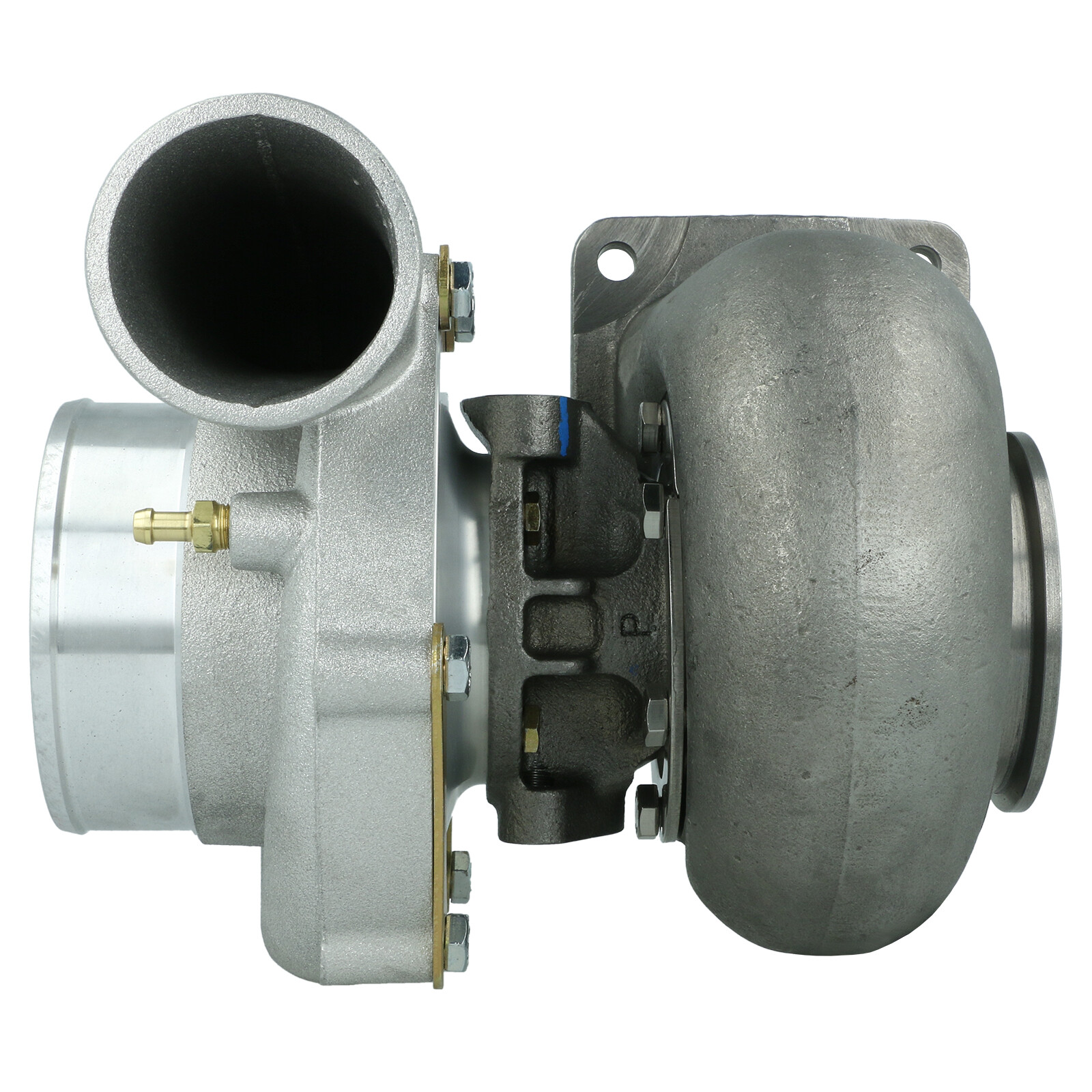

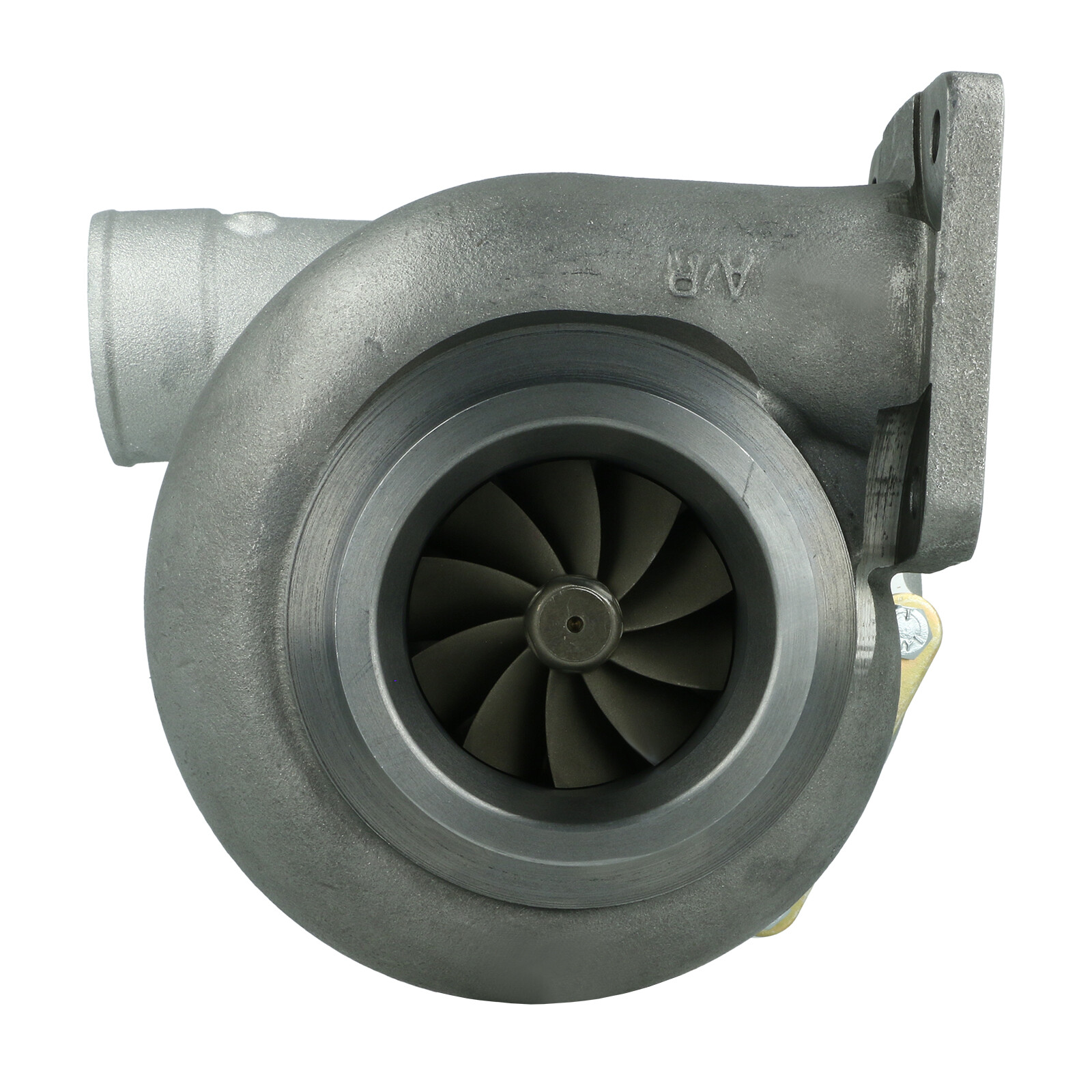

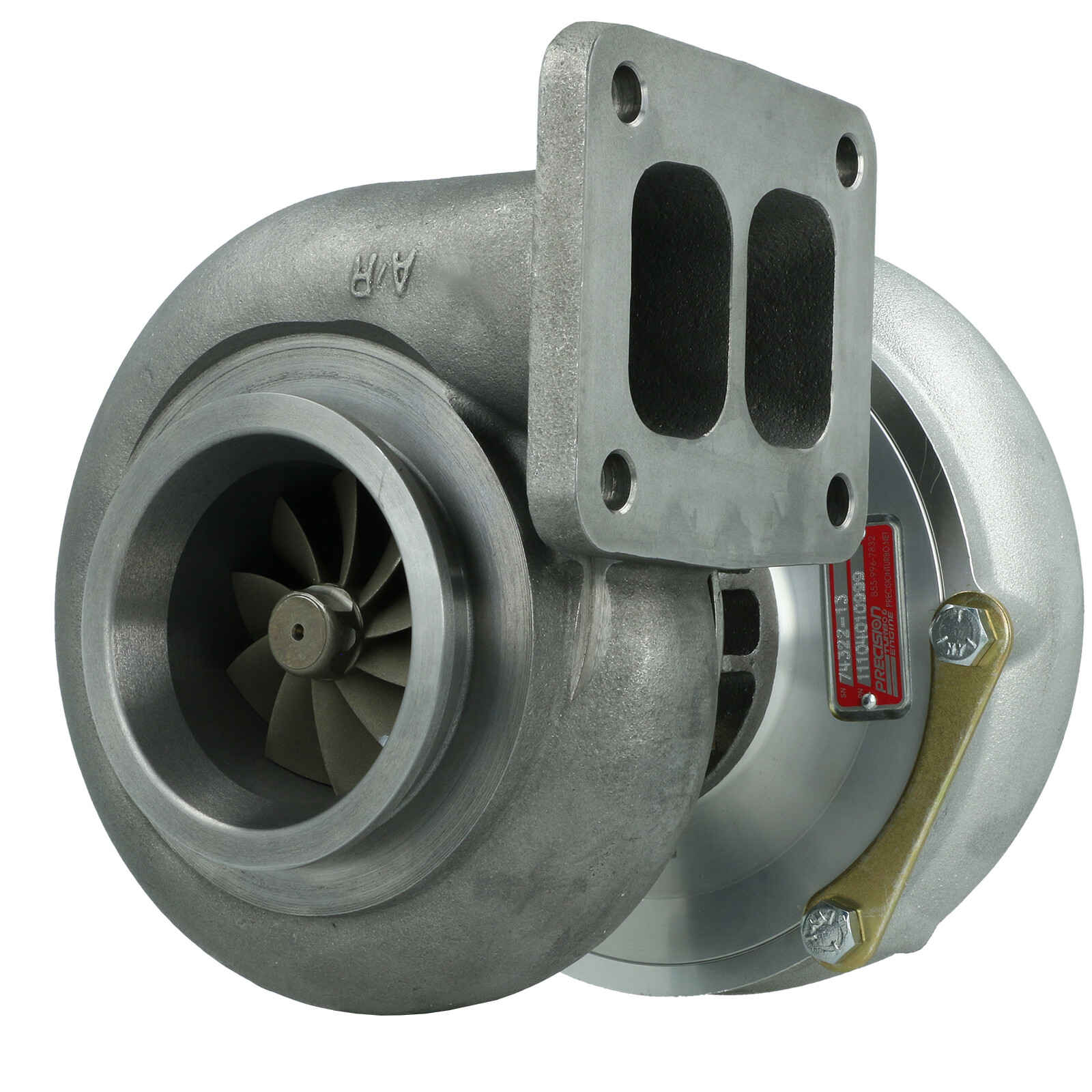

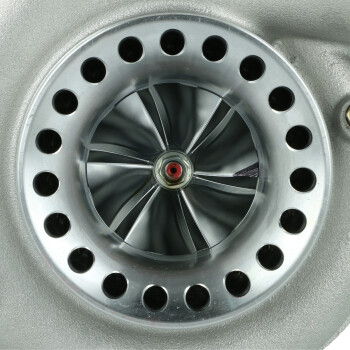

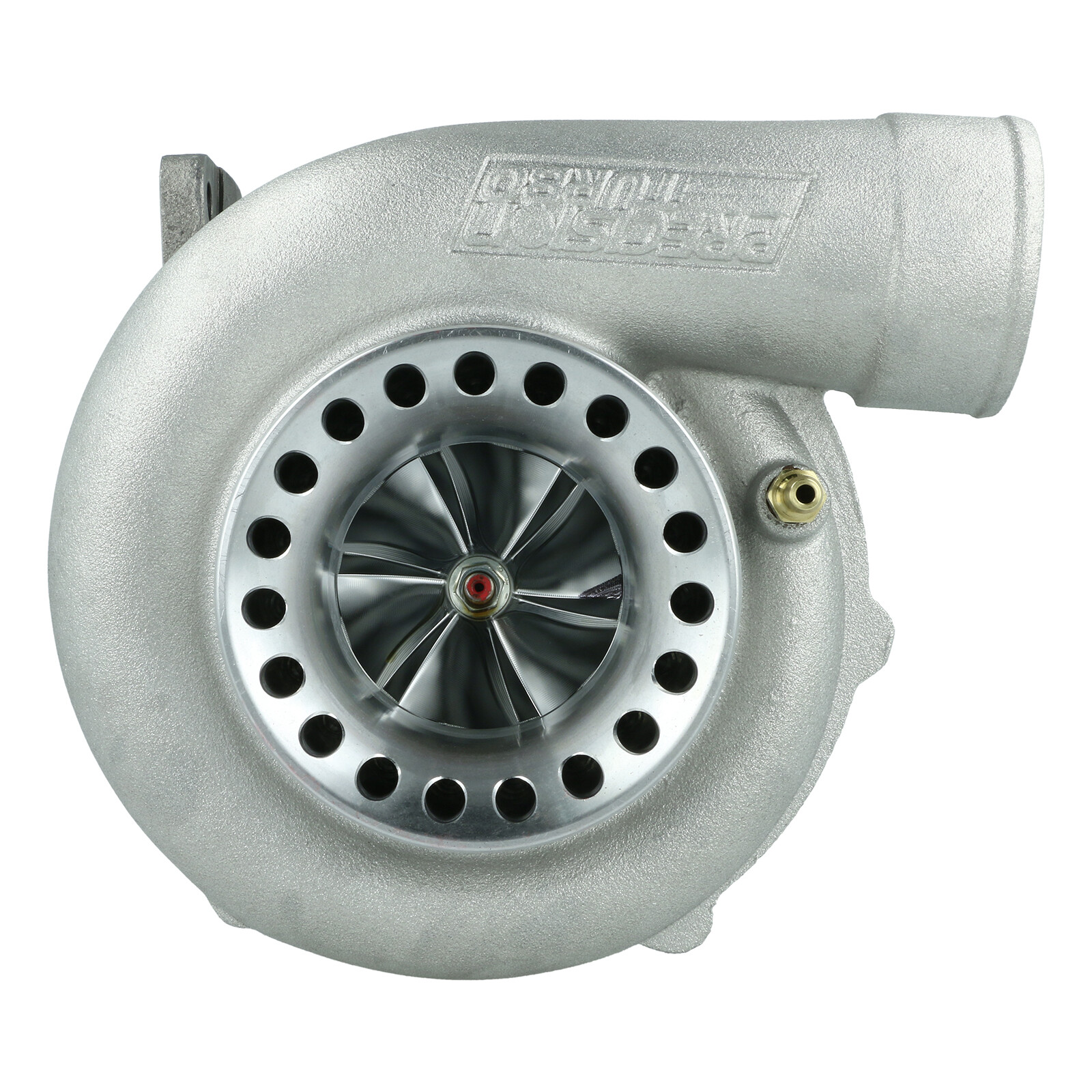

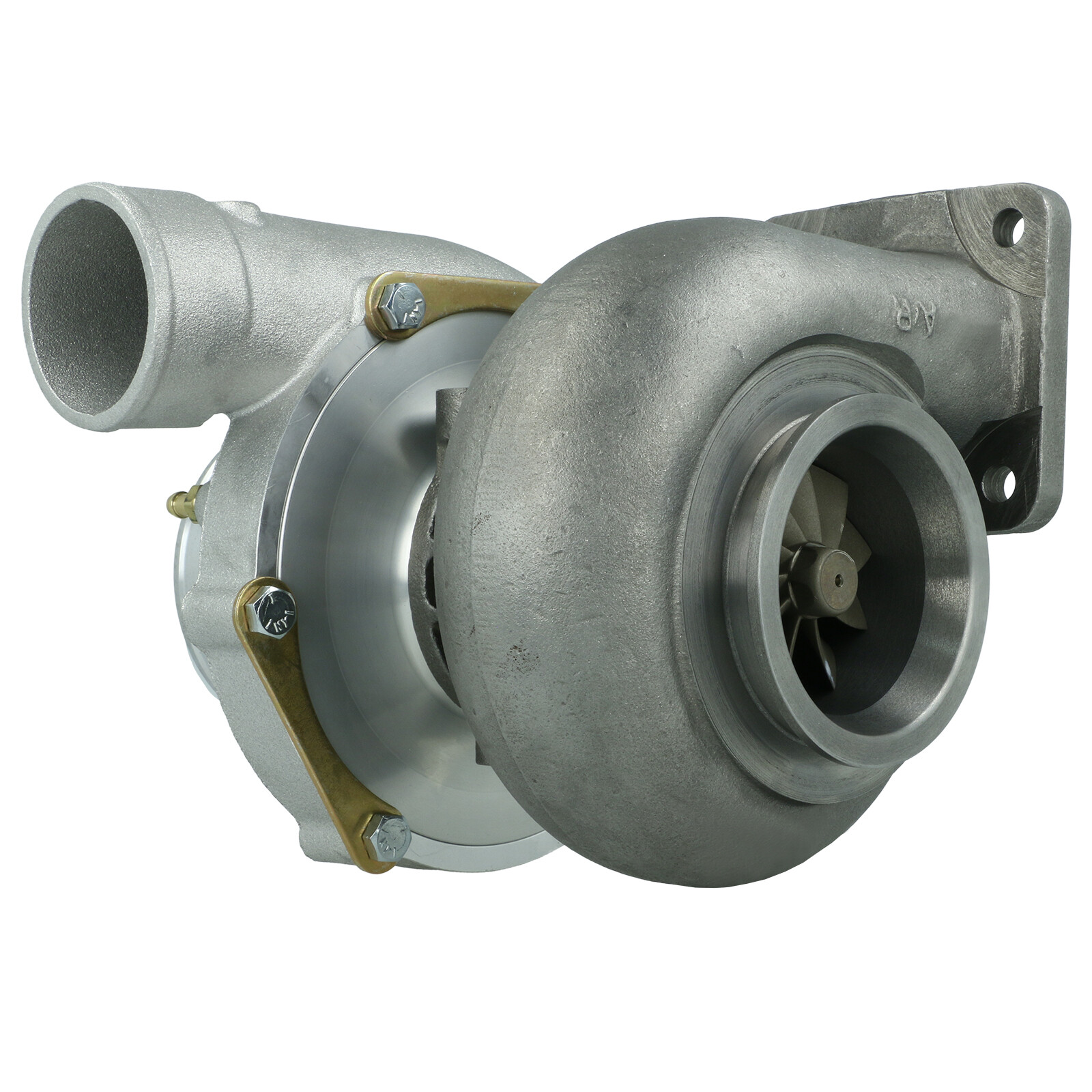

PT 6066 ball bearing Turbocharger / T4 1.00 A/R / ext. WG. / V-Band Downpipe / S-cover ported

Precision Turbocharger PT 6066 760 HP STREET & RACE with ball bearing and Air-cooled CHRA

Precision Turbo for fastest transient response, maximum efficiency and highest boost pressure levels

Application: STREET & RACE
Horsepower: 760 HP
Product group: Turbocharger
Model: PT 6066
Generation: GEN2
Bearing type: Ball bearing
CHRA cooling: Air-cooled
Rotation: Standard

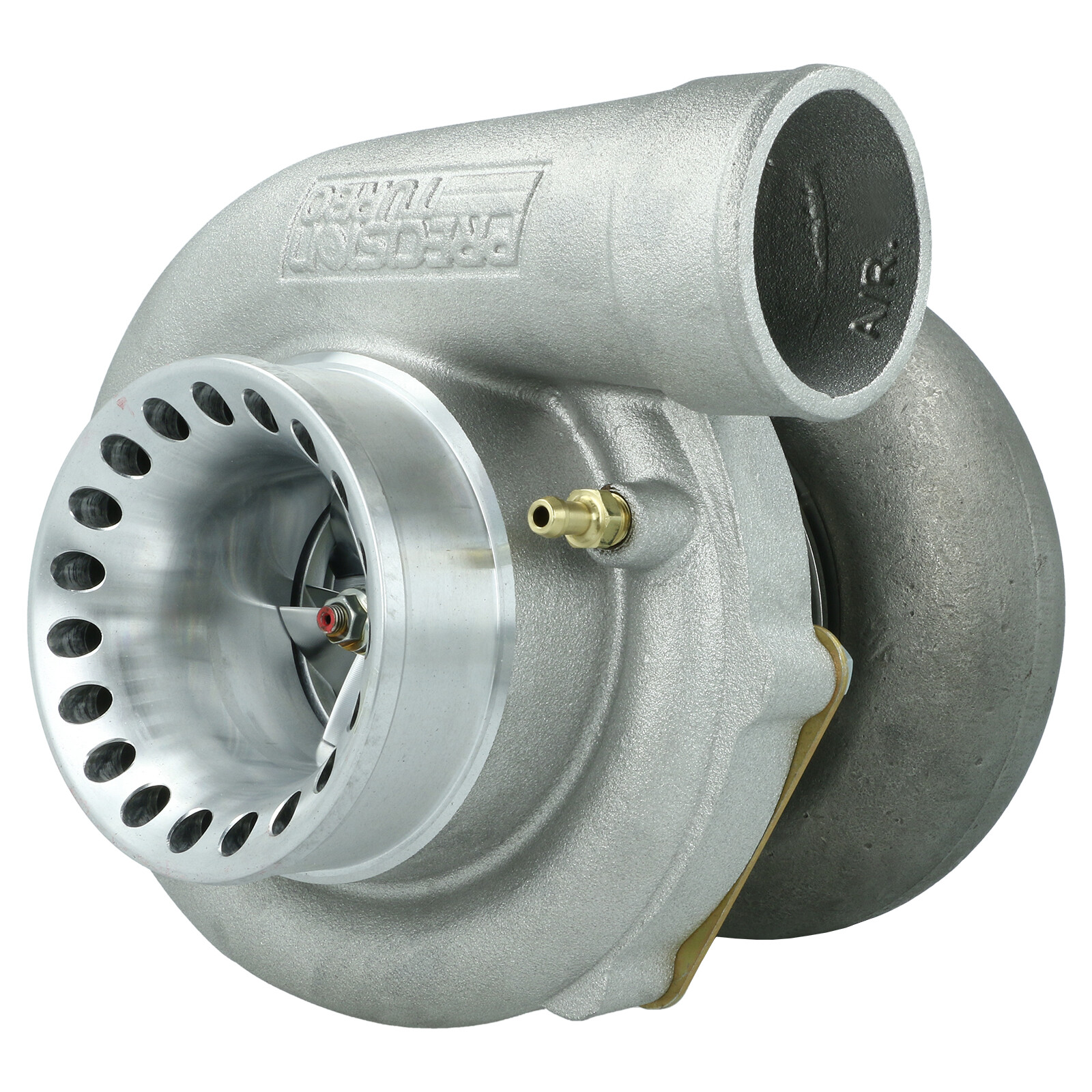

Compressor cover type: S-cover
Compressor ported style: Ported
Compressor inlet: 4.0"
Compressor outlet: 2.5"

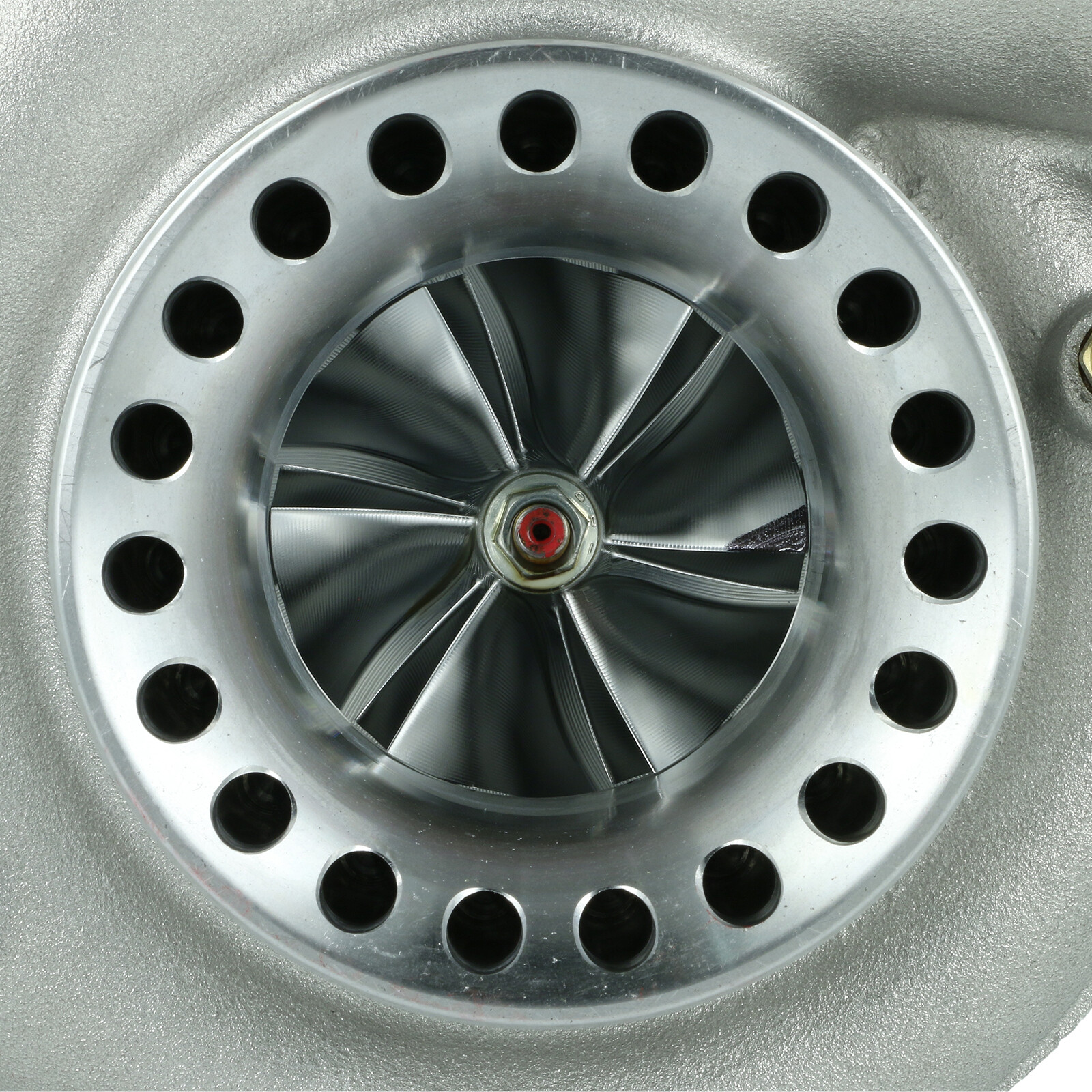

Compressor wheel inducer: 60.0 mm
Compressor wheel exducer: 82.0 mm

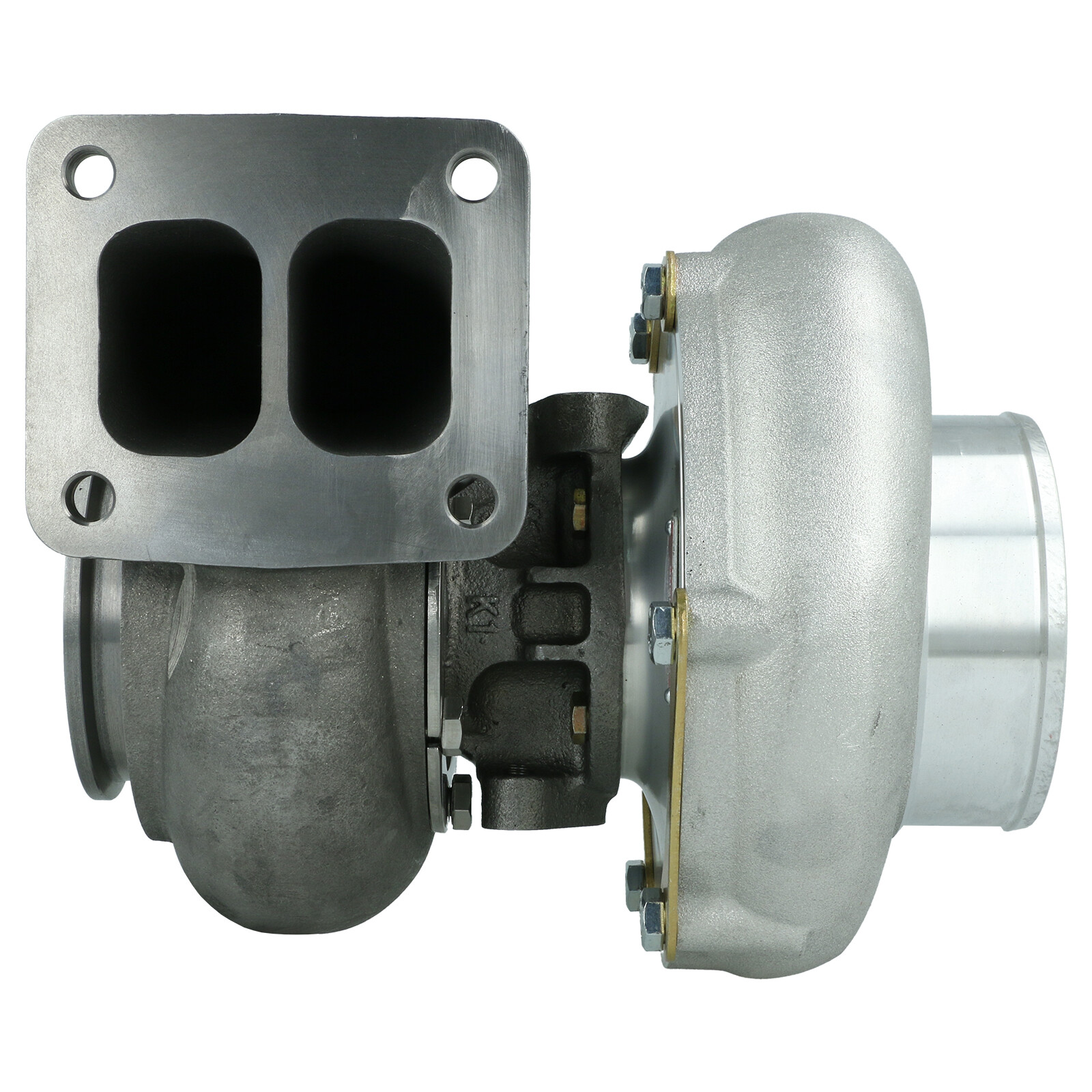

Turbine inlet flange: T4
Wastegate: ext. WG.
Downpipe flange: V-Band
A/R: 1.00 A/R

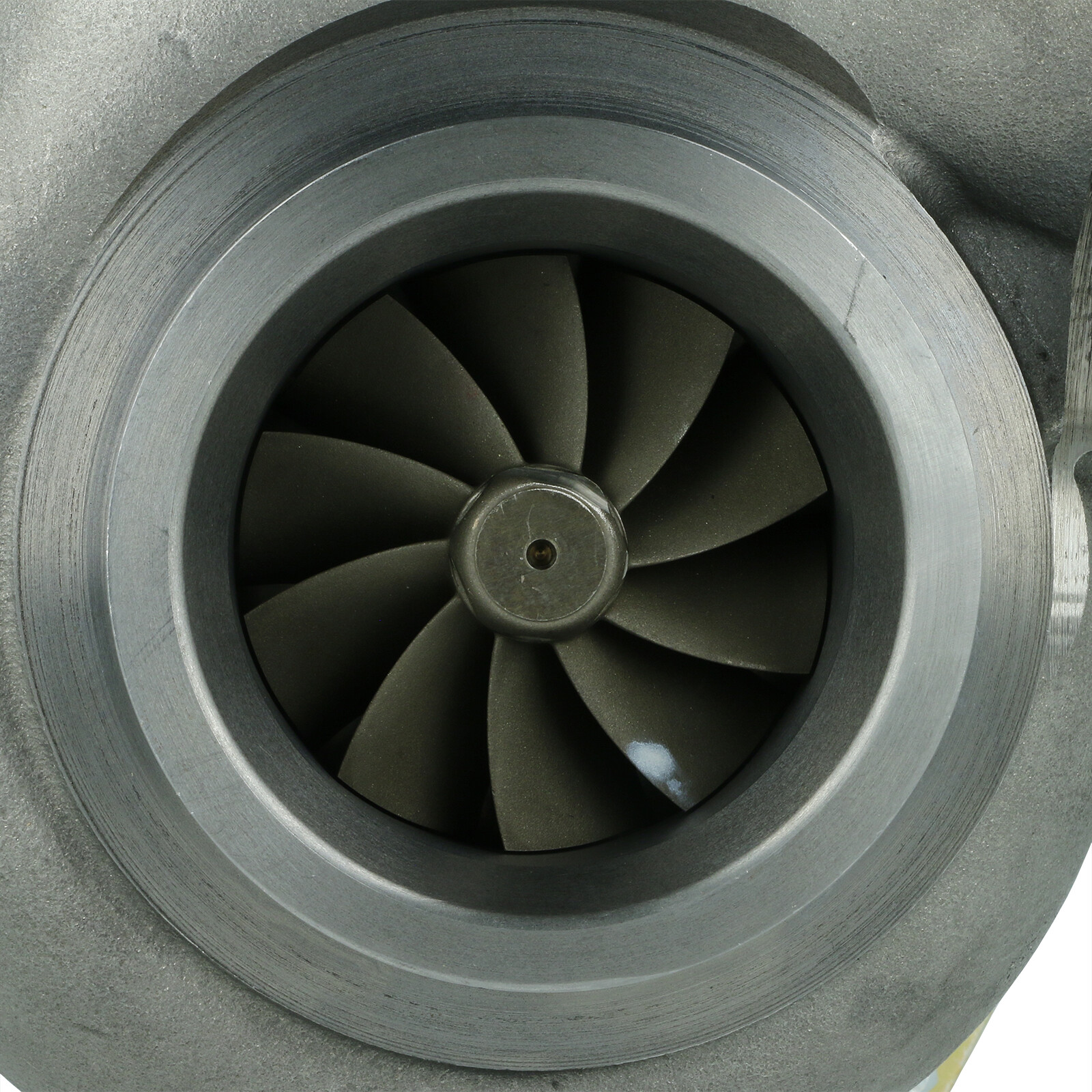

Turbine wheel exducer: 66.0 mm
Turbine wheel inducer: 74.0 mm
Material turbine housing: Cast iron

Racing is easy - it's winning that can be the challenge. With 119 world championships and set over 256 world records since 2008, Precision Turbo and Engine has a longstanding history of building Turbochargers that win. We know what it takes to put together the perfect unit to boost you ahead of the competition. Success doesn't come from a standard off-the-shelf Turbocharger; it comes from years of dedicated research, development and real-world racing experience. You can trust PTE to get you where you want to be. We know you want to be the best both on the track and off. Whether you're a diehard racer or just looking to boost your daily driver's performance, Precision Turbo and Engine has what you need. For exceptional power and unbeatable technology at an affordable price, we can help you find the perfect Turbocharger for your unique setup.

GEN 2 Features:
Featuring the latest and greatest in compressor and turbine wheel technology from Precision, the GEN 2 CEA® series offers a unique combination of Competition Engineered Aerodynamics (CEA®) with both hot and cold sides! Offering substantially more horsepower over similarly sized turbos, the GEN2 CEA® series are the perfect choice for those wanting to make more power without changing their current system.

Featuring exclusive GEN2 CEA® (Competition Engineered Aerodynamics) compressor wheels machined from a 2618-aluminum forging and CEA® turbine wheel, Precision's GEN2 CEA® Turbocharger is rated to support up to 2500 horsepower. PTE's technologically advanced CEA® wheels are known for their unparalleled performance, greater efficiency at higher pressure ratios, less turbo lag, ability to handle higher boost, and offer massive power gains over older wheel designs of similar sizes.

Precision Turbo GEN 2 Turbochargers features:

• Cast 310 stainless steel THV5S / 1.05 A/R
• T3 .63 or .82 A/R with 4 bolt (2.5") discharge
• T3 .63 A/R with 5 bolt discharge (with or without wastegate hole)
• T3 .63 or .82 A/R with 3" OD (outer diameter) V-Band discharge
• V-Band inlet .64 or .82 A/R with V-Band discharge
• T4 Tangential .58 or .68 A/R with 3 5/8" OD (outer diameter) V-Band discharge
• T4 Divided .84 A/R and 1.00 A/R with 3 5/8" OD (outer diameter) V-Band discharge
• Mitsubishi .63 A/R
• Buick .63 A/R
• K26 .82 A/R
• * NOTE: Additional cost may apply for certain housings.
