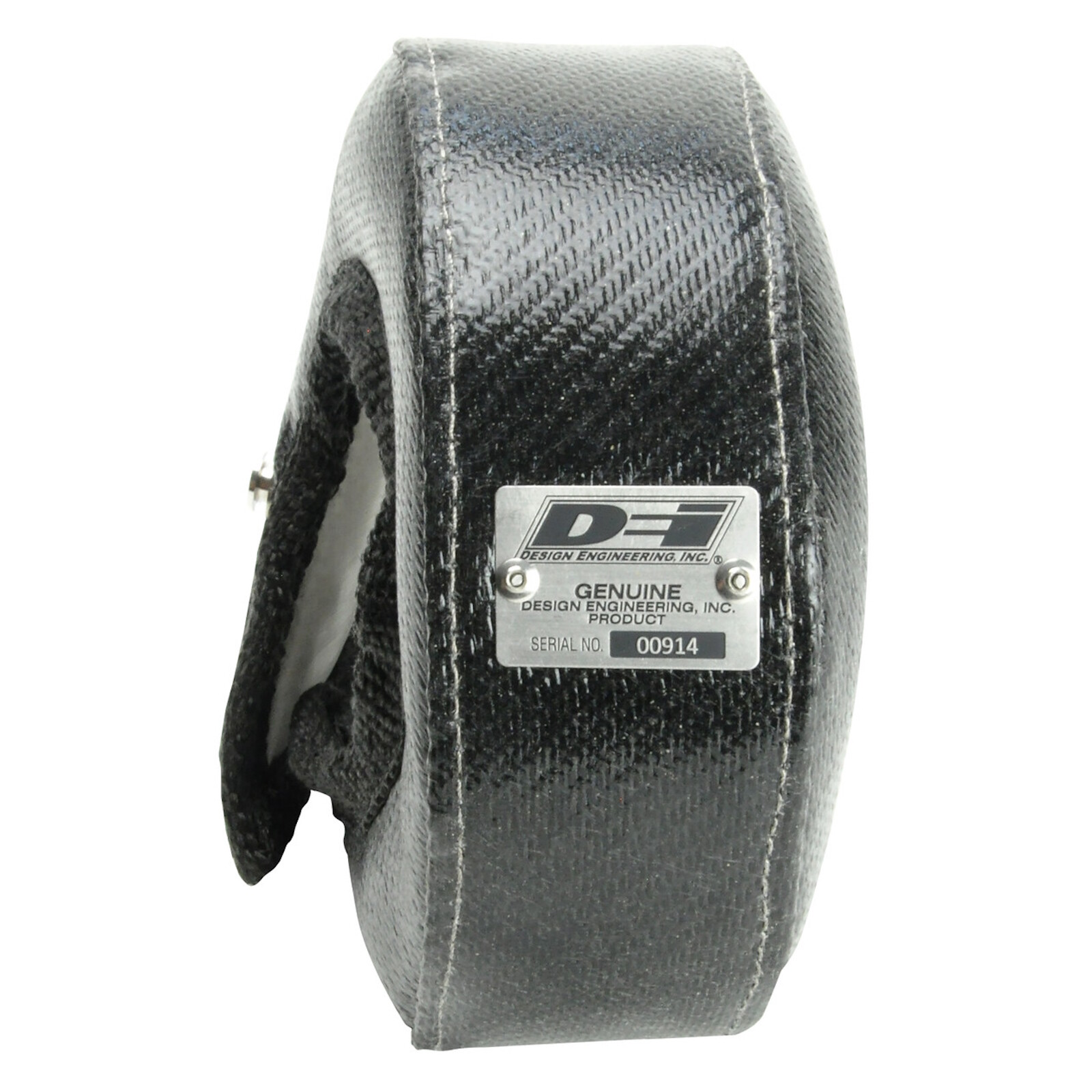

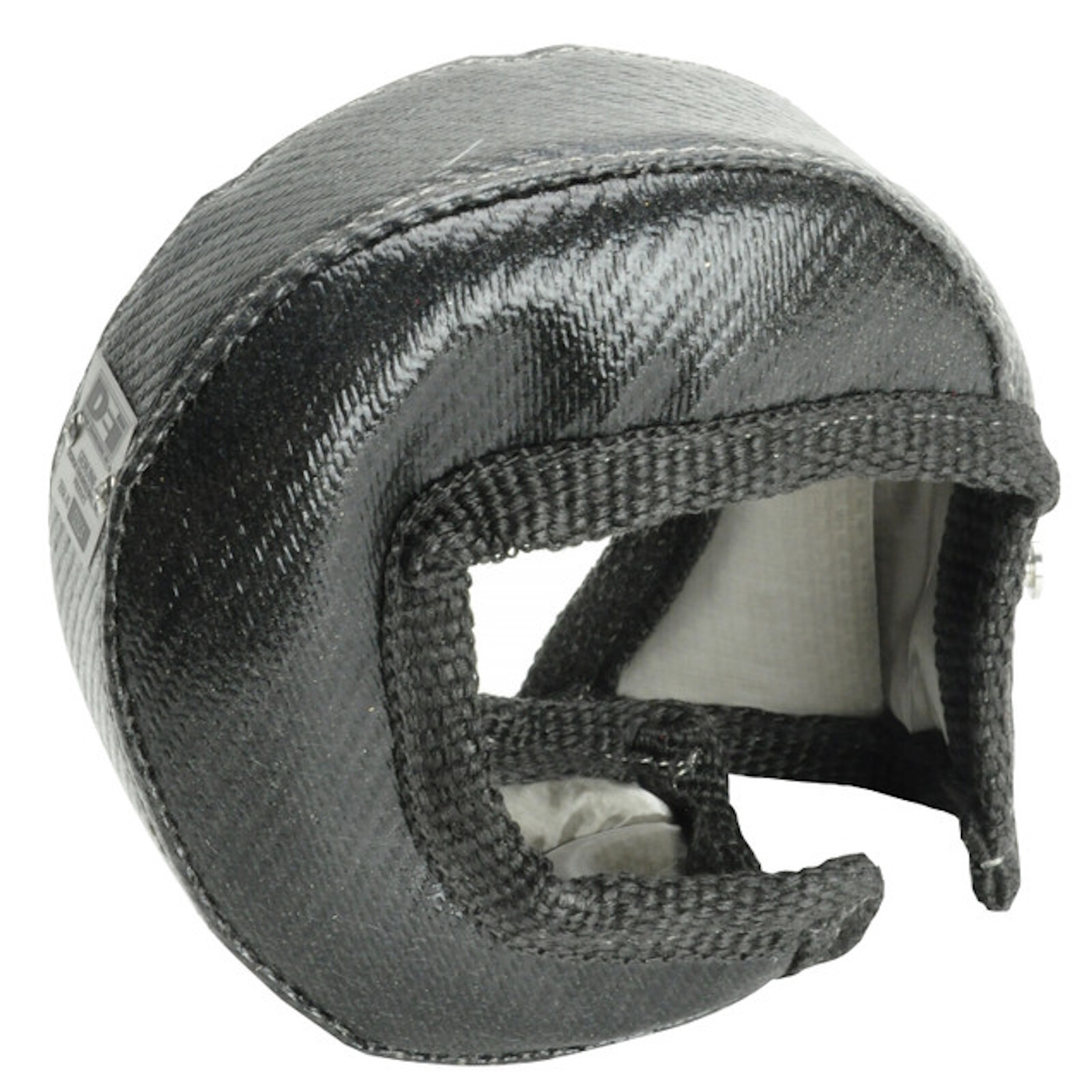

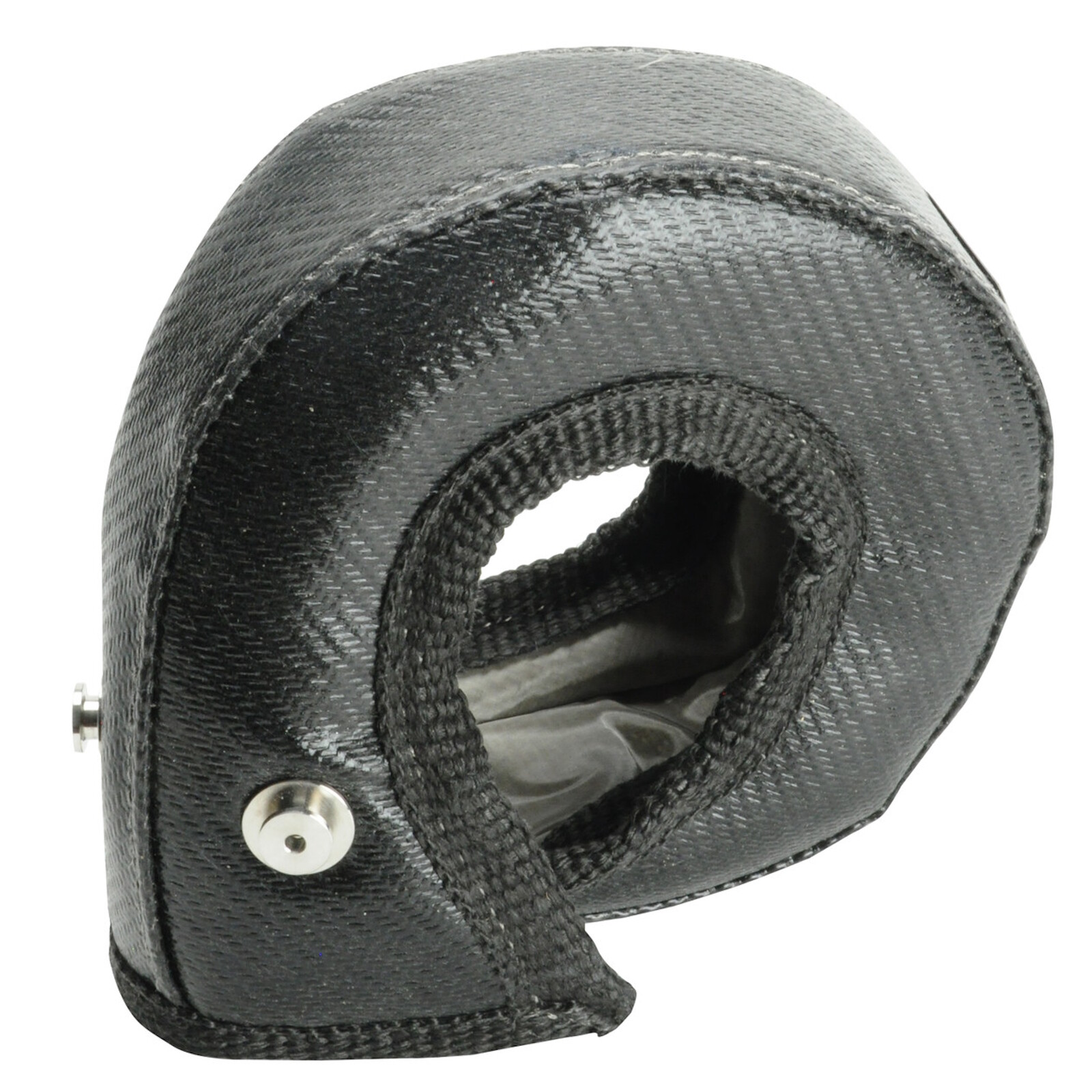

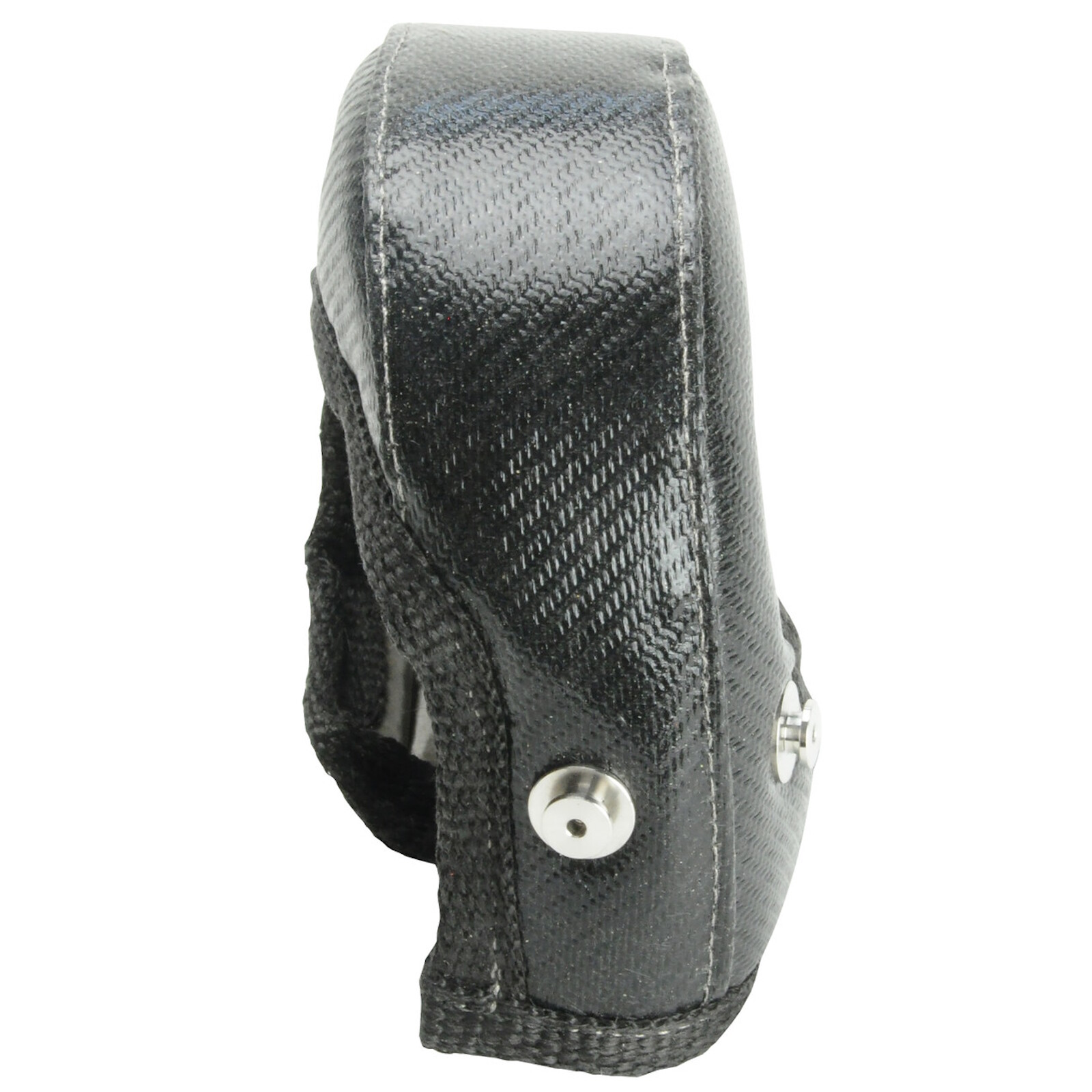

Turbo Heat Shield GEN 3 Onyx - Single T4
The best Turbo heat protection blanket on the market
New GEN 3 DEI - the strongest, most heat resistant shield available for T4 turbine housing and similar
DEI raised the bar! The most technologically advanced turbo shield ever!
DEI incorporated all their experience to build the absolute best turbo shield on the market. By developing advanced textiles and diving deep into what is needed to control turbo heat, DEI developed the GEN-3 Onyx Turbo Shield. A Silicone coated Onyx outer layer with multiple stainless steel and silica inner layers. Without a doubt the strongest, most heat resistant shield available.

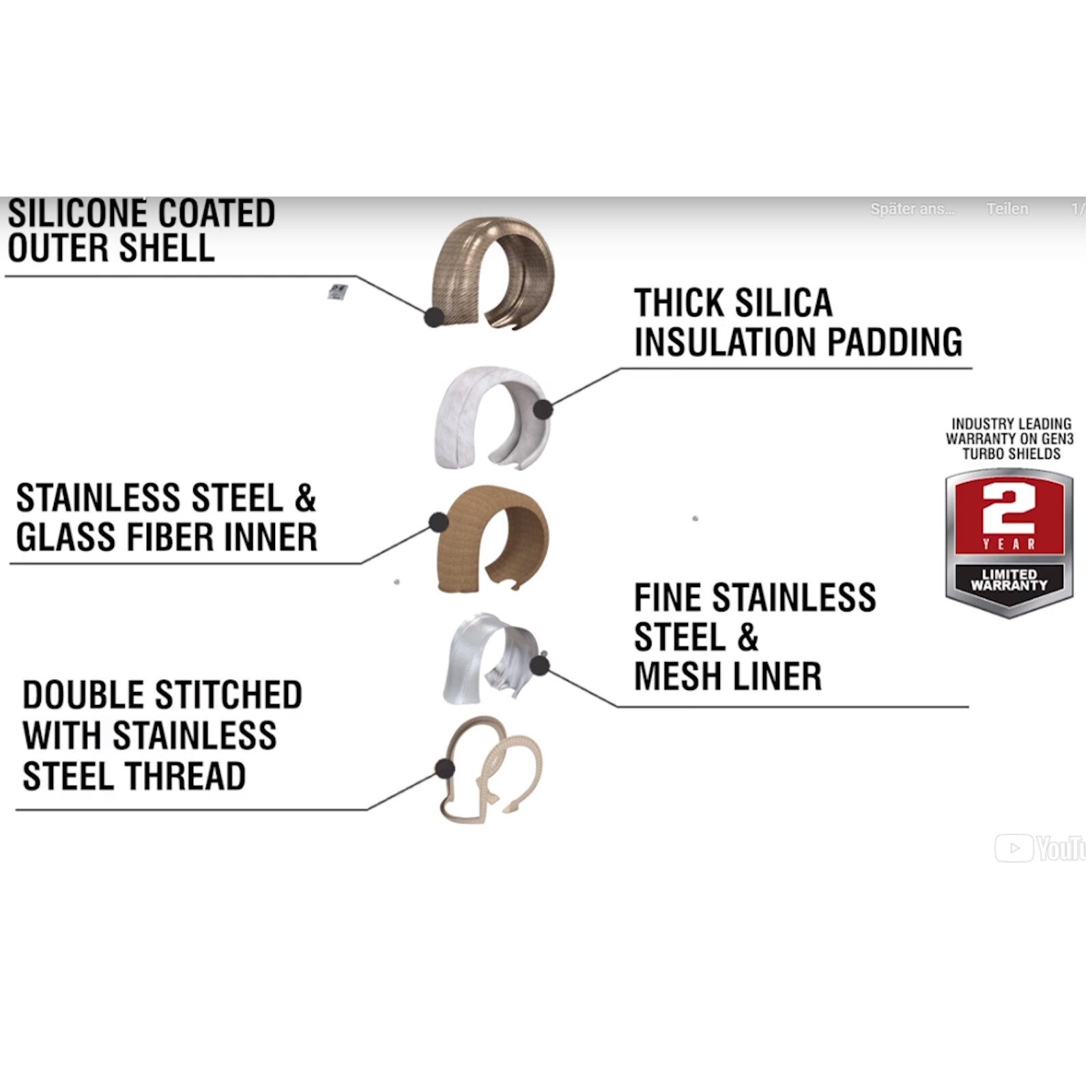

OUTER SHELL
- Coated in silicone to insulate and hold up under extreme conditions Prevents fraying & encases seams to make them over 4 times stronger
- Thick layer of silica insulation keep heat in turbo shield and turbo housing Silica has a low thermal conductivity making one of the best insulators
- Stainless steel, glass fiber & silicone adds to insulating and thermal properties Increases seam strength, durability and insulation value

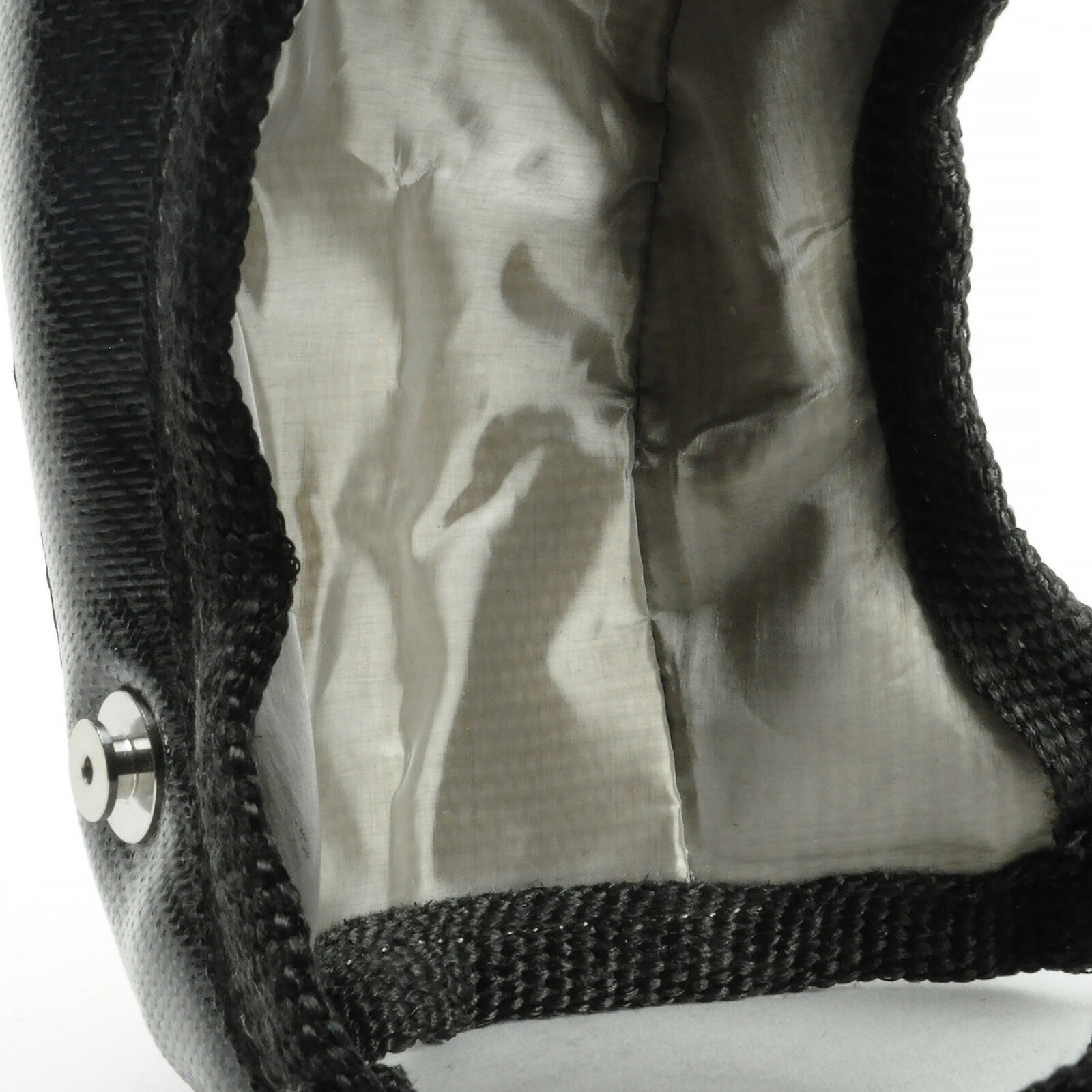

- Stainless Steel fabric holds up against the highest temps
- Will not break down or become brittle with heat
Radiant Heat Resistance: 1400°C / 2500°F
Size: T4
Color: Black
Kit: with shield and wire only

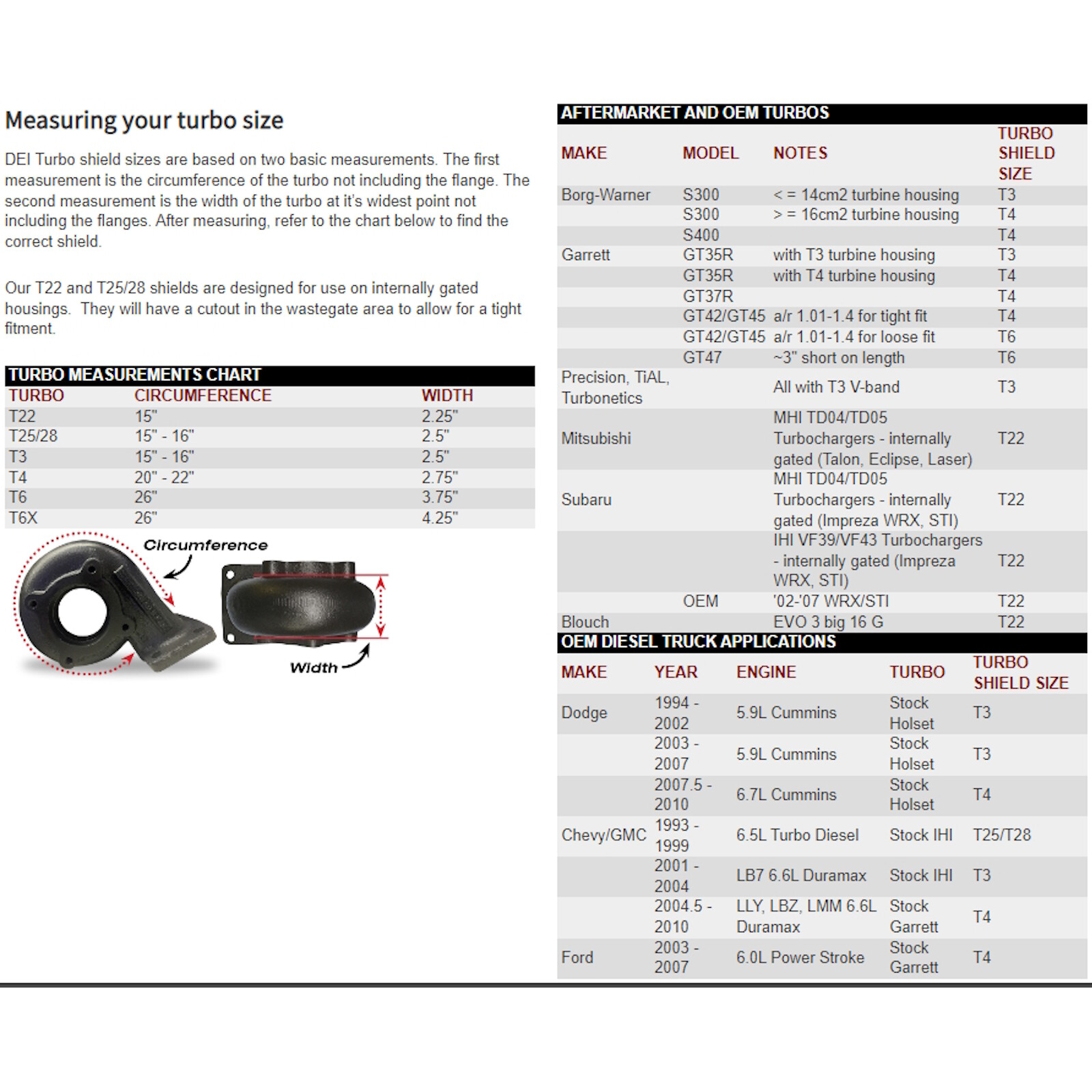

TURBO APPLICATION GUIDEMeasuring your turbo size
- DEI Turbo shield sizes are based on two basic measurements. The first measurement is the circumference of the turbo not including the flange. The second measurement is the width of the turbo at it’s widest point not including the flanges. After measuring, refer to the chart to find the correct shield.
Fits, among others, the following exhaust housings:
- Garrett GT3582R with T4 exhaust side
- Garrett GT3788R, GT4088R, GT4094R
- sitting tight on Garrett GT4294R, GT4202R, GT4508R, GTX4294R, GTX4202R, GTX4508R
- BorgWarner S300 from 16cm2 turbine housing
- BorgWarner S400
- Dodge 6,7L Cummins 07-10 series turbocharger
- Chevy / GMC LLY, LBZ, LMM 6.6L Duramax
- Ford 6,0L Power Stroke 03-07
Warning!
Here you buy the blanket individually. We also offer a complete set with fixing material and heat protection tape.Price for heat protection blanket as shown, without turbine housing.
Features
- Product Type: Turbo heat shield T4
- Usage: Turbocharger / turbine housing
- Color: black
- Availability: to order
