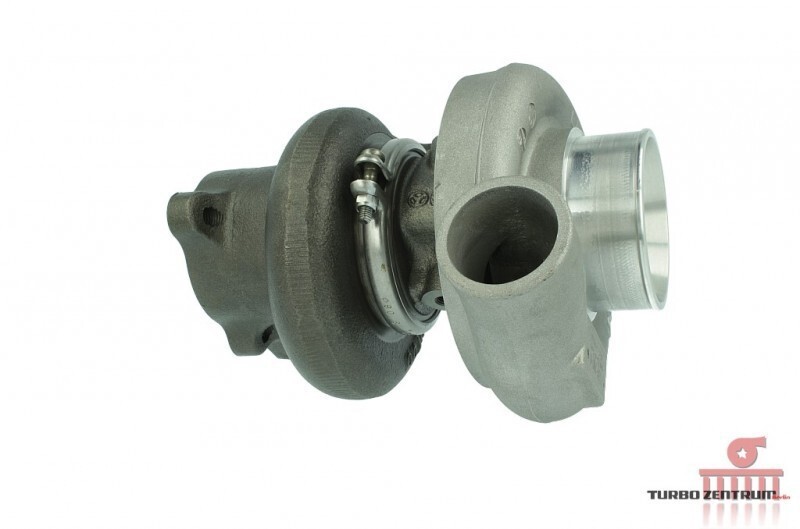

Universal MHI Turbo 20G 49S79-01200

Original Mitsubishi Performance Turbocharger

TD06-20G (8cm²) for outputs up to 450PS

The TD06 is a perfect universal turbocharger for many applications. Both 4 cylinders and 6 cylinder conversions can be realized here up to 450 hp. And this with a T3 flange with internal wastegate (wastegateseparate), a robust journal bearing and the special Inconel exhaust wheel with 12 blades for particularly early response. A robust, durable and inexpensive turbocharger in highest manufacturing quality from Japan.

Application: Universal, recommended for VR6, R32, BMW 6 cylinders and similar conversions
Power range: Up to 450PS
Exhaust side: 8cm³
Flange pattern elbow: T3
Flange picture downpipe: MHI 3-hole
Wastegate: Internal, without wastegate

Exhaust gas degree min.: 55mm
Exhaust gas wheel max.: 65mm
Compressor wheel inlet: 53mm
Compressor wheel outlet: 68mm

Turbo Features:
- Robust double journal bearing
- Special MHI-Inconel exhaust gas wheel for better response
- Efficient compressor wheel with wide map
- Oil-cooled, no water pipes necessary

All MHI Performance Turbochargers are original Made in Japan.

MHI Performance turbochargers are a high-quality result of an extremely precise production in the motor sports department of the Japanese turbocharger manufacturer Mitsubishi.
All MHI Performance turbochargers have a very wide compressor map which provides optimum performance at any speed and does not know the typical pumping. Compared to other manufacturers, MHI compressor maps have a higher efficiency over a wider field.

In addition, all Mitsubishi Performance Turbos are equipped with double hydrodynamic bearings. The exhaust wheels made of Inconel, in perfect combination with compressor wheels of the latest development, convince with an amazingly early response and torque development even in low rev ranges and with low boost pressure. This means better drivability in the lower and medium speed range, thanks to the best power delivery in the feared turbo lag.

MHI = Made in Japan - Not Made in China.

MHI stands for Mitsubishi Heavy Industries. This is a department of the vehicle manufacturer Mitsubishi which among other things deals with the production of turbochargers for own and foreign vehicles. MHI turbochargers are also used in the Porsche Panamera Turbo and BMW 2.0L Turbo.

The MHI turbochargers were among the first turbochargers to come onto the market as China plagiarisms. In particular, the proximity to Japan and the Japanese vehicle market made these plagiarisms interesting for China. We would like to point out here once again with emphasis that still vast quantities of MHI plagiarisms are offered. However, these have nothing to do with the high-precision manufacturing from Japan. We exclusively supply original MHI turbochargers Made in Japan.
