Link ECU RX7Link (S6) - RX7S6X Plug-In ECU Mazda RX-7 Series 6
Plug-In ECU Mazda RX-7 Series 6
Link Plug and Play ECUs, easy to install, affordable, reliable
Plug-In ECUs are a complete replacement for standard engine control units that do not require new wiring. They come with a vehicle-specific base configuration. All Link Plug-In ECUs use the same powerful microcontroller and firmware as the XtremeX. The G4X PlugIn ECUs offer the latest technology in engine management and are designed to unlock the full potential of your vehicle. This ECU fits the factory OEM mounting location. Installation is a breeze as no changes to the original wiring harness are required for the models listed below.
ECU for RX7 series 6 13BT
- This control unit is developed for the RX-7 Series 6 13BT.

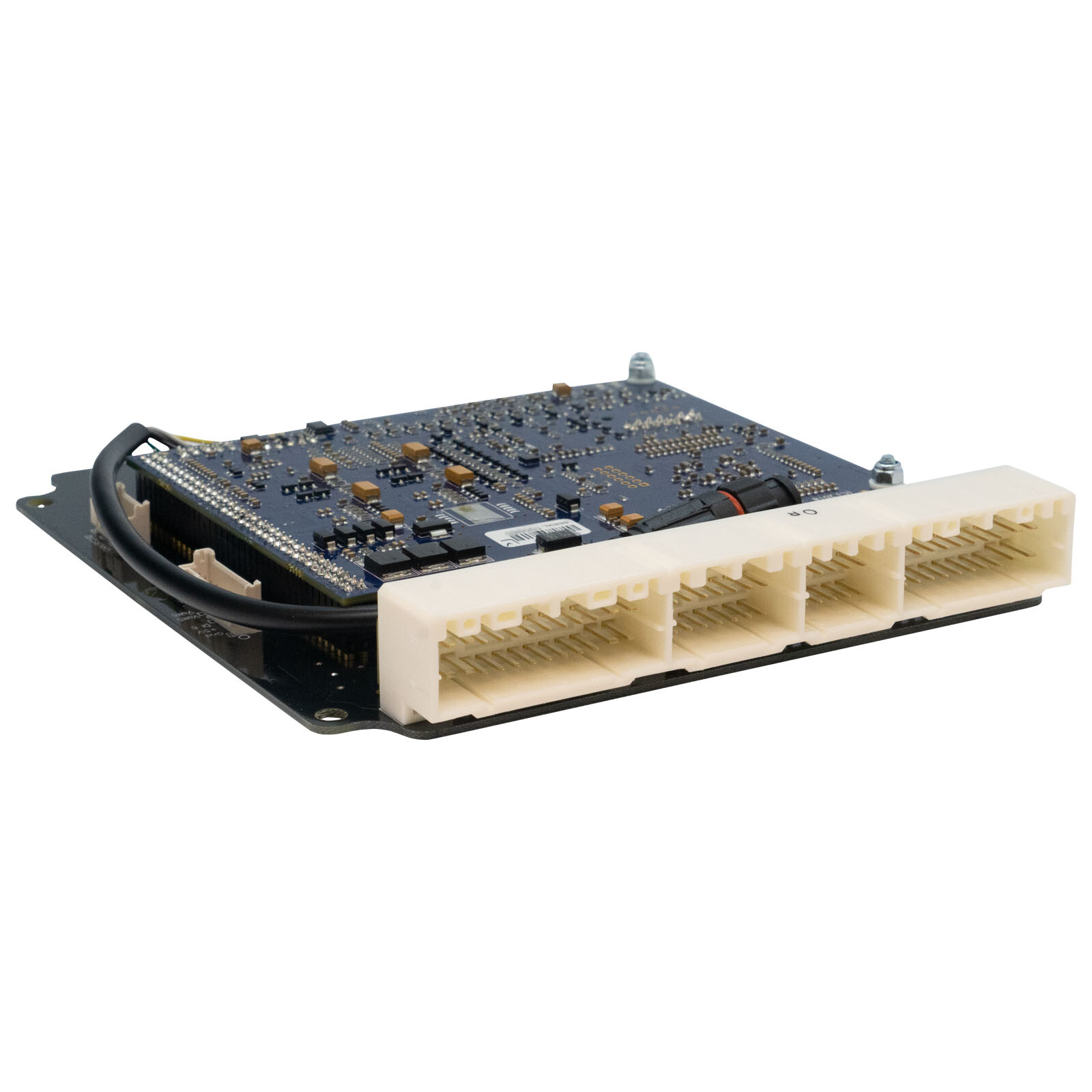

- Please check before purchase if your pinout connector matches the header shown in the photo.
- Suitable only for vehicles with manual transmission.
- For more information on I/O extensions, see the "Features" tab.
- This control unit must be modified before using E-Gas (Drive-by-Wire).
- FD3S Series 6 RX-7
- Supports naturally aspirated, parallel twin-turbo, or single-turbo configurations
- Note: No support for sequential control of the standard twin-turbos
- Up to 6D fuel and ignition maps
- Precise closed camshaft control (four camshafts, independent control)
- Sequential fuel injection
- Digital triggering, all OEM patterns supported
- OEM idle hardware supported
- 5D boost control with three switchable tables
- Motorsport features - Antilag, Launch Control, Flat-Shift
- Continuous barometric correction (on-board)
- CAN connection
- QuickTune - Automatic fuel tuning
- Individual cylinder correction
- USB tuning cable included
- Data logging in internal memory
- Gear-based adjustments for ignition, boost, and fuel
- Real-time switchable dual fuel, ignition, and boost maps
- Synchronization and crankshaft sensors can be a combination of Hall effect, variable reluctance, or optical
- Boost control depending on gear, speed, or throttle position
- 512 megabytes of data logging memory
- Staged injection
- Knock control with "Windowing" technology
- GND - Sensor ground only
- +5V Out - Supply for MAP sensor
- An Volt 5 - Analog 0-5V input
- An Volt 6 - Analog 0-5V input
- DI 6 - Digital input
- Availability: to order
