Front-Mount Intercooler Kit with Intake Mishimoto Subaru WRX STI / 08-14 / Silver

711mm x 210mm x 89mm

Mishimoto high Performance intercooler, watercooler, oilcooler and oil-catch cans

Options:
Colors: Silver, Black, Gold
Intake: Yes or No

Construction: Bar-and-Plate
Pipe Construction: Polished Aluminum
Overall Length: 1118mm
Overall Height: 229mm
Overall Width: 140mm
Core Length: 711mm
Core Height: 210mm
Core Width: 89mm
Core Depth: 70mm
Core Size: 711mm x 210mm x 89mm
Inlet: 70mm
Outlet: 76mm
Tank Wall Thickness: 3.5mm
Weight: 11.6kg
Chassis Numbers:
GH
GE
GR
GV
Engine Codes:
EJ205
EJ255
STI Specific BPV Hose Specifications:
Bend specific for this kit
Inner Diameter: 32mm
Outer Diameter: 38mm
Wall Thickness: 101.6mm
PCV Hose Specifications:
Length: 445mm
Inner Diameter: 11.4mm
Outer Diameter: 19mm
Wall Thickness: 101.6mm
Bumper Beam Specifications:
- Steel construction with black powder coating
- Specific mounting holes
- 2.9kg

Note:
Mishimoto recommends that this intercooler kit, with or without the optional intake, not be used with the stock ECU programming. It is recommended that the customer tunes the ECU after installation of the intercooler kit. Power gains vary depending on turbo size, exhaust system, fuel system, and the type of ECU tuning done to the vehicle. This kit is designed for about 700 HP at the wheels or 2.06bar turbo boost. For higher HP or boost, a custom front-mount intercooler may be required.

Turbo to hot side hose specifications (for OEM turbo)
48mm inner diameter / 56mm outer diameter - at turbo outlet
5mm hose wall thickness
Withstands up to 204°C
Fits turbos with a maximum of 50mm compressor housing outlet

Turbo to hot side hose specifications (for aftermarket turbo)
51mm inner diameter / 61mm outer diameter at turbo outlet
5mm hose wall thickness
Withstands up to 204°C
Fits turbos with a maximum of 57mm compressor housing outlet

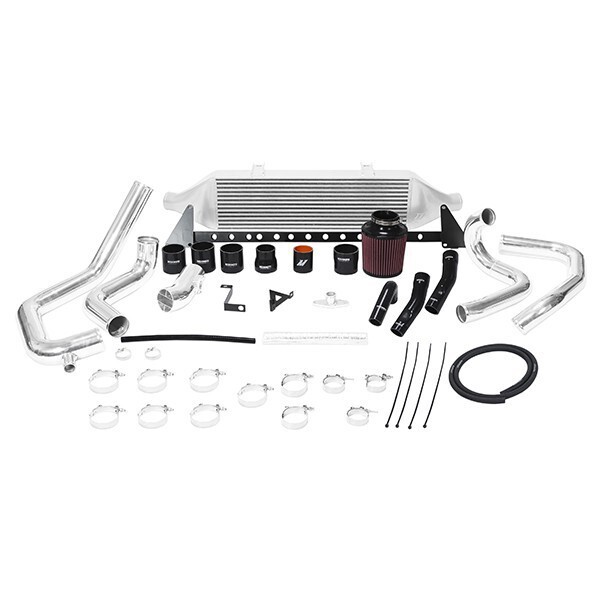

Purchase includes:
(1) Bar-and-Plate Intercooler
(1) Steel Bumper Beam with mounting hardware
(2) Intercooler Pipes hot side
(2) Intercooler Pipes cold side
(1) BPV Flange Adapter
(1) Relocation bracket with mounting hardware for coolant overflow
(1) Turbo to pipe connector -hot side- (for OEM turbo)
(1) Turbo to pipe connector -hot side- (for aftermarket turbo)
(1) 57mm straight connector
(2) 70mm straight connectors
(1) 70mm x 82.5mm long straight connector
(1) 51mm to 70mm reducer
(1) BPV Recirculation Hose
(1) PCV Hose
(1) 51mm T-Bolt clamp
(4) 63.5mm T-Bolt clamps
(7) 76mm T-Bolt clamps
(1) 38mm hose clamp
(1) Bypass Valve Gasket
(1) Black plastic hose fitting, 12.7mm inner diameter
(1) Black T-piece plastic hose fitting, 12.7mm inner diameter
(1) 3m heat wrap
(1) 90cm 6.35mm rubber hose
(1) Cable tie, black

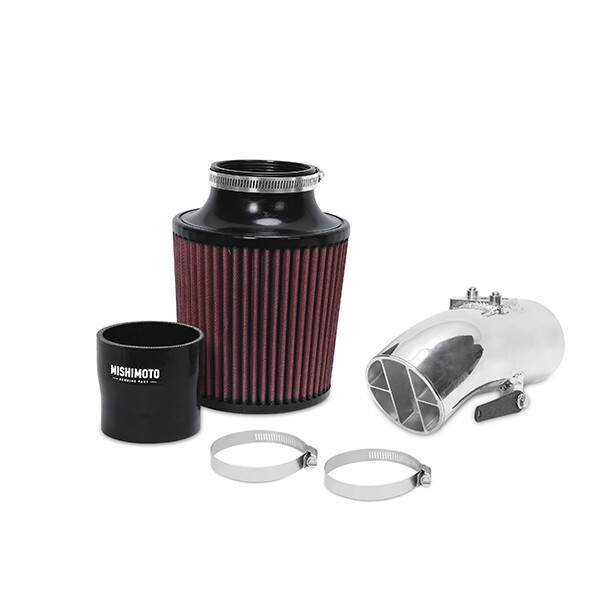

Optional Intake Kit
(1) Oiled filter
(1) Aluminum intake pipe
(1) 76mm to 70mm reducer
(2) 76mm hose clamps
(2) High temperature cable ties, black

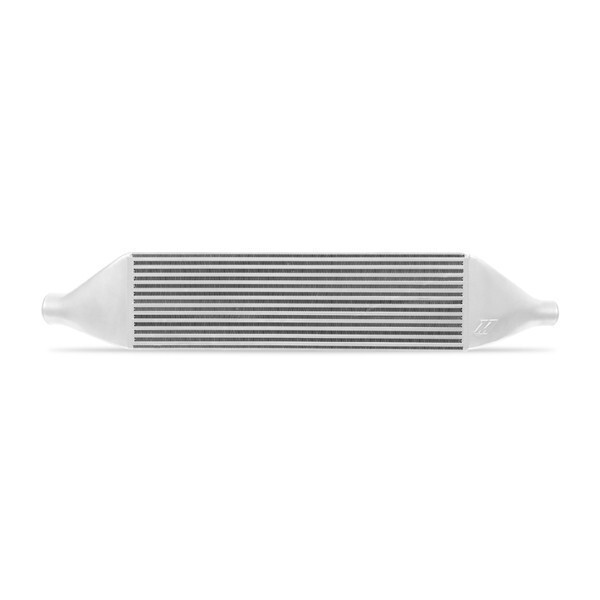

Designed for applications demanding maximum airflow and cooling performance, the Mishimoto STI front-mount intercooler kit equips your Subaru with the ability to achieve the highest possible horsepower and torque. This Mishimoto STI intercooler is designed with a large intercooler core to provide maximum cooling efficiency without significant pressure drop, which can wear out any turbocharger over time. The Mishimoto STI intercooler features smooth, cast end tanks that are CFD tested for maximum airflow without corners and bends that can disrupt airflow in other designs. This intercooler offers the best airflow and heat exchange properties for time attack rounds or blazing through the quarter mile in 10 seconds.

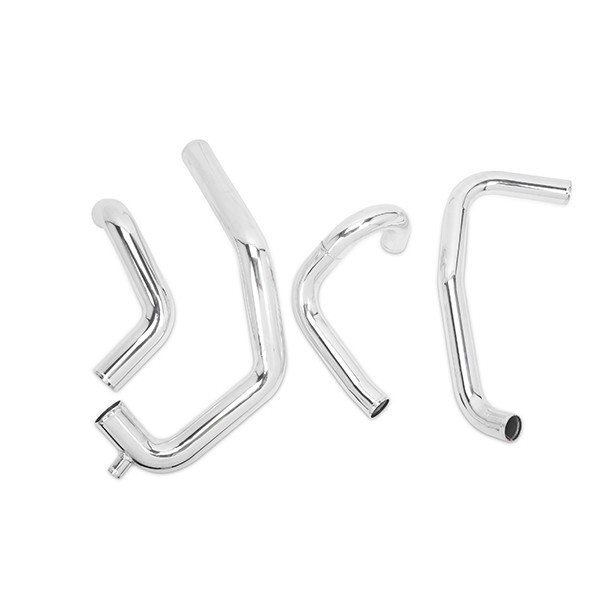

The Mishimoto Subaru STI front-mount intercooler is supplied with four mandrel-bent aluminum pipes for optimal airflow. The hot-side pipes are 57mm in diameter to keep airflow velocity high, ensuring quick turbo response without the lag often associated with front-mount intercoolers. The cold side of the system has three mandrel-bent aluminum pipes for maximum airflow that matches the throttle body's diameter. This kit is compatible with both OEM and aftermarket bypass or blow-off valves.

The kit includes everything needed for a hassle-free installation, including a custom bumper beam that supports the intercooler and mounts to existing points on the vehicle. No cutting or drilling is required to install the front bumper reinforcement. The kit includes all necessary mounting brackets, including one for relocating the coolant overflow tank. All brackets come with the corresponding hardware, cable ties, and heat protection. This kit includes every connector and clamp needed for a proper installation, even if you opt for the additional Mishimoto intake for extra cooling performance. For turbos larger than the stock unit, Mishimoto includes an extra hot-side pipe designed for larger turbos, fitting turbos with a 51-54mm outlet.
Mishimoto has tested this intercooler on the STI with 320 HP at the wheels to observe significant reductions in intake temperature, and the intercooler has been flow tested for over 600 HP at the wheels! This kit is available with a silver or black intercooler.
