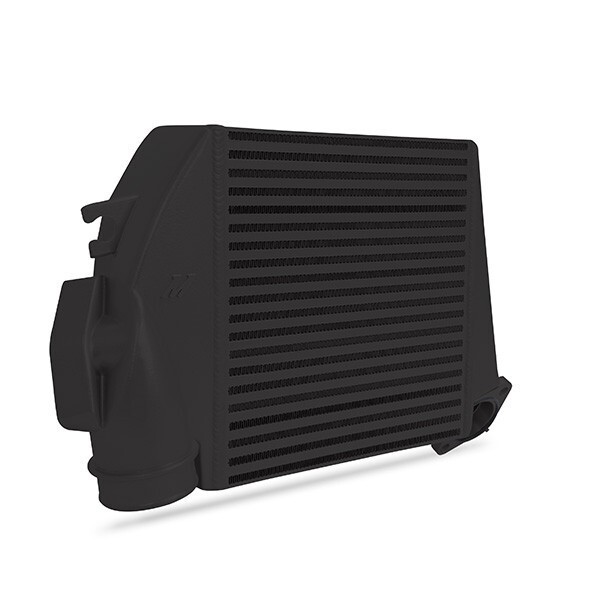

Top-Mount Intercooler Kit Mishimoto for Subaru WRX / 08-14 / Black Intercooler / Red Silicone

279mm x 279mm x 89mm

Available Options:
Silver intercooler, black intercooler
Black, blue, or red hoses

Design: Bar-and-Plate
Pipe Construction: Polished aluminum
Overall Length: 470mm
Overall Height: 318mm
Overall Width: 127mm
Core Length: 279mm
Core Height: 279mm
Core Width: 89mm
Core Size: 279mm x 279mm x 89mm
Inlet: 48mm
Outlet: 70mm
Fin Specifications
Internal: 6.5mm fin height, 2.8mm fin angle
External: 6.5mm fin height, 1.7mm fin angle
Tank Wall Thickness: 3.5mm
Weight: 9.5kg

Chassis No.:
GR
GV
Engine Code:
EJ255

Intercooler / Throttle Connector Specifications:
Inner Diameter: 70mm
Outer Diameter: 80mm
Wall Thickness: 101.6mm

Note:
This kit is designed for 250-350 wheel horsepower with a maximum limit of around 400 wheel horsepower or 2.06 bar of boost pressure. Higher horsepower or boost may require a larger front-mount intercooler.

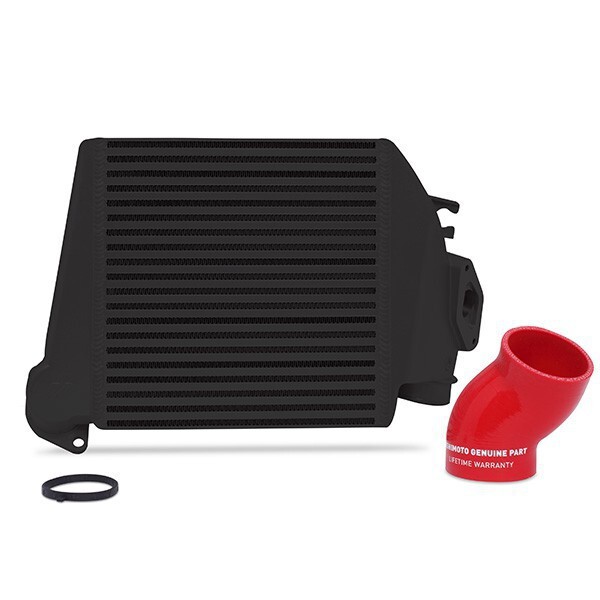

Purchase Includes:
(1) Top-mount intercooler
(1) Intercooler to throttle body hose
(1) Turbo to intercooler O-ring seal

Fits:
08-14 Subaru WRX
05-09 Legacy GT
05-09 Outback XT
09-13 Forester XT

Are you looking for a way to reduce the high intake temperatures of your WRX, whether modified or not? The solution is the direct-fit Mishimoto WRX Top-Mount Intercooler, specially made for the Subaru WRX, model years 2008-2014. The factory WRX intercooler is prone to heat soak and even failure of the plastic end tanks above 1.24 bar. Mishimoto engineers spent months designing and testing this new WRX Top-Mount Intercooler to ensure optimal performance for both street and track use.

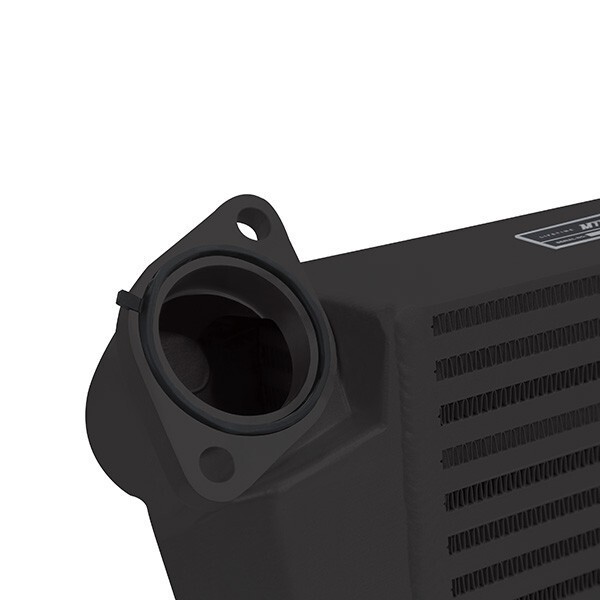

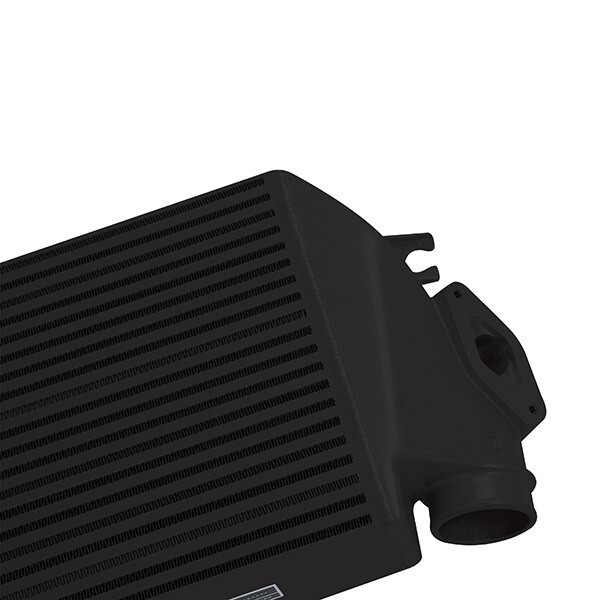

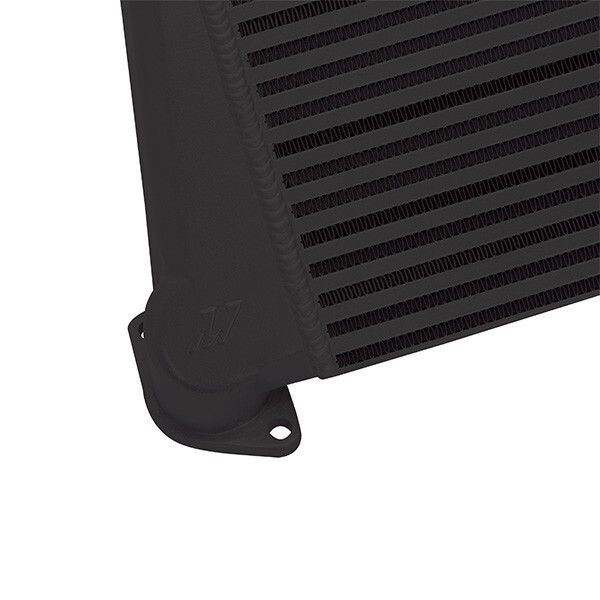

This WRX Top-Mount Intercooler features durable cast aluminum end tanks, TIG welded for a highly efficient and dense bar-and-plate core. The Mishimoto WRX intercooler has a 95mm core and a total volume of 9570cm³. Thanks to this volume and a very dense, staggered fin pitch, we are able to optimize heat transfer and support vehicles with up to 400 wheel horsepower. This WRX intercooler has undergone rigorous testing, demonstrating a 6.67°C temperature drop, as well as +6 horsepower and +8 N*m in performance gains on our unmodified test vehicles. Installation is straightforward, requires no modifications to any parts in the engine bay, and can be completed in under 30 minutes.
This top-mount intercooler comes with a new turbo to intercooler O-ring seal and a Mishimoto silicone connector for the throttle body. With these WRX parts, you won't need to gather any additional accessories for installation, and our products stand for years of reliable service. This WRX Top-Mount Intercooler is available with a durable powder coating in silver or black.
