SWD32 GEN2 - for straight sports steering wheels

Name: CANchecked SWD32 GEN2 - Flat Steering Wheels
Brand: CANchecked
SKU: 293608
Price: 444.85 GBP
Availability: InStock

Enables real-time display of engine data on/at the steering wheel

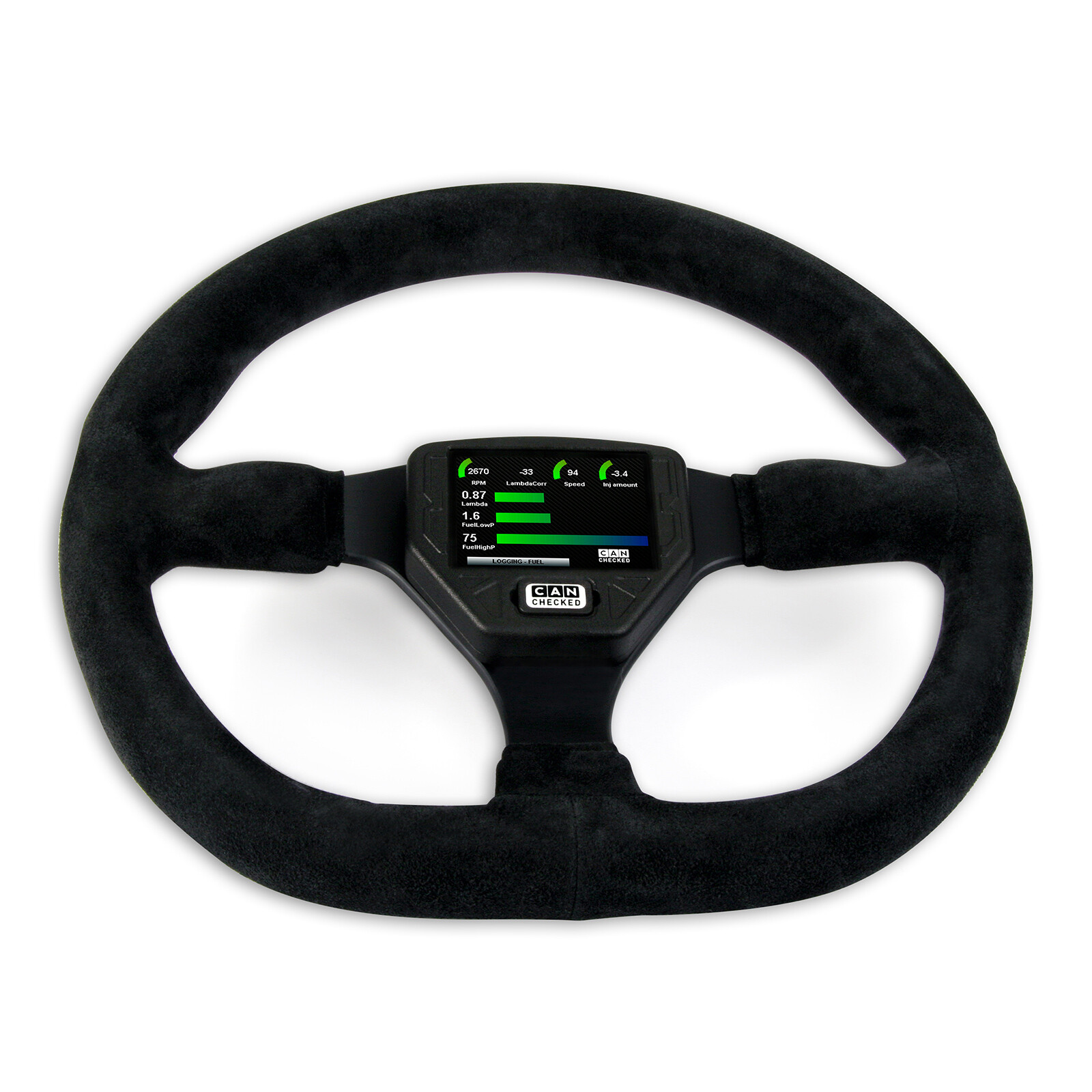

The SWD32 display fits any flat sports steering wheel with a bolt circle of 6x70

With the CANchecked SWD32 GEN2 data display, you always have all the data in view

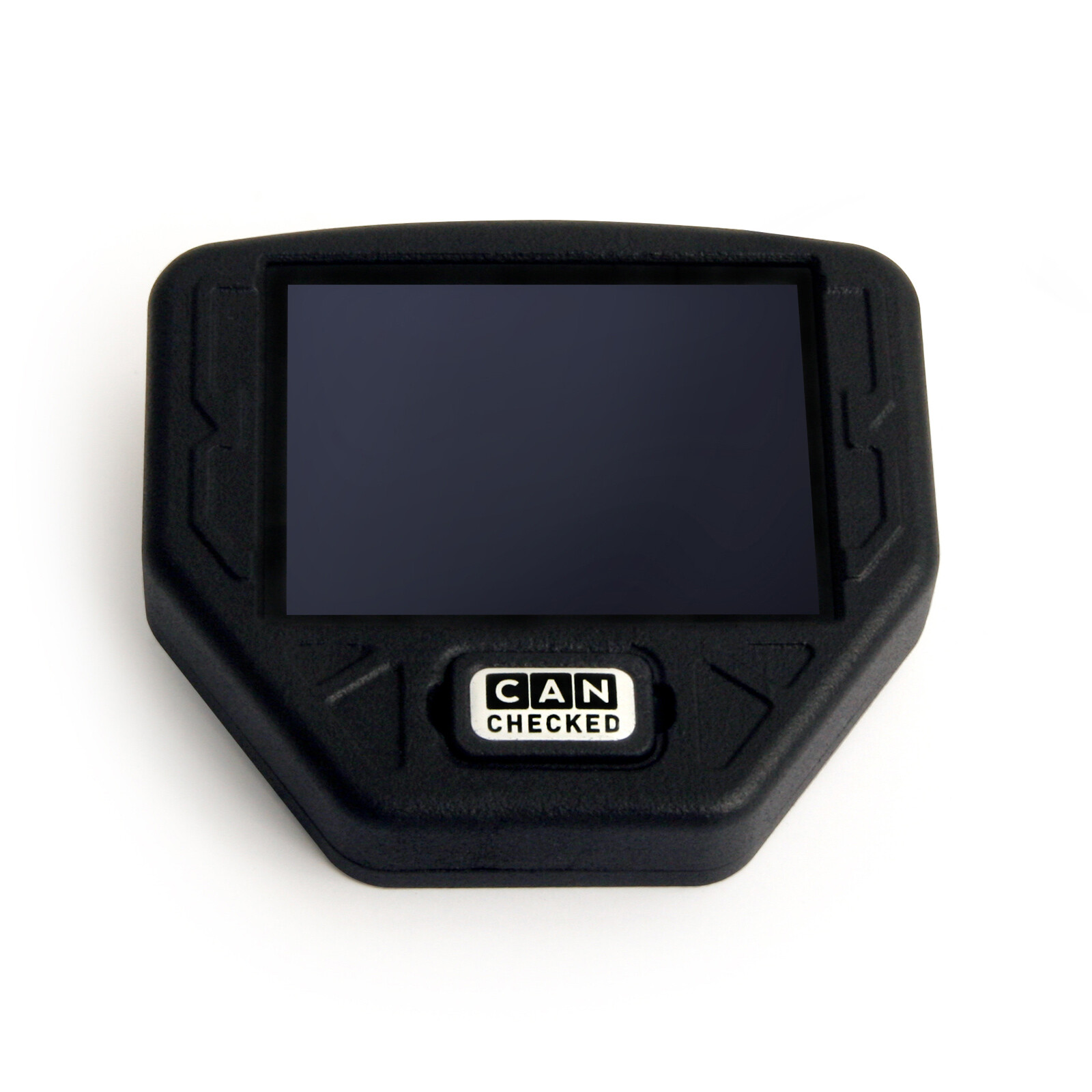

The SWD32 GEN2 in the universal version fits any flat sports steering wheel with a bolt circle of 6x70 and a horn hole and is an intelligent display with features you won't want to miss. The lightweight plastic housing impresses with its symmetrical appearance.

Key Features

Can Bus:&nbspRead deep vehicle data like manufacturer diagnostic tools
Gear Indicator:&nbspDirectly via&nbspCan Bus or calculated from speed and RPM
Touchscreen: Navigate through intuitive swipe gestures through the pages
Customization:&nbspCreate your own pages, add your own images or a custom start animation
Additional Inputs:&nbspConnect up to 4 analog inputs and an ethanol sensor directly to the display
Can Switching: Use your display as a keypad and send your own Can messages on the bus
Customizable Alarms: Individual&nbspwarnings can be easily configured and activated. For example, get a large warning message when the exhaust temperature is over 900 degrees
Logging:&nbspLog and save your data for later analysis on the internal SD card
Performance Meter:&nbspMeasure your 0-100, 100-200, and 0-200 times with the integrated performance meter without additional hardware
DTC*:&nbspRead and clear errors from the engine control unit, transmission, ABS, and all-wheel drive
Dimming*:&nbspYour display dims automatically along with the instrument panel

Different Views

Configure your own page or choose from various pre-made views:

The display comes with predefined example pages
Creating your own pages is possible and encouraged
Up to ten pages possible
20 different widget types (e.g., sensor value, analog pointer, YT diagram, RPM bar, round display, vertical/horizontal bar)
Widgets are scalable in size and can be positioned using drag and drop
Widget colors are fully adjustable
Up to 64 widgets per page

Display Setup Software - DSS

With the CANchecked DSS, you can fully customize your display to your preferences. With the integrated log viewer, you can&nbspdownload and view the log files. Additionally, a Can logger is integrated. The heart is the integrated&nbsp"TRI-Editor",&nbspwith which you can adjust the sensors (whether Can Bus or internal): Assign min/max values for warnings and change the names of your sensors.&nbsp

Supported Values

Many customers always ask: "Which values can I query from my control unit". The answer: "ALL"

We have reverse-engineered the data for most engines and can offer deep data. Our display supports Can Bus data query (UDS, TP2, manufacturer-specific protocols) (ISO 9141) and OBD2.

By default, your display comes with pre-made TRI-/TRX-files. The files define all sensors to be queried. These vary from engine to engine. Here is an excerpt of what is possible:

Temperatures:

Exhaust temperature, coolant temperature, oil temperature, intake temperature, outside temperature, fuel temperature, DSG temperature

Pressures:

Boost pressure, ambient pressure, fuel pressure pre-supply pump, rail pressure actual/target

Lambda/Mixture

Lambda value, injection time, short-term lambda adjustment, long-term lambda adjustment

Miscellaneous

RPM, air mass, vehicle speed, throttle angle, total ignition angle, ignition angle reduction per cylinder, N75 actuation in %, terminal 30 voltage, torque, gear, diesel-specific values

If values are missing, they can be added later by us.

Of course, your new data display supports a wide range of freely programmable control units such as:

DTA Fast
Ecumaster
Emerald
Emtron
Haltech
Hondata
KMS van Kronenburg
LinkECU
MaxxECU
MBE
Megasquirt
Motec
Motorsport Electronics
Syvecs
Trijekt
VEMS

Scope of Delivery

Each delivery includes:

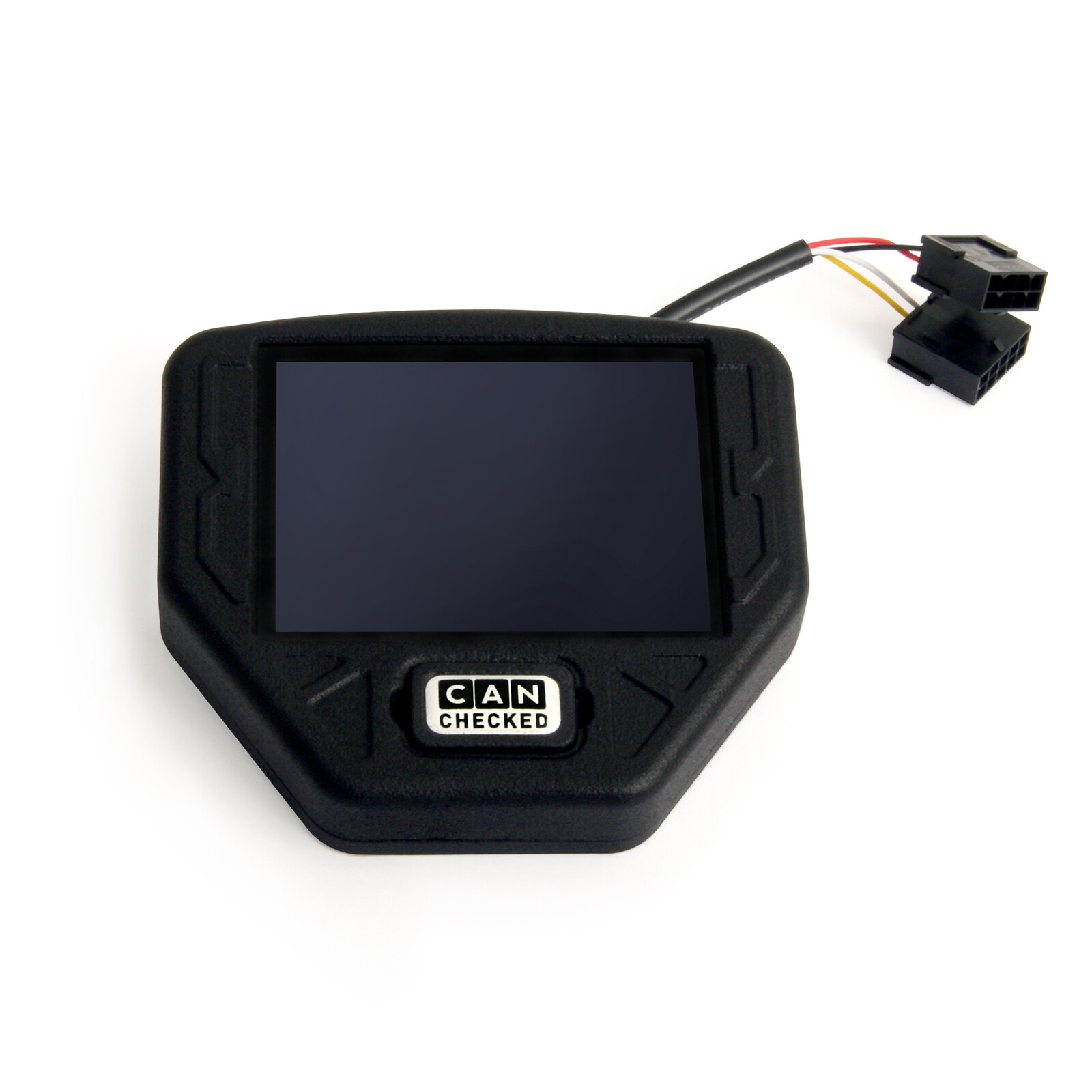

SWD32 GEN2 data display with lightweight plastic housing
Connector A (8-pin Molex)
Connector B (10-pin Molex)
Pre-configured connection cables in various colors (length: 20&nbspcm, purpose: power supply, Can Bus, analog inputs, 5V, sensor ground)
Pins for self-crimping
Two 1K resistors (as pull-up for connecting external NTC sensors)
Quickstart Guide
USB data cable
SD card (pre-installed in the display)
SD card adapter
Display film (to prevent reflections)

Connection and Expansion

Any sensors can be connected via the four analog inputs – we support both linear 0-5V and NTC sensors.
Our in-house CANchecked sensors&nbspare standardly stored in the TRI-/TRX-files and only need to be connected:

AIN1: Temperature sensor (NTC01)
AIN2: Converter for exhaust temperature probe type K (TCC01)
AIN3: Pressure sensor 0-10 Bar (FLP01)
AIN4: Boost pressure sensor 0-5.5 Bar absolute (BST01)

You can use our pre-configured AIN cable harness for connection.

In addition to the analog sensors, you can also connect our external shift light with 8 LEDs. This can flash in different colors, and the RPM limits and colors can be configured directly on the display.

The ethanol sensor is connected directly to the display. You need a pull-up resistor (10K) between 5V and signal. Then you can view and log the ethanol content and temperature directly on the display.

Advanced Functions

With the&nbspmath channels&nbspyou can calculate sensors with each other. The&nbspuser tables&nbspgive you the possibility to generate additional sensors using 2D or 3D maps.&nbsp
