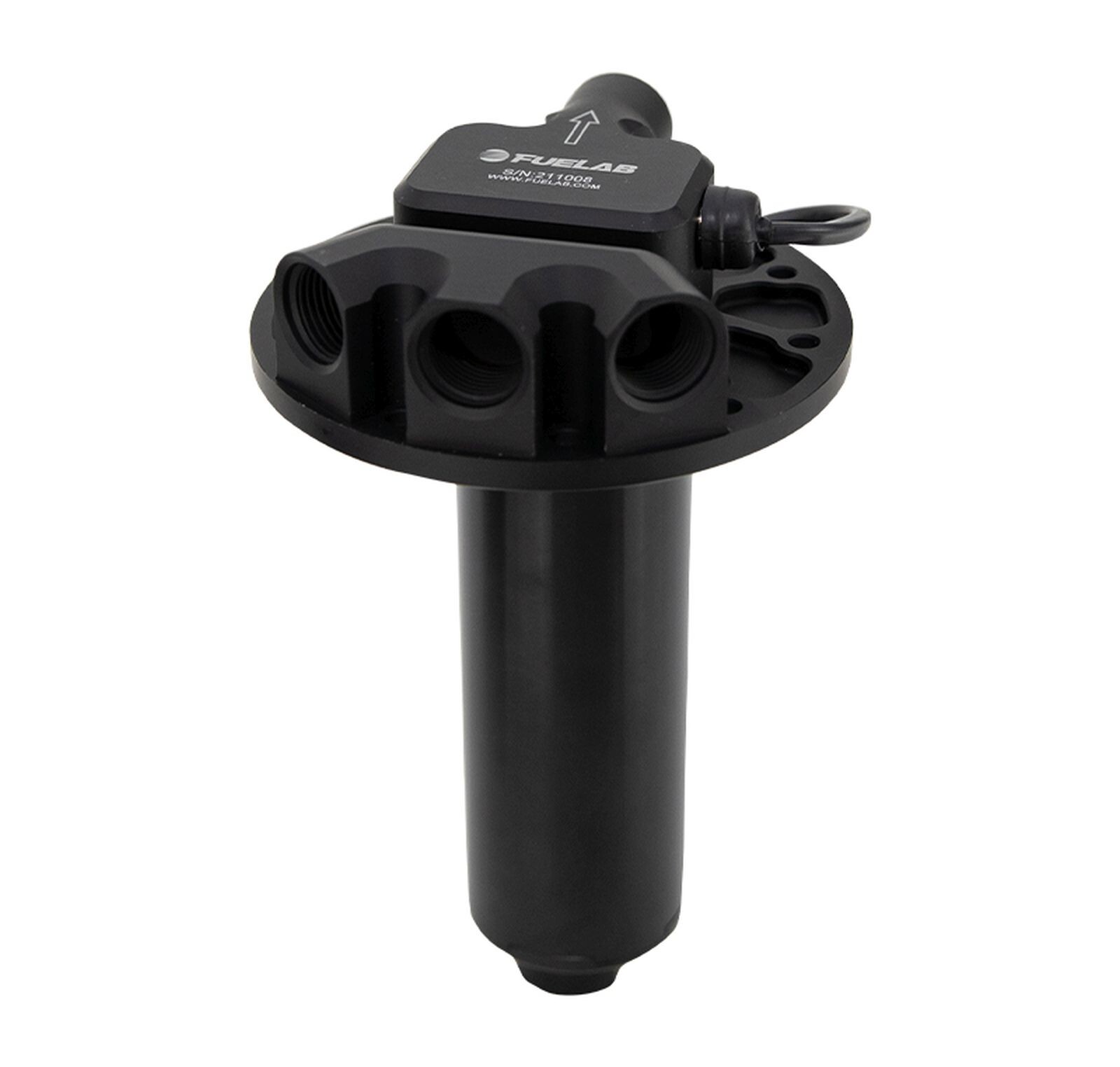

Digital fuel pump with SAE flange

Twin screw fuel pump 1100 lph / rated up to 28000+ HP with SAE flange

Compact, lightweight, brushless digital controlled fuel pump incl. flange for in-tank

See Drop-Down menu: Up to 1100 LPH @ 45 Psi, 13.5v - RATED UP TO 2800+ HP - Reliable and efficient

Pump features
Compatible with gasoline, diesel, methanol and ethanol
Twin screw rotor pumping mechanism
125PSI max operating pressure
Up to 2800+HP power support
Higher efficiency means less current draw and less noise
Superior priming capabilities
Greater resistance to cavitation (vapor lock)

Motor features
Lightweight super-efficient DC brushless motor to minimize current draw
Powerful high flux density Neodymium rare earth magnets
No motor brushes to wear out or corrode (low-Sulfur diesel, no problem)
Wet motor design, no dynamic shaft seals that can wear out

Electronic features
8 to 16 volt vehicle electrical system compatibility
Variable duty motor speed
Can be run by existing vehicle outputs for brushless control or our 7200x Series controller

Construction features
Compact, lightweight design, less than 2.5lbs. Overall length 8", diameter 2"
Billet Aluminum Construction with anodize per MIL-A-8625 Type II
Can be mounted in-tank or externally
Long Life, multi-fuel compatible Fluorosilicone static seals
Accepts standard or port style -8AN fittings

Product Instructions

FUELAB expands successful H/E brushless twin screw pump series
With over 10 years of brushless fuel pump innovation, FUELAB has your needs in mind with every new product release. Building on the highly successful 474 Series external brushless twin screw pumps, we are proud to offer our 484 Series brushless twin screw pumps for the most demanding applications. This new in-tank or external mount version has all the great features of our brushless twin screw design - extremely low current draw, superior priming, low noise and greater resistance to cavitation. And like all of our brushless pump offerings, the 9390x Series is compatible with gas, diesel, ethanol and methanol fuels. The 9390x series can be run by existing vehicle outputs for brushless control or any of our 7200x Series external fuel pump controllers. Choose from 250 lph, 350 lph, 550 lph, 625 lph and 1100 lph flow options for up to 2800 horsepower support. This rugged billet design comes in at just under 2.5 lbs, 8" length and 2" diameter. Designed, manufactured and tested in our Collinsville, IL facility.
