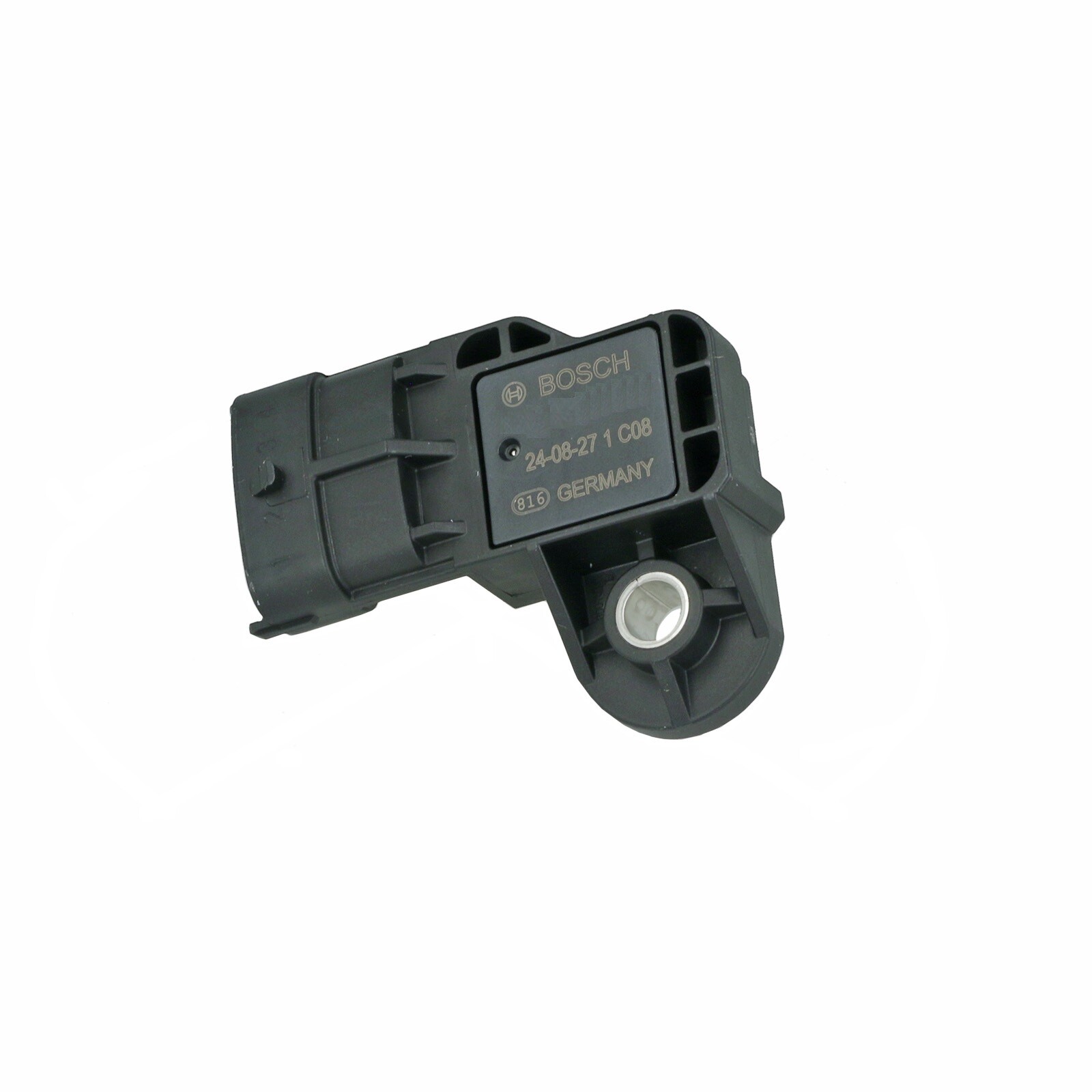

Boost pressure sensor 0.5 - 4.0 bar / 56 psi
Bosch Performance sensor for measuring boost pressure with integrated charge air temperature sensor
Compatible with our Displays / Gauges
When it comes to engine sensors, exhaust temperature measurement is often prioritized, but monitoring boost pressure, intake air, charge air, or ambient temperature is also essential.
Boost pressure sensors, also known as Manifold Absolute Pressure (MAP) sensors, measure the pressure in the charge air system to indicate engine load. These sensors are typically used in "Speed/Density" or "Manifold Pressure Controlled" engine management systems that do not use a mass air flow meter (MAF).
Technical Data:
- Type: Boost Pressure Sensor with Integrated Charge Air Temperature Sensor
- Pressure Range: 0.5 to 4.0 bar
- Thread: M6x1mm
- Installation Torque: 12 Nm
- Type: NTC
- Calibration: 500 hPa at 0.499V, 4000 hPa at 4.497V
- Connections: Ground, Optional: Temperature Measurement (NTC) Supply Voltage, typically 5.0 volts Output Signal, 0 to 4.5 volts

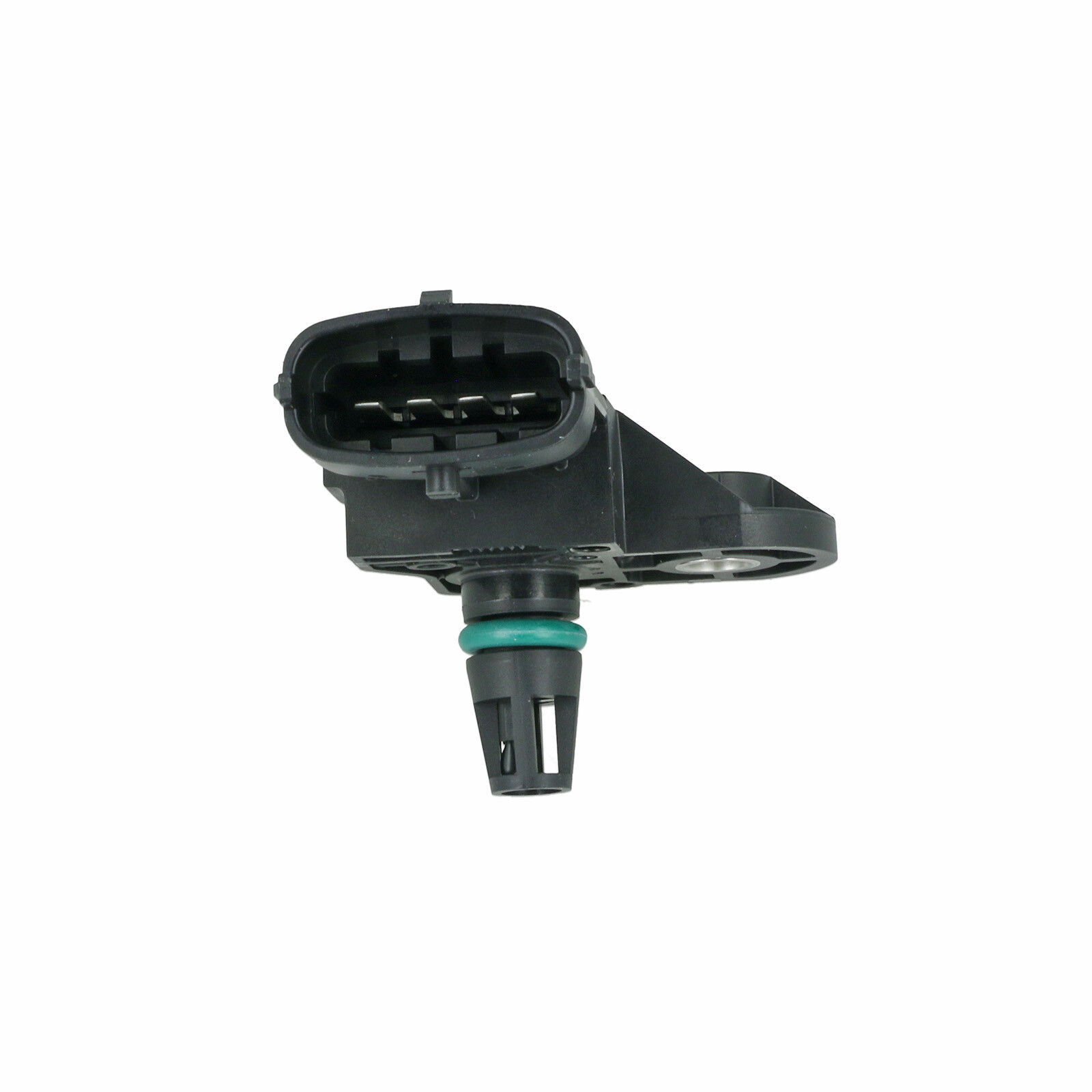

Pin 1: Ground
Pin 2: NTC
Pin 3: +5V (Supply Voltage)
Pin 4: Output Signal (0 - 4.5v)
