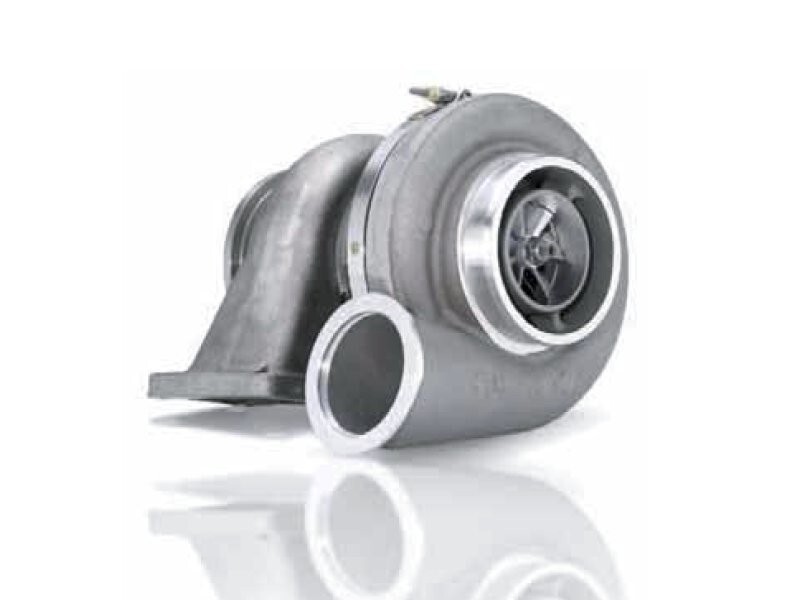

BorgWarner AirWerks S400SX4 Turbo - 75mm 100/83
BW part number 176806 aka S475SX4
Genuine BorgWarner AirWerks turbocharger
Note: Currently, some compressor housings come without a logo! This is not a difference in quality! All components come directly from BW USA from the factory.
AirWerks S475SX4 turbochargers from BorgWarner Turbo Systems are dedicated aftermarket turbos for the performance sector. Proven line-produced parts (mostly from Schwitzer Turbo) are being combined to deliver high end tuning and motorsports performance while maintaining an ideal price/performance ratio.
The S400SX Series has been developed exclusively with the American sports compact class in mind. These turbochargers are even more focused on motorsports in terms of performance and drivability.

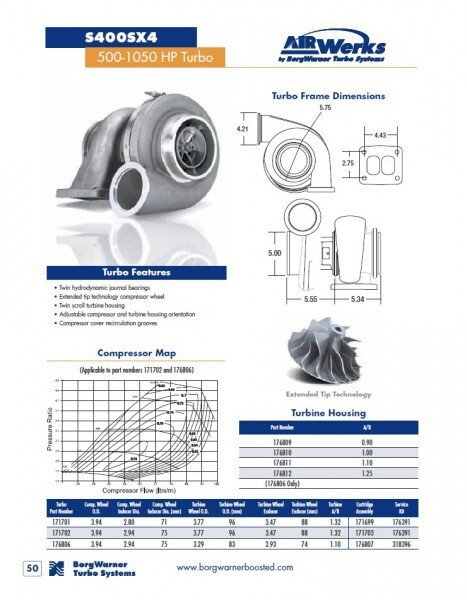

performance rating: 500 - 1050 HP
compressor housing: intake 127mm / pressure side 107mm V-Band Flange
compressor wheel: inducer 74,56mm / exducer 100,17mm
turbine housing: 1.10 AR / header flange BorgWarner T6 Twinscroll (T6 divided) / turbine outlet BorgWarner V-Band
turbine wheel: inducer 83mm (exakter Wert ist 83,47mm) / exducer 74,29mm / external wastegate
- dual hydrodynamic journal bearing
- extended tip technology
- Twinscroll turbine housing
- adjustable orientation of compressor housing and turbine housing
- compressor housing with anti-surge ports (High-Flow)
Different A/R ratio?
If you order an AirWerks turbocharger and wish to have a different AR you have to order the corresponding turbine housing separately.
- Model: external WastegateJournal bearing
- Flange type: T6 divided / TwinScroll
- Turbocharger: Airwerks S400SX4S400SX4
- a/r Value: 1.10ar
