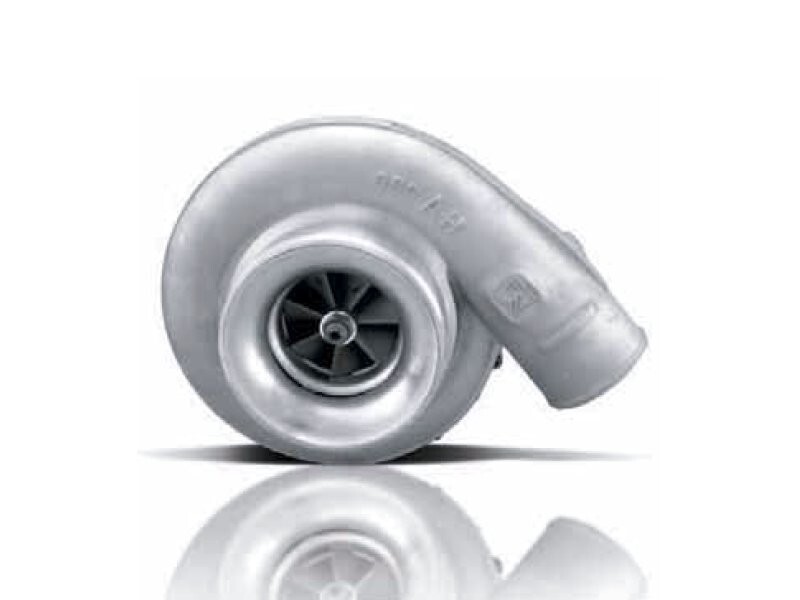

BorgWarner AirWerks S400SX Turbo - 75mm 100/87
BW part number 179174 aka S474SX
Genuine BorgWarner AirWerks turbocharger
Note: Currently, some compressor housings come without a logo! This is not a difference in quality! All components come directly from BW USA from the factory.
AirWerks S474SX turbochargers from BorgWarner Turbo Systems are dedicated aftermarket turbos for the performance sector. Proven line-produced parts (mostly from Schwitzer Turbo) are being combined to deliver high end tuning and motorsports performance while maintaining an ideal price/performance ratio.
The S400SX Series has been developed exclusively with the American sports compact class in mind. These turbochargers are even more focused on motorsports in terms of performance and drivability.
performance rating: 500 - 1050 HP
compressor housing: intake 140mm / pressure side 76mm
compressor wheel: inducer 74,56mm / exducer 100,01mm
turbine housing: 1.10 AR / header flange T4 Twinscroll (T4 divided) / turbine outlet BorgWarner V-Band
turbine wheel: inducer 87mm (exakter Wert ist 87,37mm) / exducer 81,74mm / external wastegate
- dual hydrodynamic journal bearing
- extended tip technology
- Twinscroll turbine housing
- adjustable orientation of compressor housing and turbine housing
- compressor housing with anti-surge ports (High-Flow)
- compressor housing with optimized geometry
Different A/R ratio?
If you order an AirWerks turbocharger and wish to have a different AR you have to order the corresponding turbine housing separately.
- Model: external WastegateJournal bearing
- Flange type: T4 divided / TwinScroll
- Turbocharger: Airwerks S400SX3S400SX
- a/r Value: 1.10ar
