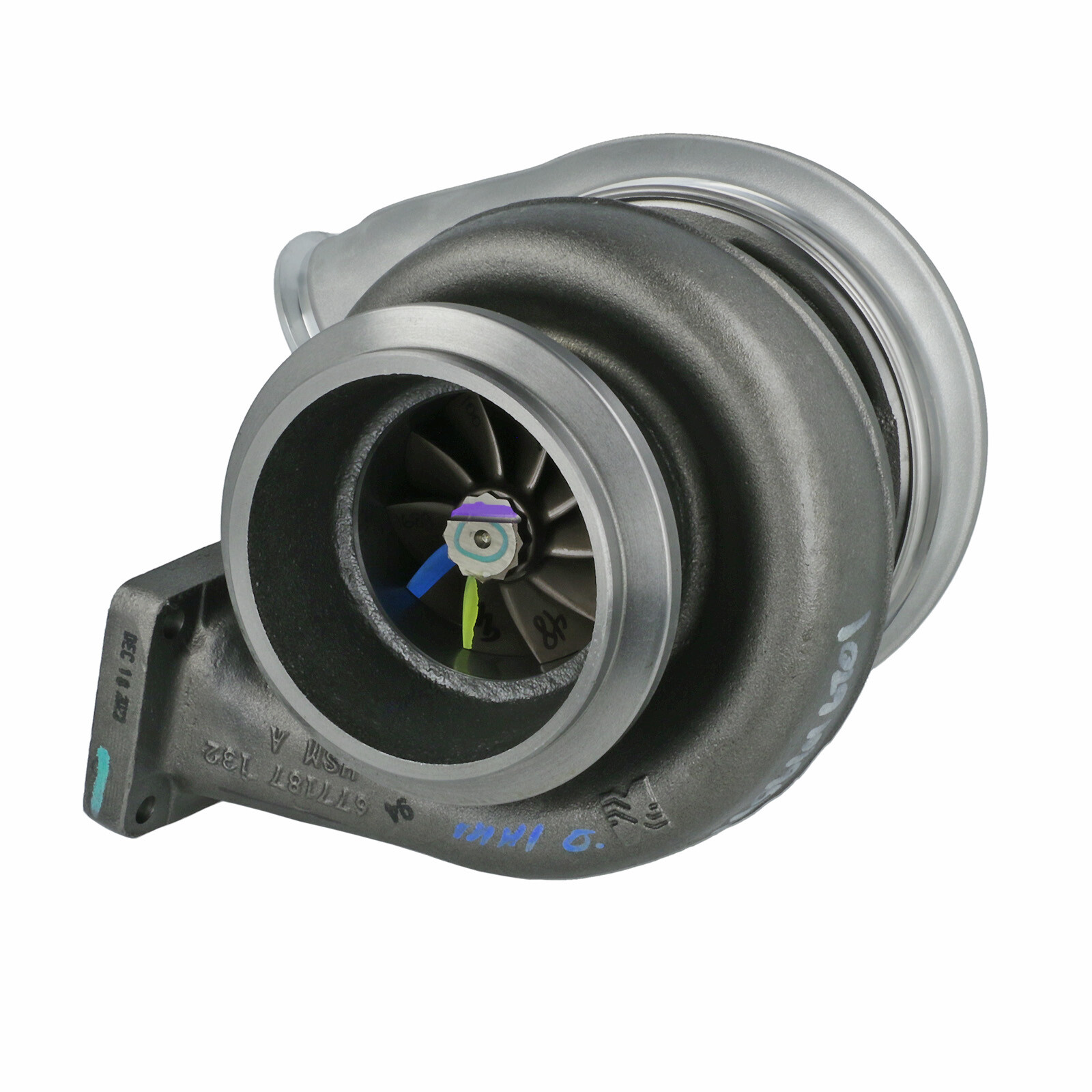

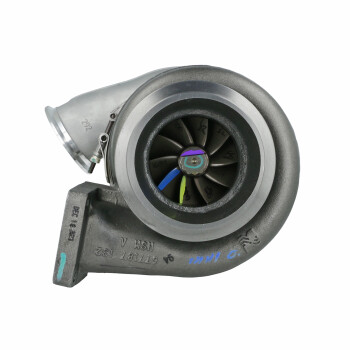

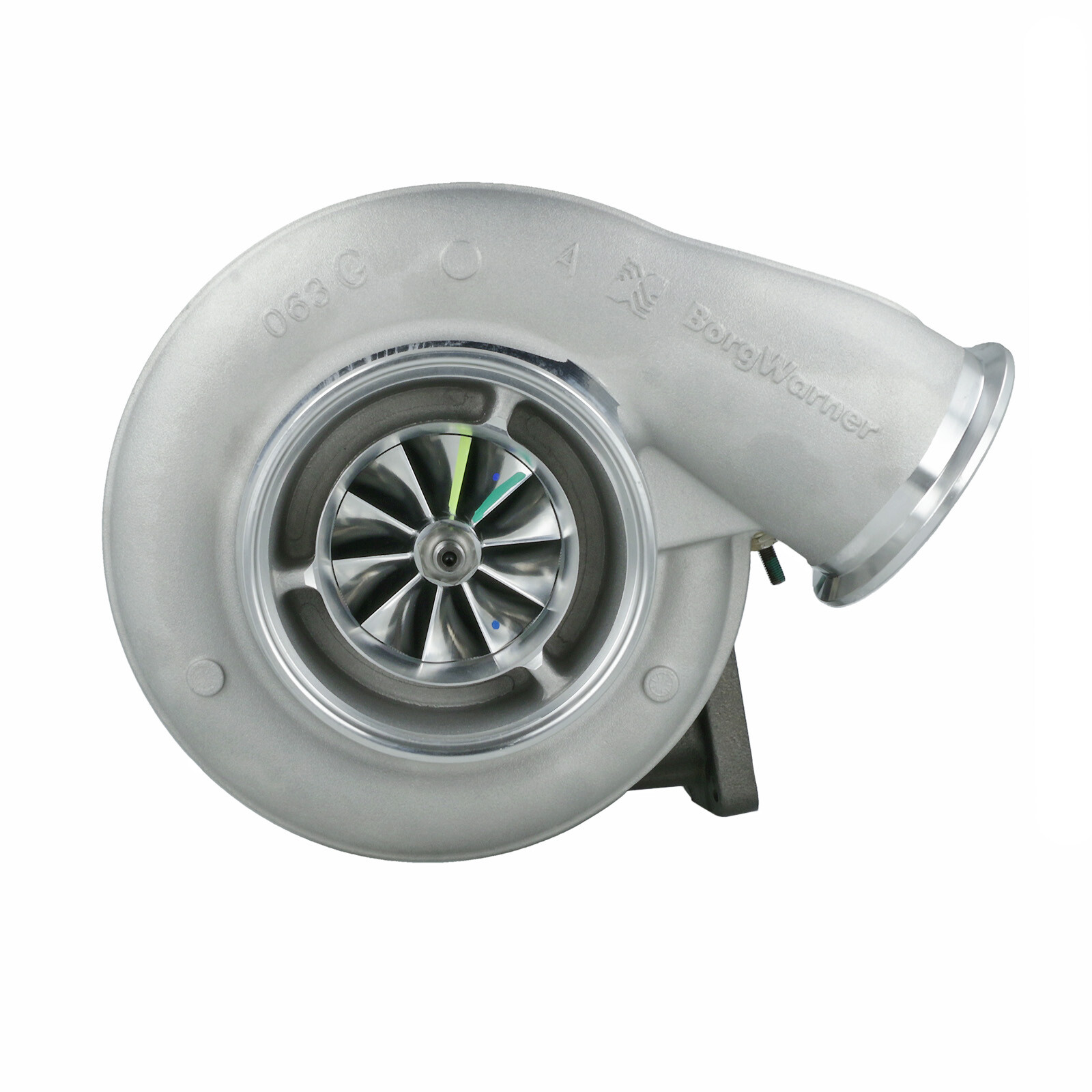

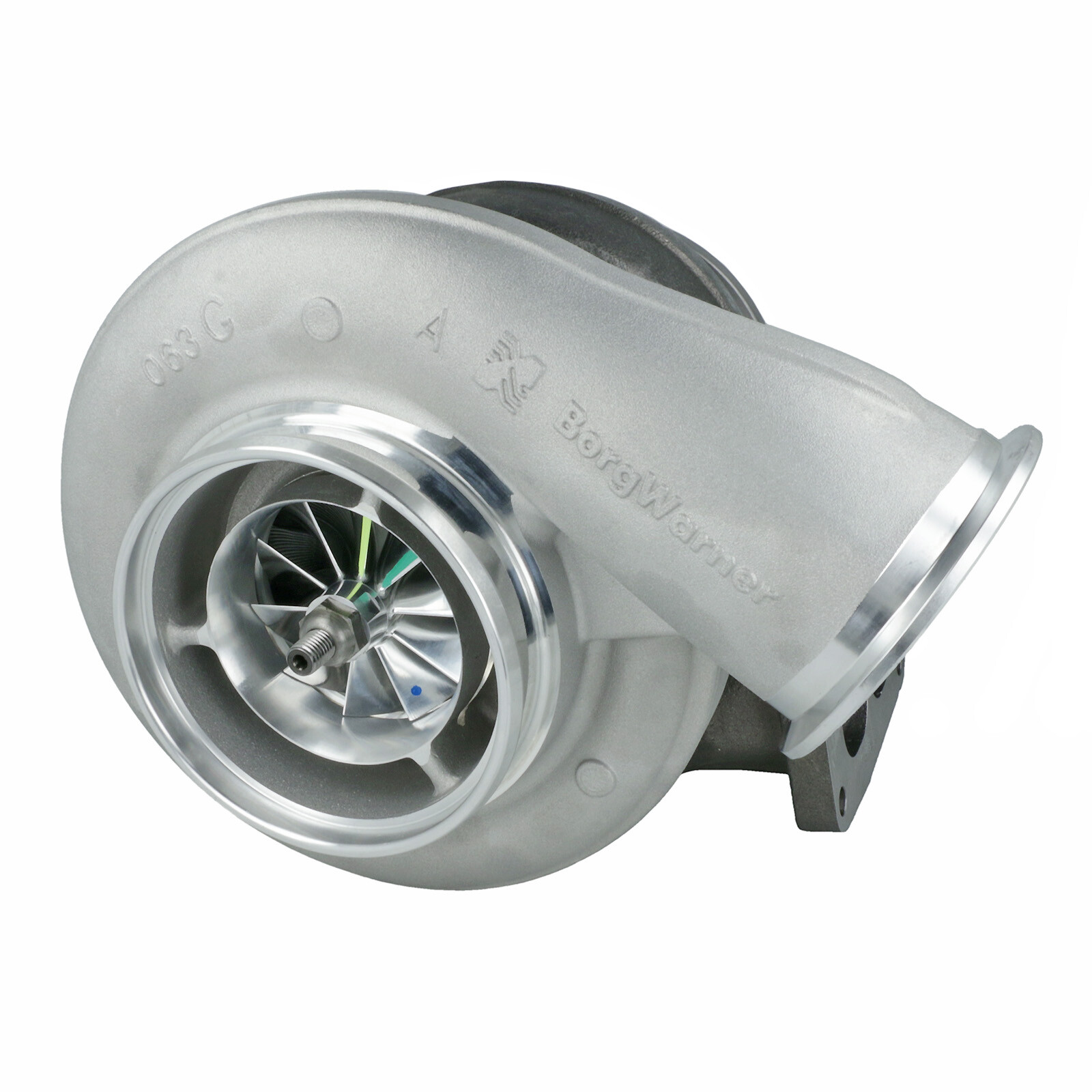

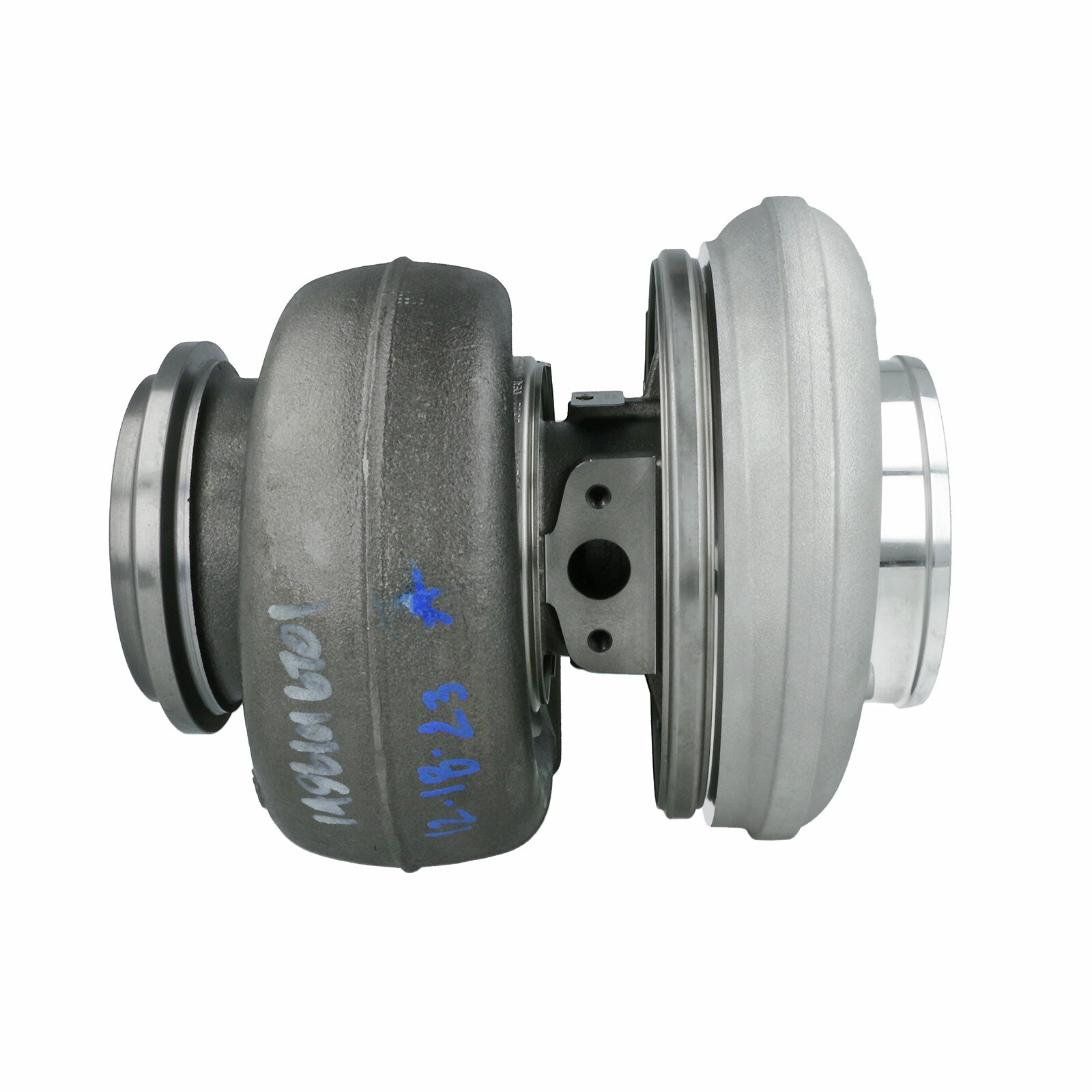

BorgWarner AirWerks S400SX-E turbo - 76mm (10 Blade) 100/96

BW part number 14969880029 aka S476SX-E

Genuine BorgWarner AirWerks turbocharger

The new BorgWarner AirWerks S476 SX-E is a direct replacement for the S475SX with the same flange locations and dimensions. The S476SX-E features brand new developed 10 bladed SXE 76/100mm forged milled billet compressor wheel that provides a solid extra 100 HP flow potential upgrade from the 171702 and 171701 cast compressor wheel along with greater efficiency for less heat generation at comparable boost levels.
The S476 SX-E (14969880029) comes from the factory paired with a 1.32 A/R T6 divided turbine inlet which has a 5.75 marmon connection. We also offer this unit with T4 and several V-band Inlet options as well. Need help deciding if this turbocharger is right for your application? Just drop us an email or phone call.

All SX-E turbochargers also utilizes a more durable 360° thrust bearing for increased longevity at higher power output levels. All BorgWarner AirWerks units are 100% USA made product for high quality. AirWerks S476SX-E turbochargers from BorgWarner Turbo Systems are dedicated aftermarket turbos for the performance sector. Proven line-produced parts (mostly from Schwitzer Turbo) are being combined to deliver high end tuning and motorsports performance while maintaining an ideal price/performance ratio.

Performance rating: 650 - 1150 HP
Compressor housing: intake 140mm / pressure side 107mm (V-Band flange)
Compressor wheel: inducer 76mm / exducer 100mm with 10 Blade technology

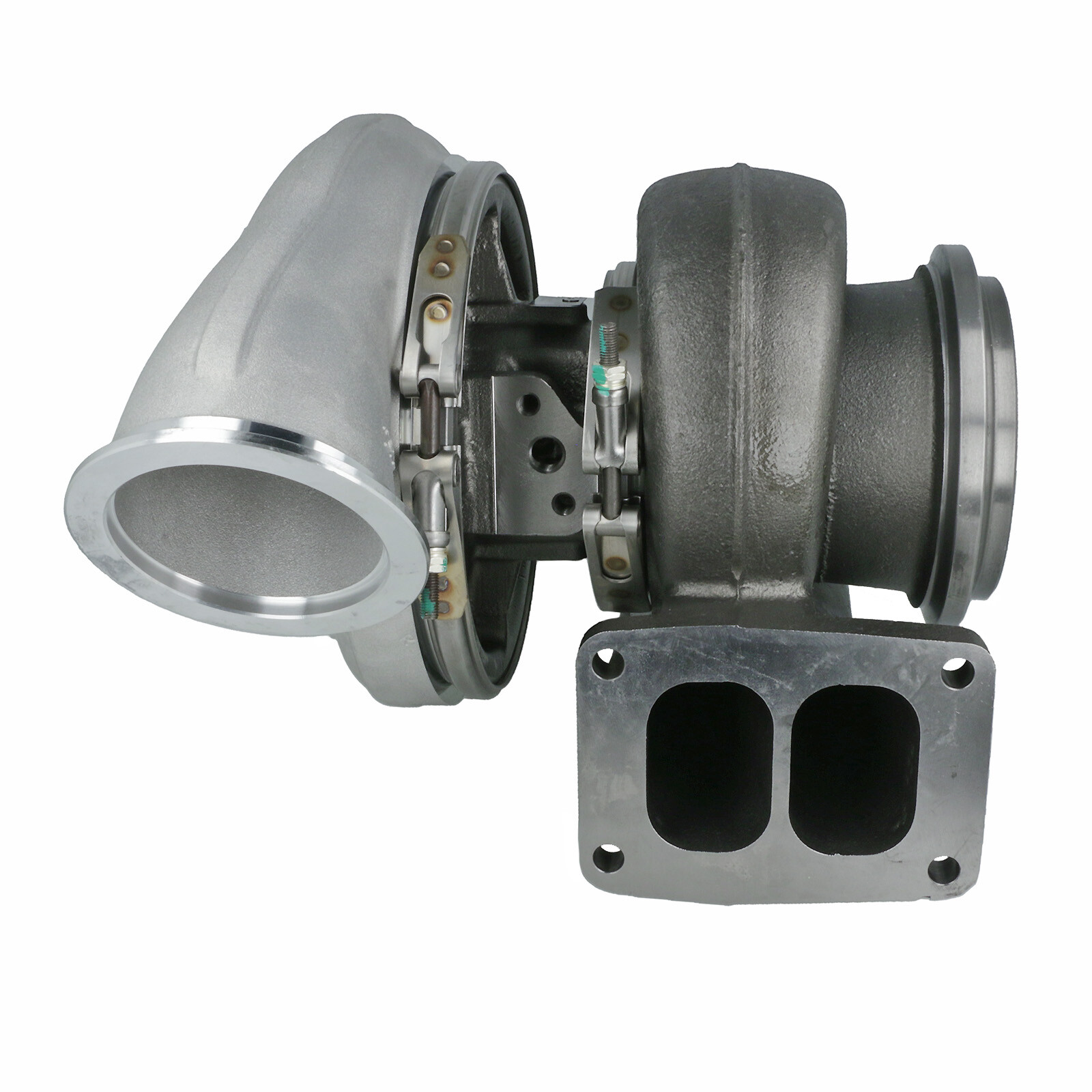

Turbine housing: 1.32 AR / header flange BorgWarner T6 Twinscroll (T6 divided) / turbine outlet BorgWarner V-Band
Turbine wheel: inducer 96mm (exakter Wert ist 95,70mm) / exducer 88,05mm / external wastegate


- Direct Plug&Play Upgrade replacement for AirWerks 171702 and 171701
- Forged milled aluminum compressor wheel with extented tip technology
- Integrated speed sensor port
- High Flow compressor housing
- Durable 360° thrust bearing
- Other turbine housing options available
