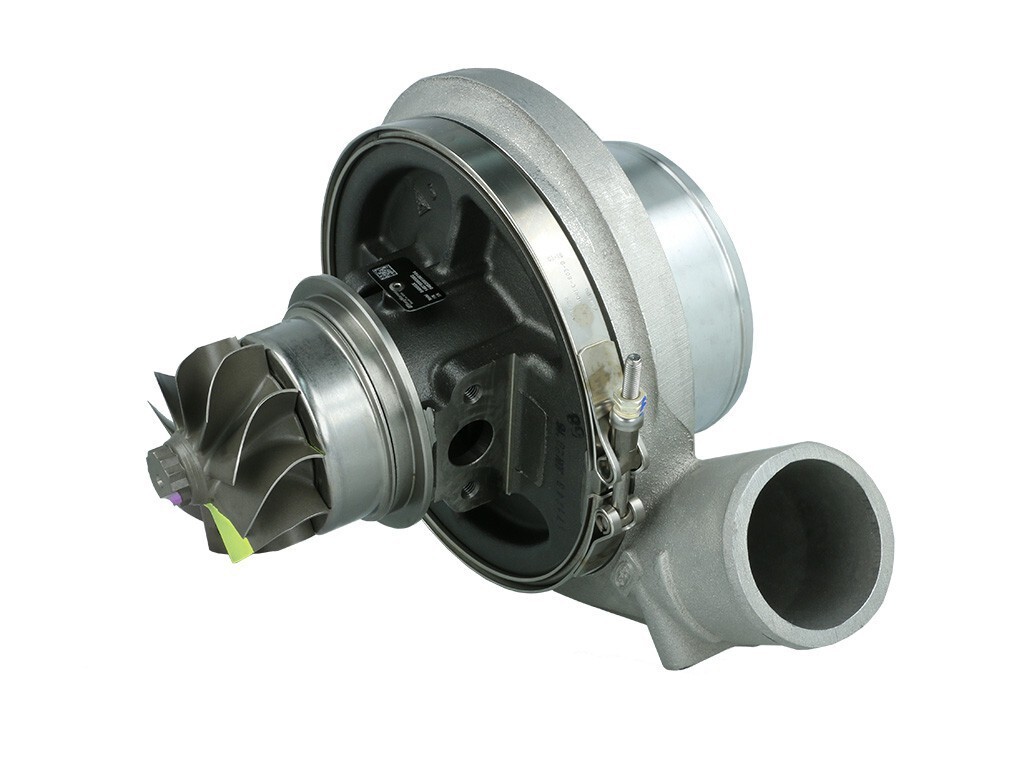

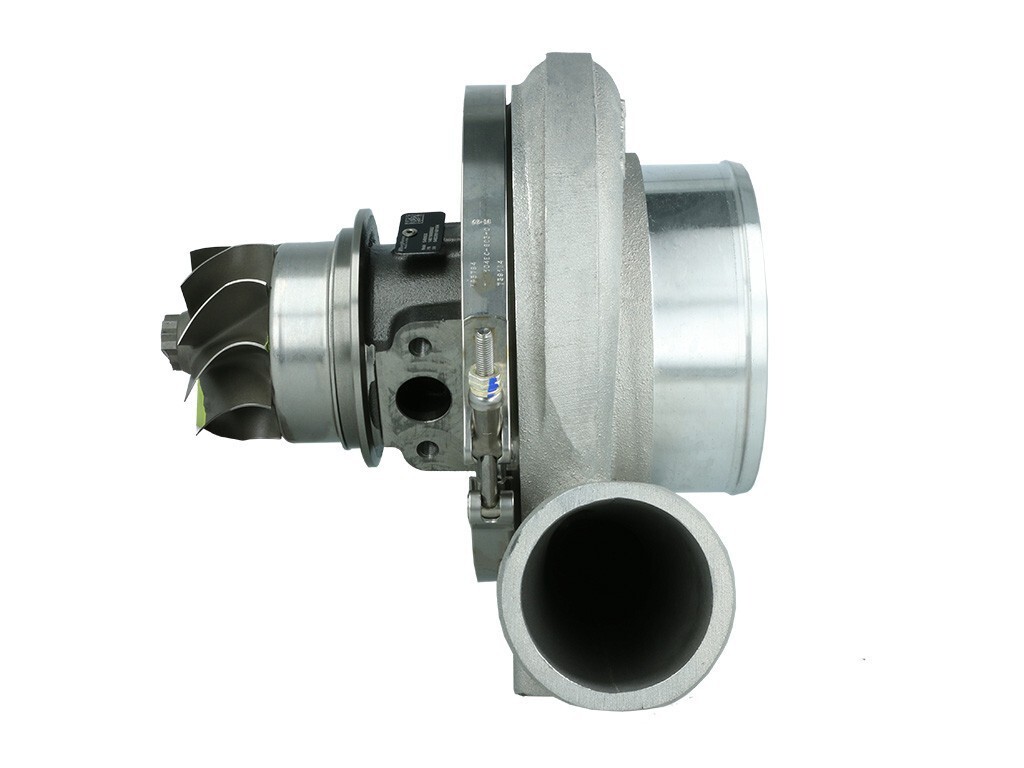

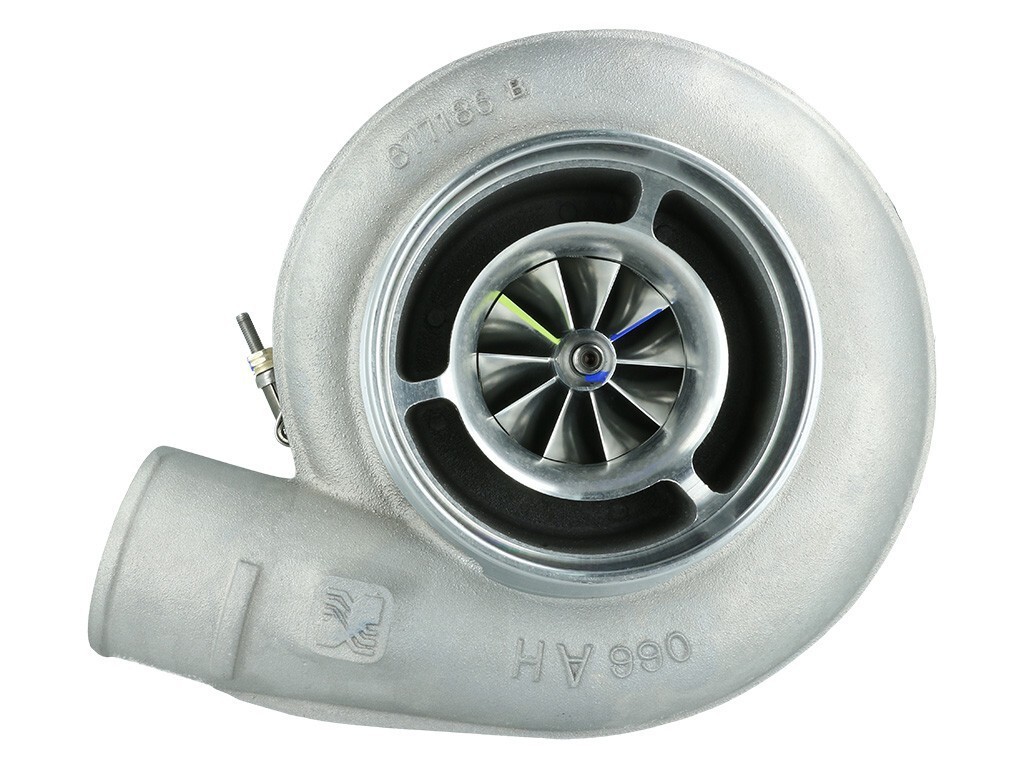

BorgWarner AirWerks S400SX-E Turbo SuperCore - 72mm 96/87 - 14009097006 aka S496X-E

  • Item-No.: 463842
  • Manufacturer-No.: 14009097006
  • Manufacturer: BorgWarner Airwerks
BorgWarner Airwerks
Compressor wheel - Turbine wheel
£ 700.87
excl. 20% VAT , Free shipping
£ 1,201.49
£ 841.04
incl. 20% VAT , Free shipping
instead of: £ 1,201.49
You Save 30%
seen cheaper?
seen cheaper?
Stk
Stock:
2
Order within the next 0 hours 0 minutes 0 seconds and your package is expected to arrive between 22.06.2026 - 23.06.2026

BorgWarner AirWerks S400SX-E turbo - 72mm 96/87

BW part number 14009097006 aka S496SX-E

Genuine BorgWarner AirWerks turbocharger

AirWerks S496SX-E turbochargers from BorgWarner Turbo Systems are dedicated aftermarket turbos for the performance sector. Proven line-produced parts (mostly from Schwitzer Turbo) are being combined to deliver high end tuning and motorsports performance while maintaining an ideal price/performance ratio.

Performance rating: 550 - 1200 HP
Compressor housing: intake 140mm / pressure side 76mm
Compressor wheel: inducer 72mm / exducer 96mm
Turbine housing: no
Turbine wheel: inducer 87mm (exakter Wert ist 87,37mm) / exducer 81,74mm

- Only Super Core with mounting kit for turbine housing, the turbine housing must be purchased separately

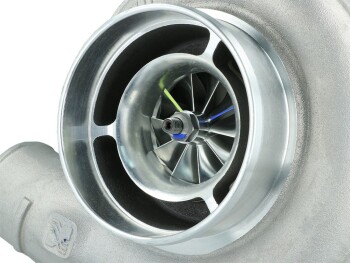

- Forged milled aluminum compressor wheel with extented tip technology
- Integrated speed sensor port
- High Flow compressor housing
- Fits BorgWarner AirWerks S400SX / S400SX-E turbine housings for 87mm (exakter Wert ist 87,37mm) turbine wheels

Turbine housing must be purchased separately.
