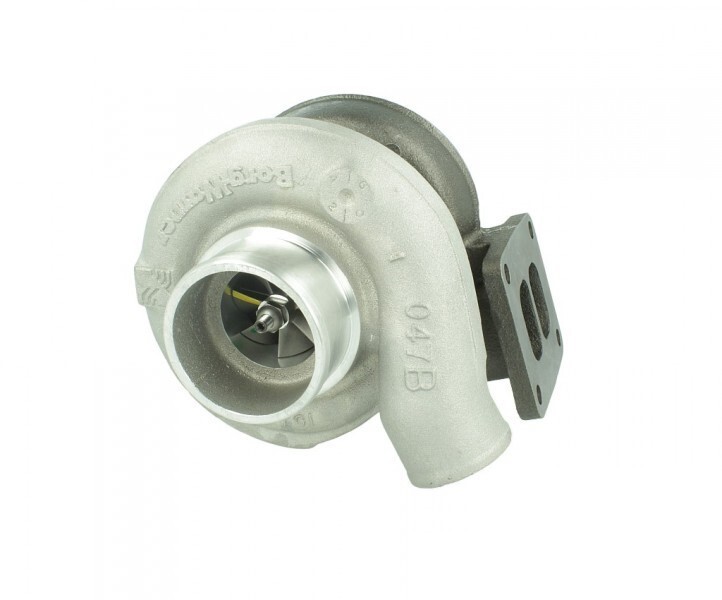

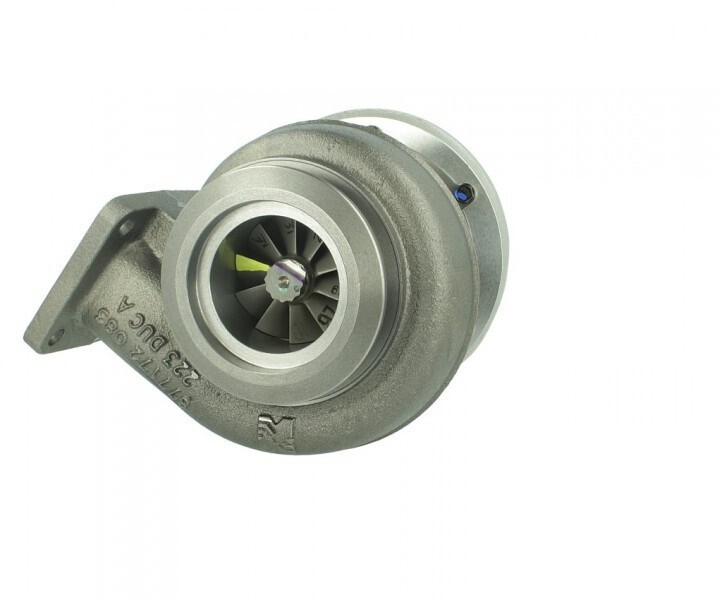

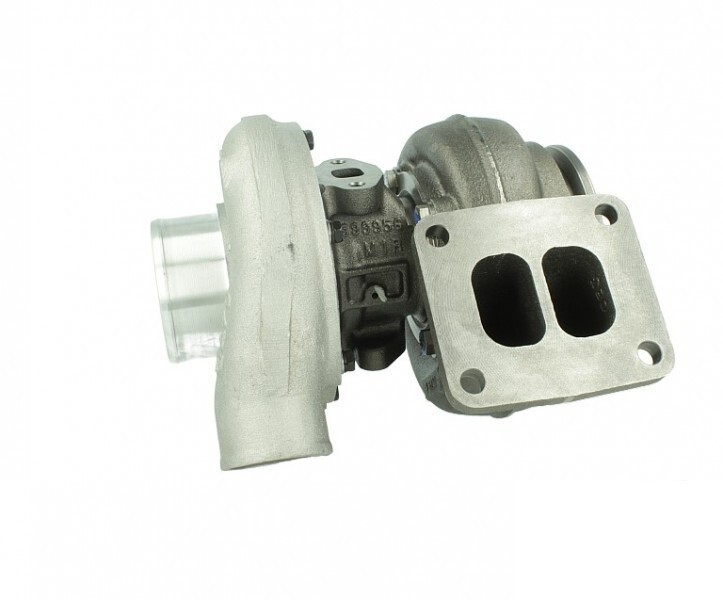

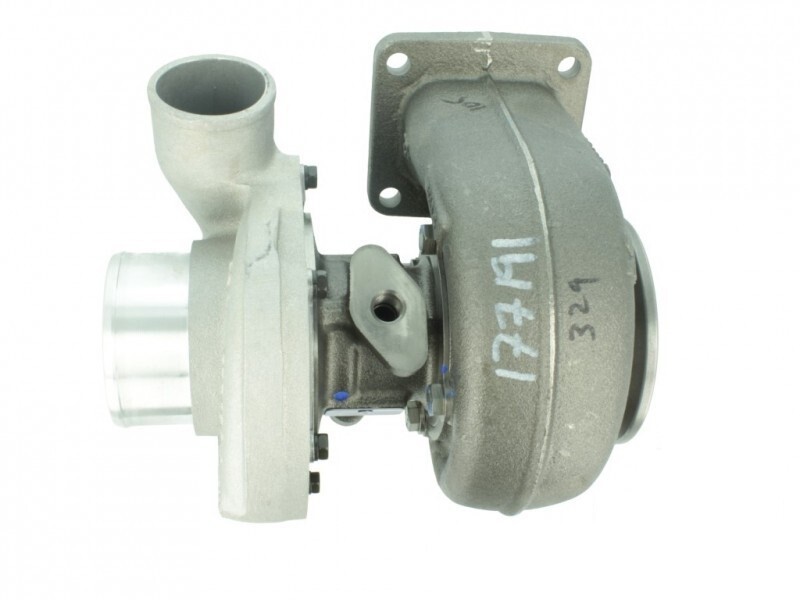

BorgWarner AirWerks S200SX Turbo - 70/70
BW part number 177267 aka S250SX
Genuine BorgWarner AirWerks turbocharger
Note: Currently, some compressor housings come without a logo! This is not a difference in quality! All components come directly from BW USA from the factory.
AirWerks S250SX turbochargers from BorgWarner Turbo Systems are dedicated aftermarket turbos for the performance sector. Proven line-produced parts (mostly from Schwitzer Turbo) are being combined to deliver high end tuning and motorsports performance while maintaining an ideal price/performance ratio.
performance rating: 220 - 580 HP
compressor housing: intake 76mm / pressure side 51mm
compressor wheel: inducer 49,56mm / exducer 69,57mm
turbine housing: 1.09 AR / header flange BorgWarner T4 Twin Scroll (T4 divided) / turbine outlet BorgWarner V-Band
turbine wheel: inducer 69,56mm / exducer 61,43mm / external wastegate
- dual hydrodynamic journal bearing
- extended tip technology
- Twin Scroll turbine housing
- adjustable orientation of compressor housing and turbine housing
Different A/R ratio?
If you order an AirWerks turbocharger and wish to have a different AR you have to order the corresponding turbine housing separately.
- Flange type: T4 divided / TwinScroll
- a/r Value: 1.09ar
- Availability: available today
- Turbocharger: Airwerks S200SXS200SX
