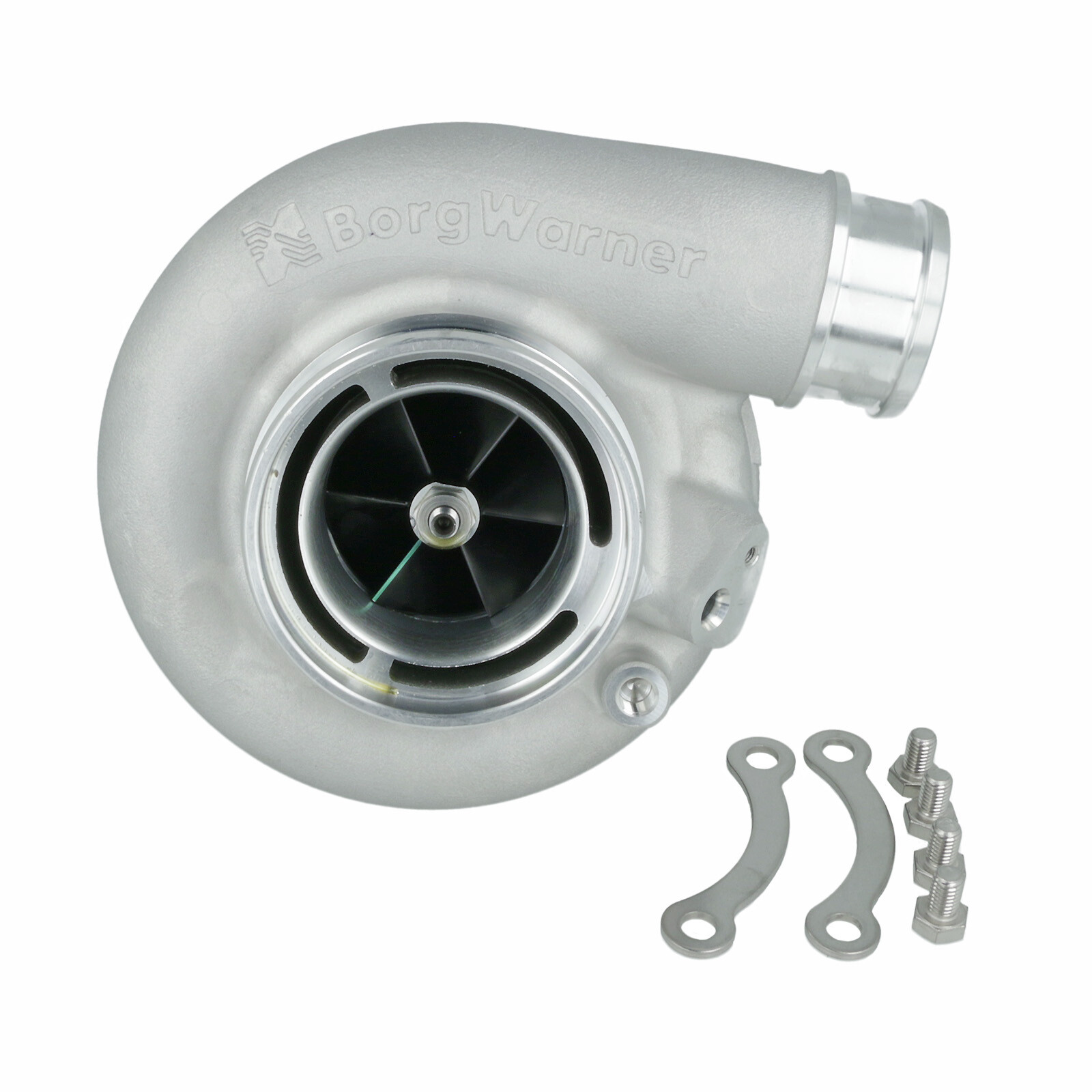

BorgWarner AirWerks S200SX-R turbo - 58mm 76/70

BW part number 12707105086 aka S258SX-R

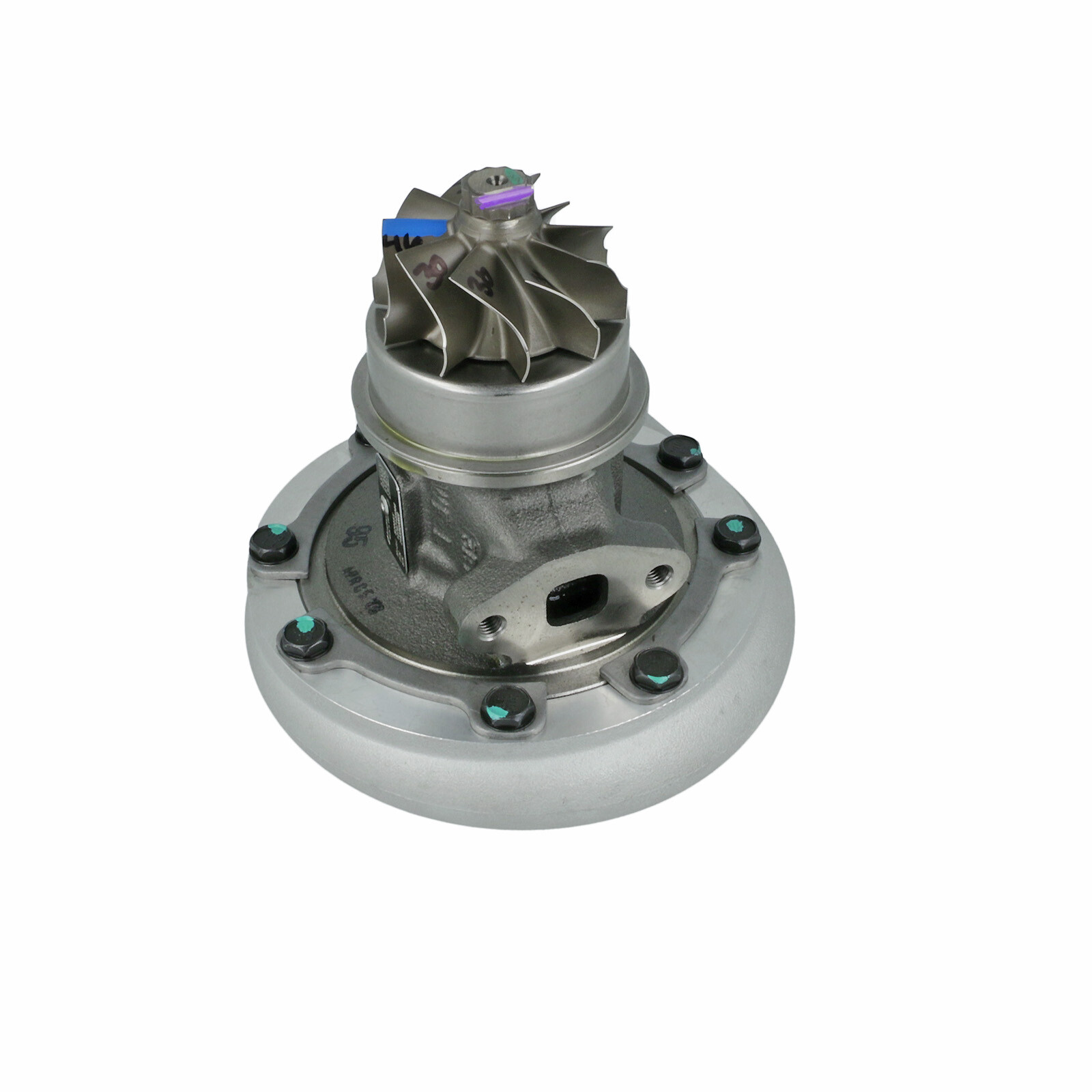

The brand new AirWerks S200SX-R Super-Core for up to 775 HP with faster time to boost than similarly sized rotor groups

BorgWarner Turbo Aftermarket is pleased to announce the release of the AirWerks S200SX-R and S300 SX-R series super-cores for performance applications! The SX-R series offers improved aerodynamics to include a more efficient compressor wheel which is smaller with higher output potential. The smaller rotor group offers reduced inertia and faster time to boost than similarly sized rotor groups.

General description S200SX-R / S300SX-R:
The BorgWarner SX-R Supercores are a symbiosis of the attractively priced AirWerks turbochargers and the high technology of the EFR turbos. The most important key feature of the EFR series is the forged and milled compressor wheel in a special design with the perfectly matched high-flow intake ducts. This has been adopted in the AirWerks turbochargers in order to achieve perfect response behavior and optimum boost pressure build-up as with the EFR turbochargers. However, the basics of the AirWerks series have been retained, so that the turbocharger still has a cast turbine ousing and a robust (overhaulable) bearing system. The pre-installation for the speed sensor has also been retained in order to achieve the optimum efficiency of the supercharger.
AirWerks turbochargers from BorgWarner Turbo Systems are dedicated aftermarket turbos for the performance sector. Proven line-produced parts (mostly from Schwitzer Turbo) are being combined to deliver high end tuning and motorsports performance while maintaining an ideal price/performance ratio.

Tech specs: Performance rating: 700 - 775 HP
Compressor housing: intake 89mm / pressure side 51mm
Compressor wheel: inducer 58,00mm / exducer 76,00mm
Turbine housing: no
Turbine wheel: inducer 69,56mm / exducer 61,43mm

Features:

• Only Super Core with mounting kit for turbine housing, the turbine housing must be purchased separately
• Forged milled aluminum compressor wheel with extented tip technology (EFR tech)
• Reinforced journal and 360° thrust bearings
• Integrated speed sensor port
• Pre-machined boost port
• High Flow compressor housing (EFR tech)
• Fits for BorgWarner AirWerks S200SX / S200SX-E S200SX-R / S200SX-R turbine housings
