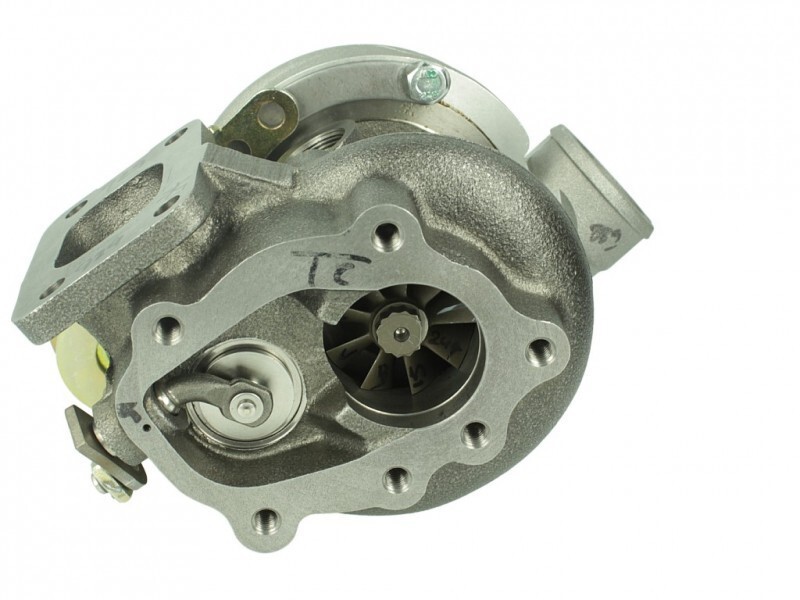

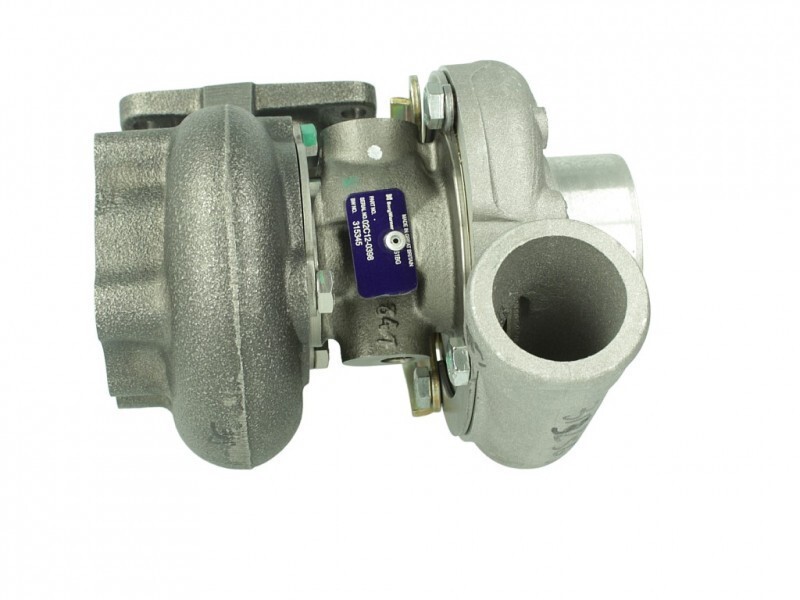

BorgWarner AirWerks S1BG Turbo - 48/47
BW part number 313295
Genuine BorgWarner AirWerks turbocharger
AirWerks turbochargers from BorgWarner Turbo Systems are dedicated aftermarket turbos for the performance sector. Proven line-produced parts (mostly from Schwitzer Turbo) are being combined to deliver high end tuning and motorsports performance while maintaining an ideal price/performance ratio.
performance rating: 120 - 320 HP
compressor housing: intake 60mm / pressure side 50mm
compressor wheel: inducer 34,21mm / exducer 48,31mm
turbine housing: 0.35 AR / header flange T25 / turbine outlet BorgWarner 6-bolt
turbine wheel: inducer 46,99mm / exducer 40mm / internal wastegate
- dual hydrodynamic journal bearing
- internal wastegate
- adjustable orientation of compressor housing and turbine housing
Different A/R ratio?
If you order an AirWerks turbocharger and wish to have a different AR you have to order the corresponding turbine housing separately.
- Model: Journal bearinginternal Wastegate
- Flange type: T25 / T28T25 / turbine outlet BorgWarner 6-hole
- Turbocharger: Airwerks S1BS1BG
- a/r Value: 0.35ar
