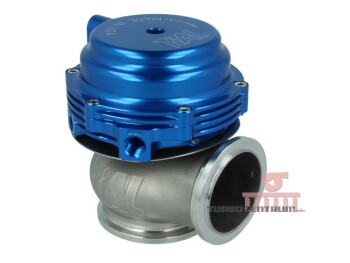

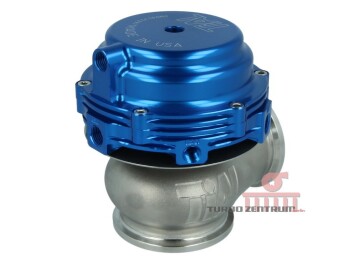

Wastegate TiAL MV-R, blue

Item number: 002948

£ 403.64

including 20% VAT. , plus shipping


 Stock:
1
 Shipping time
Available now!

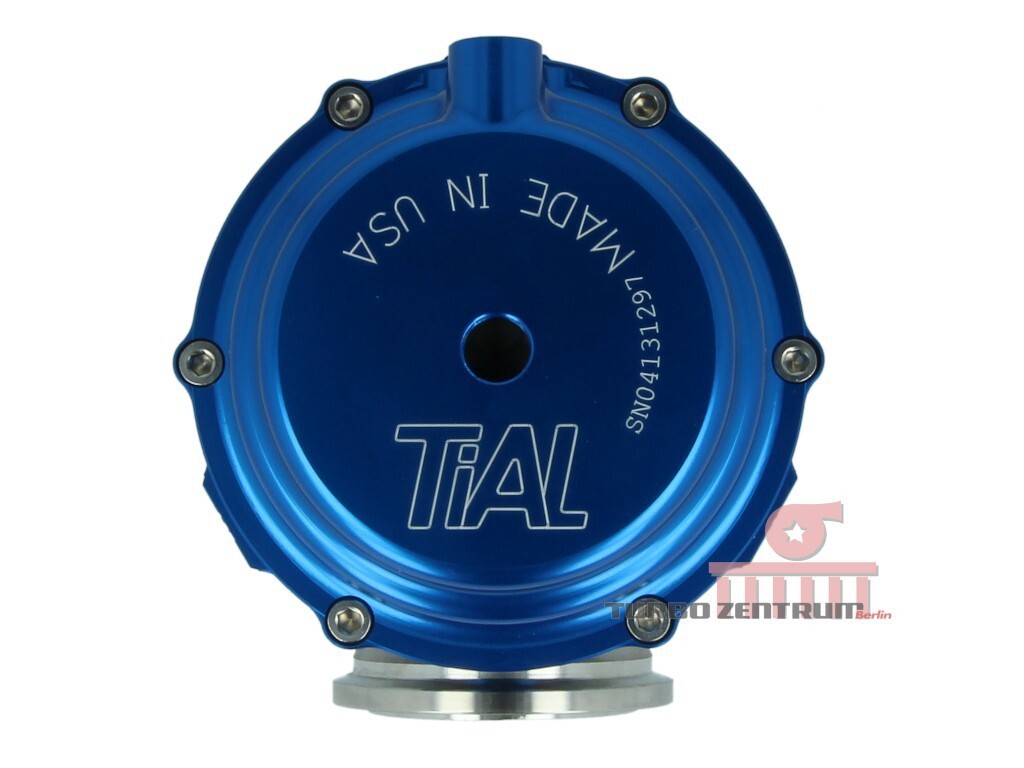

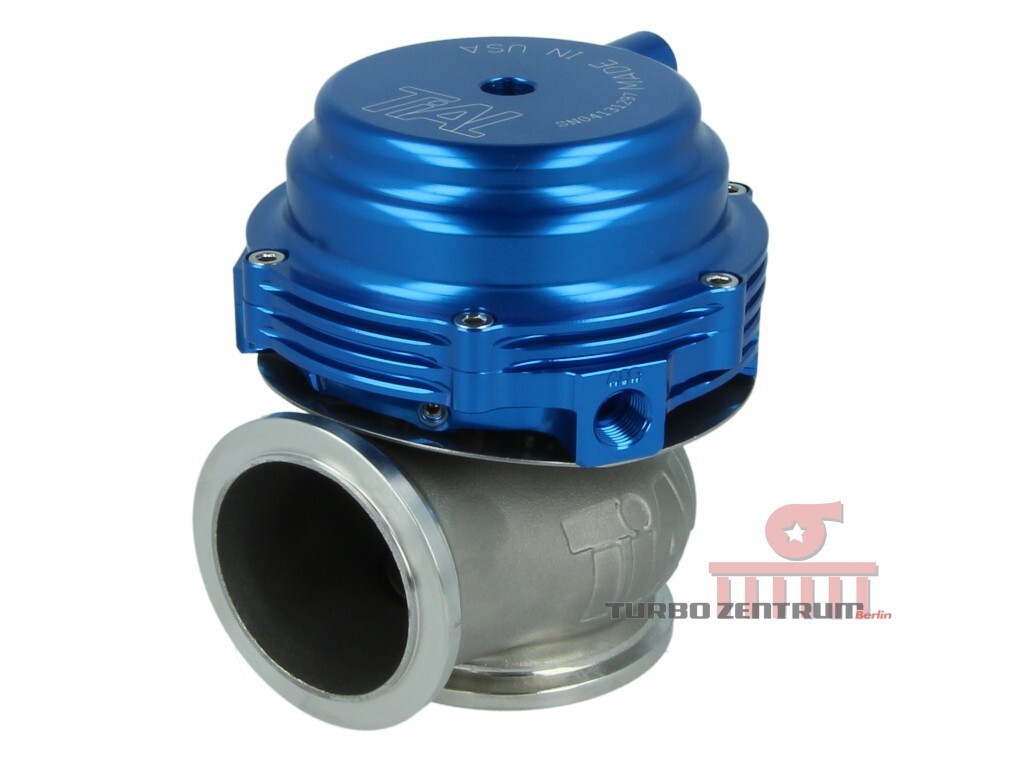

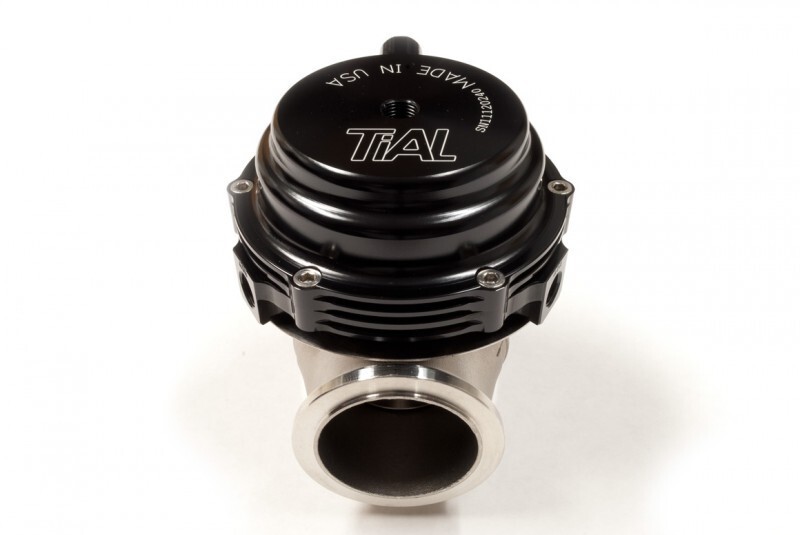

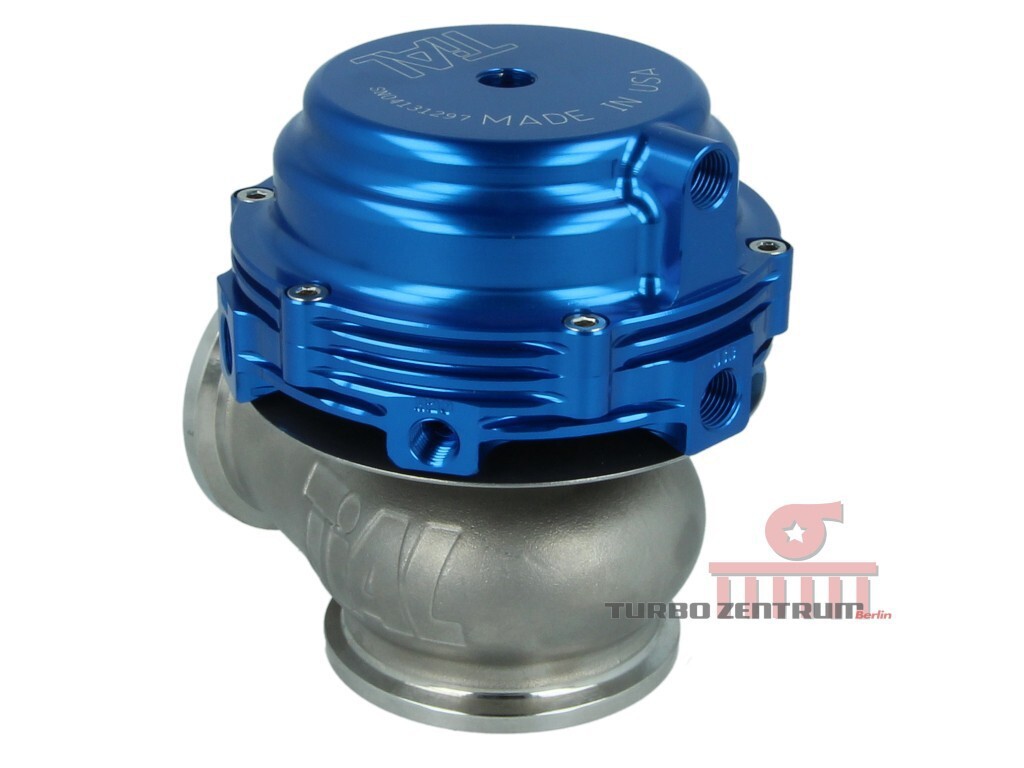

TiAL MV-R Wastegate blue

The compact successor to the V44 Wastegate

Very small and with V-belt Mounting

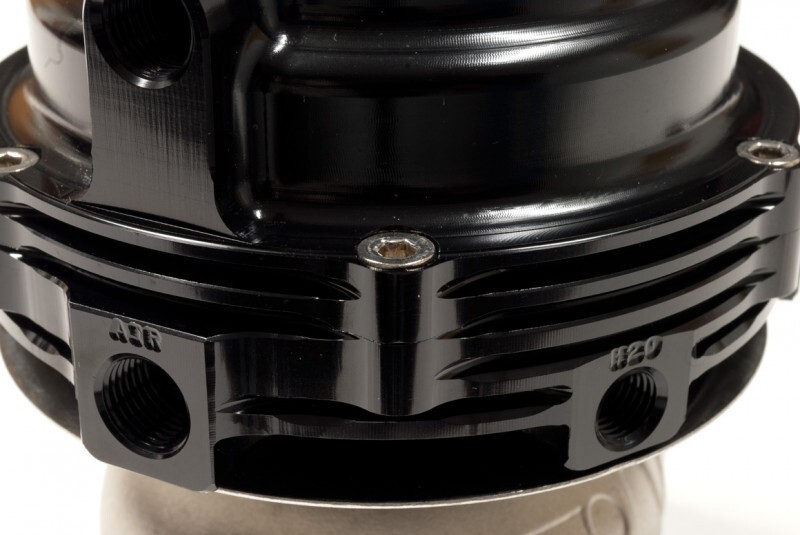

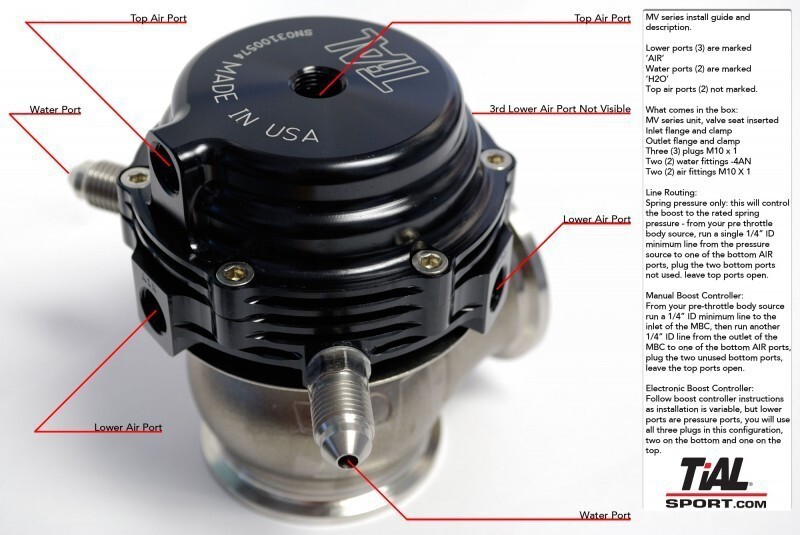

The New TiAL MVR Wastegate is significantly smaller than its Pandants V44 and F46. The V-Band flange connection makes assembly and disassembly very easy. The 3 upper and 2 lower air connections make the installation of pressure lines and boost pressure control very easy.A high temperature NiCrFe alloy is used for the valve and the body is cast from 1.4550 (347SS) stainless steel to ensure longevity even under maximum load. The membrane is made of Nomex silicone, which is very temperature resistant and long-lasting. The spring in the wastegate is also made of high-strength stainless steel, which works reliably even at temperatures of up to 480°C. The spring is also made of stainless steel. The Nomic 60 stainless steel was used for the valve seat and the valve guide to reduce friction and wear. All other assembly parts are made of stainless steel. There are 5 different colours available and each MVR comes with all springs for maximum flexibility. 3 lower and 2 upper connections allow flexible installation of the pressure lines without having to turn the upper part of the wastegate. Closing plugs for closing the open ports are included. The whole Wastegate is extremely compact to allow installation in confined spaces. The assembly is done with V-band clamps, which are extremely easy to assemble and disassemble. The Wastegate also comes with Dash 4 (-4 AN) water connections to provide cooling for extreme racing applications. These can be removed if they are not needed.

Colour: Blue
Spring strength: 0.3 to 1.7 bar

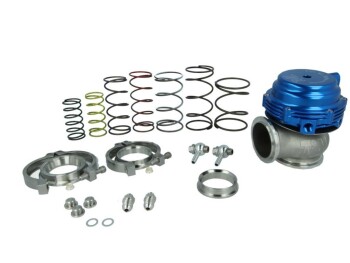

Content:
- MVR
- 2 TiAL Dash 4 water connections (removable)
- MV-R valve seat
- V-Band Inlet Clamp and Flange
- V-band outlet clamp and flange
- 2 TiAL air connections
- Plug for unused connections
- Additional springs



What you should consider with wastegates

- Small turbo + high boost pressure = small wastegate
- Big turbo + small boost pressure = big wastegate
- The indicated boost pressure refers to the minimum pressure.
- Defective or cheap replica Wastegates can cause extreme damage to turbocharger and engine


EAN: 4063087549080
Model: Wastegate
Color: blue
Boost pressure: other
Wastegate: TiAL MV-R
