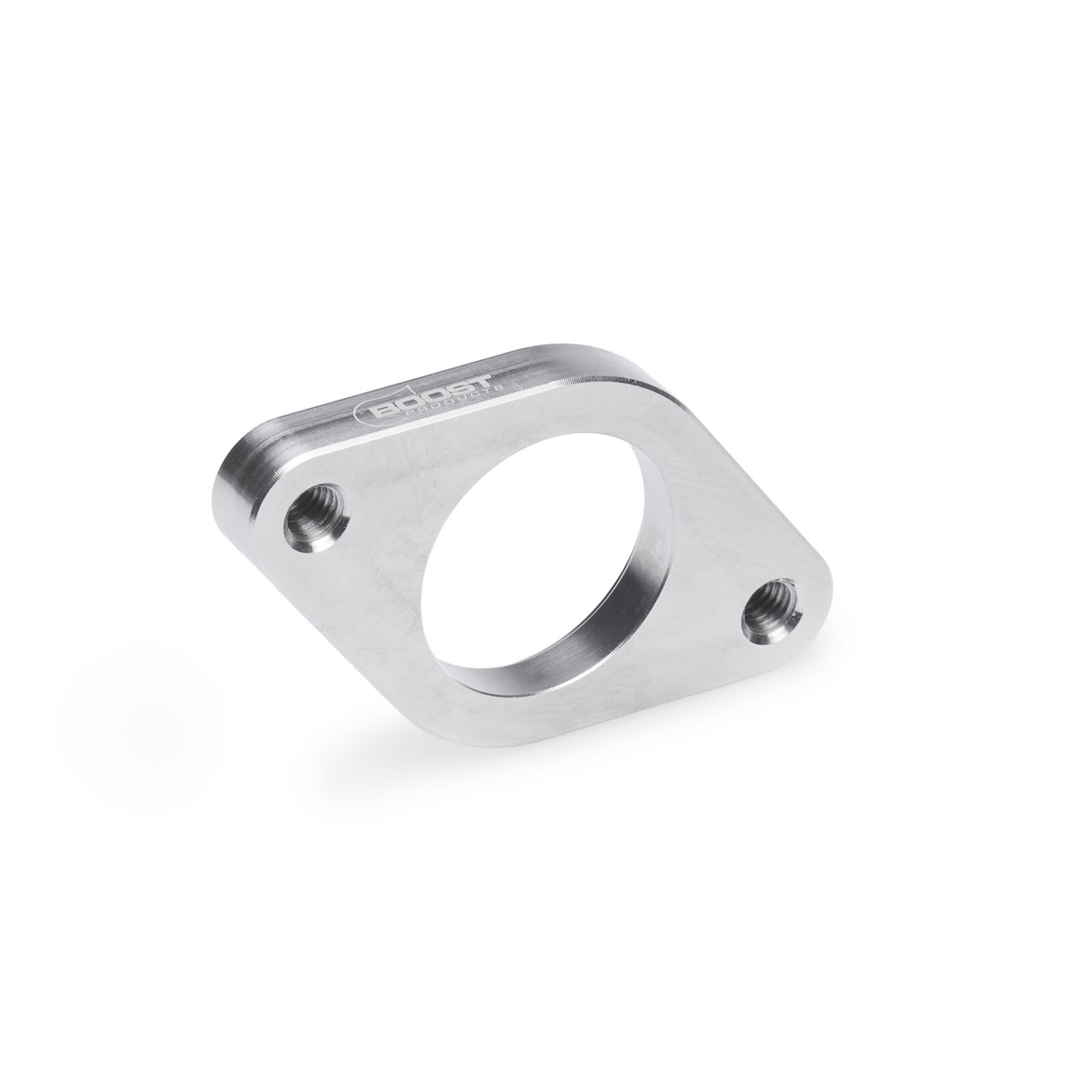

TiAL Flange F38 Inlet Stainless
Flange for the TiAL F38 / 38mm wastegate
Stainless steel flange for wastegate inlet with thread
Premium Stainless Steel flange for the TiAL F38 Wastegate. This flange has threaded holes making him suitable for the wastegate inlet port to fabricate an exhaust manifold. All turbo related flanges are CNC milled and guarantee a perfect smooth surface and 100% accurate measurements. Additionally we supply stainless elbows and collectors needed for the fabrication of an exhaust turbo manifold, exhaust systems and more.
Material: Stainless steel 1.4301 / SS304
Material thickness: 10mm
Total dimensions: 89mm x 50mm
Dimensions cut-out: 35mm (inner diameter of a 38mm pipe)
Hole distance: 71mm (diagonal)
Thread: M8 thread
Extras / Features: Flange with threads! No holes!
For / Fits:
Inlet TiAL F38 or other 38/40mm 2-bolt inlet flange Wastegates
Inlet Synapse Synchronic 40mm Wastegate (WG001)
