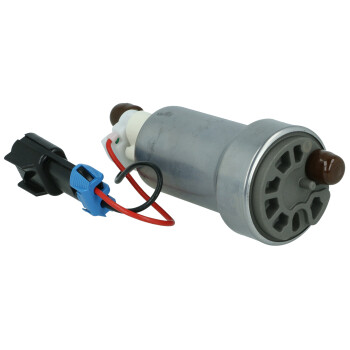

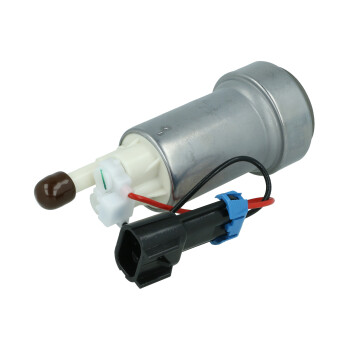

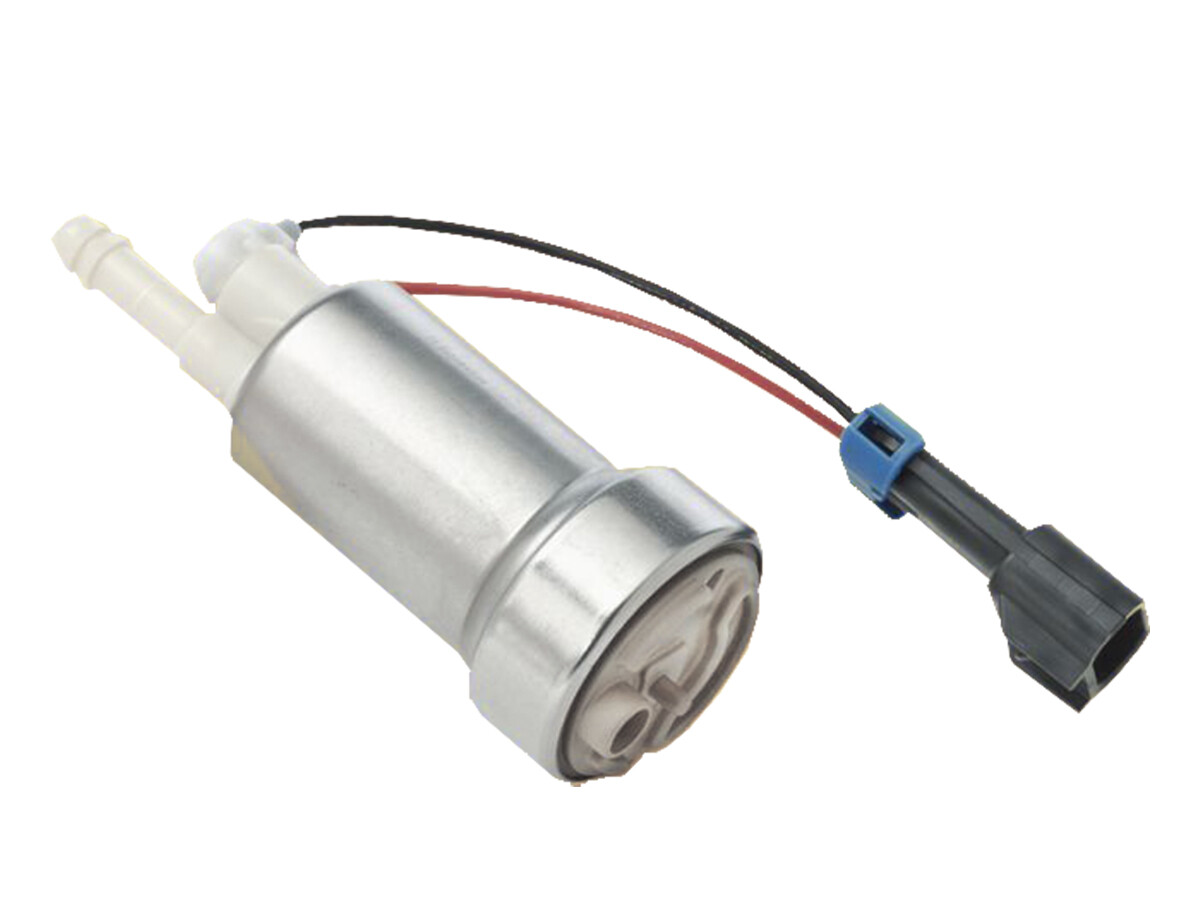

Walbro internal 525 LPH fuel pump / E85 without installation kit
Walbro Motorsport in-tank fuel pump E85 compatible
Universal fuel pump rated up to 900 HP+
Note: This pump does not come with an installation kit, you must order the installation kit separately (400-1168)
The new Walbro 525 in-tank fuel pump is a brand new aftermarked part released 2019. It has been developed having specifically turbocharged engines with horsepower numbers greater than 900 HP in mind. The 39mm drive is basically the same as in the 255hp version, but fitted with a new highly efficient dual channel turbine design for maximum efficiency under high pressure and high temperature applications. This pump features two sets of turbines running on one common shaft. The result are enormous flow rates at a wide range of pressure ratios! All pumping components have been validated to OEM specifications for approved use in E85/flex fuel applications
Flow capacity: 470lph @ 2,75bar @ 13,5volts
E85 suitable: Yes
Diameter socket: 50mm
Diameter pump housing: 39mm
Length: Overall 131mm incl. connections
Internal check valve: Yes
Content: Pump (without installation kit)
Gasoline Outlet diameter: 10mm (3/8")
- Mounting Location: internal
- Availability: available today
- Flow rate: 530l/h
- Model: standard fuel pump
