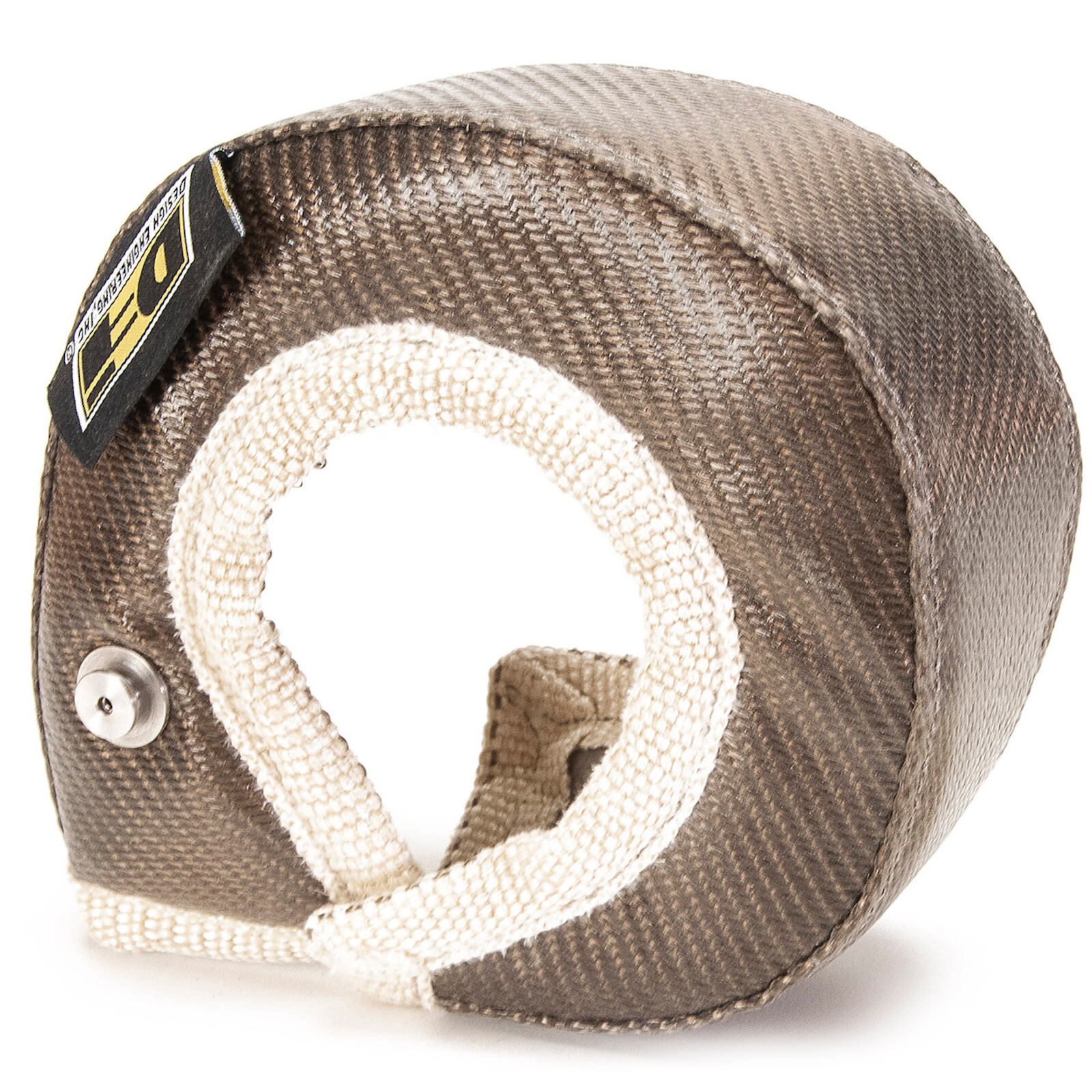

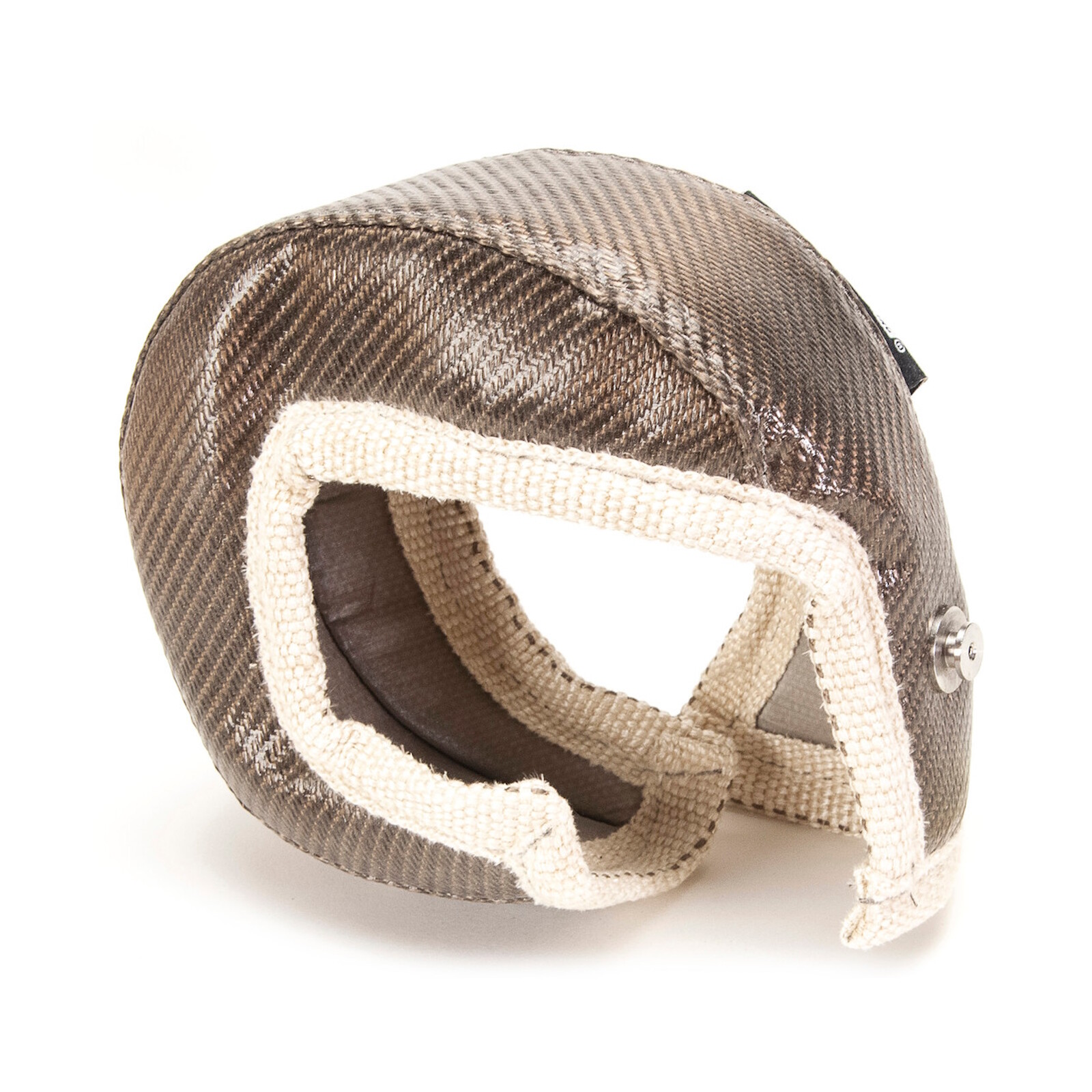

Turbo Heat Shield GEN 3 Titanium - Single T3
The best Turbo heat protection blanket on the market
New GEN 3 DEI - the strongest, most heat resistant shield available for T3 turbine housing and similar
DEI raised the bar! The most technologically advanced turbo shield ever!
DEI incorporated all their experience to build the absolute best turbo shield on the market. By developing advanced textiles and diving deep into what is needed to control turbo heat, DEI developed the GEN-3 TITANIUM Turbo Shield. A Silicone coated TITANIUM LR outer layer with multiple stainless steel and silica inner layers. Without a doubt the strongest, most heat resistant shield available.

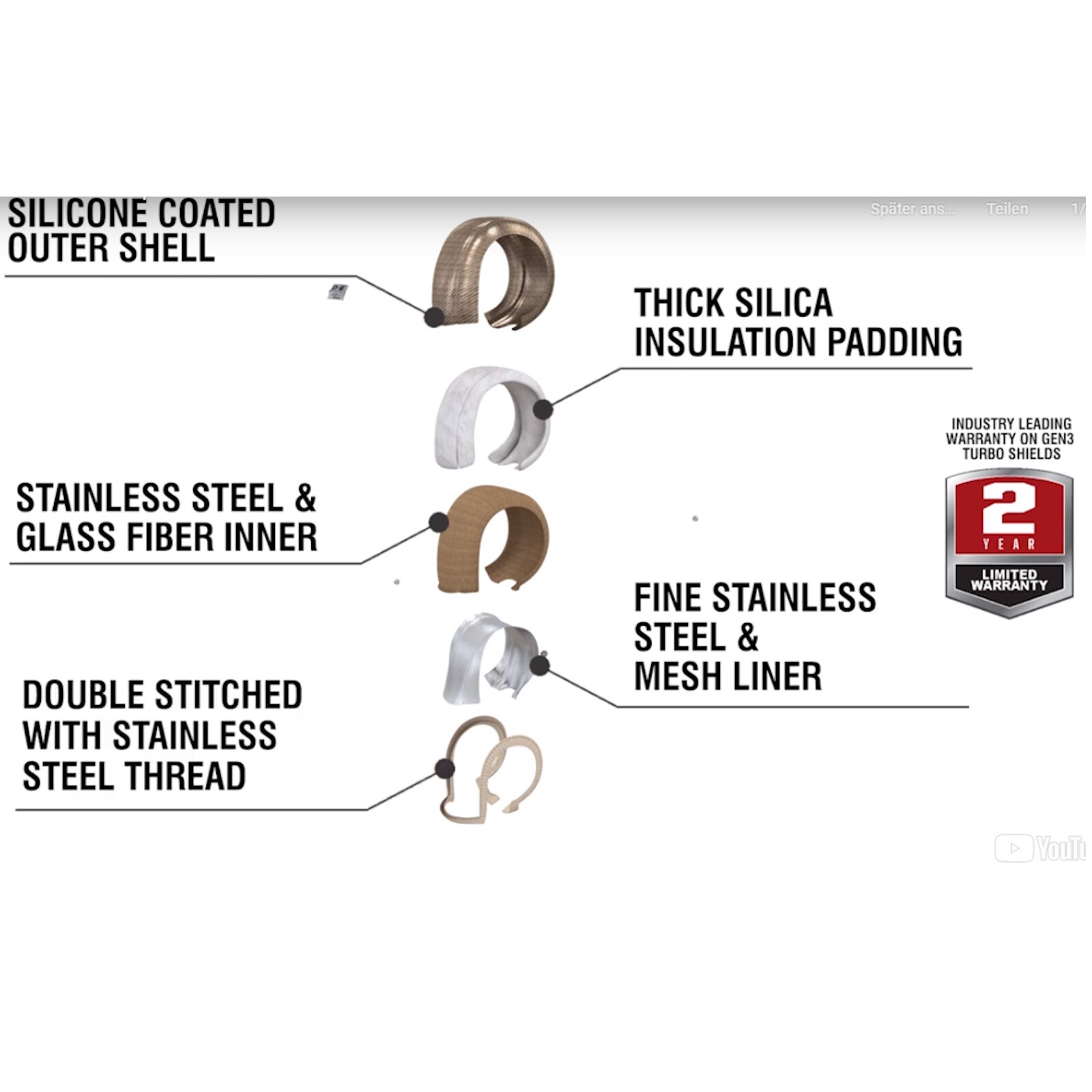

OUTER SHELL
- Coated in silicone to insulate and hold up under extreme conditions Prevents fraying & encases seams to make them over 4 times stronger
- Thick layer of silica insulation keep heat in turbo shield and turbo housing Silica has a low thermal conductivity making one of the best insulators
- Stainless steel, glass fiber & silicone adds to insulating and thermal properties Increases seam strength, durability and insulation value
- Stainless Steel fabric holds up against the highest temps
- Will not break down or become brittle with heat
Radiant Heat Resistance: 1400°C / 2500°F
Size: T3
Color: Titanium
Kit: with shield and wire only

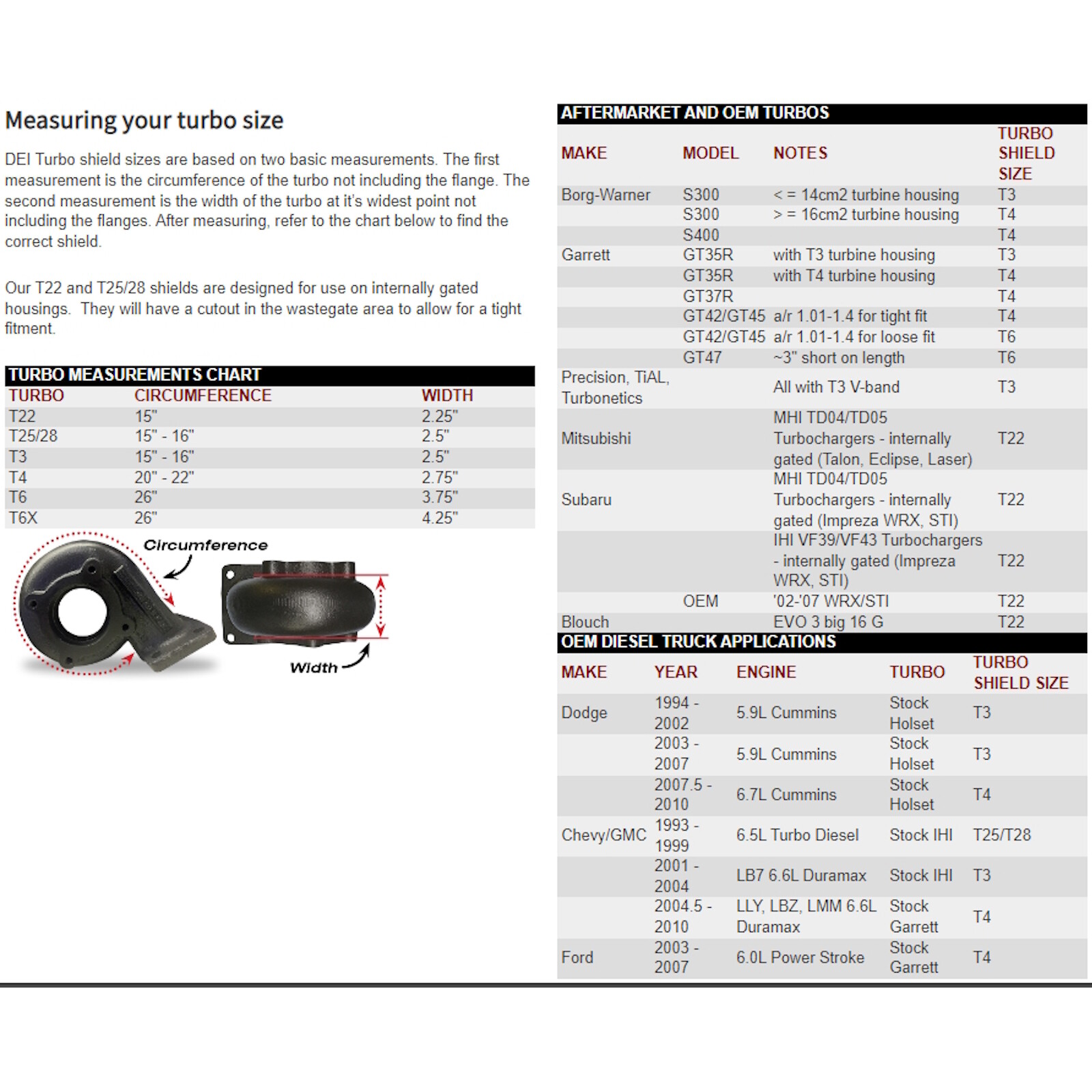

TURBO APPLICATION GUIDEMeasuring your turbo size
- DEI Turbo shield sizes are based on two basic measurements. The first measurement is the circumference of the turbo not including the flange. The second measurement is the width of the turbo at it’s widest point not including the flanges. After measuring, refer to the chart to find the correct shield.
- Garrett GT3071R, GT3076R, GT3082R, T3 (ext. WG), T3/T4 (ext. WG), T03/T04 (ext. WG), GT3582R
- BorgWarner S300 up to 14cm2 turbine housing
- Precision, Tial, Turbonetics all with T3 and VBand outlet
- Dodge 5,9L Cummins 94-02 and 03-27 Series turbochargers
- Chevy / GMC LB7 6,6L Duramax 01-04 Series turbocharger.
Warning!
Here you buy the coat individually. We also offer a complete set with fixing material and heat protection tape.Price for heat protection blanket as shown, without turbine housing.
Features
- Product Type: Turbo heat shield T3
- Usage: Turbocharger / turbine housing
- Availability: available in 3-5 days
