BorgWarner AirWerks turbine housing for BW AirWerks S300SX / S300SX-E 76/68mm
T4 singlescroll - 1.27 A/R - 76mm V-Band
Fits for original BorgWarner AirWerks S300SX / S300SX-E 76/68mm Turbo

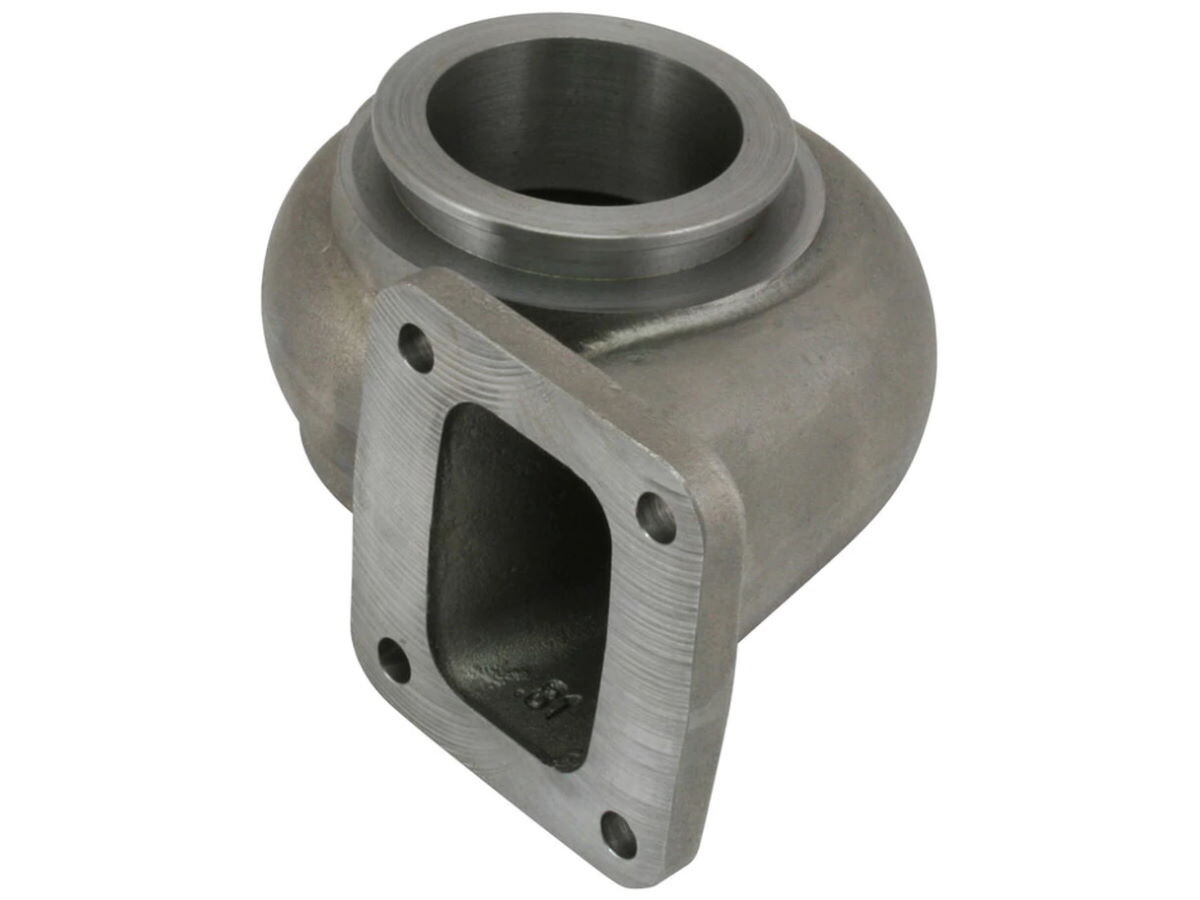

Cast open T4 housing with 1.27 A/R that opens up and frees the exhaust flow that was once limited by the .96 A/R. This configuration matches the frame of our other turbine housing castings in .68, .81, and .96 A/R so no modifications are needed to your existing setup to run the new 1.27 A/R.
The inlet is the familiar open T4, with the industry standard 3" V Band (3.625 OD Flat) outlet. Currently we offer this housing to fit 76/68mm and 80/73mm S300 and S300sxe turbine wheels to match all Airwerks S360 - S372 variety supercores.
You receive a single turbine housing for a BorgWarner AirWerks turbocharger, this let you choose which A/R ratio orientation of the flange and flange type fits best to your application.
Turbine housing mounting kit is included if neccesary!
Fits the subsequent turbochargers:
BorgWarner AirWerks S300SX / S300SX-E 76/68mm (76/68mm Turbine wheels found in: 177272, 177280, 177283, 13009097056, 13009097006, 13009097008)
A/R ratio: 1.27ar
Turbine flange: T4 Single
Turbine outlet: 76mm V-Band
- Product Type: Turbine housing (external WG)
- Flange type: T4 divided / TwinScroll
- a/r Value: 1.27ar
- Availability: to order
- Turbine Wheel: 76mm
- Turbocharger: S300SXS300SX-ES300SX3
