Turbine housing for Garrett GT30 / GTX30 Series - V-Band / V-Band 0.82 A/R
V-band / V-band exhaust housing made of stainless steel (heat resistant)
For GT30 / GTX30 series with 0.82ar

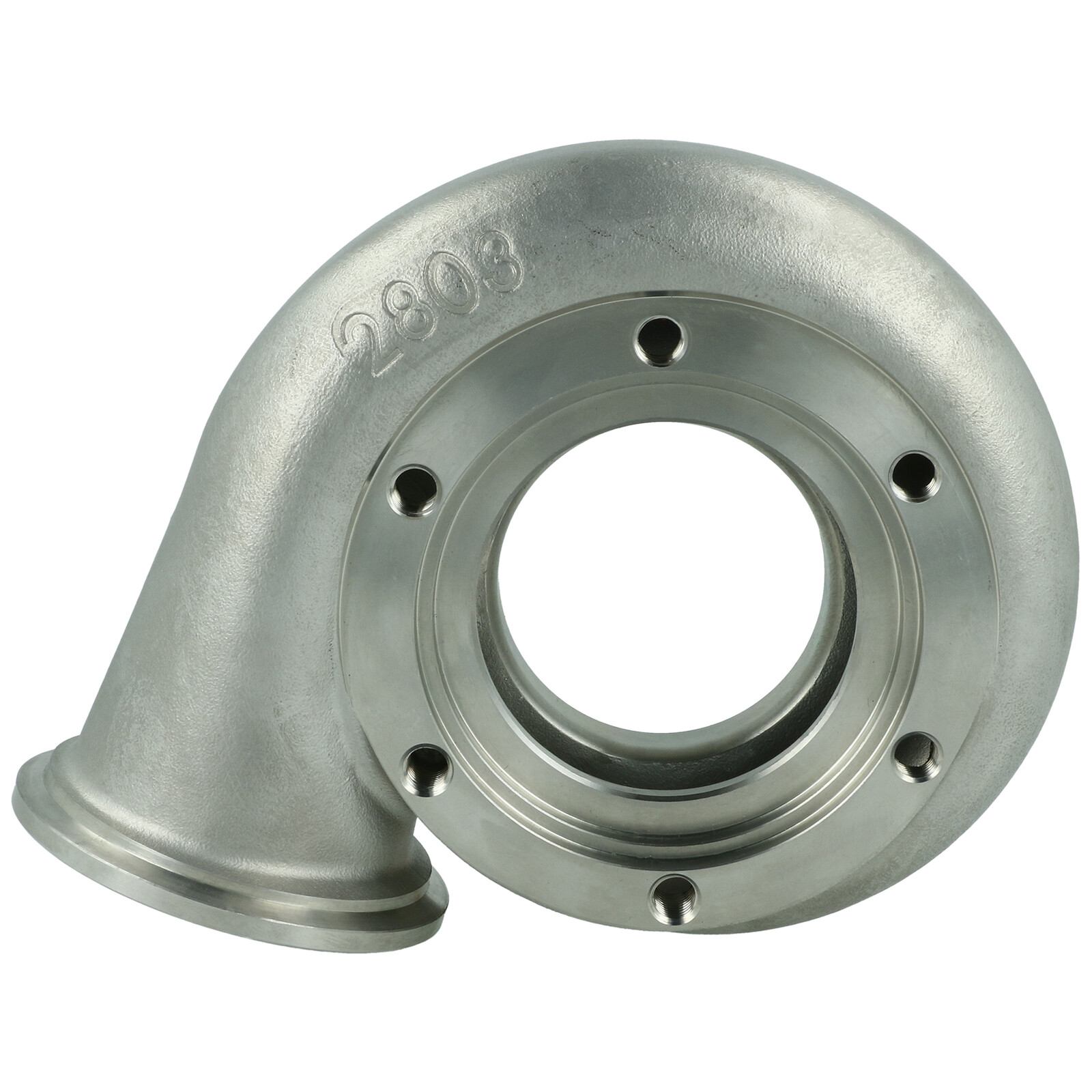

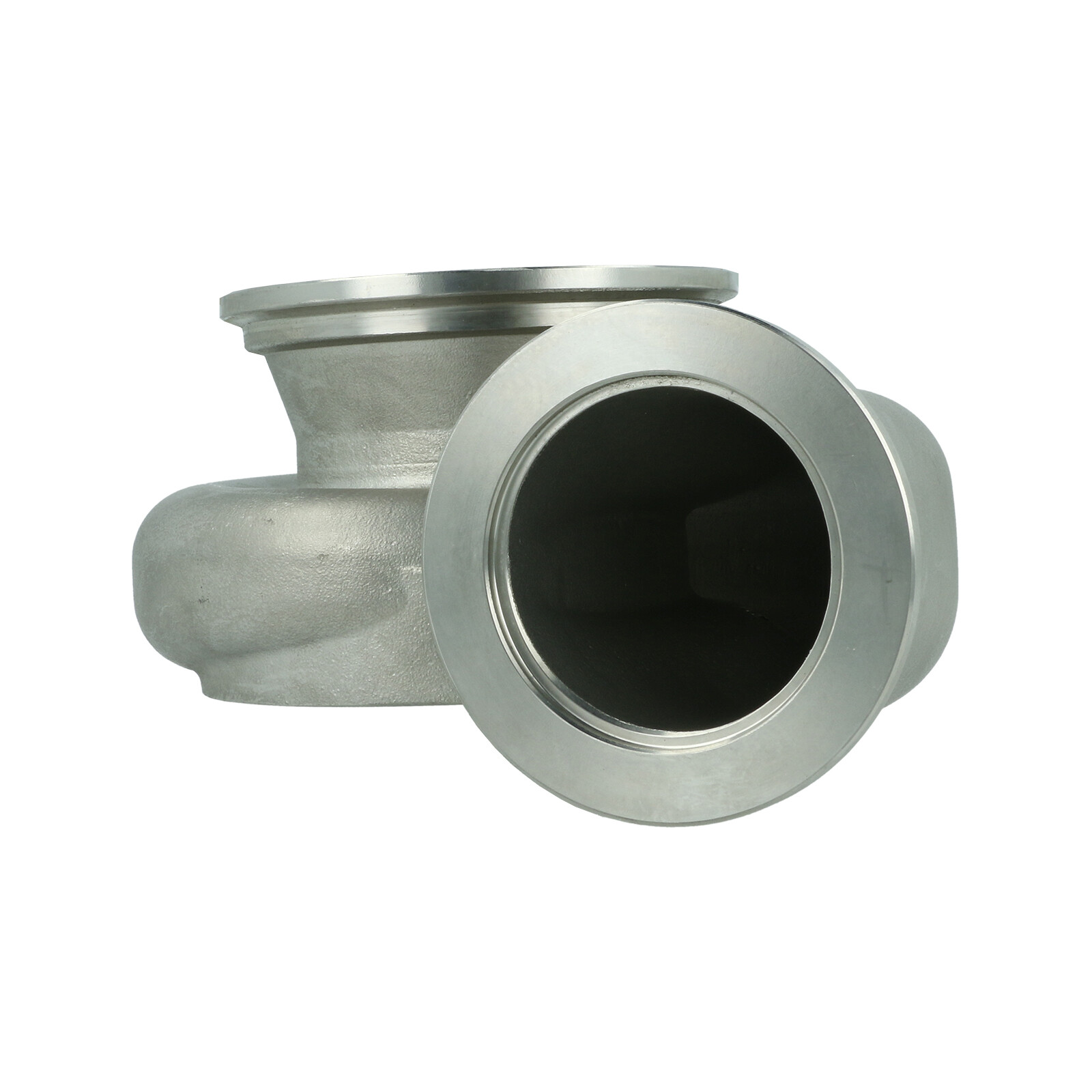

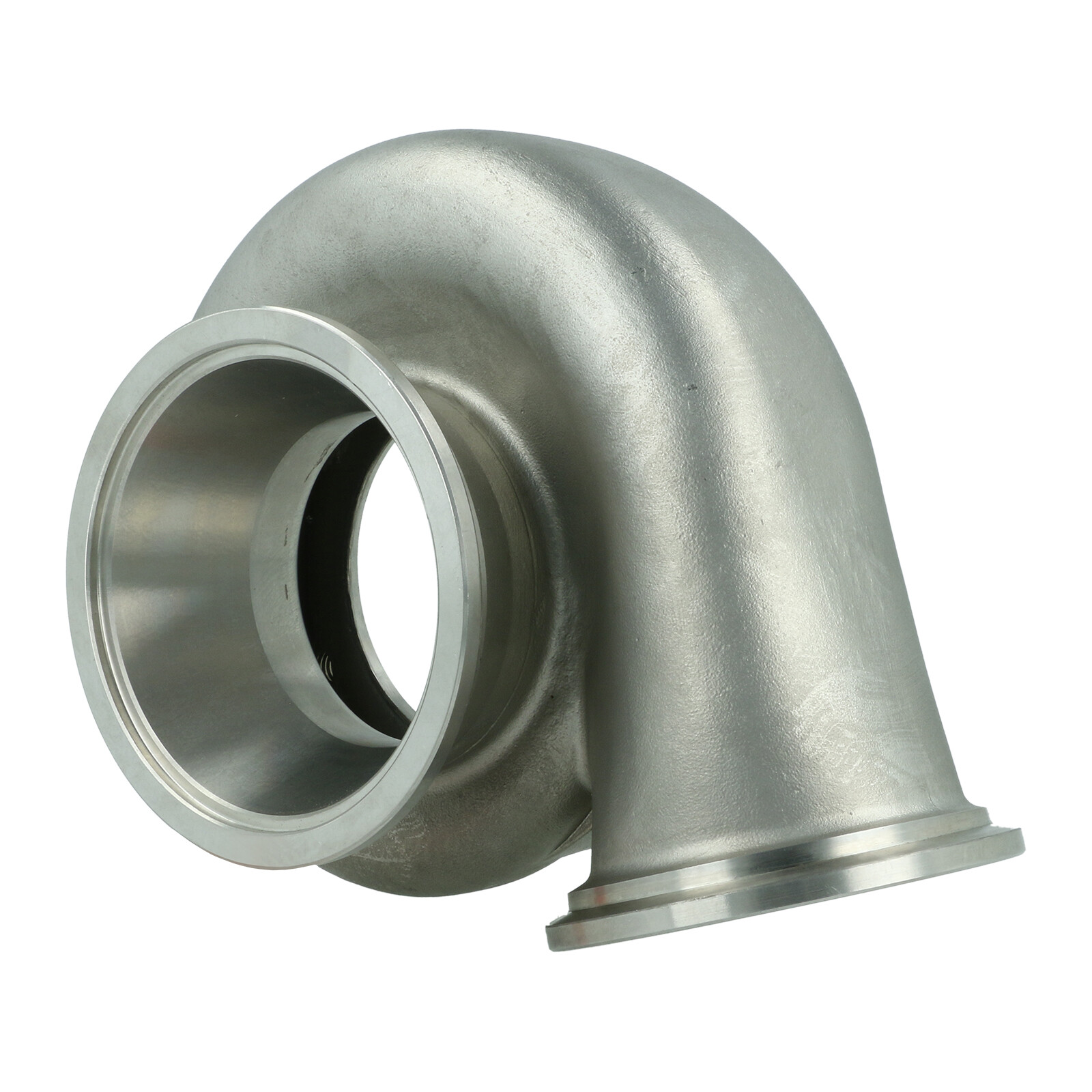

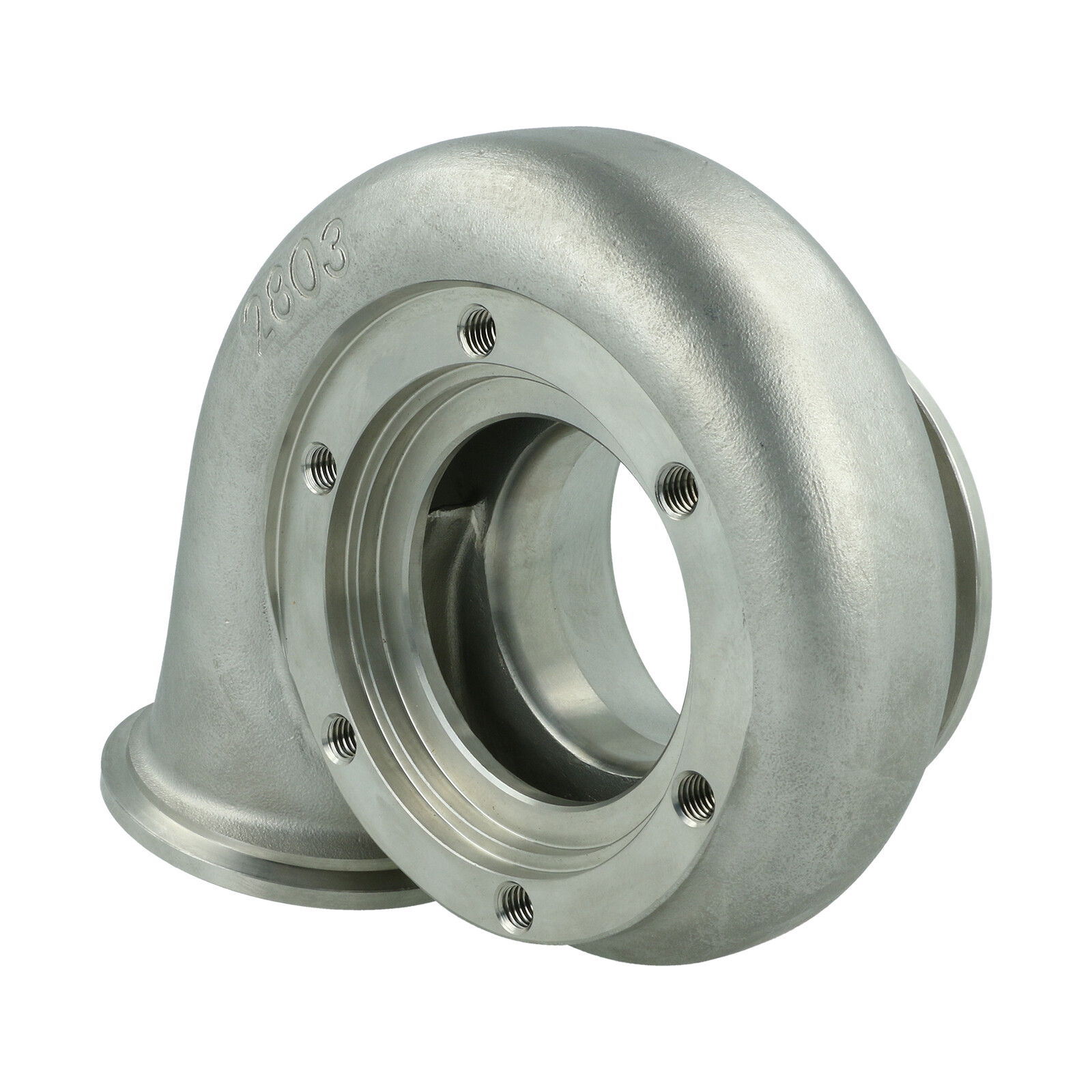

TurboZentrum stainless turbine housing for Garrett GT3076 / GT3082 / GTX3071 / GTX3076 turbochargers. With V-Band inlet flange and V-Band outlet flange. The stainless steel is crucial to the material's exceptionally high corrosion and heat resistance.
Inlet flange: V-Band 76mm
Outlet flange: V-Band 90mm
Note: The dimensions of the V-Band Flanges are not exactly identical to the Garrett / TiAL Flanges. But the housing can be mounted at manifolds and downpipes which are made for Garrett / TiAl Flanges.
A/R value: 0.82
Description: Casting of stainless steel for extreme applications

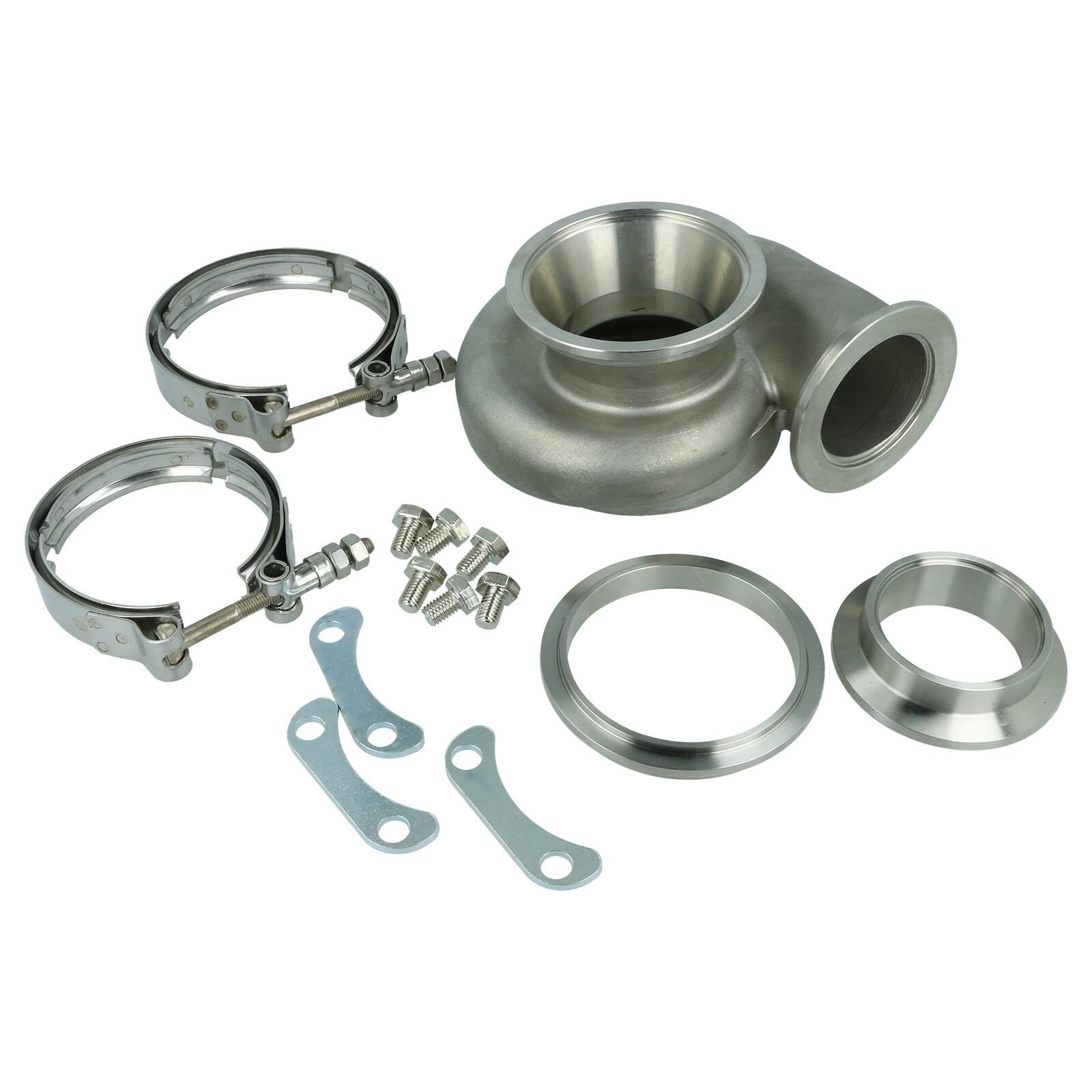

Package content: Turbine housing, V-Band flanges and clamps for inlet and outlet, mounting kit to CHRA
Fits:
GT3071R (CHRA 700177-5023)
GT3076R (700382-5012/836028-5003)
GTX3067R (824727-0001/836042-0001)
GTX3071R (803712-1/836042-2)
GTX3076R (803713-1/836042-3)
We offer a wide range of turbine housings. This can be used, for example, a smaller or larger A/R values affect the response, or increase the maximum power.
- Product Type: Turbine housing (external WG)
- Flange type: V-Band
- a/r Value: 0.82ar
- Availability: to order
- Material: Stainless Steel
- Turbocharger: GT3071R,GT3076R,GT3082R,GTX3071R,GTX3076R
