Toyota GT4 Adjustable Actuator Toyota Celica GT4 | Forge Motorsport
Make: Toyota
Model: Celica GT4

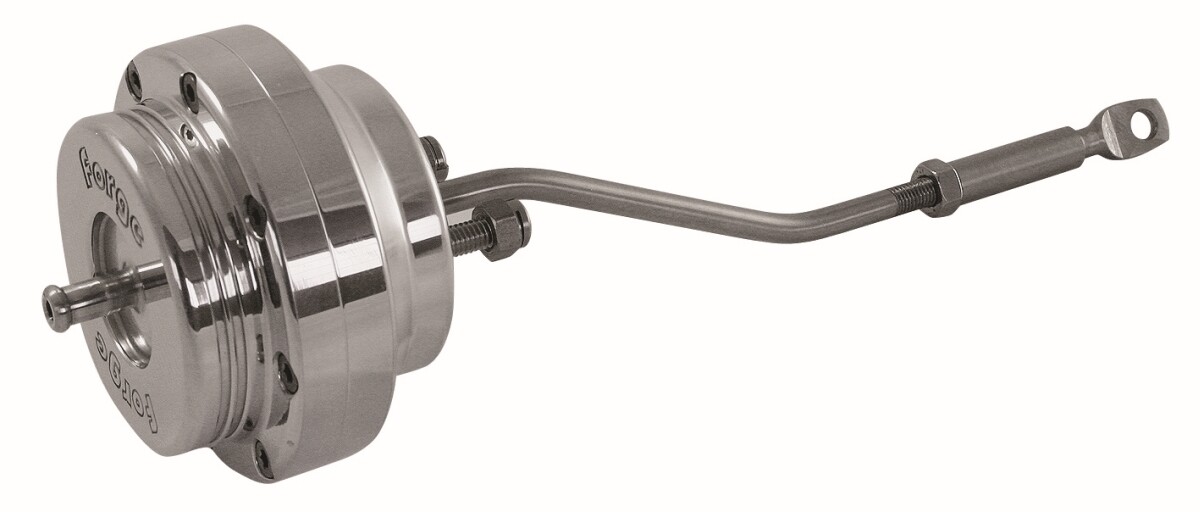

This actuator is designed for the Toyota GT4. Manufactured from Billet aluminium, this Forge adjustable actuator is a two part assembly that will allow servicing and mainteinance. It also allows for rod adjustment to suit the customers individual application. This product is built with a predetermined actuator spring suitable for at or slightly above factory boost levels. The actuator can be assembled with a stiffer spring upon request. Please contact us directly concerning this process.
Please note this actuator is not sold with a mounting bracket and the stock Toyota GT4/MR2 bracket will have to be removed from the stock actuator to mount on to the Forge actuator. After cutting away from the original actuator body, two 6.5mm diameter holes will have to be drilled into the mounting face of the stock bracket at 34mm centres (17mm either side of the rod centre line) to mount the Forge actuator.
Please note:
The pressure figures listed in the drop down menu above are minimum regulated pressure figures. If you are unsure please dont hesitate to call us on 01452380999 .
Diaphragm sealed internals are the default selection for this actuator product but customers now have the option of piston sealed internals. Unique to Forge Motorsport this innovation offers equal performance to the diaphragm type and low maintenance due to the hard wearing nature of piston sealed valve internals
While Forge Motorsport is happy to supply you with an actuator capable of holding boost beyond that of your factory unit we are in no way capable of knowing nor suggesting that your vehicle's engine or related systems are capable of supporting or surviving the stresses of such elevated boost pressure.
In The Box:
1 x FMACGT4 Actuator
1 x Forge Sticker
This actuator is built with a Green coded spring as standard. If you require the FMPACTUN spring tuning kit seen in the associated products below, you will need to select the Diaphragm Type 3, 048 option.
- Availability: to order
