Thermostatic Oil Cooler Kit Mishimoto for Subaru WRX and STI / 01-05 / Silver

Options: Silver or black, without thermostat
Silver or black, with thermostat

Category: Oil cooler kits and accessories

Engine Codes: EJ205 EJ255

Chassis No.: GD
Pressure Drop: 0.06-0.13 bar
Torque Recommendation for Installation:
20-33 N*m is recommended for all straight fittings and eyelets. Do not exceed the maximum range of 47 N*m.

Notice:
It is the responsibility of the installer to ensure that all plugs, fittings, clamps, and all other connections are correctly tightened before the vehicle is put into operation. Mishimoto recommends checking all connections at regular intervals, especially during the first few kilometers after installation.

Increase in Oil Capacity: 0.473L
Temperature Difference: 16+°C

Note:
Requires modification of the heat shield for a good installation. Does not fit vehicles equipped with front mount intercoolers. Fits both automatic and manual transmission vehicles.

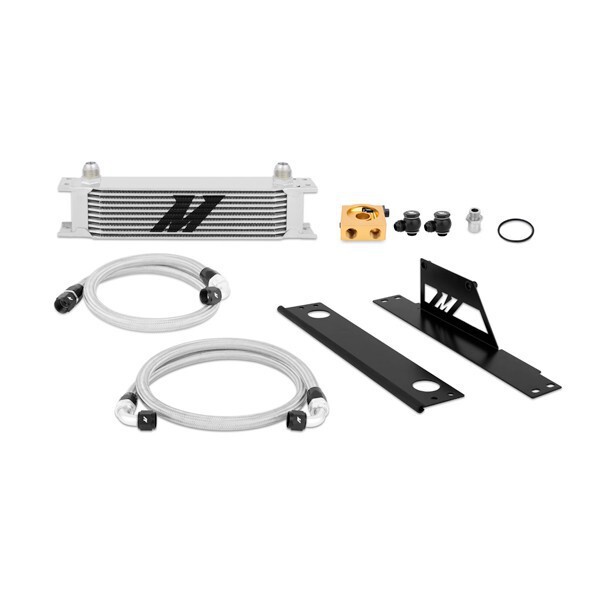

Purchase Includes:
(2) Application-specific mounting brackets

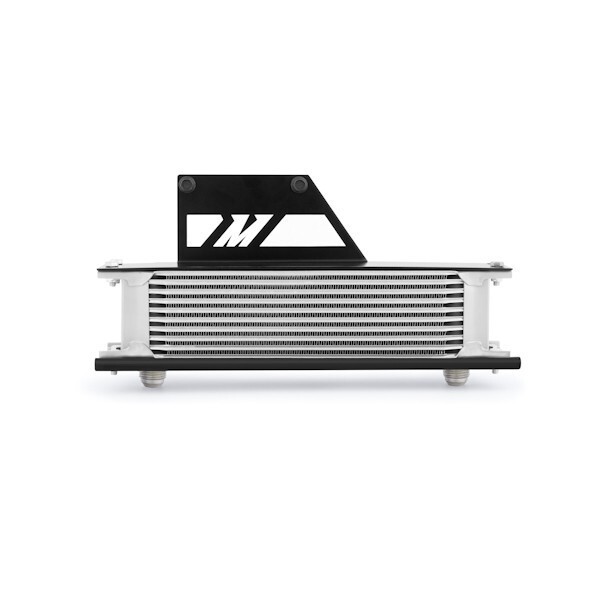

(1) 10-row oil cooler
(1) 0.91m stainless steel braided hose with -10AN fittings
(1) 1.34m stainless steel braided hose with -10AN fittings

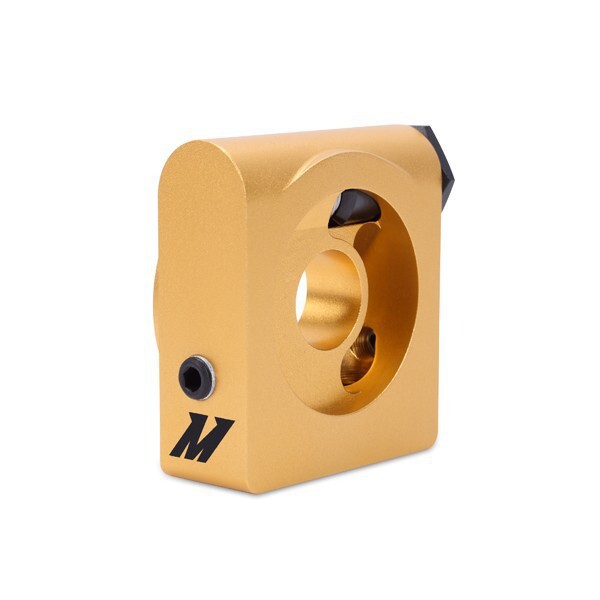

(1) Oil sandwich plate (option with thermostat available)
(1) Stainless steel sandwich plate adapter, M20
(2) Eyelet fitting M20 x -10AN, black
(1) Black rubber gasket
(1) Mounting hardware set

Also Fits:
2001-2005 Subaru WRX
2004-2005 Subaru STI

Whether you have a rally-inspired WRX or a modified STI, maintaining the ideal oil temperature is essential for both optimal performance and engine longevity. Give your four-cylinder a dose of reliability with the direct-fit Mishimoto Subaru WRX/STI oil cooler kit. This kit includes precision-crafted application-specific mounting brackets, pre-made stainless steel oil lines, an oil sandwich plate, an efficient 10-row stacked plate oil cooler, and all necessary hardware. This kit increases oil capacity by 0.473L and lowers temperatures by over 16°C with minimal pressure drop. The kit is available with the Mishimoto standard oil sandwich plate or the Mishimoto oil sandwich plate with a rear thermostat for added control over oil temperatures and optimal performance in any environment. For additional customization, this kit is available with a silver or black cooler. This kit is the perfect complement to the Mishimoto Subaru WRX/STI performance aluminum radiator, performance aluminum fan shroud kit, and silicone radiator hose kit for the ultimate cooling solution for your Subaru.
