Thermostatic Oil Cooler Kit Mishimoto for Subaru WRX / 08+ / Black

Color:
Silver or black, without thermostat
Silver or black, with thermostat

Category: Oil cooler kits and accessories

Engine Codes: EJ255

Chassis No: GH GE GR GV
Pressure Drop: 0.20-4 PSI

Warning:
It is the responsibility of the installer to check that all plugs, connections, clamps, fittings, and any other connections are tightened correctly before the vehicle is put into operation. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation.

Increase in Oil Capacity: 0.615L
Temperature Difference: 34+°C

Note:
Torque Recommendation for Installation:
20-33 Nm is recommended for all straight fittings and eyelets. Do not exceed the maximum range of 47 Nm.

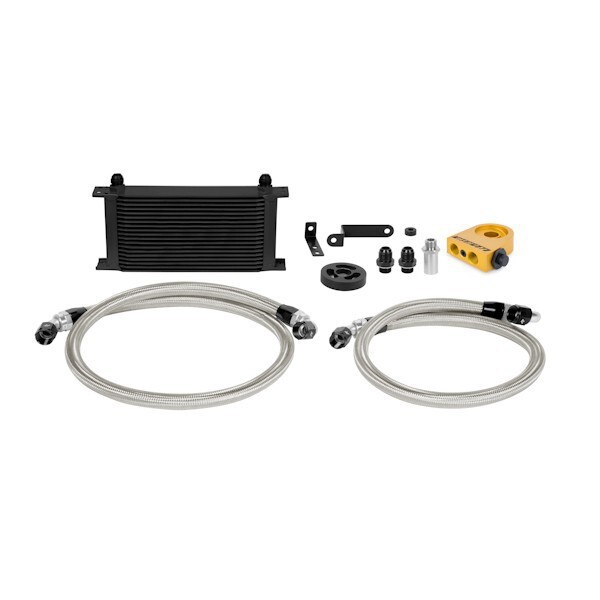

Included in Purchase:

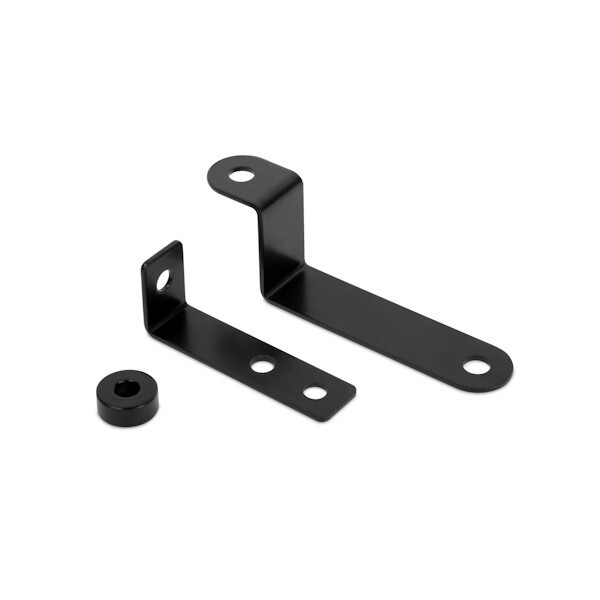

(3) Application-specific mounting brackets and spacers

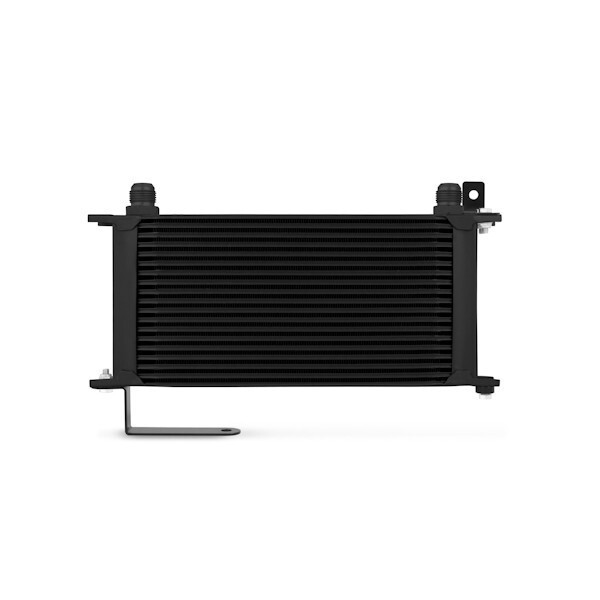

(1) 19-row oil cooler (silver or black)

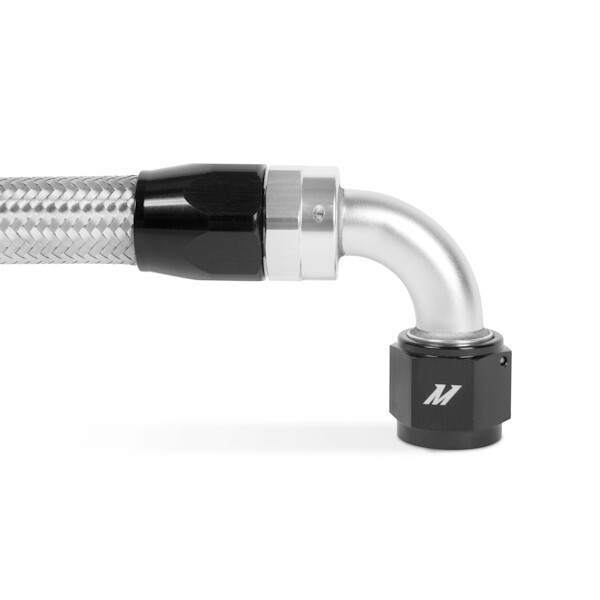

(1) 0.64m stainless steel braided hose with 45° and 150° -10AN fittings
(1) 1.09m stainless steel braided hose with 45° and 90° -10AN fittings

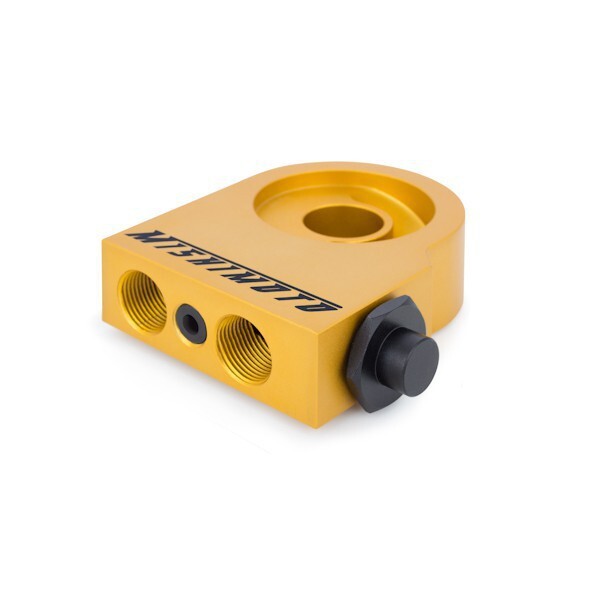

(1) M20 sandwich plate with thermostat (also available without thermostat)

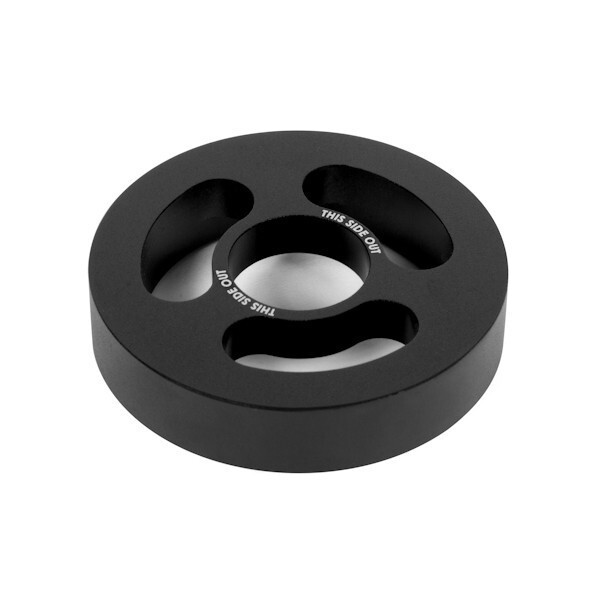

(1) 15mm CNC machined sandwich plate spacer
(1) Application-specific M20 sandwich plate adapter
(2) M20 x -10AN straight fittings
(1) 0.60m heat shield tape
(1) Mounting hardware set

High oil temperatures can cause devastating damage to your high-performance four-cylinder engine. Protect your investment with the direct-fit Mishimoto oil cooler kit, specifically designed for the Subaru WRX, model year 2008 and up. The WRX has a lot to offer with its turbocharged engine and fantastic AWD system, but these vehicles do not come equipped with an oil cooler from the factory. Well-regulated oil temperatures become even more critical if you modify your vehicle or spend time on the race track. Mishimoto's direct-fit oil cooler is designed to reduce oil temperatures and extend the life of your engine. For optimal airflow and cooling, this kit includes a large 19-row cooler, which mounts to the front bumper using sturdy application-specific brackets. The included CNC machined aluminum spacer provides ample room for our oil sandwich plate, making the kit compatible with the factory header heat shield. This kit includes pre-assembled stainless steel braided lines with -10AN fittings and a heat shield to protect against radiant heat. With this setup, your WRX can achieve a reduction in oil temperatures by 34°C while maintaining minimal pressure loss. The Mishimoto Subaru WRX oil cooler kit is available with a silver or black cooler and with your choice of Mishimoto oil sandwich plate with or without a thermostat for even greater control over your oil temperatures.
