Stainless steel manifold flange adapter T3 to TiAL GTX29 - GTX35 V-Band turbocharger

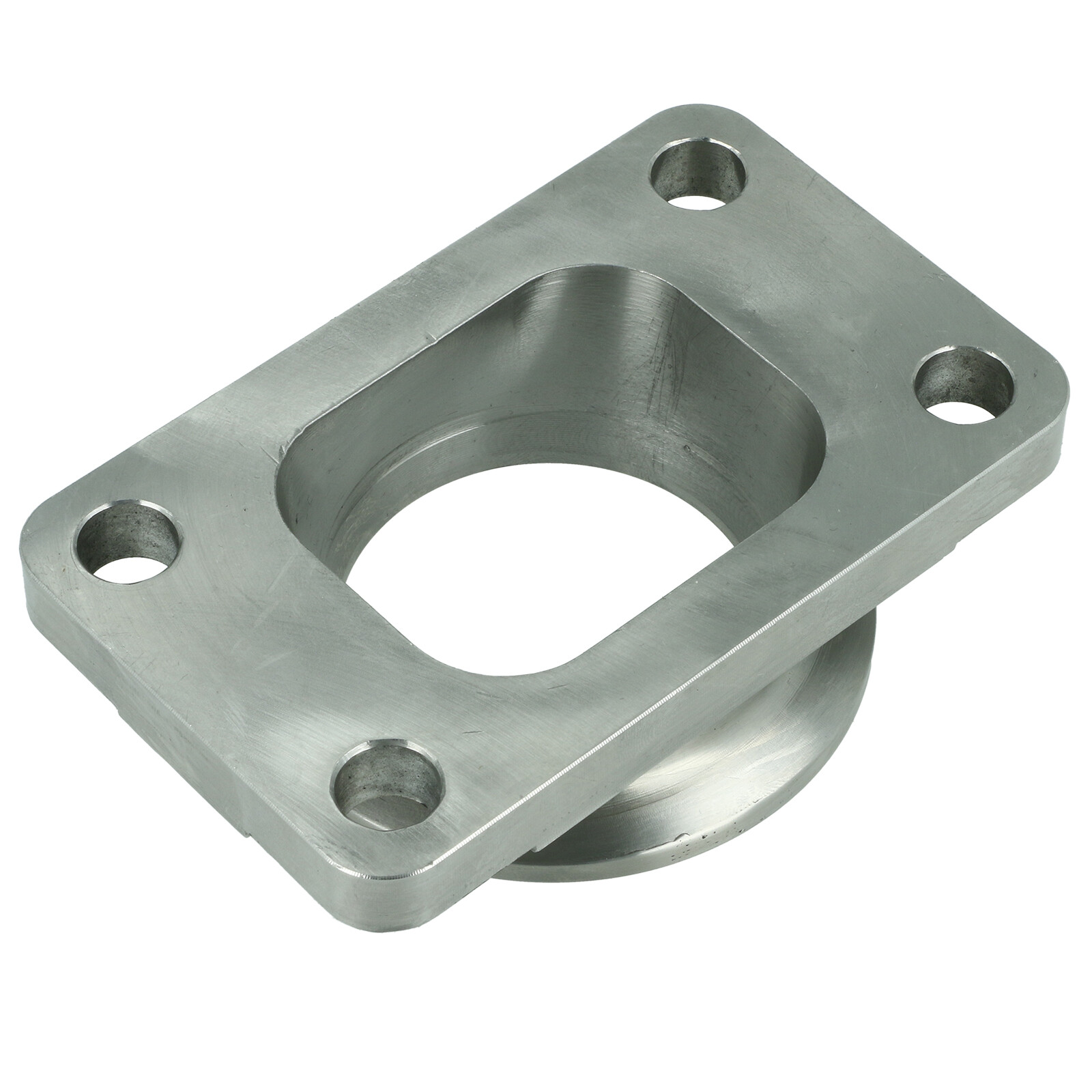

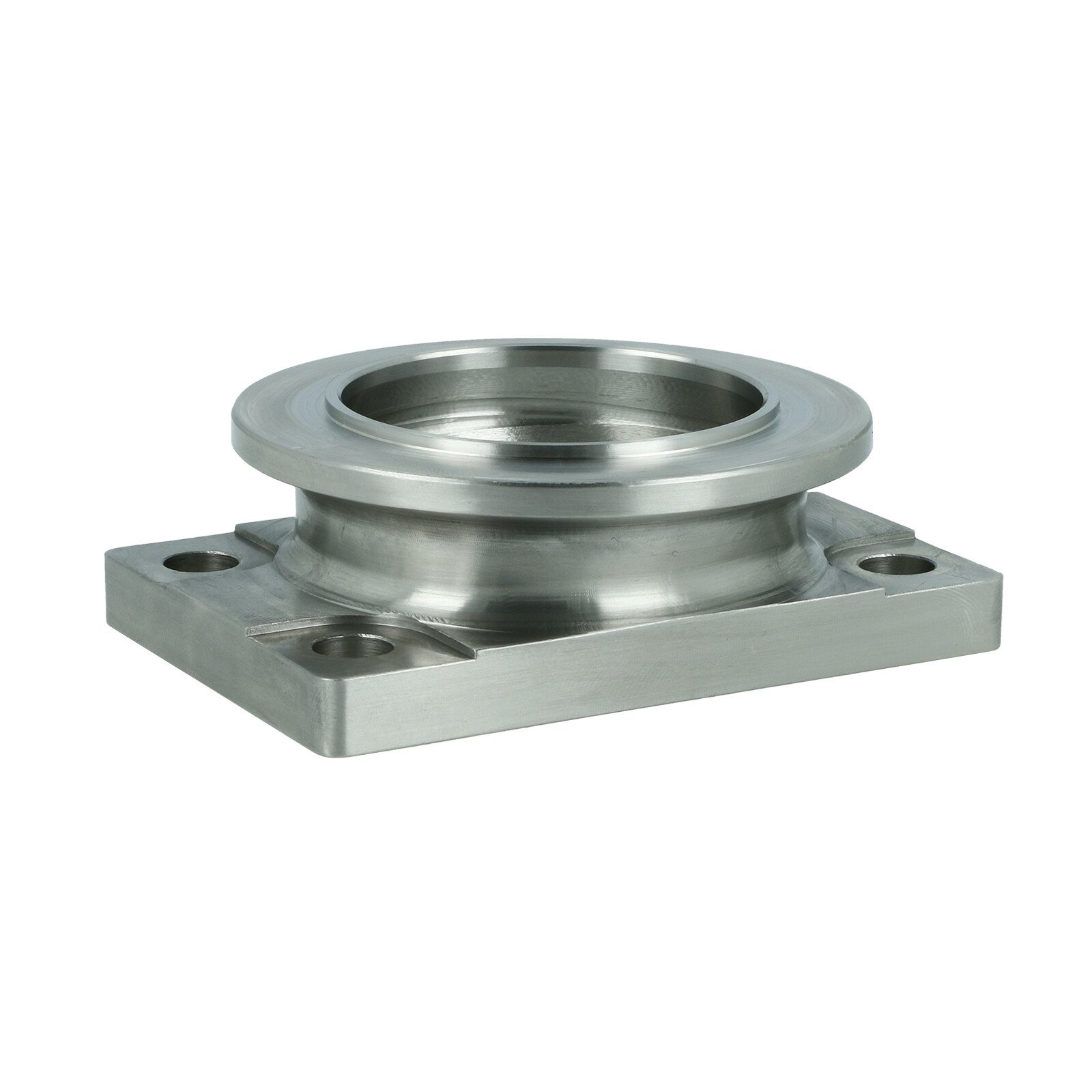

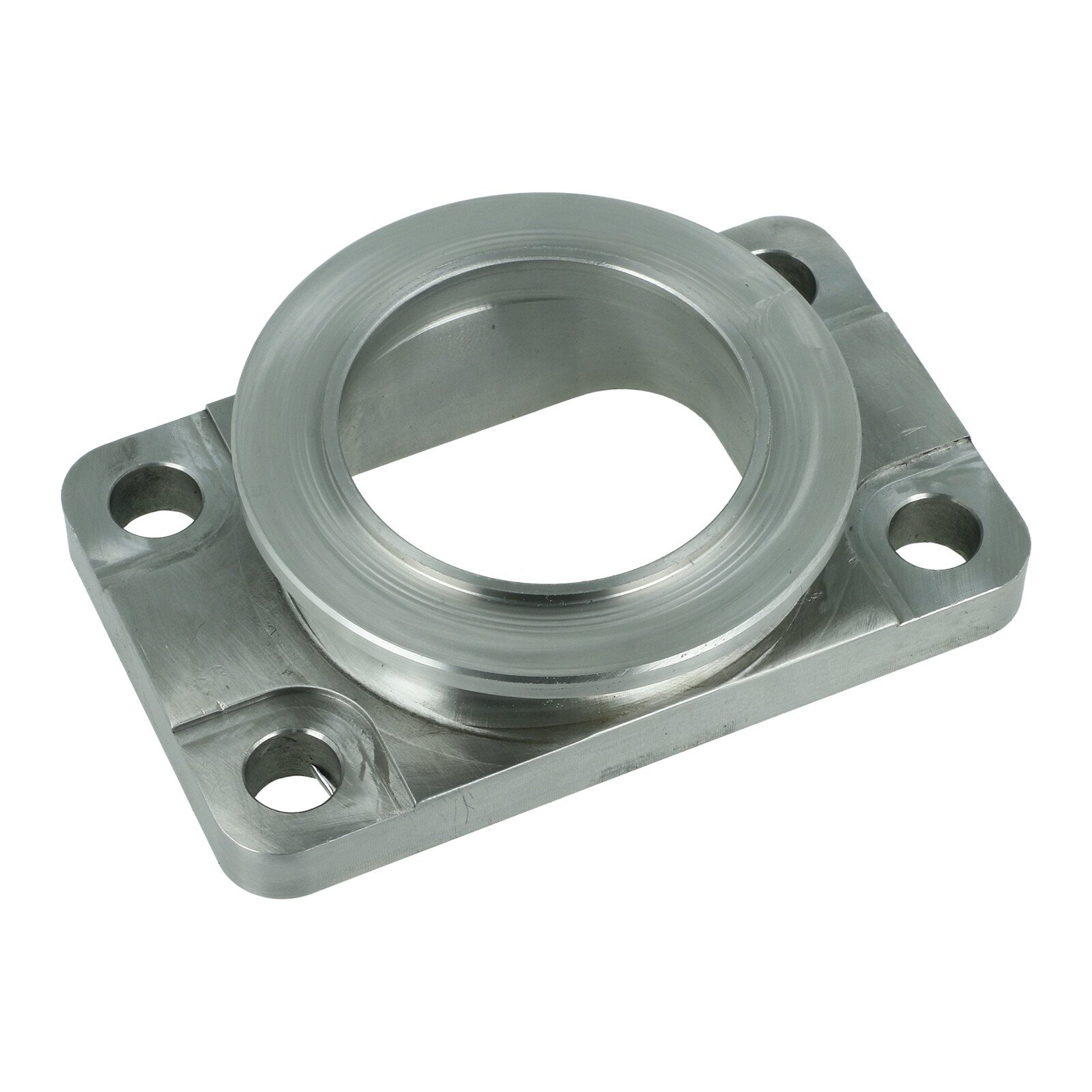

Stainless steel adapter flange for TiAL VBand exhaust housing to T3 manifold
High-quality stainless steel turbo flange adapter for GTX29 / GTX30 / GTX35 with TiAL V-Band turbocharger to T3 manifold
You have an TiAL GTX29 - GTX35 turbine housing/turbocharger with V-Band inlet but a turbo manifold with T3 flange? Then here is the solution.
The TurboZentrum has now produced a high quality stainless steel adapter flange from T3 manifold flange to GTX29 / GTX30 / GTX35 with TiAL V-Band turbine housing (inlet). The adapter is CNC machined of high premium stainless steel and is therefore extremely heat resistant (1200°C) and thanks to the CNC process very flow-favorable.
The flange is used to mount a turbocharger with V-Band inlet flange on the turbine housing on a turbo manifold with T3 flange. This makes it very popular with all GTX29 / GTX30 / GTX35 with TiAL V-Band turbine housings.
The TurboZentrum offers a wide range of turbo flanges, whether manifold, turbocharger or downpipe. We also supply pipe bends and headers for the construction of turbo manifolds. All flanges are cast, water-jet cut or CNC milled in order not to warp during the cutting process. As well as 100% flat and high quality. We select the material thickness from experience in the optimal strength.
Material: 1.451 stainless steel
Overall height: 30 mm
Overall width: 67 mm
Overall length: 108 mm
Flange on turbocharger: V-Band
Flange on turbo manifold: T3
For / Fits:
All turbo manifolds with T3 flange
And all TiAL turbochargers turbine housings with V-Band inlet flange on exhaust housing, for example:
TiAL with GTX29 turbine housings
TiAL with GTX30 turbine housings
TiAL with GTX35 turbine housings
- Flange type: V-BandT3 undivided / SingleScroll
- Availability: to order
- Material: Stainless Steel
- Model: Adapter flange
